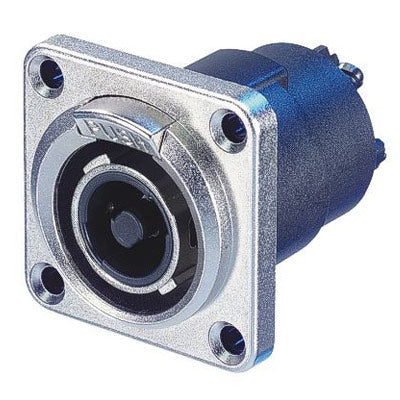

Neutrik NLT4FP STX 4 Pole SpeakON Chassis Mount Speaker Receptacle
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
4 pole female chassis connector, metal housing, solder contacts. The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.STX chassis connectors are airtight for audio applications (leakage 30 cm3/s at 10 kPa differential pressure) unless otherwise stated.
Features:- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available Speakon products
| Product | |
| Connector Type | Speakon |
| Gender | female |
| Electrical | |
| Contact resistance | < 2 mohms (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 10 Gohms (after dampheat) |
| Rated current per contact | 40 A rms continuous |
| Rated current per contact | 50 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wire size | 6 mm_ |
| Wire size | 10 AWG |
| Wiring | Solder contacts |
| Locking device | Quick Lock |
| Mounting direction | front / rear |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Spring Copper (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | Zinc diecast (ZnAl4Cu1) Ni |
| Environmental | |
| Approvals | |
| Flammability | UL 94 HB |
| Protection class | IP 54 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 ¡C to +80 ¡C |
