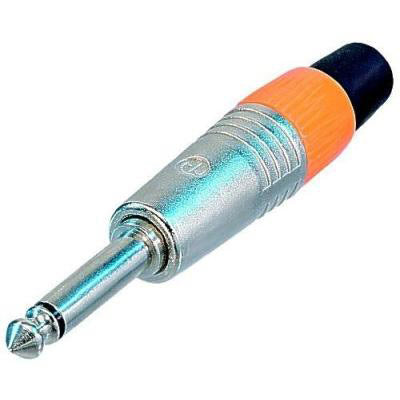

Neutrik NP2C 1/4" Mono Male Phone Connector Nickel/Silver
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Neutrik NP2C 1/4" Mono Male Phone Connector Nickel/Silver
Sale price$2.97
Regular price$4.12
Description
2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Features:
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connectorÊmΩ |
| Dielectric strength | 1ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | ≥ 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | ≤ 15ÊA |
| Mechanical | |
| Cable O.D. | 4 - 7Êmm |
| Wire size | 1Êmm_ |
| Wire size | 18ÊAWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +65Ê¡C |
2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts
Professional phone plug with robust metal shell and chuck type strain relief.
Features:
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
| Product | |
| Connector Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connectorÊmΩ |
| Dielectric strength | 1ÊkVdc |
| Insulation resistance | > 2ÊGΩÊ(initial) |
| Insulation resistance | ≥ 1ÊGΩÊ(after damp heat test) |
| Rated current per contact | ≤ 15ÊA |
| Mechanical | |
| Cable O.D. | 4 - 7Êmm |
| Wire size | 1Êmm_ |
| Wire size | 18ÊAWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 ¡C to +65Ê¡C |
