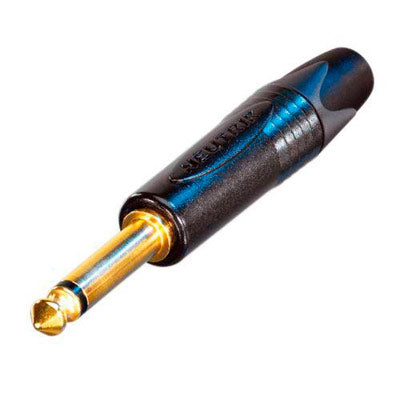

Neutrik NP2X-B-D X-Series 1/4in Phone Plug with Gold Contacts - Black


  • Dale #:

    NEUT-NP2XBD
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4 plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest d... Read More

Free Shipping (orders over $99)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4 plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.2 pole 1/4 professional phone plug, gold contacts, black shell

Features:
  • Extra slim 1/4 plug for highest packing density
  • Robust diecast shell in stylish design
  • Improved chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

More +

Product Specs

Product
Connector TypePlug
Gendermale
Electrical
Contact resistance depends on mating connector mOhms
Dielectric strength 1 kVdc
Insulation resistance> 2 GOhms (initial)
Insulation resistance>=1 GOhms (after damp heat test)
Rated current per contactdepends on mating connector A
Rated voltage50 V
Mechanical
Cable O.D.4 - 7 mm
Lifetime> 1000 mating cycles
Wire size1 mm²
Wire size18 AWG
WiringSolder contacts
Material
BushingPolyacetal (POM) + PU
Contact platingContact plating
Contacts Brass (CuZn39Pb3)
InsertPolyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chromium
Strain reliefPolyacetal (POM)
Environmental
Standard complianceIEC 60603-11 / EIA RS-453
SolderabilityComplies with IEC 68-2-20
Temperature range-20 °C to +65 °C

More +
