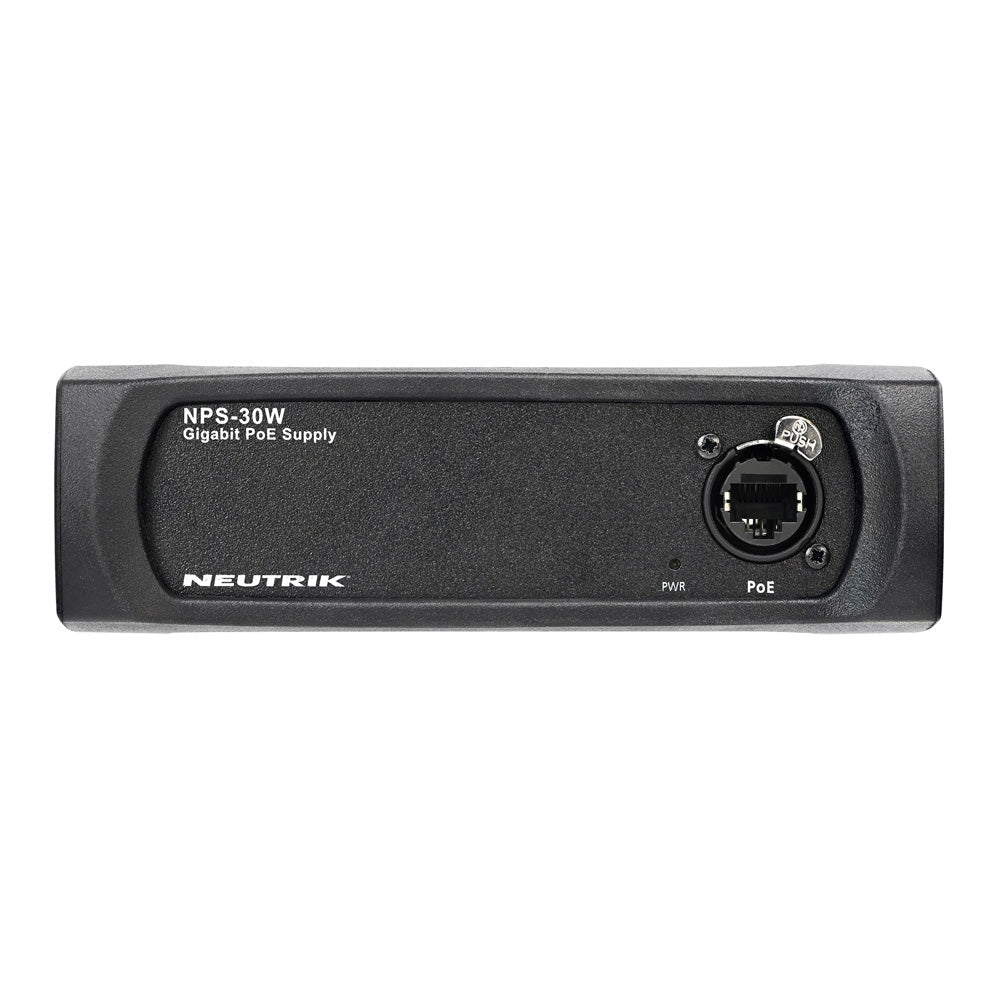

Neutrik NPS-30W-B - PoE Injector with USA Power Cord
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
NPS-30W is Neutrik's answer to increasing demand for PoE injectors. It is the world's first PoE injector made for harsh stage conditions, with lockable power and network connectors. NPS-30W is a convenient companion for any PoE application, not just Neutrik's network products.
Features:
- Perfect use with Neutrik network devices, such as the NA2-IO-DPRO, etc.
- For use with any other network device, that requires PoE supply
- Lockable power and network connectors
- Heavy duty PoE supply for rugged stage conditions
- 30 W PoE budget
- 1 Gbps speed
- 48 V DC power output
- Different mounting options (rack, truss, floorbox, table mounting)
As a passive Power Sourcing Equipment device, NPS-30W acts like a classic power supply, requiring no power negotiation with attached powered devices. NPS-30W's total power budget of 30W allows it to simultaneously power, for example, up to 4 NA2-IO-DPROs in daisy-chain mode, making NPS-30W ideal for various scenarios such as ambient miking.
All available mounting accessories for Neutrik's network devices - for rack, truss, floorbox, and table mounting - are compatible with NPS-30W.
| Electrical specifications | |
| Input voltage range | 100 Ð 240 VAC |
| Input frequency range | 50 Ð 60 Hz |
| Input max. current | 0.75 A |
| Output voltage | 48 VDC |
| Output max. current | 0.63 A |
| Rated Power | 30 W |
| Mechanical specifications | |
| Weight | 0.53 kg / 1.17 lbs |
| Dimensions (with rubber protection) | L = 164 mm (6.4 inches) B = 82 mm (3.2 inches) H = 51 mm (2.0 inches) |
| Dimensions (without rubber protection) | L = 151 mm (5.9 inches) B = 66 mm (2.6 inches) H = 41 mm (1.6 inches) |
| Operating environment | Indoor |
| Operating temperature | Ð5¡C to +50¡C |
| Storage temperature | Ð40¡C to +150¡C |
NPS-30W is Neutrik's answer to increasing demand for PoE injectors. It is the world's first PoE injector made for harsh stage conditions, with lockable power and network connectors. NPS-30W is a convenient companion for any PoE application, not just Neutrik's network products.
Features:
- Perfect use with Neutrik network devices, such as the NA2-IO-DPRO, etc.
- For use with any other network device, that requires PoE supply
- Lockable power and network connectors
- Heavy duty PoE supply for rugged stage conditions
- 30 W PoE budget
- 1 Gbps speed
- 48 V DC power output
- Different mounting options (rack, truss, floorbox, table mounting)
As a passive Power Sourcing Equipment device, NPS-30W acts like a classic power supply, requiring no power negotiation with attached powered devices. NPS-30W's total power budget of 30W allows it to simultaneously power, for example, up to 4 NA2-IO-DPROs in daisy-chain mode, making NPS-30W ideal for various scenarios such as ambient miking.
All available mounting accessories for Neutrik's network devices - for rack, truss, floorbox, and table mounting - are compatible with NPS-30W.
| Electrical specifications | |
| Input voltage range | 100 Ð 240 VAC |
| Input frequency range | 50 Ð 60 Hz |
| Input max. current | 0.75 A |
| Output voltage | 48 VDC |
| Output max. current | 0.63 A |
| Rated Power | 30 W |
| Mechanical specifications | |
| Weight | 0.53 kg / 1.17 lbs |
| Dimensions (with rubber protection) | L = 164 mm (6.4 inches) B = 82 mm (3.2 inches) H = 51 mm (2.0 inches) |
| Dimensions (without rubber protection) | L = 151 mm (5.9 inches) B = 66 mm (2.6 inches) H = 41 mm (1.6 inches) |
| Operating environment | Indoor |
| Operating temperature | Ð5¡C to +50¡C |
| Storage temperature | Ð40¡C to +150¡C |
