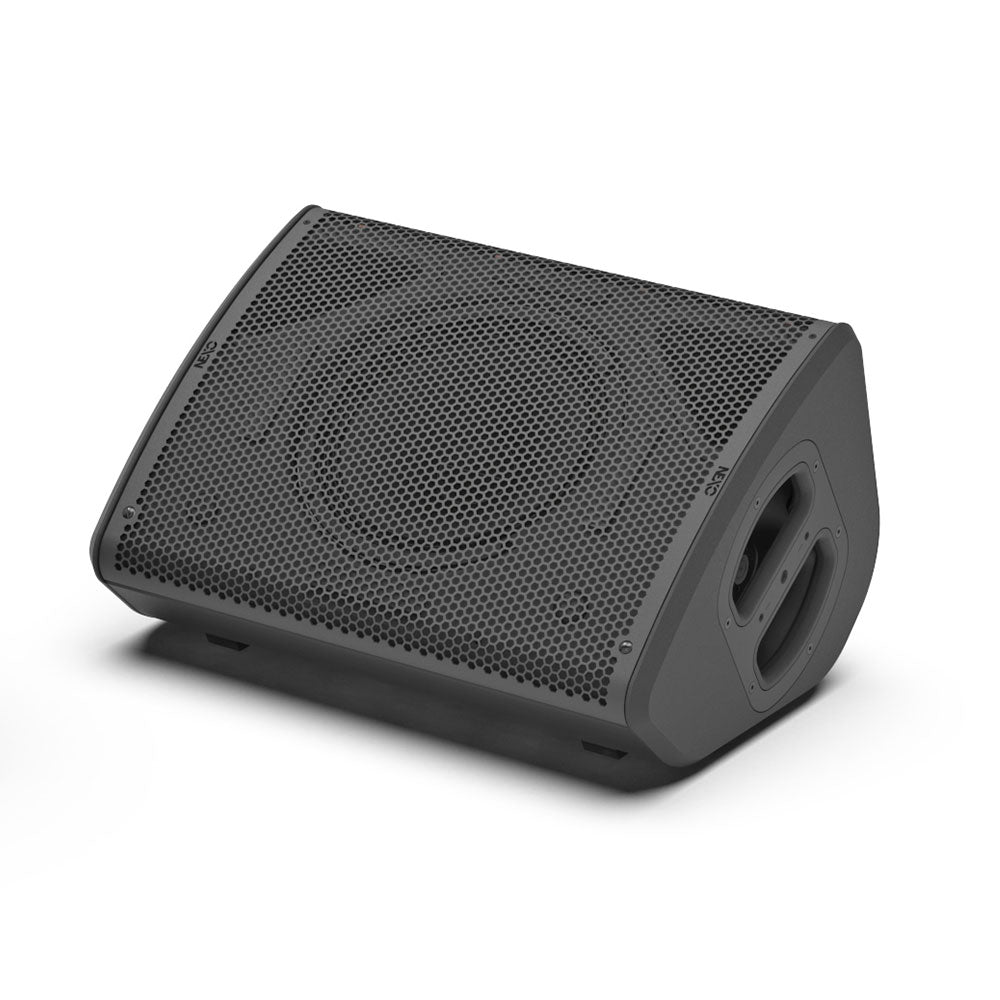

NEXO P10 Coaxial 2-Way 10-Inch Point Source Passive Loudspeaker

  • Dale #:

    NEXO-P10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application. This expertise is now applied to the P10, featuring a new extremely powerful coaxial 10” speaker and lots of innovation, making it unique in its category. ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

NEXO has always been well-known for its compact and very powerful versatile point source speakers, ideal in both FOH and wedge application. This expertise is now applied to the P10, featuring a new extremely powerful coaxial 10” speaker and lots of innovation, making it unique in its category.

Features:

  • Extremely powerful (136 dB peak) point source that can be used for FOH or monitor, with or without its companion sub the L15.
  • Lightweight (15 kg / 33 lbs) design using custom made 15 mm Birch and Poplar bent plywood.
  • Modular directivity: from the Standard 100°x100° horn to the rotating 110°x60° in a few seconds.
  • Quick release Magnelis® steel grille for easy access to the magnetic horns.
  • Dual ultra-low distortion shaped bass port.
  • Comprehensive range of versatile, accessories for deploying the P10 in a wide variety of applications for both touring and fixed installation.


Advanced NEXO technology included

The P10 enclosure uses a 15 mm custom-made bent plywood shell, with poplar veneer for the inside layers and birch on the outside. The result is a robust enclosure with exceptionally good sound quality and light weight.

The bass-reflex tuning is done through twocomputer optimized shaped port which guarantee ultra-low distortion even at very high level.

Two large comfortable handles on each side (on Touring version only) hold a 35 mm pole stand adapter and a Speakon® connector for discrete connection when on pole stand or in wedge monitor mode.

The back plate holds two other Speakon® connectors.

The custom-designed common neodymium magnet coaxial driver with a 2.5” voice coil for the 10” LF driver and a 1.7” diaphragm for the HF motor is the heart of the P10 and responsible both for its smooth, clean sound and impressive power.

The cooling system of the LF driver has been carefully designed to ensure outstanding power handling for a speaker in this category.

One box fits all applications
Thanks to its fully symmetric design, there is no left or right version of the P10 and all speakers in inventory can be the same. To match even more precisely every possible application the directivity of the P10 can be changed in seconds through the addition of an optional magnetic horn.

As standard, the P10 uses a 100°x100° horn, but the front steel grille can be quickly removed without tools (on Touring version only) and the optional rotatable 110°x60° horn can be fitted to change the dispersion characteristics of the P10.

For each horn a dedicated setup is available on the NXAMP powered controller to ensure perfect coverage at any frequency.

P10 acoustic phase response is NEXO phase signature allowing inter-operability between all NEXO speakers at all crossover points, except for the monitor setups where latency is minimized.

More +

Product Specs

Frequency Response @-6 dB 63 Hz to 20 kHz
Peak SPL@1m 136 dB Peak
Operating Voltage 50 Vrms (150 Vpeak)
HF Dispersion (according to horn) 100°x100° (Default) - 110°x60° (with 110x60 optional horn)
Crossover Frequency 63 Hz, 85 Hz
Nominal Impedance 8 ohms
Components 1 x Coaxial Neodymium LF 10” 8 Ohms long excursion & HF 1.7“ 8 Ohms
Number of ways 2 ways passive
Connectors 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Rigging points 1 x universal accessory fit on each side + 1 x on the bottom
Material Custom made bent plywood of baltic birch and poplar
Finish Black or White structural paint
Front Finish Magnelis® steel front grille + back mesh
Height x Width x Depth 497 mm x 384 mm x 274mm (19.6” x 15.2” x 10.8”)
Weight: Net 15 kg (33 lbs)
Operating temperature range 0°C - 40 °C (32° F - 104° F)
Storage temperature range -20 °C - 60 °C (-4 ° F - 140° F)
Recommended powering solution NXAMP4x1mk2 Powered TDcontroller: 1 x P10 per channel
Optional powering solution DTDcontroller + DTDAMP4x1.3 : up to 2 x P10 per channel
NXAMP4x2mk2 Powered TDcontroller: up to 4 x P10 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 4 x P10 per channel
