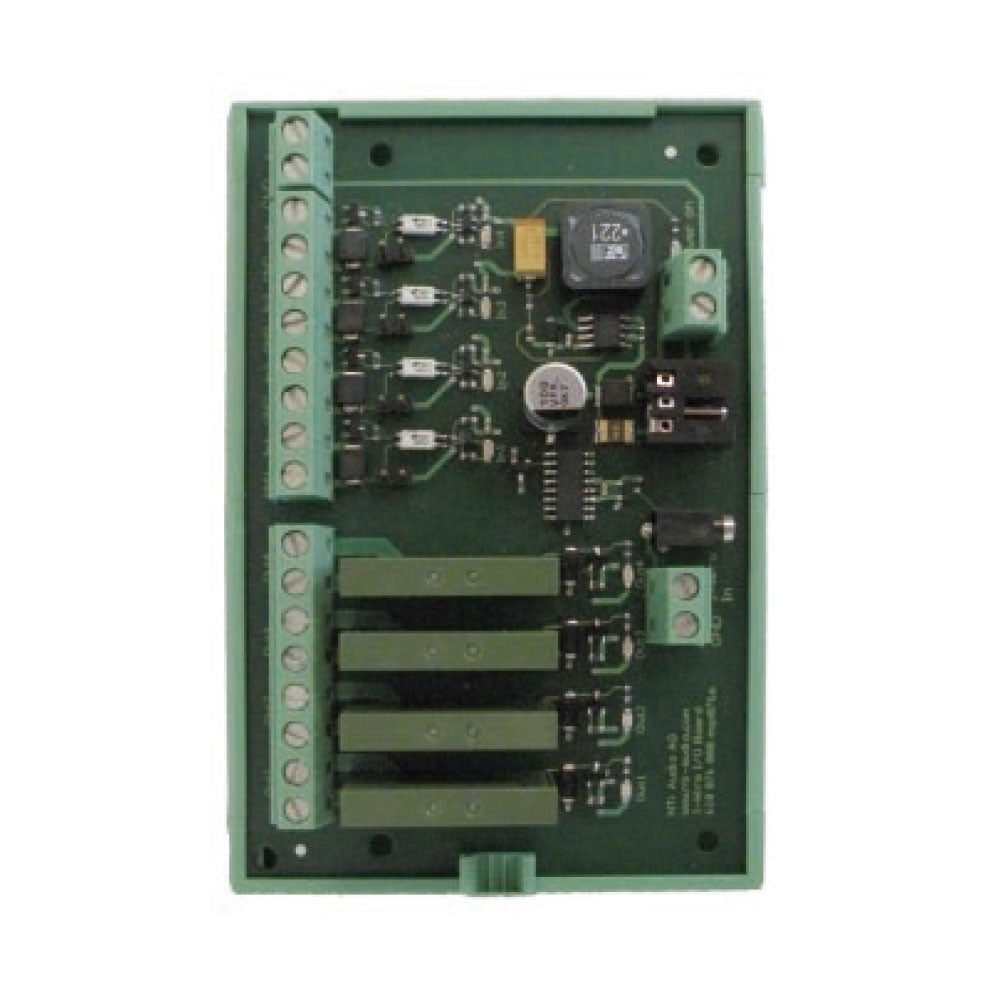

NTi Audio Digital I/O Adapter PCB for XL2

Sale price$685.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The XL2 Audio and Acoustic Analyzer together with the Digital I/O Adapter control external peripherals, such as displaying exceeding sound levels on a big red-orange-green lamp. Measurements can be started by an external switch. The Digital I/O Adapter connects to the digital I/O interface of the XL2 Analyzer.

    Features:

    • Offers 4 outputs for control of external peripherals
    • Switches up to 250 VAC at 6 A
    • Offers an input to start FFT or 1/12 Octave measurement
    • Controlled by XL2 Audio and Acoustic Analyzer

    Applications:

    • Sound level monitoring at live events
    • Control of external peripherals based on sound levels
    Outputs ¥ 4 individual outputs
    ¥ Connector type: mounting terminals
    ¥ Terminals mutually isolated
    ¥ Relay outputs switching @
    ¥ resistive load up to 250 VAC / 6 Ampere floating
    ¥ inductive load up to 250 VAC / 3 A, 24 VDC / 2 A
    Inputs ¥ 4 individual inputs
    ¥ XL2 uses input 1 to start the pass/fail measurement in the FFT and 1/12 Octave function
    (requires Spectral Limits Option)
    ¥ Connector type: mounting terminals
    ¥ Terminals mutually isolated
    ¥ Input level 3.3 - 24 VDC / 1.5 mA
    ¥ Inputs have common ground with external power
    supply at plugged-in jumpers J7 - J10
    ¥ Inputs floating at removed jumpers J7 - J10
    Status Indication Switches PCB LEDs for output activated, input on
    XL2 Control Connection cable included, length = 2 meter
    Termination:
    ¥ Ring - Common ground, black
    ¥ Tip - Signal, white
    Installation Only skilled and trained electrical personnel are authorized to carry out installations.
    Rail mount:
    ¥ Installation on mounting rails type NS 32, NS 35/7.5
    PCB only:
    ¥ Mounting with M3 screws
    ¥ Use isolating washers for mounting into a metalhousing
    ¥ Required installation height is 25 mm, 1Ò
    Power Supply ¥ External power supply via terminals to be provided
    ¥ Power supply range 6 - 24 VDC, 1 W
    Cascading Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included)
    Dimensions W x H x D Rail mount: 180 x 77 x 60 mm, 7.09Óx 3.03Óx 2.36Ó
    PCB only: 110 x 72 x 20 mm, 4.33Ó x 2.83Ó x 0.79Ó
    Temperature -10 ¡C to +50 ¡C (14¡ to 122 ¡F)
    Humidity < 90% RH (non-condensing at 50 ¡C, 122 ¡F)
    Weight Rail mount: 127 g, 0.28 lbs
    PCB only: 73 g, 0.16 lbs
    Standards CE compliant:
    ¥ EN 61326-1 Class B
    ¥ EN 55011 class B, EN 61000-4-2 to -6 and -11
    Safety EN 60 065, EN 61 010-1:2001, class II
    NTi Audio # 600 000 380

    The XL2 Audio and Acoustic Analyzer together with the Digital I/O Adapter control external peripherals, such as displaying exceeding sound levels on a big red-orange-green lamp. Measurements can be started by an external switch. The Digital I/O Adapter connects to the digital I/O interface of the XL2 Analyzer.

    Features:

    • Offers 4 outputs for control of external peripherals
    • Switches up to 250 VAC at 6 A
    • Offers an input to start FFT or 1/12 Octave measurement
    • Controlled by XL2 Audio and Acoustic Analyzer

    Applications:

    • Sound level monitoring at live events
    • Control of external peripherals based on sound levels
    Outputs ¥ 4 individual outputs
    ¥ Connector type: mounting terminals
    ¥ Terminals mutually isolated
    ¥ Relay outputs switching @
    ¥ resistive load up to 250 VAC / 6 Ampere floating
    ¥ inductive load up to 250 VAC / 3 A, 24 VDC / 2 A
    Inputs ¥ 4 individual inputs
    ¥ XL2 uses input 1 to start the pass/fail measurement in the FFT and 1/12 Octave function
    (requires Spectral Limits Option)
    ¥ Connector type: mounting terminals
    ¥ Terminals mutually isolated
    ¥ Input level 3.3 - 24 VDC / 1.5 mA
    ¥ Inputs have common ground with external power
    supply at plugged-in jumpers J7 - J10
    ¥ Inputs floating at removed jumpers J7 - J10
    Status Indication Switches PCB LEDs for output activated, input on
    XL2 Control Connection cable included, length = 2 meter
    Termination:
    ¥ Ring - Common ground, black
    ¥ Tip - Signal, white
    Installation Only skilled and trained electrical personnel are authorized to carry out installations.
    Rail mount:
    ¥ Installation on mounting rails type NS 32, NS 35/7.5
    PCB only:
    ¥ Mounting with M3 screws
    ¥ Use isolating washers for mounting into a metalhousing
    ¥ Required installation height is 25 mm, 1Ò
    Power Supply ¥ External power supply via terminals to be provided
    ¥ Power supply range 6 - 24 VDC, 1 W
    Cascading Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included)
    Dimensions W x H x D Rail mount: 180 x 77 x 60 mm, 7.09Óx 3.03Óx 2.36Ó
    PCB only: 110 x 72 x 20 mm, 4.33Ó x 2.83Ó x 0.79Ó
    Temperature -10 ¡C to +50 ¡C (14¡ to 122 ¡F)
    Humidity < 90% RH (non-condensing at 50 ¡C, 122 ¡F)
    Weight Rail mount: 127 g, 0.28 lbs
    PCB only: 73 g, 0.16 lbs
    Standards CE compliant:
    ¥ EN 61326-1 Class B
    ¥ EN 55011 class B, EN 61000-4-2 to -6 and -11
    Safety EN 60 065, EN 61 010-1:2001, class II
    NTi Audio # 600 000 380
