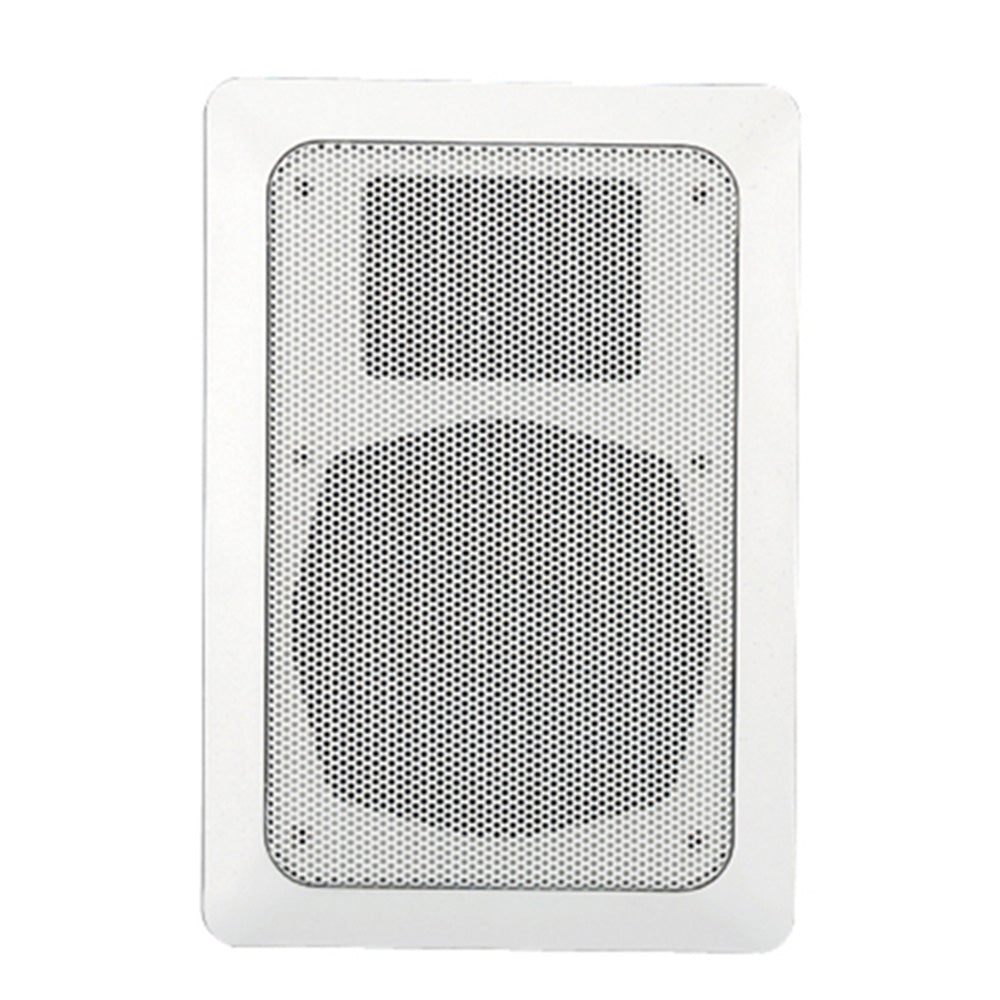

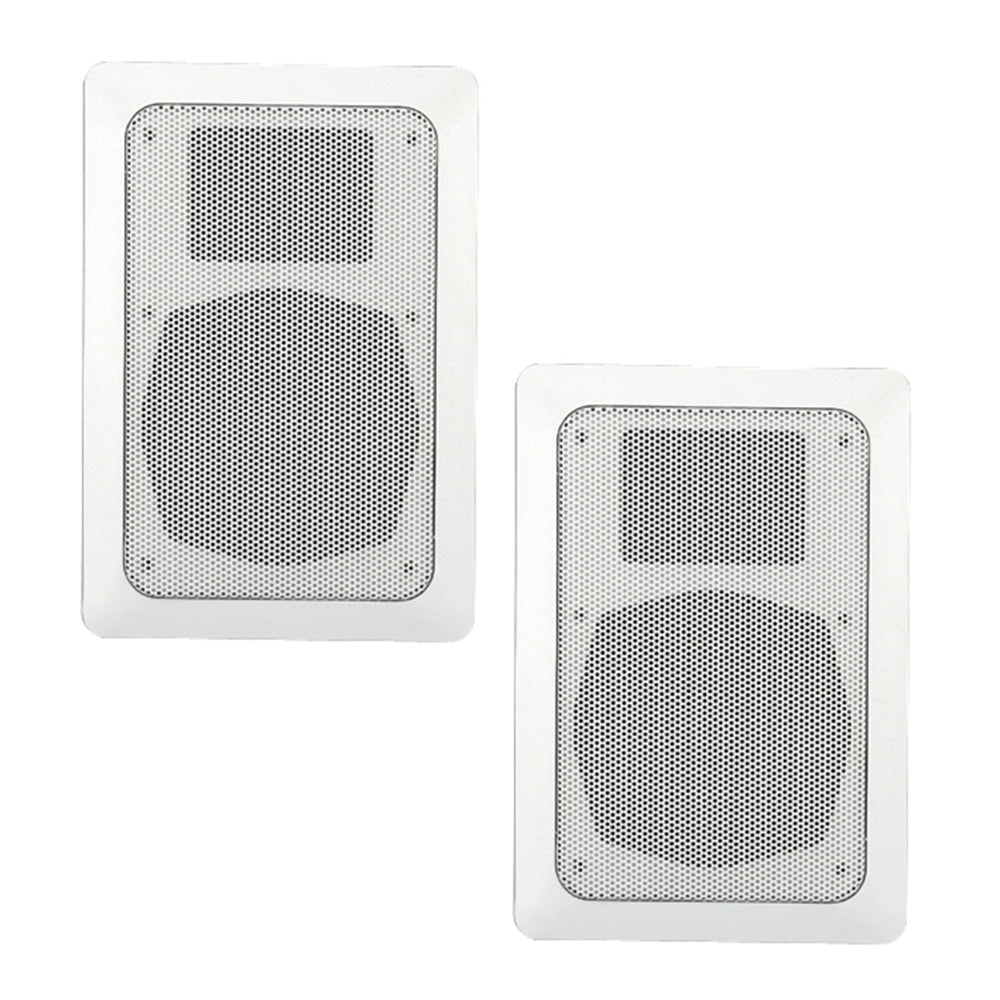

Peavey WS 52T Two-Way Full-Range 100W Ceiling/Wall Speaker - White / Pair

  • Dale #:

    PEAV-00570690
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Please Note: Limited Quantity Available

Description

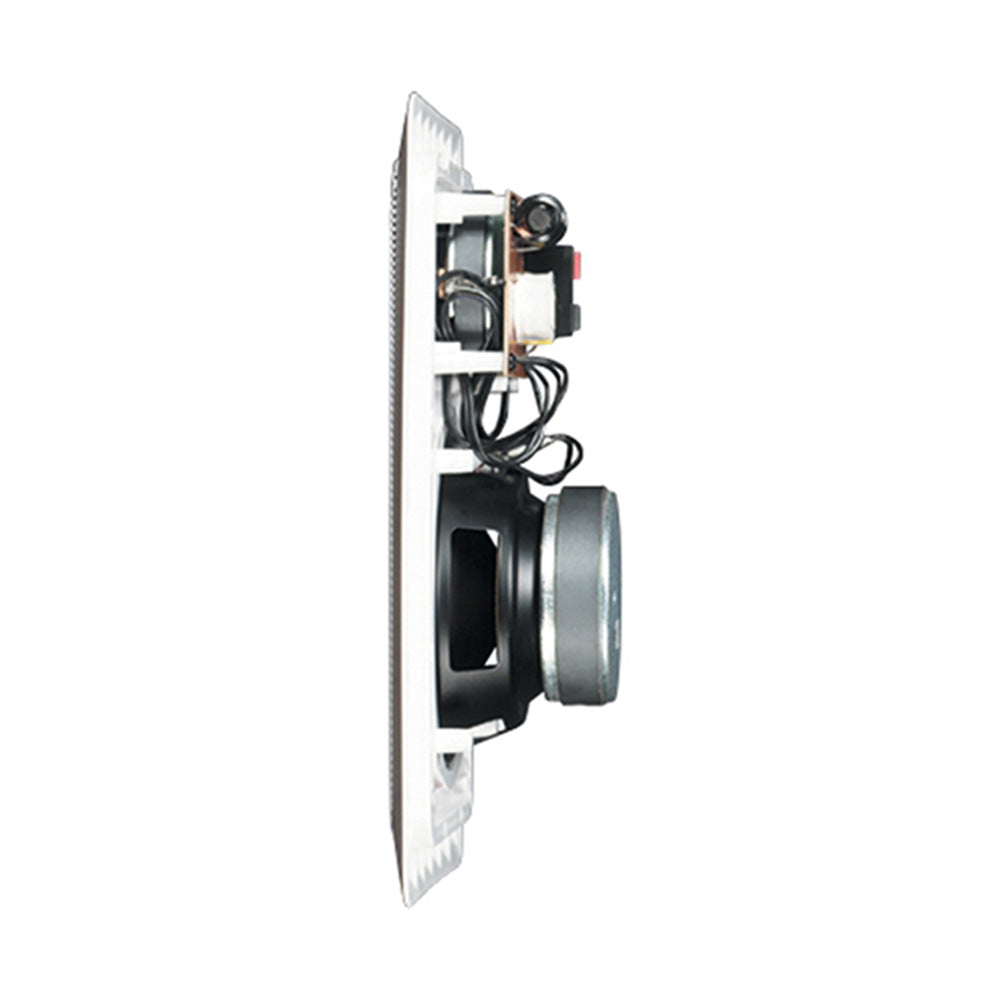

The WS™ 52T full-range, two-way in-wall speaker consists of a 5″ woofer and one swivel 1″ silk dome tweeters. A mounting (rough-in) frame is not required when the speakers are installed in existing construction or a retrofit application. The WS 52T features a 70V/100V line matching transformer fo... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The WS™ 52T full-range, two-way in-wall speaker consists of a 5″ woofer and one swivel 1″ silk dome tweeters. A mounting (rough-in) frame is not required when the speakers are installed in existing construction or a retrofit application. The WS 52T features a 70V/100V line matching transformer for constant voltage systems, and spring clip wiring connections to simplify installation. The WS 52T in-wall speakers are sold as pairs.

Features:

  • Frequency Response: 68 Hz to 18 kHz, +/- 3 dB
  • Power Handling: 50 watts
  • Impedance 8 Ω
  • Sensitivity: 88 dB ±3dB ,1m,1W
  • Transformer Taps:  20W, 10W, 5W, 2.5W (100V), 70V capable
  • 5.25" woofer
  • 1" dome tweeter
  • Crossover Frequency: 4 kHz
  • Outside Dimensions: 11" x 7.5" (Outermost Diameter x Overall Depth)
  • Cutout Diameter: 9.563" x 6.125" x 2.75" (HxWxD)
  • Full-range, two-way system
  • Adjustable tweeter angle
  • 100 watts program power handling
  • Easy, attractive install
  • White plastic frame and white metal grille can be painted any colour

More +

Product Specs

Speaker Configuration In Wall 2-way
Speaker Type Non-Powered
Power RMS 10, 5, 50 W @ 8 Ω – Selectable taps – 20, or 2.5W @ 70/100V
Nominal Impedance 8 Ω
Input Connectors Block Terminals
Enclosure Material ABS
Colour Options White
Net Weight 4.3 lbs (1.95 kg)
Product Height 11.00" (279 mm)
Product Width 7.50" (191 mm)
Product Depth 2.75" (70 mm)
Applications Casinos, Convention Centres, Corporate, Courts, Education, Hospitality, Houses of Worship, Installation, Retail, Stadiums, Theatres, Theme Parks, Transport
