DALE SKU # PHOE-N90DRC500BSTK

Phoenix Audio N90-DRC/500 Class A 500 Series Compressor Module - B-Stock

Sale price$599.00 Regular price$799.00
Save $200.00
  • Availability:

    In Stock
  • Available for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.

  • Condition: B-Stock
    This item was used in our demo room and is in excellent condition.
    Ships in the original packaging.


    LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The N90-DRC/500 compressor also known as the David Rees Compressor is an API 500 format series compressor & gate. This product was originally conceived 20 years ago by David Rees but was never fully released. The Phoenix N90-DRC/500 compressor/gate is designed around a VCA control with Class A discrete input and Class A transformer balanced output. The N90-DRC/500 is intended to be driven 'by ear' .There are no optimum settings that would cover all situations. It is intended to be very musical and smooth and has quite a wide ranging effect. Musically the progressive curves are very kind - there is no sudden change on passing the threshold and audio processing is virtually seamless. Technically the progressive curves are achieved using linear detection combined with logarithmic attenuation inside a closed control loop. Limiter sound is still provided by the higher ratios and there is a choice of attack times. The gate is more conventional but it's release time is composite with a hold time followed by a fade time. This makes the gate very versatile in that as well as basic noise reduction it can also provide quite subtle changes to ambience or background.

    API 500 series compatible rack unit:
    Class A (DSOP2) Output specs . Frequency response: 20Hz to 20kHz +- 0.5dB,
    Maximum Output gain = +15dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz, maximum output from unit is +26db.
    Input connections: XLR input on rear of API compatible rack
    Phoenix Audio’s unique Class A, transformer-less, True electronically balanced buffer amp input stage.

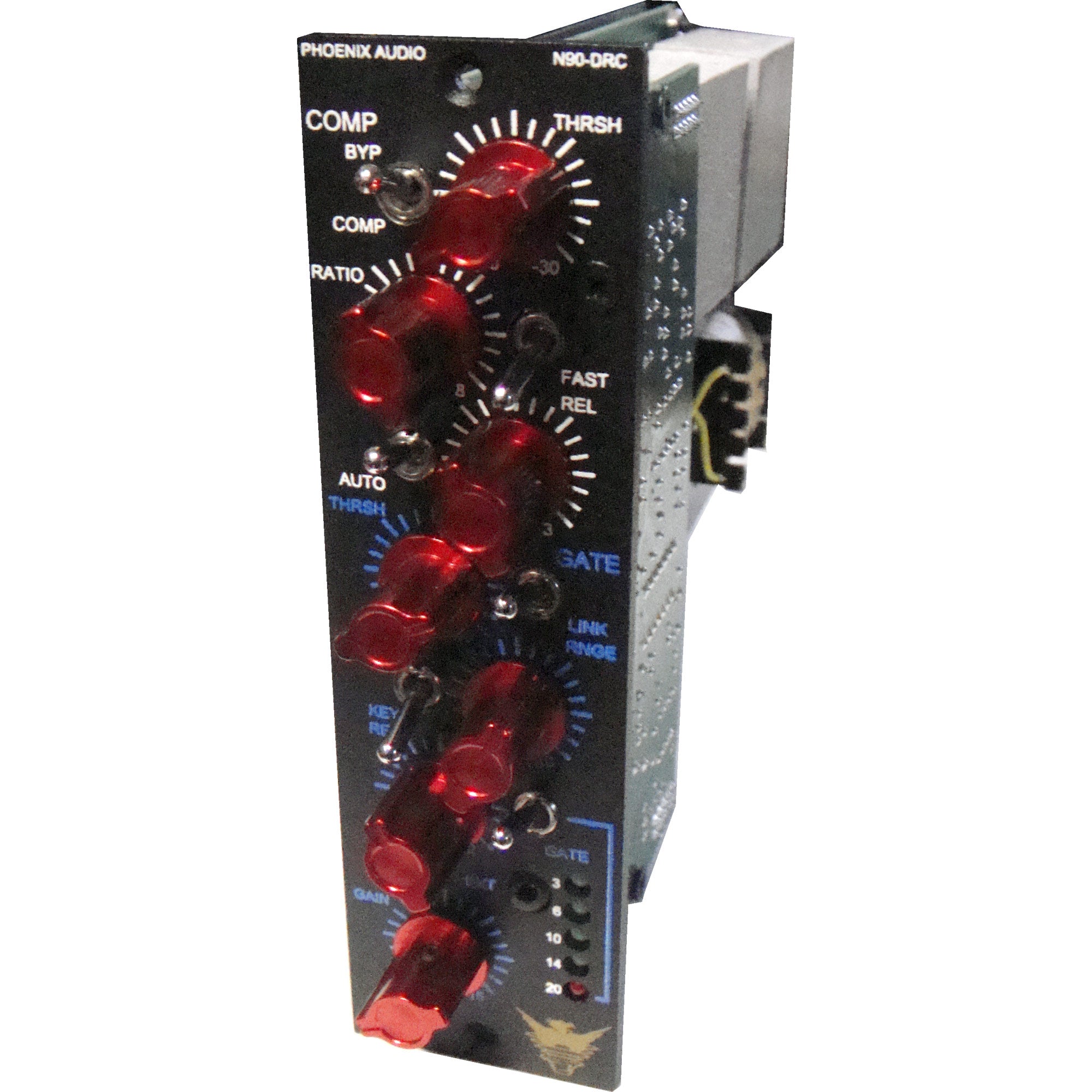

    Compressor Section Rotary Controls:
    Threshold Settings: From +10db to -30db
    Ratio Settings: From 2 to 8
    Release Settings: Release time of 0.1 seconds to 3 seconds

    Compressor Section Switches
    Bypass : engages or bypasses compressor section
    Fast : Fast or slow release times
    Auto : Auto release of compression

    Gate Section Rotary Controls:
    Threshold Settings: From 0db to -40db
    Range Settings: From 40 to 10
    Release Settings: Release time of 0.1 seconds to 2 seconds

    Gate Section Switches:
    Link: Ability to link multiple modules (up to 8).
    Key: External input for gate section, connector is a TT Bantam connector
    Gate: Switches the Gate in and out
    Compression Meter: LED Metering. (Green = -3dbu, -6dbu -10dbu & -14dBu, Red=
    -20dBu and doubles as the Gate Active LED)
    Typical Max Headroom: +26dB on output stage

    The N90-DRC/500 compressor also known as the David Rees Compressor is an API 500 format series compressor & gate. This product was originally conceived 20 years ago by David Rees but was never fully released. The Phoenix N90-DRC/500 compressor/gate is designed around a VCA control with Class A discrete input and Class A transformer balanced output. The N90-DRC/500 is intended to be driven 'by ear' .There are no optimum settings that would cover all situations. It is intended to be very musical and smooth and has quite a wide ranging effect. Musically the progressive curves are very kind - there is no sudden change on passing the threshold and audio processing is virtually seamless. Technically the progressive curves are achieved using linear detection combined with logarithmic attenuation inside a closed control loop. Limiter sound is still provided by the higher ratios and there is a choice of attack times. The gate is more conventional but it's release time is composite with a hold time followed by a fade time. This makes the gate very versatile in that as well as basic noise reduction it can also provide quite subtle changes to ambience or background.

    API 500 series compatible rack unit:
    Class A (DSOP2) Output specs . Frequency response: 20Hz to 20kHz +- 0.5dB,
    Maximum Output gain = +15dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz, maximum output from unit is +26db.
    Input connections: XLR input on rear of API compatible rack
    Phoenix Audio’s unique Class A, transformer-less, True electronically balanced buffer amp input stage.

    Compressor Section Rotary Controls:
    Threshold Settings: From +10db to -30db
    Ratio Settings: From 2 to 8
    Release Settings: Release time of 0.1 seconds to 3 seconds

    Compressor Section Switches
    Bypass : engages or bypasses compressor section
    Fast : Fast or slow release times
    Auto : Auto release of compression

    Gate Section Rotary Controls:
    Threshold Settings: From 0db to -40db
    Range Settings: From 40 to 10
    Release Settings: Release time of 0.1 seconds to 2 seconds

    Gate Section Switches:
    Link: Ability to link multiple modules (up to 8).
    Key: External input for gate section, connector is a TT Bantam connector
    Gate: Switches the Gate in and out
    Compression Meter: LED Metering. (Green = -3dbu, -6dbu -10dbu & -14dBu, Red=
    -20dBu and doubles as the Gate Active LED)
    Typical Max Headroom: +26dB on output stage
