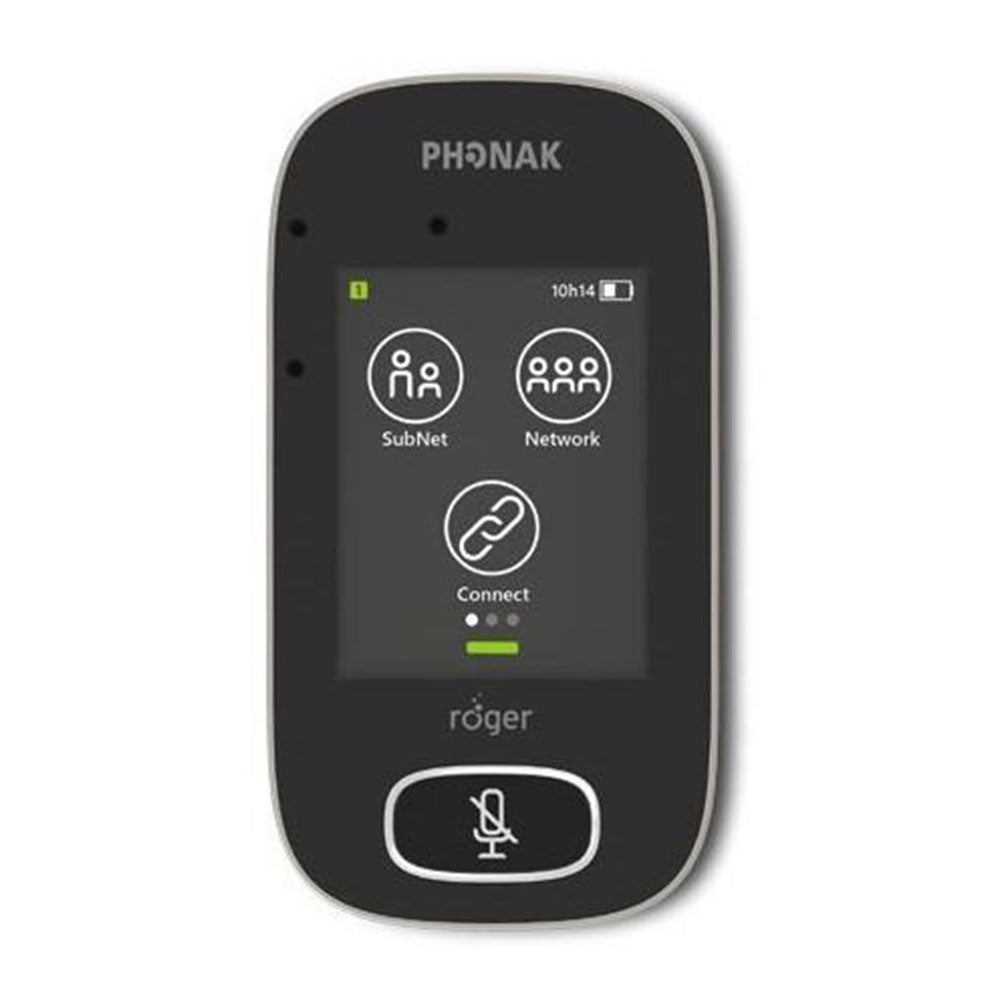

Phonak Roger Touchscreen Mic - Wireless IFB Transmitter with Microphone
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The handy Roger Touchscreen Mic combines the functionality of a mobile transmitter with a built-in microphone. Phonak's digital transmitting standard at 2,4GHz with fully automatic frequency hopping technology, ensure the seamless transmission of information to the in-ear receiver in the most challenging situations.
Features:
- Individual volume control function
- Naming of Roger Earpiece (read/write)
- License free 2.4 GHz transmission
- Built-in handheld microphone
- Touchscreen menu steering
- Operating time: 10 h
- Transmission range: 15–40 m (depending on environment)
- Rechargeable lithium polymer battery
- Weight: 94 g
- Dimensions: 104 x 55 x 16 mm
The Roger technology uses the latest digital standard and operates on the license-free 2.4 GHz band. The wireless Roger communication system includes a transmitter and features an advanced microphone, which is used by the speaker, and a virtually invisible receiver that is hidden in the listener's comfortable, tiny earpiece. Roger systems are ideal for people working in broadcasting and show business, who rely on seamless communication with directors, producers, and sound technicians. They are utterly discreet, easy to use and install, and offer unrivalled intelligibility.
| Dimensions (L x W x H) | 104 x 55 x 16 mm (4.1Ó x 2.1Ó x 0.6Ó) |
| Weight | 94 g (0.2 lbs) |
| Color | Champagne / black |
| Operating conditions | 0¡ to + 45¡ Celsius (+32¡ to +113¡ Fahrenheit) and relative humidity of <95% (non condensing) |
| Transport and storage conditions | -20¡ to +60¡ Celsius (-4¡ to +140¡ Fahrenheit) and relative humidity of 90% for a long period |
| Power and battery information | |
| Battery | Lithium polymer 3.7 V DC |
| Charging time | Approx. 2 hours Charging time depends on battery state The battery cannot be over-charged. It may become warm during charging. Important notice: It is recommended to only use the original Phonak charging unit. |
| Capacity | 1200 mAh |
| Operating time | Approx. 10 hours. Remaining operating time is displayed in the status bar |
| Charging input | Input: 100 - 240 V |
| Output | 5 VDC/1A |
| Connector | Micro-USB |
| Cable length | 1.3 m (4.2 feet) (charging or connection to computer for upgrade, service) |
| Microphones information | |
| Number of microphones | 3 embedded microphones |
| Type | 3-array microphone |
| Mode | Automatic, Small Group, Pointing, Lanyard |
| Accelerometer | Detects and monitors the microphone position, allowing to automatically activate the appropriate microphone mode |
| Usage information | |
| Touchscreen | 6.1 cm (2.4ÕÕ) color touchscreen User interface to activate/deactivate functions |
| Wearing option | Lanyard worn around neck Belt-clip (optional) |
| Lanyard | - Clip to easily clip or remove the device from the lanyard - Clip to adjust length and place the device 20 cm (8 inches) away from the talkers mouth - Safety breakaway |
| Compatible Roger receivers | Roger Earpiece |
| Number of Roger receivers in use in a Roger network | Unlimited |
| Compatible Roger transmitters | Roger BaseStation, Roger Touchscreen Mic |
| Number of Roger transmitters in use in a Roger network | Up to 35 Roger Touchscreen Mics and 1 Roger BaseStation per network |
| Optional accessories | Belt clip: Belt clip for Roger Touchscreen Mic. Power supply adapter : UK, AUS |
| Roger information | |
| Transmission technology | 2.4 GHz adaptive frequency hopping |
| Power emission | 100 mW |
| Operating range to Roger Earpiece | 15-40 m (49Ð131 ft) depending environment |
| Operating range for Connect feature | 10 cm (4Ò) |
| Standards applied | Electrical safety: IEC/ EN 60950-1 Radiocom 2.4 GHz: EN 300 328 EMC: EN 301.489-1,-3,-9,-17 FCC: Part 15C IC: RSS-247 SAR (2.4 GHz): EN 62209-2 SAR 1g = 0.10 W/kg SAR 10g = 0.05 W/kg |
| Audio information | |
| Audio input and output | Wired (3.5 jack) Tip-Left / Ring1-Right / Ring2-GND / Sleeve-Mic |
| Audio bandwidth | 100 Hz - 7200 Hz |
| SNR | 55 dB (@ 1 kHz) |
| THD | -42 dB (< 0.8 % @ 1 kHz) |
