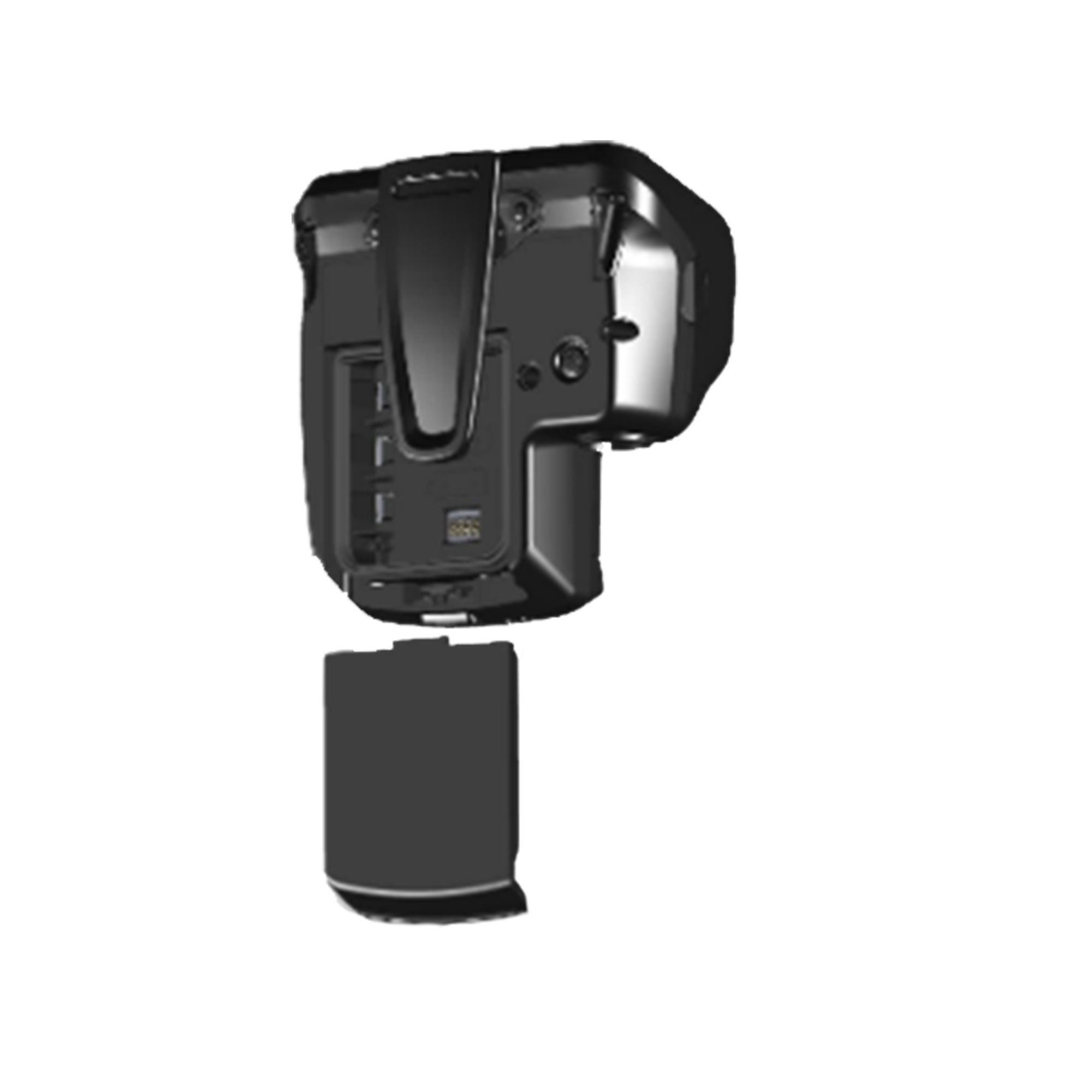

Pliant Technologies CRP-22-2400 2.4GHz CrewCom 2+2 Intercom Belt Pack
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Pliant Technologies CRP-22-2400 2.4GHz CrewCom 2+2 Intercom Belt Pack
Sale price$2,175.00
Description
The CrewCom® Radio Pack is a highly designed and innovative digital wireless beltpack used for connecting mobile users to the CrewCom® system. Along with standard full duplex communications, the radio pack combines flexible conference access and customizable controls for a highly functional yet familiar user experience.
Features:
- Compact size (Dimensions Here)
- Light weight (13 oz./ 910 g)
- 7 kHz audio achieved from using a new wideband CODEC
- Familiar volume/talk user interface
- Top-facing informative and easy-to-read LCD
- Customized workflow with dual assignable function buttons and an isolated wireless conference (ISO) function on every conference
- Access to any of up to 1024 available conferences
- Micro USB connection for pairing, firmware updates and battery charging
- Flexible dual battery (Li-Poly or AA) operation
- Greater than 10 hours of continuous operation (Li-Poly battery)
- Easy-to-use and secure spring-loaded belt clip
- Available CE compliant 2.4GHz models
- Includes Li-Poly battery and charger
What's In The Box:
- Radio Pack
- Lithium-Polymer Rechargeable Battery
- Battery Charger / Power Supply
- USB A to Micro B cable
- Product Overview Guide
- Warranty Extension Registration Card
| RF Frequency (MHz) | 2400Ð2483 MHz |
| RF Scheme | FHSS with TDMA |
| Effective Radiated Power | 100 mW (+20 dBm) |
| Receiver Sensitivity | -100 dBm at 10-5 BER |
| Radio Certification | FCCID: HSW-CCT24 and IC: 4492A-CCT24 |
| Transmission Range | 500 ft. (150 m) under typical conditions; 1500 ft. (450 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| Audio Dynamic Range | Greater than 90 dB |
| Audio Frequency Response | 150 HzÐ7 kHz |
| Conferences | 2 |
| Simultaneous Listen Paths | True Dual Listen |
| Volume Knobs | 2 |
| Talk Buttons | 2 |
| Headset Connector | 4-pin male XLR |
| Microphone Type | Auto Detect or Manual Select; Dynamic or Electret |
| LCD Display | 280 _ 64 resolution |
| Antenna | (2) 2dBi Dipole |
| Battery Life, Rechargeable Lithium-Polymer | Greater than 10 hours |
| Charging Power Supply | Micro USB; 6W AC wall adapter |
| Charge time for Lithium-Polymer Battery | Under 3 hours |
| Charge time via PC | Under 5 hours |
| Optional Power | 3 Standard AA alkaline batteries |
| Battery Life, Alkaline batteries | Approximately 5 hours |
| Dimensions (inches) | 4.5 in. _ 4.57 in. _ 2.31 in. (11.4 cm _ 11.6 cm _ 5.9 cm) |
| Weight (with Lithium-Polymer battery) | 13 oz. (910 g) |
| Material | Polycarbonate substrate with thermoplastic elastomer overmold |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity. RP Power Adapter is 0 to 40¡ C (32¡ to 104¡ F). |
| Maximum Altitude | 9,842 ft. (3,000 m) |
| RoHS Compliant | Yes |
The CrewCom® Radio Pack is a highly designed and innovative digital wireless beltpack used for connecting mobile users to the CrewCom® system. Along with standard full duplex communications, the radio pack combines flexible conference access and customizable controls for a highly functional yet familiar user experience.
Features:
- Compact size (Dimensions Here)
- Light weight (13 oz./ 910 g)
- 7 kHz audio achieved from using a new wideband CODEC
- Familiar volume/talk user interface
- Top-facing informative and easy-to-read LCD
- Customized workflow with dual assignable function buttons and an isolated wireless conference (ISO) function on every conference
- Access to any of up to 1024 available conferences
- Micro USB connection for pairing, firmware updates and battery charging
- Flexible dual battery (Li-Poly or AA) operation
- Greater than 10 hours of continuous operation (Li-Poly battery)
- Easy-to-use and secure spring-loaded belt clip
- Available CE compliant 2.4GHz models
- Includes Li-Poly battery and charger
What's In The Box:
- Radio Pack
- Lithium-Polymer Rechargeable Battery
- Battery Charger / Power Supply
- USB A to Micro B cable
- Product Overview Guide
- Warranty Extension Registration Card
| RF Frequency (MHz) | 2400Ð2483 MHz |
| RF Scheme | FHSS with TDMA |
| Effective Radiated Power | 100 mW (+20 dBm) |
| Receiver Sensitivity | -100 dBm at 10-5 BER |
| Radio Certification | FCCID: HSW-CCT24 and IC: 4492A-CCT24 |
| Transmission Range | 500 ft. (150 m) under typical conditions; 1500 ft. (450 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| Audio Dynamic Range | Greater than 90 dB |
| Audio Frequency Response | 150 HzÐ7 kHz |
| Conferences | 2 |
| Simultaneous Listen Paths | True Dual Listen |
| Volume Knobs | 2 |
| Talk Buttons | 2 |
| Headset Connector | 4-pin male XLR |
| Microphone Type | Auto Detect or Manual Select; Dynamic or Electret |
| LCD Display | 280 _ 64 resolution |
| Antenna | (2) 2dBi Dipole |
| Battery Life, Rechargeable Lithium-Polymer | Greater than 10 hours |
| Charging Power Supply | Micro USB; 6W AC wall adapter |
| Charge time for Lithium-Polymer Battery | Under 3 hours |
| Charge time via PC | Under 5 hours |
| Optional Power | 3 Standard AA alkaline batteries |
| Battery Life, Alkaline batteries | Approximately 5 hours |
| Dimensions (inches) | 4.5 in. _ 4.57 in. _ 2.31 in. (11.4 cm _ 11.6 cm _ 5.9 cm) |
| Weight (with Lithium-Polymer battery) | 13 oz. (910 g) |
| Material | Polycarbonate substrate with thermoplastic elastomer overmold |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity. RP Power Adapter is 0 to 40¡ C (32¡ to 104¡ F). |
| Maximum Altitude | 9,842 ft. (3,000 m) |
| RoHS Compliant | Yes |
