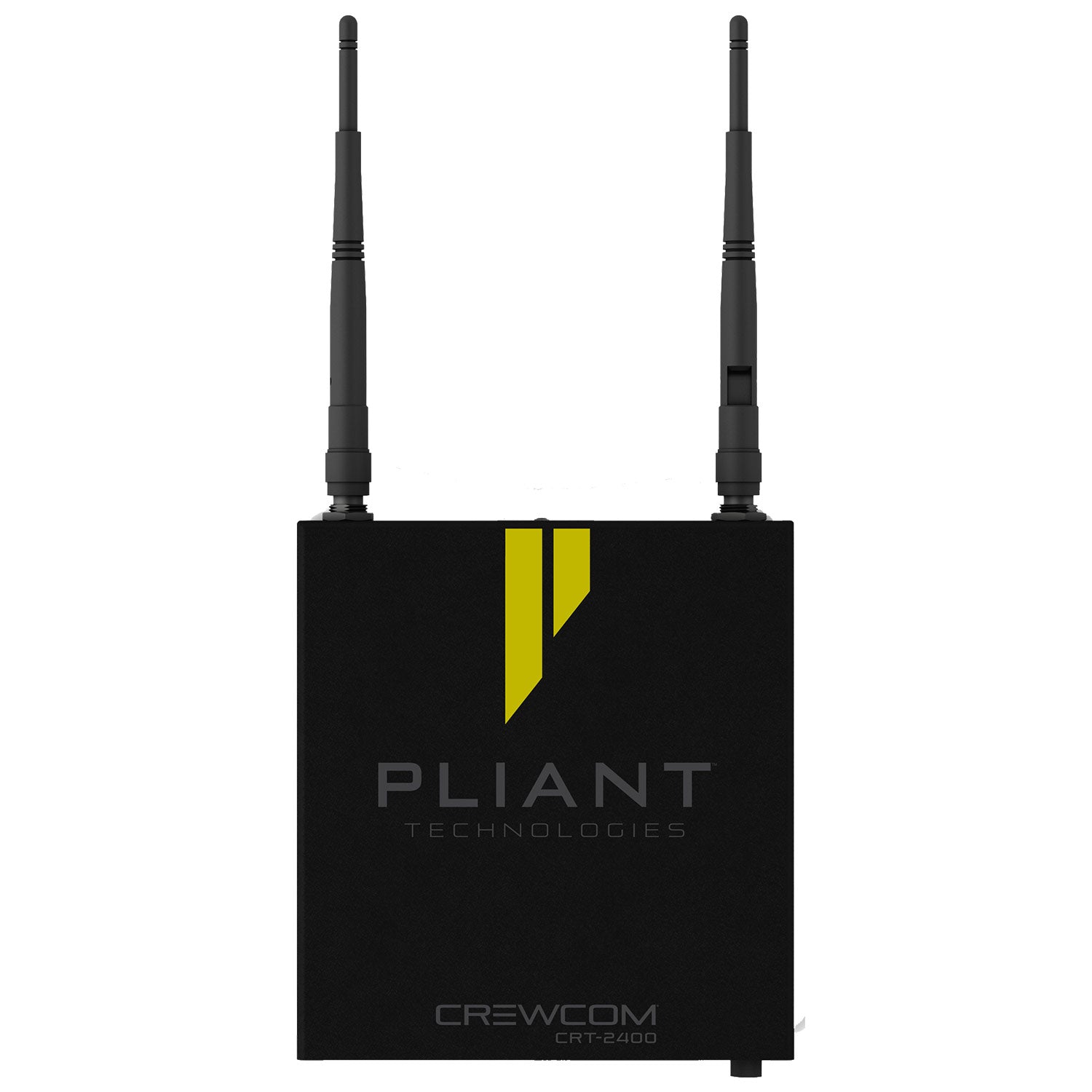

Pliant Technologies CRT-2400 2.4GHz Transceiver for CrewCom Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CrewCom Radio Transceiver houses a radio with corresponding antennas and serves as an access point enabling RF communications with CrewCom® Radio Packs. Using CrewNet as a backbone, up to 46 RTs can be positioned on the network throughout a wide coverage area by being linked back to a Control Unit either directly, through a Hub(s), or connected in a daisy-chain configuration.
Features:
- Supports both Normal and High Density modes of operation
- One RT supports up to 6 Normal mode or 32 High Density mode Radio Packs
- Two separate RF bands available in two models (CRT-900 & CRT-2400)

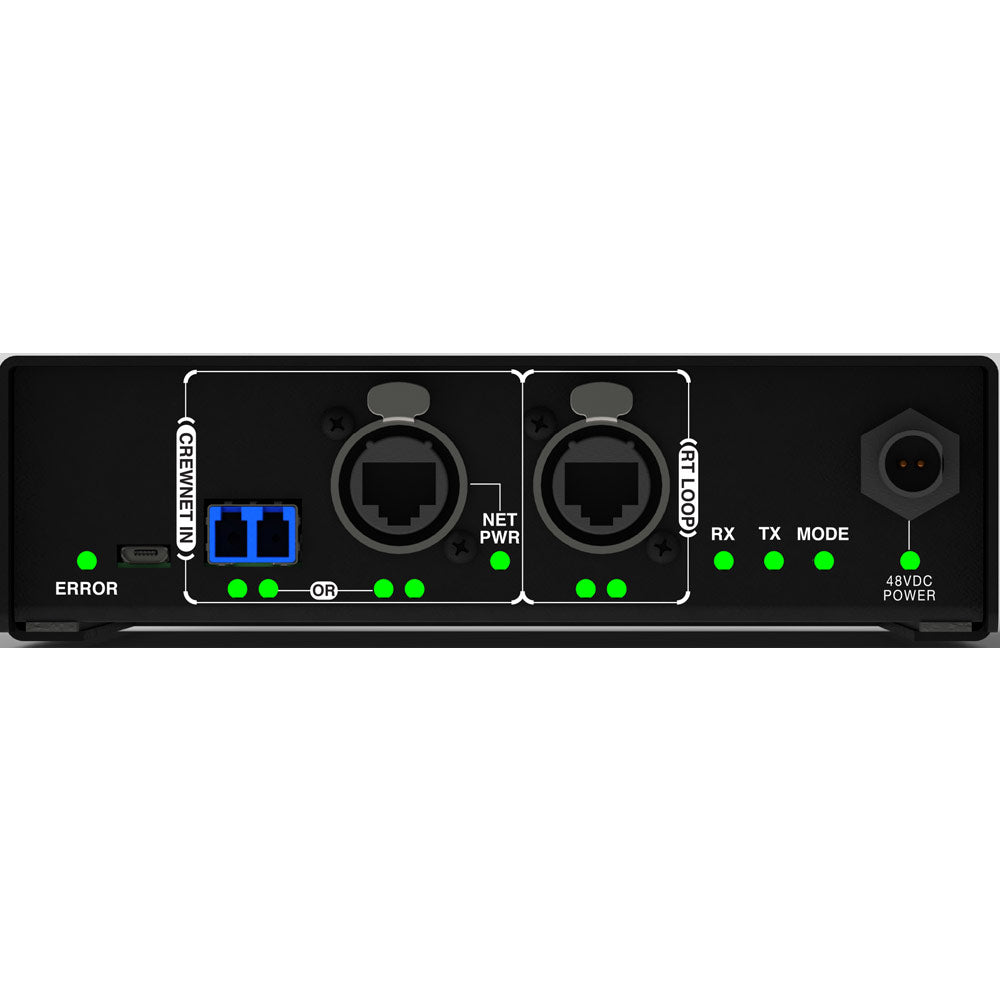

- CrewNet connections (etherCON or Duplex LC Single Mode Fiber**)
- LED status indicators for data RX/TX, operation mode, and error
- CrewNet in connections (etherCON or Duplex LC Single Mode Fiber**) with an addition single copper CrewNet thru connection for connecting up to a total of eight CrewCom Radio Transceivers in a daisy chain-configuration
- Micro USB connection for firmware updates (also available through CrewNet)
- Integrated ping function which uses all LEDs to physically identify an RT
- Dual powering options with either network power or external 48VDC
**CrewCom devices connected to CrewNet via a fiber port must receive power via a Pliant 48VDC power supply. (Sold Separately)
What's In The Box:
- Radio Transceiver
- Omni-Directional Antenna (x2)
- 15ft. (4.6 m) Cat 5e cable
- USB A to Micro B cable
- Mounting Hardware and Bracket
- Product Overview Guide
- Warranty Extension Registration Card
| RF Frequency (MHz) | 2400Ð2483 MHz |
| RF Scheme | FHSS with TDMA |
| Effective Radiated Power | 100 mW (+20dBm) |
| Receiver Sensitivity | -100dBm |
| Radio Certification | FCCID: HSW-CCT24 and IC: 4492A-CCT24 |
| Transmission Range | 500 ft. (150 m) under typical conditions; 1500 ft. (450 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.) |
| No. of Radio Packs Supported (when RT in Normal Mode) | 6 |
| No. of Radio Packs Supported (when RT in High Density Mode) | 32 |
| Number of Antenna Connections per RT | 2 |
| Antenna Connector | Type RP-TNC |
| Supplied Antenna | +2dBi Omni-directional (whip) |
| CrewNet In Port (supports 1 connection) | (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber |
| RT Loop Port | (1) RJ-45 |
| Maximum Line Length | Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m) |
| Network Power | CrewNet RJ-45 only |
| External Power | 48VDC Power Supply (Sold Separately) |
| Dimensions without Antennas (inches) | 6.30 in. _ 7.74 in. _ 1.81 in. (16 cm _ 19.7 cm _ 4.6 cm) |
| Weight | 1.25 lbs (567 g) |
| Operating Environment | -20¡ to 50¡ C (-4¡ to 122¡ F); 10% to 90% Humidity |
| Maximum Altitude | 9,842 ft. (3,000 m) |
| RoHS | Yes |
