PMC PMC8.2 - Active Three-Way Midfield Studio Monitors (Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This three-way active studio monitor is designed to provide critical reference monitoring for the most demanding applications.
As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.

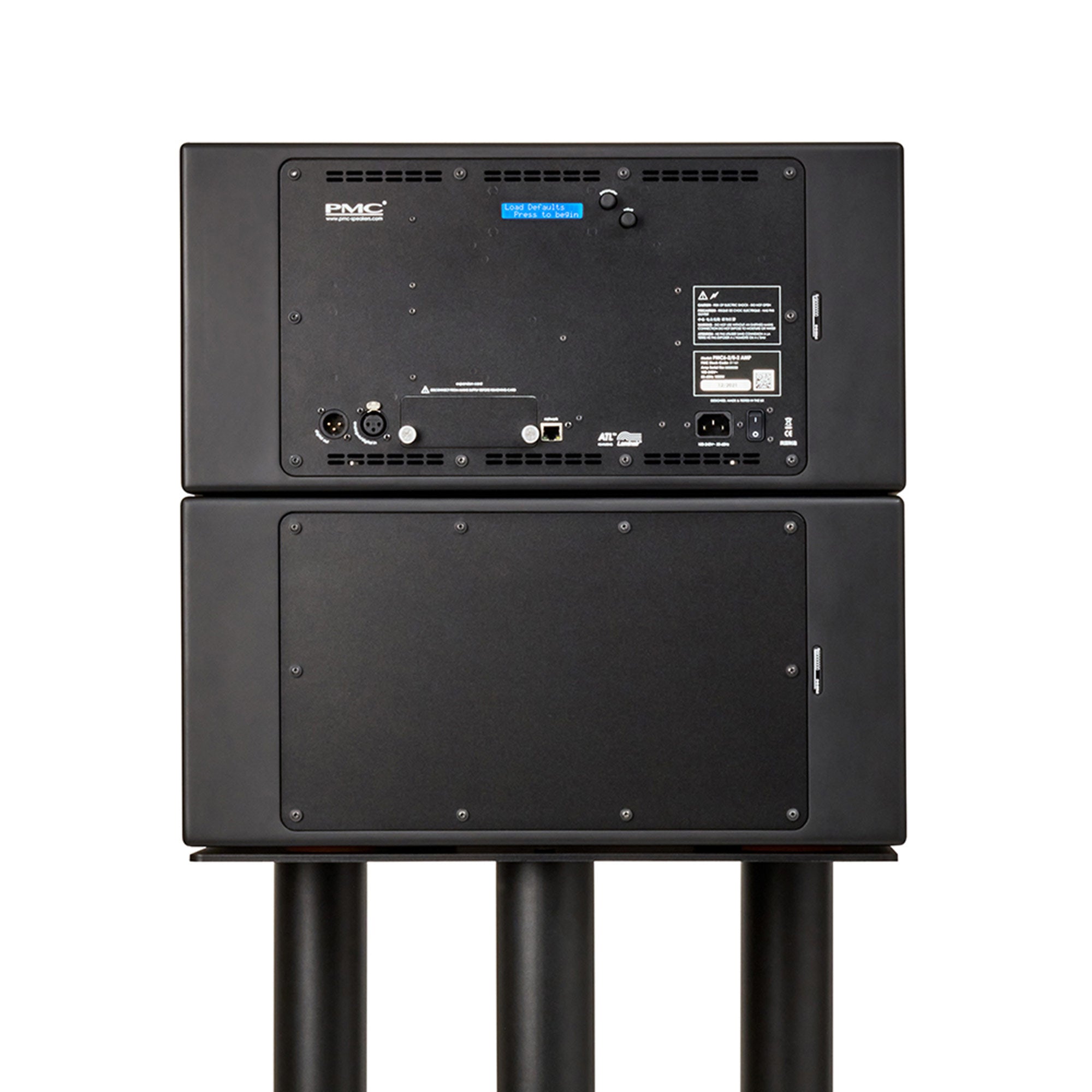

The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign™ software from a computer or tablet.
Together with the precisely tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2’s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.
PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system’s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.
Features:
- Active 3-way nearfield reference monitor with ATL™ bass loading
- Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
- Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) - State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
- Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
- Digital 'through' output (AES3 24-bit 96kHz
- SoundAlign™ network control interface for single or group EQ and settings
- Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
- PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
- Optional dedicated floor stands for PMC8-2 (40") and PMC8-2 XBD (19")
| Type | Active 3-way midfield reference monitor with ATLª bass loading |
| Drive Unit Complement | LFÊ2 x PMC 200mm (8") studio 8 drivers MFÊPMC 55mm (2") soft dome mid-range HFÊPMC 27mm (1") soft dome tweeter |
| Effective ATLª Length | 3m (9.8ft) |
| Frequency Response | 25Hz - 25kHz (- 3dB) (@1m full space, on-axis) |
| Sensitivity | +4dBu input signal = 98dB SPL @ 1m |
| Max continuous SPL | 113dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) |
| Max Peak SPL | 125dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) |
| Directivity | H+/-45 degrees V+/-50 degrees (-6dB off axis @10kHz) |
| Input | XLR switchable between analogue or digital AES3 Analogue input - +20/+24dBu max. input level (selectable) - 22K ohm input impedance Digital input - 16/24-bit AES3 signal, left, right or left + right - 18 - 192kHz Sample Rate - 110 ohm input impedance Expansion card slot - For future connectivity upgrades |
| Output | XLR digital AES3 (fixed 24-bit @ 96kHz) |
| Network | RJ45 for use with PMC SoundAlign web interface |
| Features | Level Trim (+/-10dB) High-pass filter (20 - 200Hz, 12dB/Oct) Delay (0 - 30mS) Phase (normal or inverted) LF / HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707) Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB) User presets (3 + factory defaults) |
| Latency | 2.4mS |
| Amplifier power per channel | LFÊ2 x 400Wrms MFÊ1 x 400Wrms HFÊ1 x 400Wrms |
| Mains | 100 - 240VAC auto-switching, 50-60Hz (IEC C14) |
| Power consumption (idle) | 50W |
| Power consumption (max) | 1500W |
| Cabinet dimensions | HÊ534mm (21") WÊ551mm (21.7") DÊ440mm (17.3") |
| Weight | 39kg (86lbs) each |
| Available Finishes | Studio black |
This three-way active studio monitor is designed to provide critical reference monitoring for the most demanding applications.
As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.
The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign™ software from a computer or tablet.
Together with the precisely tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2’s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.
PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system’s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.
Features:
- Active 3-way nearfield reference monitor with ATL™ bass loading
- Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
- Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) - State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
- Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
- Digital 'through' output (AES3 24-bit 96kHz
- SoundAlign™ network control interface for single or group EQ and settings
- Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
- PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
- Optional dedicated floor stands for PMC8-2 (40") and PMC8-2 XBD (19")
| Type | Active 3-way midfield reference monitor with ATLª bass loading |
| Drive Unit Complement | LFÊ2 x PMC 200mm (8") studio 8 drivers MFÊPMC 55mm (2") soft dome mid-range HFÊPMC 27mm (1") soft dome tweeter |
| Effective ATLª Length | 3m (9.8ft) |
| Frequency Response | 25Hz - 25kHz (- 3dB) (@1m full space, on-axis) |
| Sensitivity | +4dBu input signal = 98dB SPL @ 1m |
| Max continuous SPL | 113dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) |
| Max Peak SPL | 125dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration) |
| Directivity | H+/-45 degrees V+/-50 degrees (-6dB off axis @10kHz) |
| Input | XLR switchable between analogue or digital AES3 Analogue input - +20/+24dBu max. input level (selectable) - 22K ohm input impedance Digital input - 16/24-bit AES3 signal, left, right or left + right - 18 - 192kHz Sample Rate - 110 ohm input impedance Expansion card slot - For future connectivity upgrades |
| Output | XLR digital AES3 (fixed 24-bit @ 96kHz) |
| Network | RJ45 for use with PMC SoundAlign web interface |
| Features | Level Trim (+/-10dB) High-pass filter (20 - 200Hz, 12dB/Oct) Delay (0 - 30mS) Phase (normal or inverted) LF / HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707) Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB) User presets (3 + factory defaults) |
| Latency | 2.4mS |
| Amplifier power per channel | LFÊ2 x 400Wrms MFÊ1 x 400Wrms HFÊ1 x 400Wrms |
| Mains | 100 - 240VAC auto-switching, 50-60Hz (IEC C14) |
| Power consumption (idle) | 50W |
| Power consumption (max) | 1500W |
| Cabinet dimensions | HÊ534mm (21") WÊ551mm (21.7") DÊ440mm (17.3") |
| Weight | 39kg (86lbs) each |
| Available Finishes | Studio black |
