PMC PMC8-2 SUB - Active Dual 8-Inch Subwoofer for Conventional or XBD Systems (Right)

  • Dale #:

    PMC-PMC82SUBR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PMC8-2 SUB is a larger subwoofer for full-bandwidth, high-resolution reference monitoring in the most demanding professional environments. The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive s... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PMC8-2 SUB is a larger subwoofer for full-bandwidth, high-resolution reference monitoring in the most demanding professional environments.

The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.

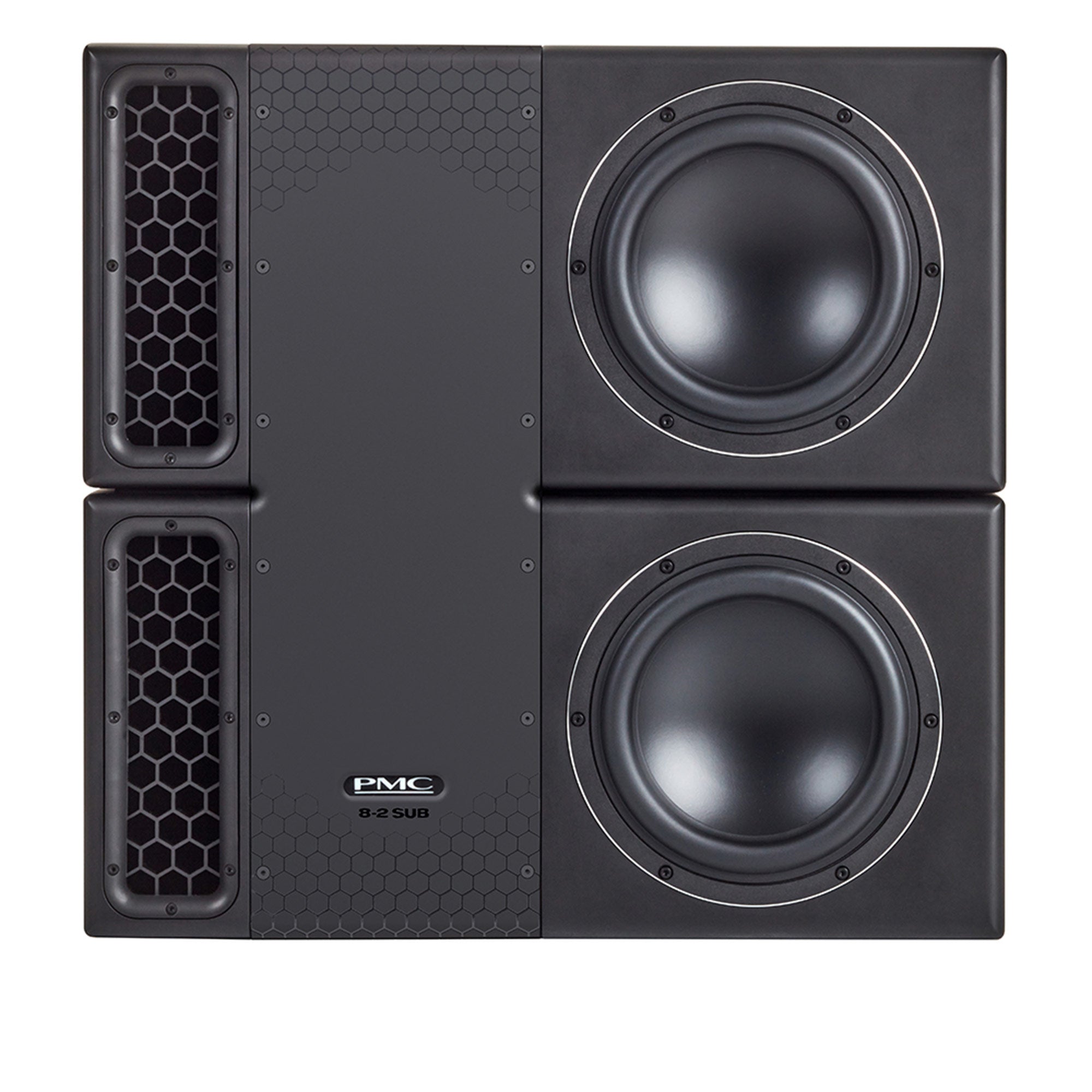

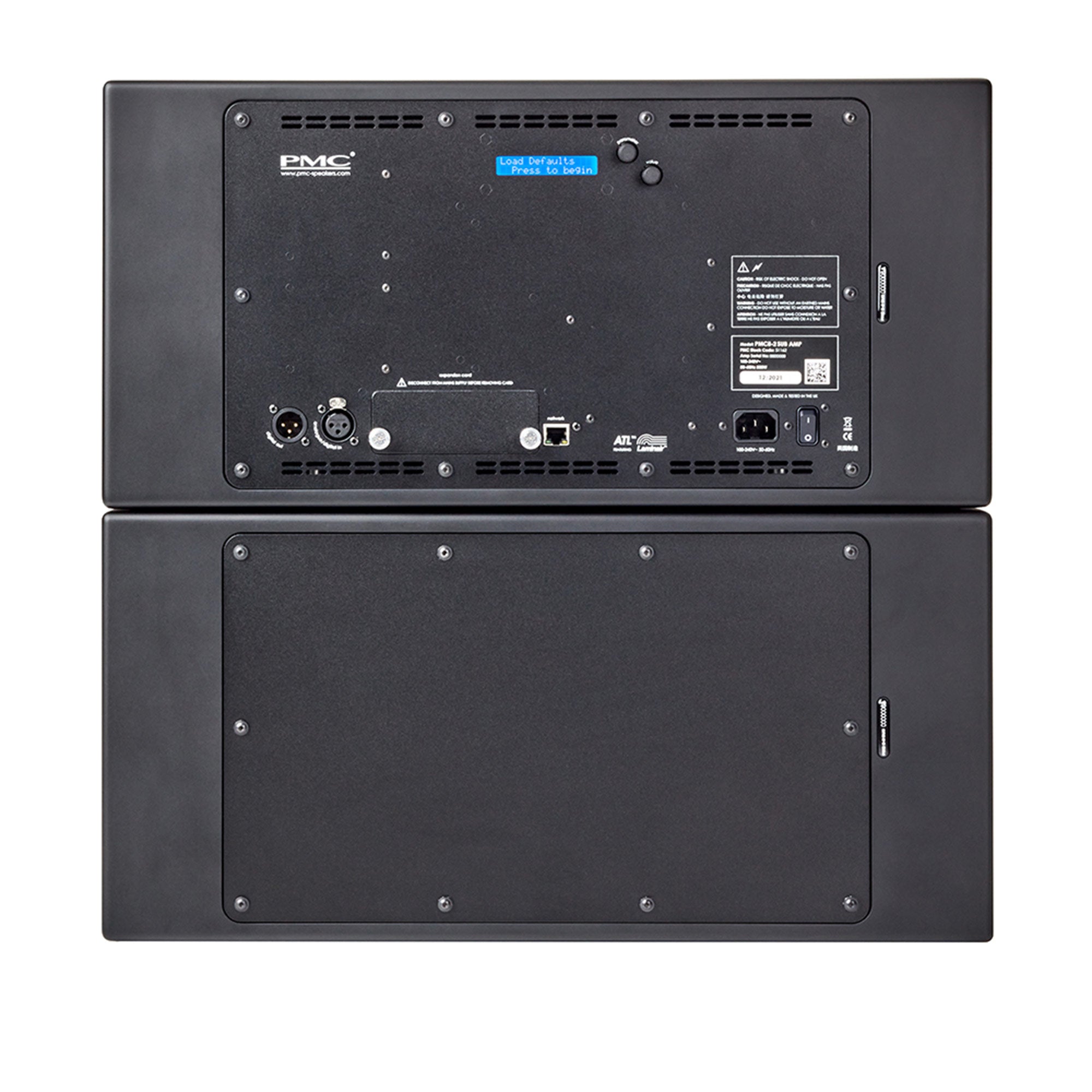

With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB’s twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker's rear panel or by using the browser-based SoundAlign™ software via a LAN-connected tablet, smartphone or computer.

The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.

Features:

  • Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
  • Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
  • Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.
    Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifier: 2 x 400W
  • Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital 'through' output (AES3 24-bit, 96kHz)
  • SoundAlign™ network control interface for single or group EQ and settings
  • Sophisticated DSP driver protection, EQ, and delay/phase options
  • Dedicated XBD configuration mode

More +

Product Specs

Type Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
Drive Unit Complement PMC 200mm (8") studio 8 driver
Effective ATL™ Length 3m (9.8ft)
Frequency Response 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Sensitivity +4dBu input signal = 98dB SPL @ 1m
Max continuous SPL 115dB @1m (Quarter space value calculated as +3dB from half space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL 121dB @1m (Quarter space value calculated as +3dB from half space measurement.
Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Input XLR switchable between analogue or digital AES3
Analogue input - +20/+24dBu max. input level (selectable) - 22K ohm input impedance
Digital input - 16/24-bit AES3 signal, left, right or left + right - 18 - 192kHz Sample Rate - 110 ohm input impedance
Expansion card slot - For future connectivity upgrades
Output XLR digital AES3 (fixed 24-bit @ 96kHz)
Network RJ45 for use with PMC SoundAlign web interface
Features Level Trim (+/-10dB)
High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)
Delay (0 - 30mS)
Phase (normal or inverted)
LF / HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)
Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)
User presets (3 + factory defaults)
Latency 2.4mS
Amplifier power per channel 300Wrms
Mains 100 - 240VAC auto-switching, 50-60Hz (IEC C14)
Power consumption (idle) 25W
Power consumption (max) 300W
Cabinet dimensions H 534mm (21")) W 551mm (21.7") D 440mm (17.3")
Weight 37.5kg (82.7lbs) each
Available Finishes Studio black
