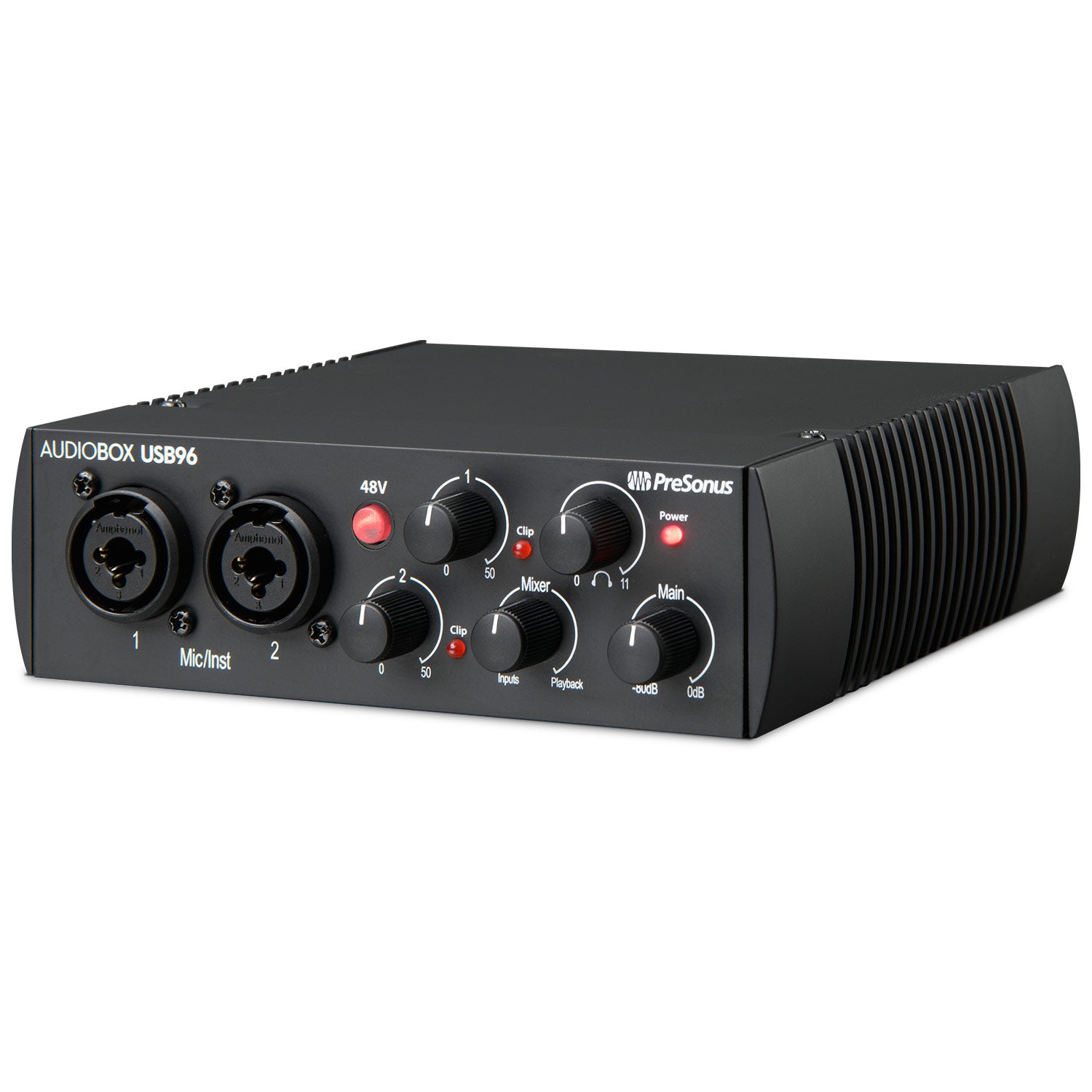

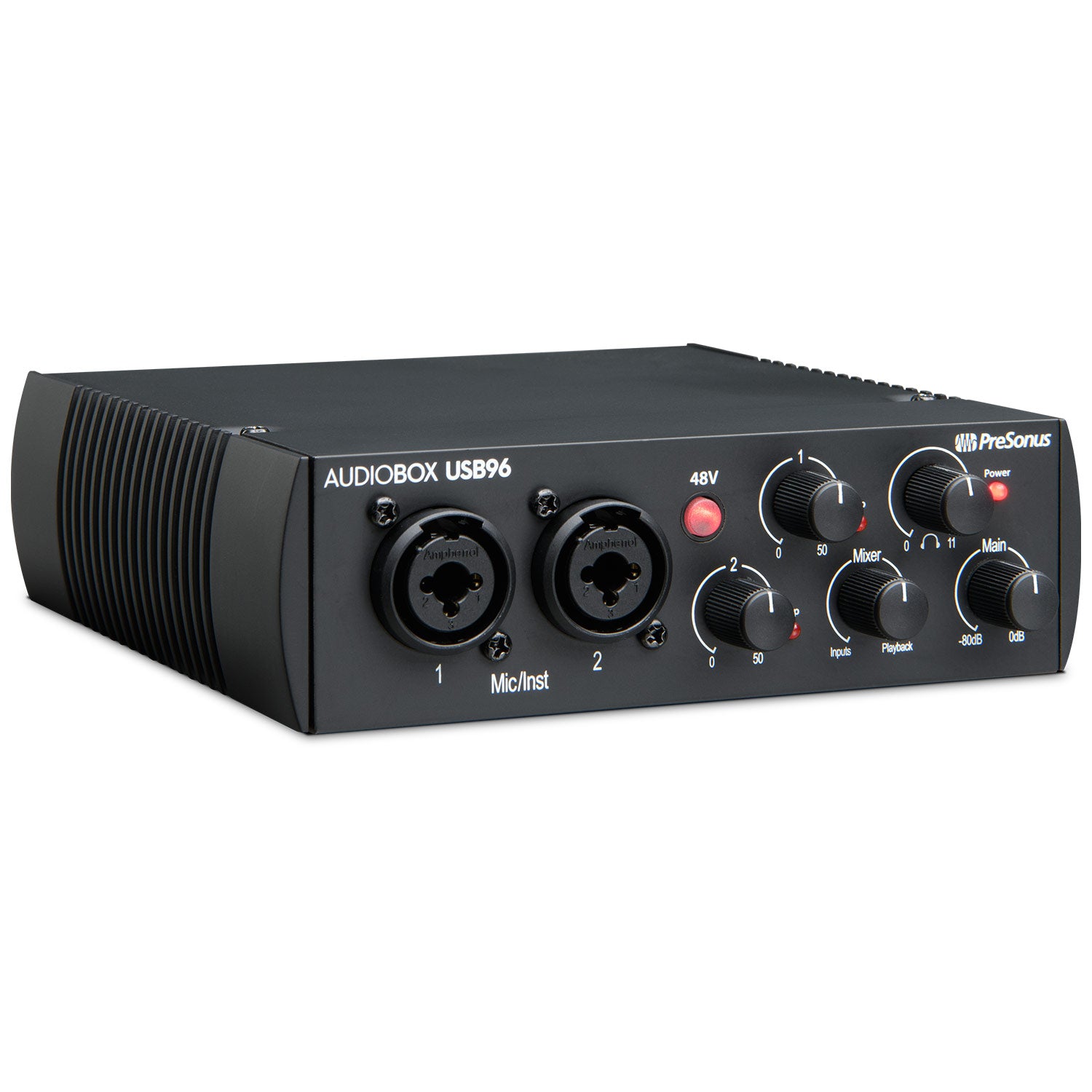

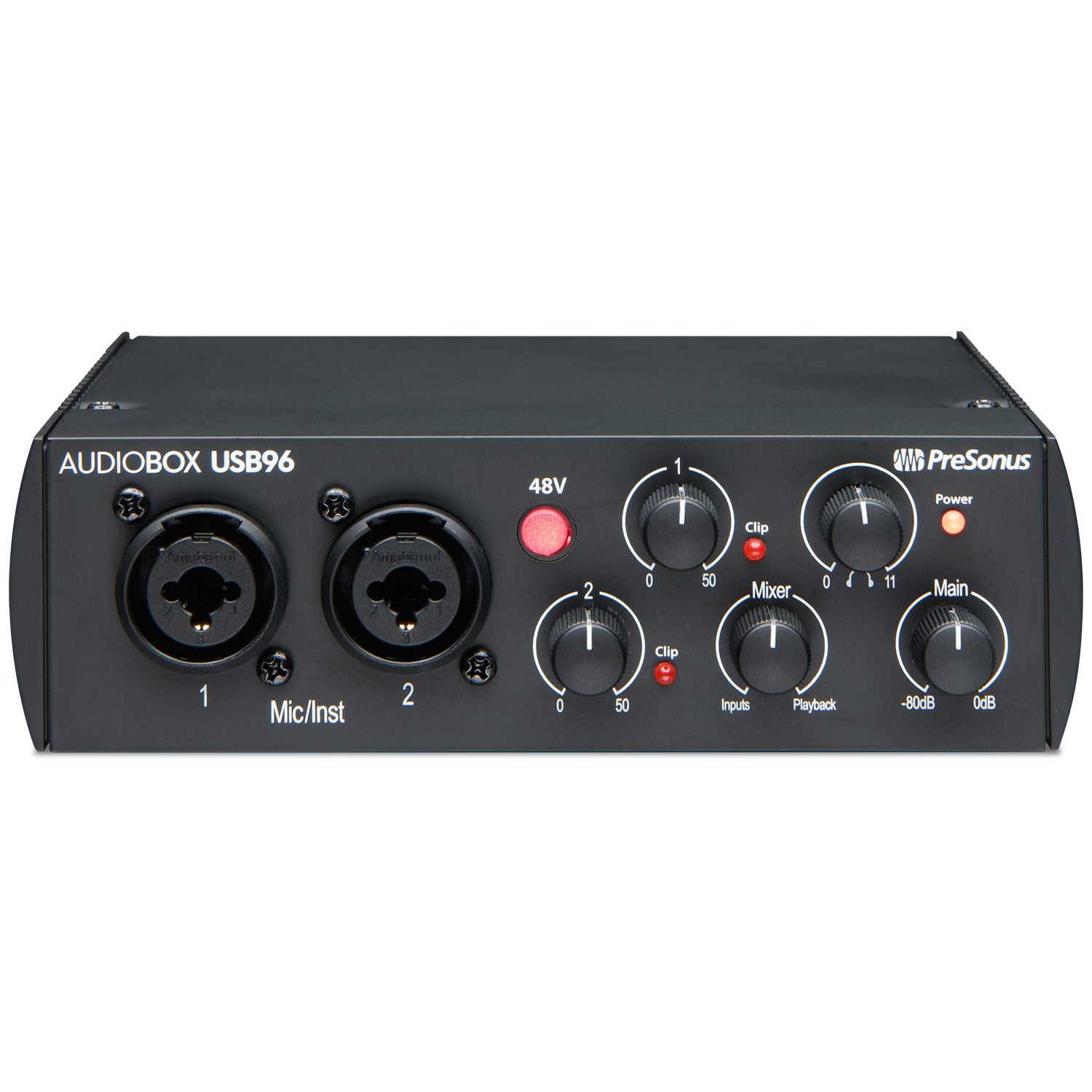

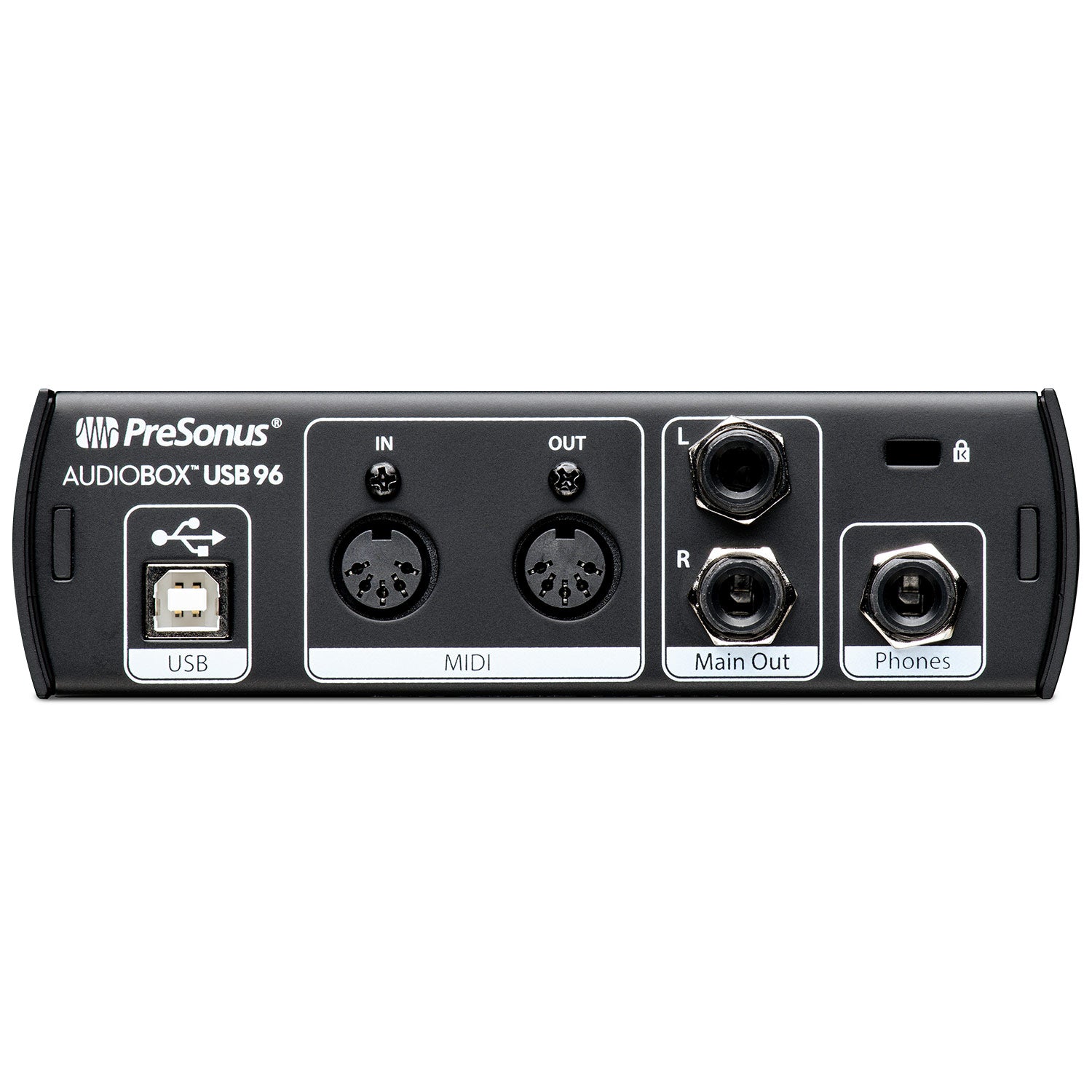

PreSonus AudioBox USB 96 2x2 USB Audio Interface 25th Anniversary Edition (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This convenient, portable, bus-powered USB 2.0 audio interface provides 2 combo mic/instrument inputs, 2 1/4-inch line-level outputs, and MIDI I/O, enabling you to record anywhere at up to 96 kHz.
Features:
- Bus-powered USB 2.0 audio interface
- Compatible with almost all recording software for Mac® and Windows®
- 24-bit resolution, 44.1, 48, 88.2, and 96 kHz sampling rates
- 2 combo mic/instrument inputs with high-performance, low-noise, high-headroom mic preamplifiers
- 2 balanced 1/4-inch line-level outputs
- 48V phantom power
- MIDI I/O
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control
- Includes Studio One® Artist DAW software and 6+ GB of third-party resources
- 1/3U rack-mountable
A great choice for mobile musicians, guitarists, and podcasters, the 2-in, 2-out AudioBox USB® 96 audio interface is bus-powered, compact, ruggedly built, and works with virtually any PC or Mac recording software. It boasts two combo mic/instrument inputs with high-performance Class A mic preamplifiers, MIDI I/O, and professional-quality, 24-bit, 96 kHz converters. And it comes with PreSonus' amazing Studio One® Artist DAW software for Mac® and Windows®.
| Mac System Requirements | Mac¨ OS X 10.8.5 or later Intel¨ Core Duo processor (Intel Coreª 2 Duo or Intel Core i3 or better recommended) 2 GB RAM (4 GB or more recommended) |
| Windows System Requirements | Windows¨ 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86 Intel Core 2 processor (Intel Core i3 processor or better recommended) 4 GB RAM (8 GB or more recommended) |
| Common System Requirements | USB 2.0 Port Internet connection (for activation) Monitor with at least 1024x768 resolution 20 GB hard-disk space Internal or external 7200 RPM storage drive highly recommended |
| Microphone Preamp | |
| Type | XLR Female Balanced |
| Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
| Input Impedance (Balanced) | 1200? |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
| S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
| Common Mode Rejection Ratio (1 kHz, 55 dB Gain) | > 45 dB |
| Gain Control Range (± 1 dB) | 0 dB to 35 dB |
| Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | -3 dBu |
| Phantom Power (±2 VDC) | +48 VDC |
| Instrument Input | |
| Type | _" TS Female Unbalanced |
| Input Impedance | 0.5 M? |
| Line Outputs | |
| Type | _" Balanced |
| Output Impedance | 51? |
| Headphone Output | |
| Type | _" TRS Active Stereo |
| Maximum Output | 60 mW/Ch @ 60? Load |
| Frequency Response (±1.0 dB) | 20 Hz - 30 kHz |
| MIDI I/O | |
| Type | Dual 5-pin Female DIN |
| Digital Audio | |
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| Bit Depth | 24 |
| Reference Level for 0 dBFS | +4 dBu |
| Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
| Power | USB 2.0 bus-powered |
| Physical | |
| Dimensions | 1/3U (steel chassis) |
| Height | 5.5" (139.7 mm) |
| Depth | 1.75" (44.45 mm) |
| Width | 5.5" (139.7 mm) |
| Weight | 5 lbs (2.27 kg) |
This convenient, portable, bus-powered USB 2.0 audio interface provides 2 combo mic/instrument inputs, 2 1/4-inch line-level outputs, and MIDI I/O, enabling you to record anywhere at up to 96 kHz.
Features:
- Bus-powered USB 2.0 audio interface
- Compatible with almost all recording software for Mac® and Windows®
- 24-bit resolution, 44.1, 48, 88.2, and 96 kHz sampling rates
- 2 combo mic/instrument inputs with high-performance, low-noise, high-headroom mic preamplifiers
- 2 balanced 1/4-inch line-level outputs
- 48V phantom power
- MIDI I/O
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control
- Includes Studio One® Artist DAW software and 6+ GB of third-party resources
- 1/3U rack-mountable
A great choice for mobile musicians, guitarists, and podcasters, the 2-in, 2-out AudioBox USB® 96 audio interface is bus-powered, compact, ruggedly built, and works with virtually any PC or Mac recording software. It boasts two combo mic/instrument inputs with high-performance Class A mic preamplifiers, MIDI I/O, and professional-quality, 24-bit, 96 kHz converters. And it comes with PreSonus' amazing Studio One® Artist DAW software for Mac® and Windows®.
| Mac System Requirements | Mac¨ OS X 10.8.5 or later Intel¨ Core Duo processor (Intel Coreª 2 Duo or Intel Core i3 or better recommended) 2 GB RAM (4 GB or more recommended) |
| Windows System Requirements | Windows¨ 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86 Intel Core 2 processor (Intel Core i3 processor or better recommended) 4 GB RAM (8 GB or more recommended) |
| Common System Requirements | USB 2.0 Port Internet connection (for activation) Monitor with at least 1024x768 resolution 20 GB hard-disk space Internal or external 7200 RPM storage drive highly recommended |
| Microphone Preamp | |
| Type | XLR Female Balanced |
| Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
| Input Impedance (Balanced) | 1200? |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
| S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
| Common Mode Rejection Ratio (1 kHz, 55 dB Gain) | > 45 dB |
| Gain Control Range (± 1 dB) | 0 dB to 35 dB |
| Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | -3 dBu |
| Phantom Power (±2 VDC) | +48 VDC |
| Instrument Input | |
| Type | _" TS Female Unbalanced |
| Input Impedance | 0.5 M? |
| Line Outputs | |
| Type | _" Balanced |
| Output Impedance | 51? |
| Headphone Output | |
| Type | _" TRS Active Stereo |
| Maximum Output | 60 mW/Ch @ 60? Load |
| Frequency Response (±1.0 dB) | 20 Hz - 30 kHz |
| MIDI I/O | |
| Type | Dual 5-pin Female DIN |
| Digital Audio | |
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
| Bit Depth | 24 |
| Reference Level for 0 dBFS | +4 dBu |
| Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
| Power | USB 2.0 bus-powered |
| Physical | |
| Dimensions | 1/3U (steel chassis) |
| Height | 5.5" (139.7 mm) |
| Depth | 1.75" (44.45 mm) |
| Width | 5.5" (139.7 mm) |
| Weight | 5 lbs (2.27 kg) |
