Description
The world'
s fastest interface, with a round-trip latency of less than 1 ms, using the Thunderbolt™ 3 bus; record and monitor through your favorite plug-ins in real time at up to 24-bit/192 kHz; 8 front-mounted, pristine XMAX analog mic preamps; 2 direct preamp outputs and 2 line returns for outboard effects; 8 balanced DC coupled analog outputs can provide control voltage to external analog equipment, using a DAW plug-in; up to 26 simultaneously inputs and outputs when expanded via ADAT Optical.
Features:
- The fastest Thunderbolt 3 audio interface around, with round-trip latency of less than 1 ms

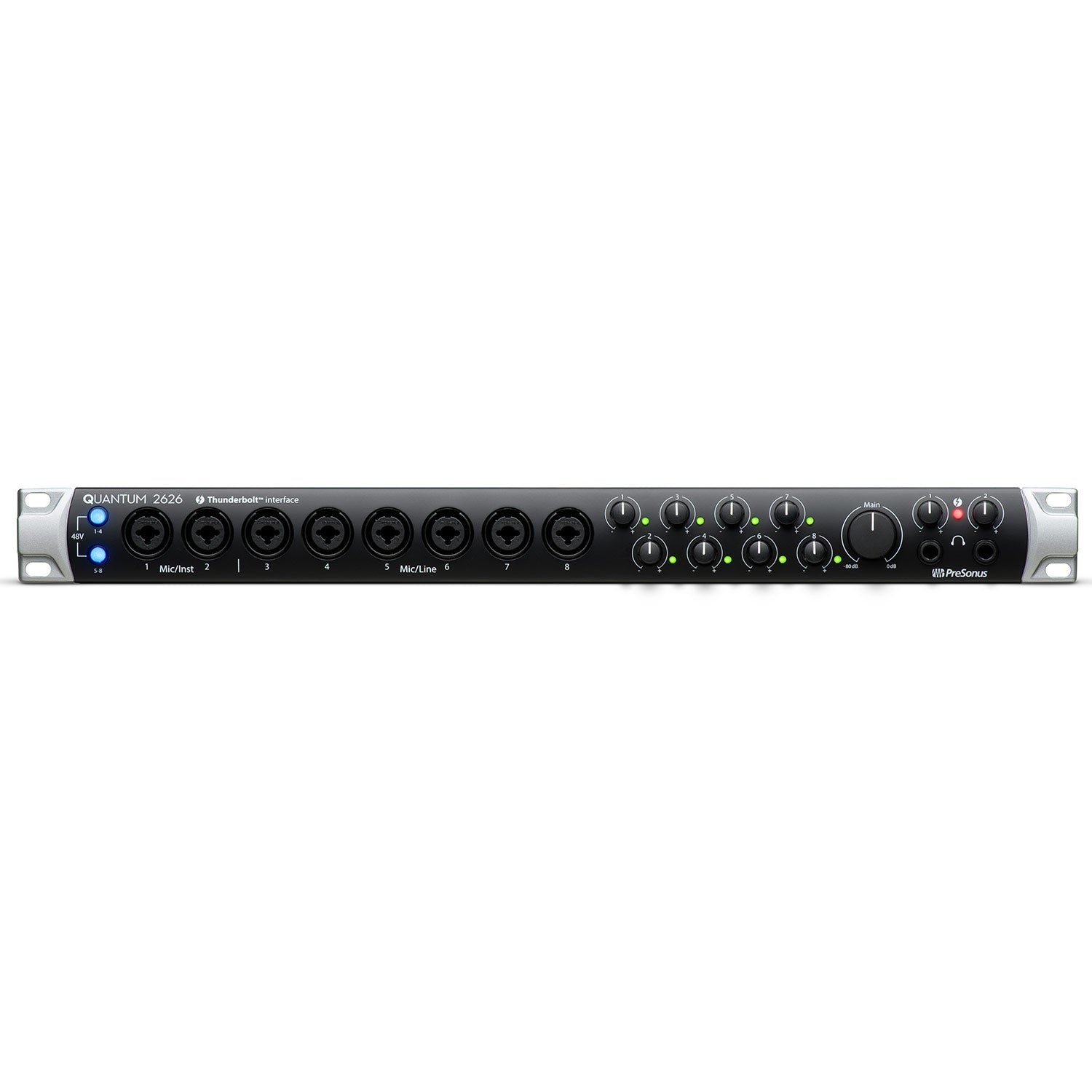

- 8 front-mounted ultra-transparent XMAX analog mic preamps
- High-definition 24-bit A/D/A conversion up to 192 kHz sampling rate
- 2 direct outputs with dedicated line-level returns for inserting output gear
- Up to 26-in/26-out when expanded via dual ADAT Optical
- 2 combo mic/instrument inputs and 6 mic/line inputs
- 1/4" TRS Left and Right main outputs
- 8 1/4" TRS line outputs, DC-coupled
- 2 1/4" headphone outputs with dedicated volume

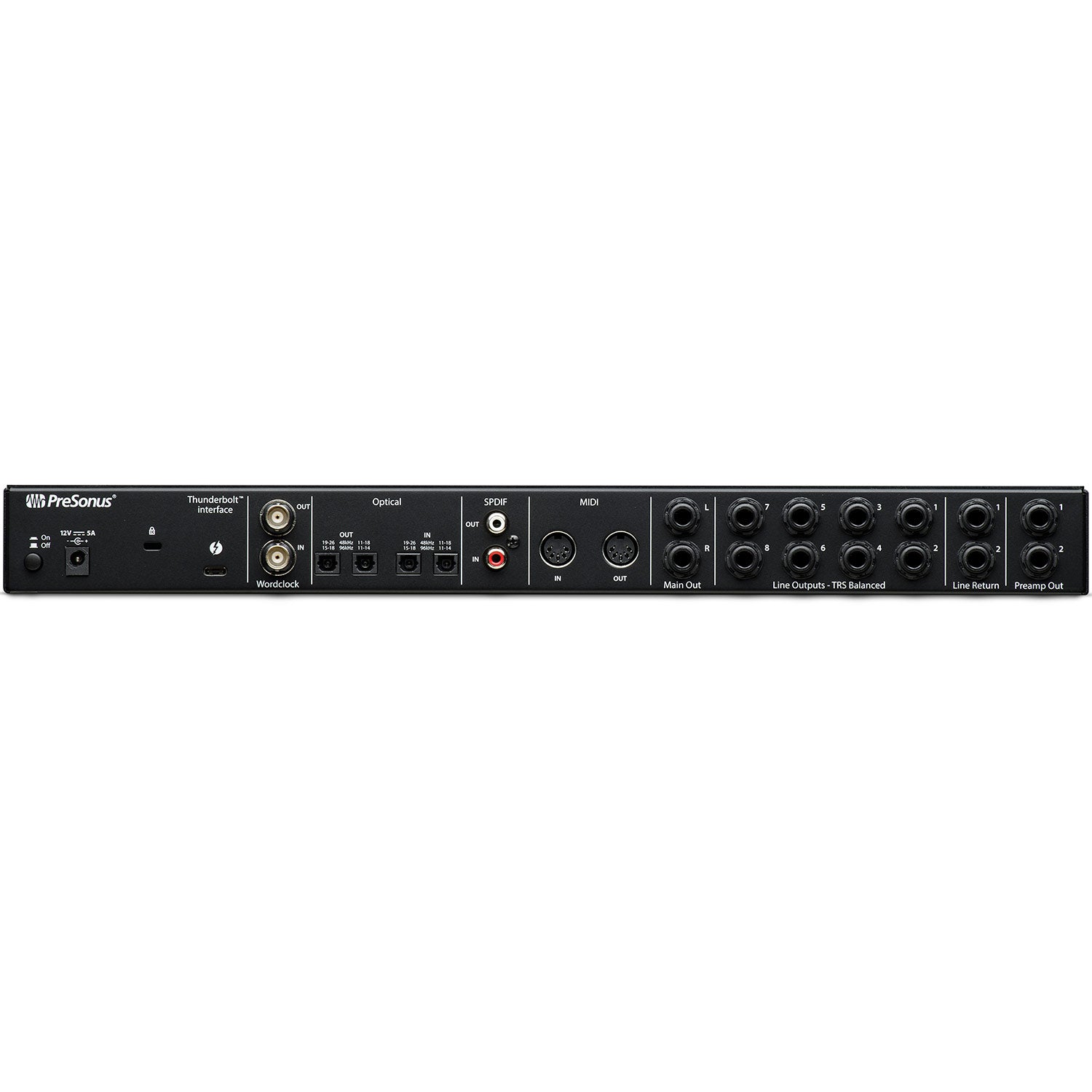

- Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
- Studio One® Artist and Studio Magic Plug-in Suite included
Record and monitor through your favorite plug-ins inside your DAW with the blazing fast speed only Quantum interfaces can deliver. The Quantum 2626 takes advantage of the jaw-dropping speed of Thunderbolt™ 3 to achieve a barely-measurable round-trip latency of less than 1 ms. Superb high-definition digital conversion and eight ultra-transparent analog XMAX mic preamps ensure your audio always sounds its best. Insert your favorite outboard gear with two direct preamp outputs and dedicated line-level returns. Expand your system up to 26 simultaneous inputs and outputs using ADAT Optical. Streamline your recording process and make better music, faster with the Quantum 2626.
Computer system minimum requirements | |
Mac | Mac¨ OS X 10.11.6 64-bit or later Intel¨ Coreª i5 or better 4 GB RAM (8 GB or more recommended) |
Windows | Windows¨ 10 64-bit or later Intel Core i5 or better 4 GB RAM (8 GB or more recommended) |
Mac and Windows Systems | Thunderboltª 1.0, 2.0, or 3.0 port (NOTE- Your computer's motherboard must support Thunderbolt. Thunderbolt 1 and 2 require an adapter, not included.) Internet connection (required for Studio One Activation and Content download) Internal or external 7200 RPM storage drive highly recommended 30 GB hard disk space Monitor with 1366x768 resolution |
Microphone Preamp | |
Type | XLR Female (via Combo), Balanced |
Maximum Input Level | +10 dBu (Balanced, min. gain) |
Gain Control Range | 60 dB |
Frequency Response | 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz) |
Dynamic Range | > 110 dB (A-wtd, min. gain) |
Total Harmonic Distortion | < 0.005% (1 kHz, min. gain) |
EIN | < -131 dBu (max gain, 40?, 22 kHz BW, A-wtd) |
Input Impedance | 1.6 k? |
Phantom Power | +48V,> 8 mA per input |
nstrument Inputs | |
Type | 1/4" TS Female (via Combo), Unbalanced |
Maximum Input Level | +15 dBu (Unbalanced, min. gain) |
Gain Control Range | 60 dB |
Frequency Response | 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz) |
Dynamic Range | > 106 dB (A-wtd, min. gain) |
Total Harmonic Distortion | < 0.005% (1kHz, min. gain) |
Input Impedance | > 1 M? |
Line Inputs | |
Type | 1/4" TRS Female (via Combo), Balanced |
Maximum Input Level | + 18 dBu (Balanced, min. gain) |
Frequency Response | 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz) |
Dynamic Range | > 118 dB (A-wtd, min. gain) |
Total Harmonic Distortion | < 0.005% (1 kHz, min. gain) |
Input Impedance | 10 k? |
Main and Line Outputs | |
Type | 1/4" TRS Female, impedance balanced, DC Coupled (Line Outputs only) |
Maximum Output Level | +18 dBu (Balanced) |
Frequency Response | 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz) |
Dynamic Range | > 118 dB (A-wtd) |
Total Harmonic Distortion | < 0.0035% (1 kHz, +4 dBu) |
Output Impedance | 51? |
Headphone Outputs | |
Type | 1/4" TRS Female, Stereo, Unbalanced, x2 |
Maximum Output Level | 175 mW/channel (56? load) |
Frequency Response | 20 Hz to 20 kHz (±0.5 dB, 48 kHz) |
Dynamic Range | > 110 dB (A-wtd) |
Total Harmonic Distortion | < 0.03% (1 kHz) |
Headphone Impedance (working range) | 16? to 300? |
Crosstalk | |
Input to Input | < -110 dB |
Output to Output | < -115 dB |
Input to Output | < -120 dB |
Signal Level LEDs | |
Clip | -0.5 dBFS |
Signal | -50 dBFS |
Digital Audio | |
Connection Type | Thunderbolt 3 (Thunderbolt 1 and 2 compatible) |
ADC Dynamic Range | 115 dB (A-wtd) |
DAC Dynamic Range | 115 dB (A-wtd) |
Bit Depth | 24 bits |
Internally Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Clock | |
Jitter | < 70 ps RMS (20 Hz Ð 20 kHz) |
Jitter Attenuation | > 60 dB (1 ns in> 1 ps out) |
Power | 12 VDC, 5A, external power supply |
Physical Dimensions | |
Height | 1.75" (44.45 mm) |
Depth | 7" (177.8 mm) |
Width | 19" (482.6 mm) |
Weight | 6 lbs (2.72 kg) |
