Q5x QR-M3 - Mobile Wireless Receiver
Contact us
Availability:
Special Order ItemQ5x items are built to order in their factory in Canada - contact us for options and lead times.
Q5x QR-M3 - Mobile Wireless Receiver
Sale price$1,795.00
Description

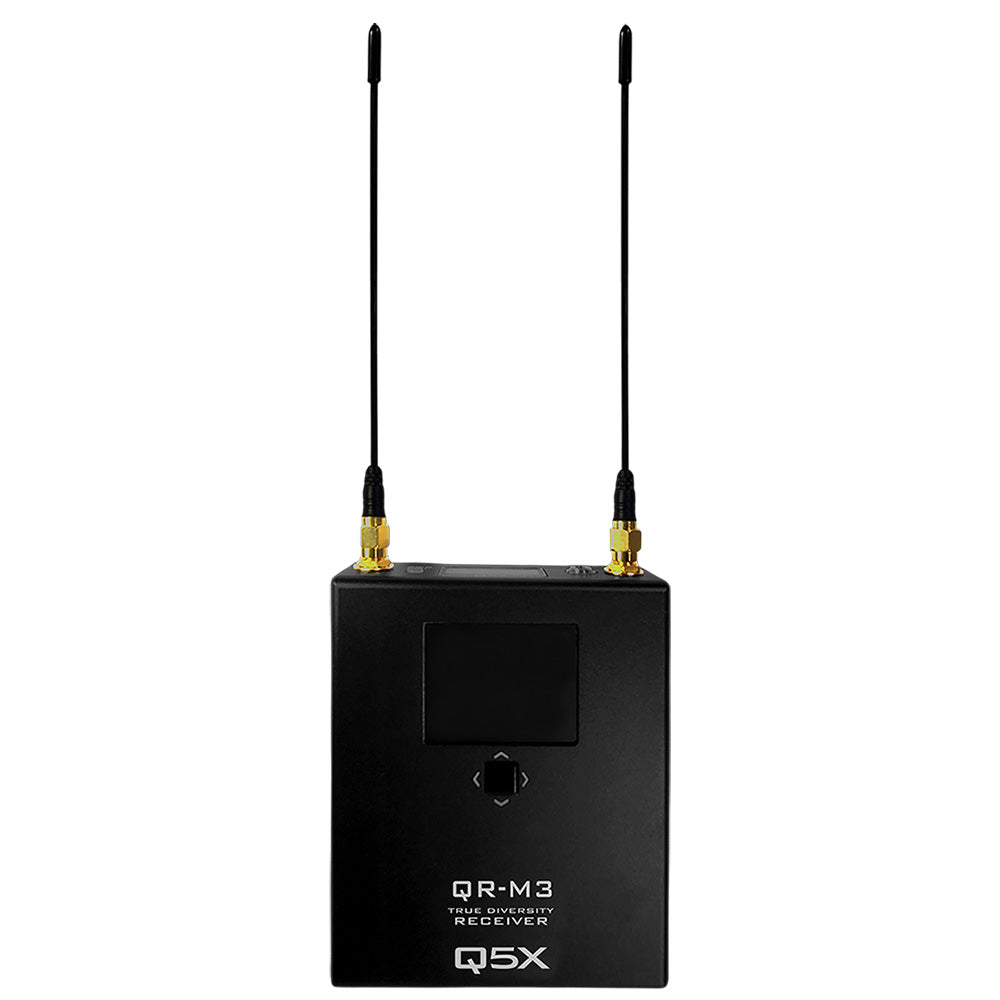

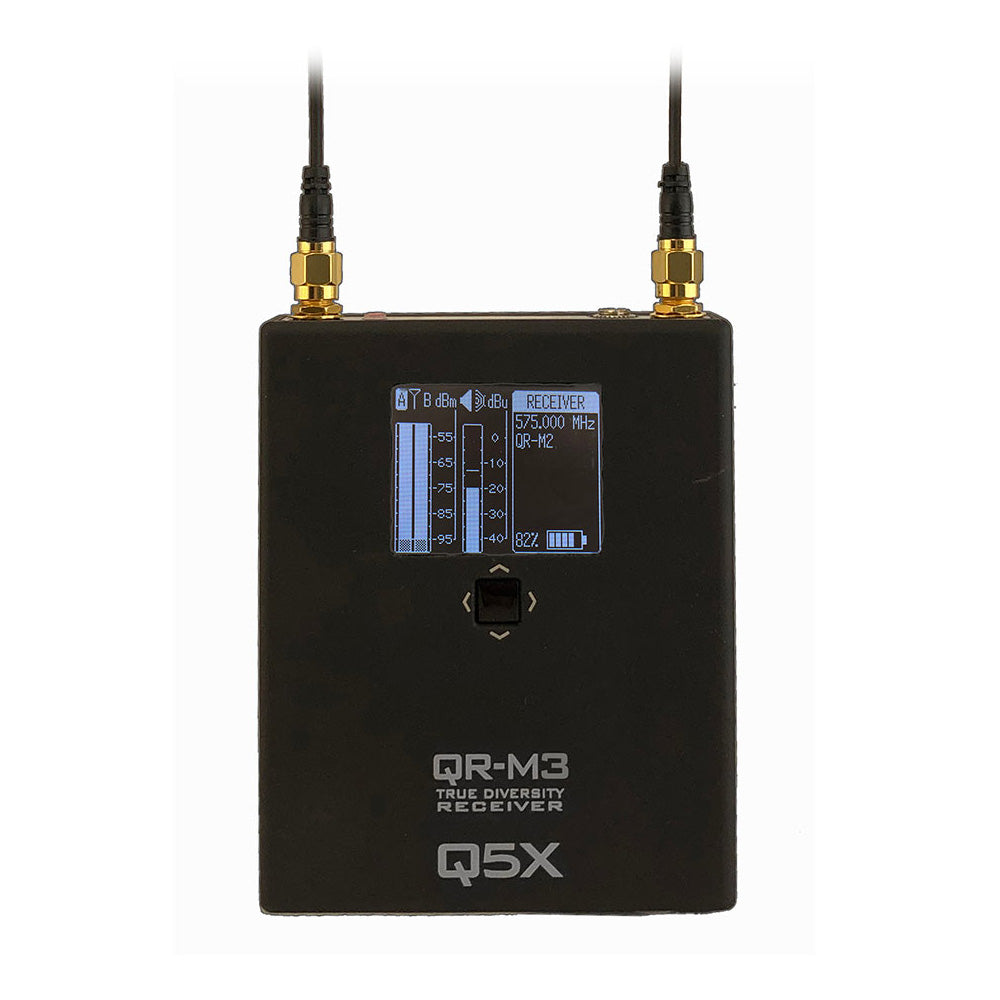

The QR-M3 is a one-channel, true dual-diversity, mobile receiver (ENG), in a commercial grade aluminum case, tunable to 9120 frequencies from 470MHz – 700MHz.
Features:
- Can be powered via internal battery or external supply
- True dual-diversity operation
- Commercial grade aluminum case
- Q5x companding
- Compatible with Q5x QT-5100 or Shure UHF-R transmitters
- Headphone monitor output
| Dimensions | 112mm x 82mm x 24mm |
| Weight, including battery | 291.4g |
| Companding | Q5X companding |
| Compatible with | QT-5100 and Shure UHFR transmitters |
| Output | Mini XLR balanced output Ð Balanced: -18dBm (50mV) Headphone Jack (mini) |
| SSMA antenna connectors | Comes with 2 Water resistant SSMA antennas |
| DC input connector | Barrel Connector (6 Ð 12vDC), micro USB, Hirose |
| Battery charger | Comes with 12V DC wall-wart charger |
| Battery Type | Rechargeable lithium ion battery |
| RF Bands | Available in frequency range of 470 MHz to 700 MHz |
| Bandwidth | Programmed in 25kHz steps |
| Display | OLED front and top display screens |
| Frequency Stability | ±0.005% |
| Sensitivity | -100dBm at S/N ratio> 80dB |
| Image rejection | > 80dB |
| S/N Ratio | > 108dB |
The QR-M3 is a one-channel, true dual-diversity, mobile receiver (ENG), in a commercial grade aluminum case, tunable to 9120 frequencies from 470MHz – 700MHz.
Features:
- Can be powered via internal battery or external supply
- True dual-diversity operation
- Commercial grade aluminum case
- Q5x companding
- Compatible with Q5x QT-5100 or Shure UHF-R transmitters
- Headphone monitor output
| Dimensions | 112mm x 82mm x 24mm |
| Weight, including battery | 291.4g |
| Companding | Q5X companding |
| Compatible with | QT-5100 and Shure UHFR transmitters |
| Output | Mini XLR balanced output Ð Balanced: -18dBm (50mV) Headphone Jack (mini) |
| SSMA antenna connectors | Comes with 2 Water resistant SSMA antennas |
| DC input connector | Barrel Connector (6 Ð 12vDC), micro USB, Hirose |
| Battery charger | Comes with 12V DC wall-wart charger |
| Battery Type | Rechargeable lithium ion battery |
| RF Bands | Available in frequency range of 470 MHz to 700 MHz |
| Bandwidth | Programmed in 25kHz steps |
| Display | OLED front and top display screens |
| Frequency Stability | ±0.005% |
| Sensitivity | -100dBm at S/N ratio> 80dB |
| Image rejection | > 80dB |
| S/N Ratio | > 108dB |
