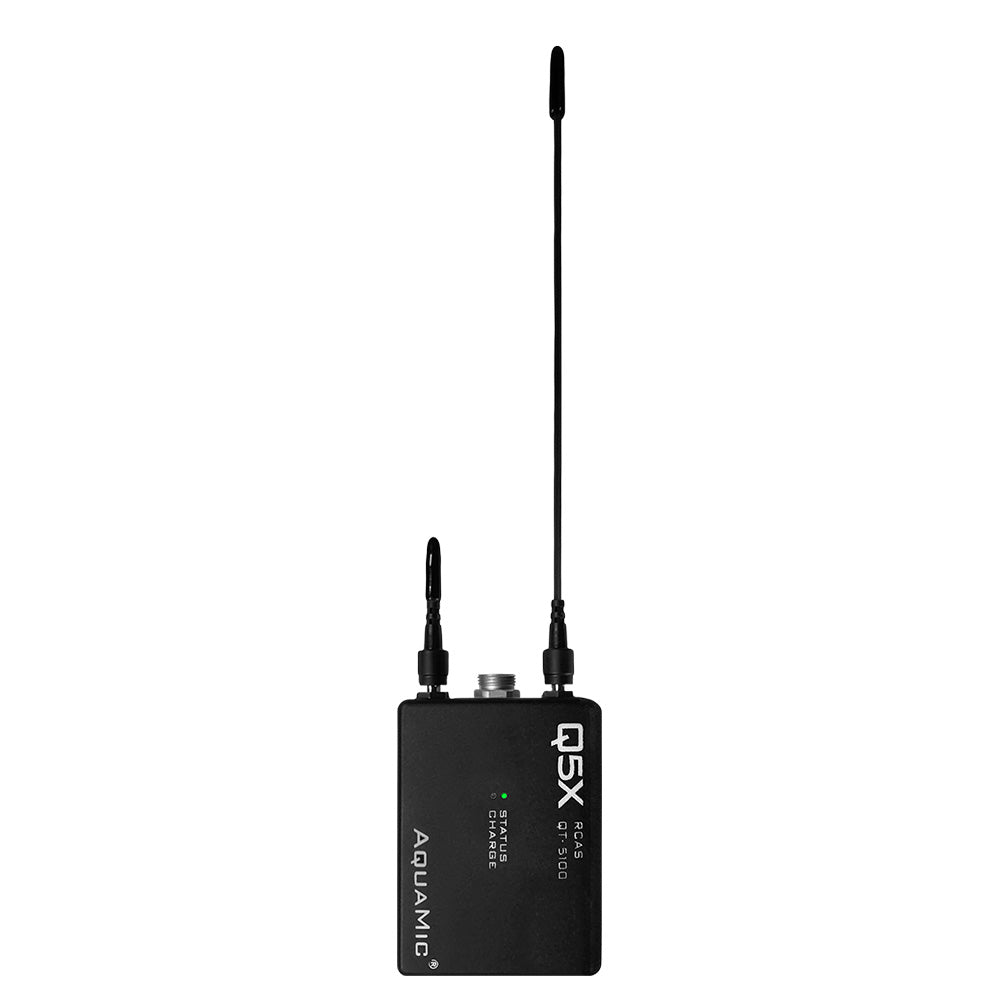

Q5x QT-5100 AquaMic - Submersible Wireless Transmitter (525 - 600 MHz)


  • Dale #:

    Q5X-AQUAMICR8A525600
  • Availability:

    Special Order Item
  • Q5x items are built to order in their factory in Canada - contact us for options and lead times.

Description

Analog transmission, for use with QT-5100 receivers. Standard-life version, with up to 8 hours of run time on a single charge. The QT-5100® AquaMic™ is the waterproof version of the Award Winning QT-5100® series of transmitters. The QT-5100® AquaMic™ is completely waterproof, fully submersible. ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Analog transmission, for use with QT-5100 receivers. Standard-life version, with up to 8 hours of run time on a single charge.

The QT-5100® AquaMic™ is the waterproof version of the Award Winning QT-5100® series of transmitters. The QT-5100® AquaMic™ is completely waterproof, fully submersible.

Trial by Water
Used in reality TV, professional kiteboarding, surfing competitions and America's Cup Yachting, the QT-5100® AquaMic™ has proven itself in extreme, wet environments. The AquaMic is also buried in the dirt at various locations on the ball diamond as an effects mic for Major League Baseball.

QT-5100® Tech
The QT-5100® AquaMic ™ high quality broadcast audio transmitter has proven its worth exposed to the elements in some of the most demanding conditions. The internal lithium battery lasts 8 to 16 hours on a single charge (depending on version and output power). With approximately 3,000 selectable frequencies in 3 blocks from 470 MHz to 700 MHz. It features Q5X pre-emphasis DCS-QT companding and is comes standard with user selectable RF output power from 10mW to 100mW (regional restrictions apply).

Features:

  • Micro sized transmitter
  • Aluminum waterproof, submersible case
  • Internal lithium polymer rechargeable battery
  • 6-pin Lemo connector for a removable lavalier

More +

Product Specs

Dimensions 65mm x 46mm x 19mm
Weight: including battery 100.6g
Housing Material Machined Aluminum
RF output power 10mW to 100mW (user selectable, country restrictions apply)
UHF frequency range 470 to 700 MHz in 3 frequency blocks
Tunable bandwith Varies by frequency block (25 kHz steps)
Frequency Blocks (Channels) 470 - 540 MHz (2800)
525 - 600 MHz (3000)
600 - 700 MHz (4000)
Modulation FM
Nominal deviation +/- 40 kHz
Peak deviation +/- 54 kHz
Pre-emphasis 50 us
Compander Q5X DCS-QT
Signal to Noise 105dB (A) rms
Frequency stability +/- 0.001%
Spurious emission <- 60 dBc
Total harmonic distortion (THD) 0.3% at nominal deviation
Frequency response 50 Hz to 17,000 Hz
NOTE: System frequency response is dependent on the microphone element
Audio connector 6 pin waterproof Lemo
Antenna 1/4 wave UHF and 2.4 GHz
Battery Internal Lithium Polymer
Operating time (Battery) estimated 8 hrs @ 50mW
Operating temperatures -10⁰C to 45⁰C
Approvals FCC, CE, Industry Canada
Note All Analog transmitters have 2 Q5X Modes.
Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.

More +
