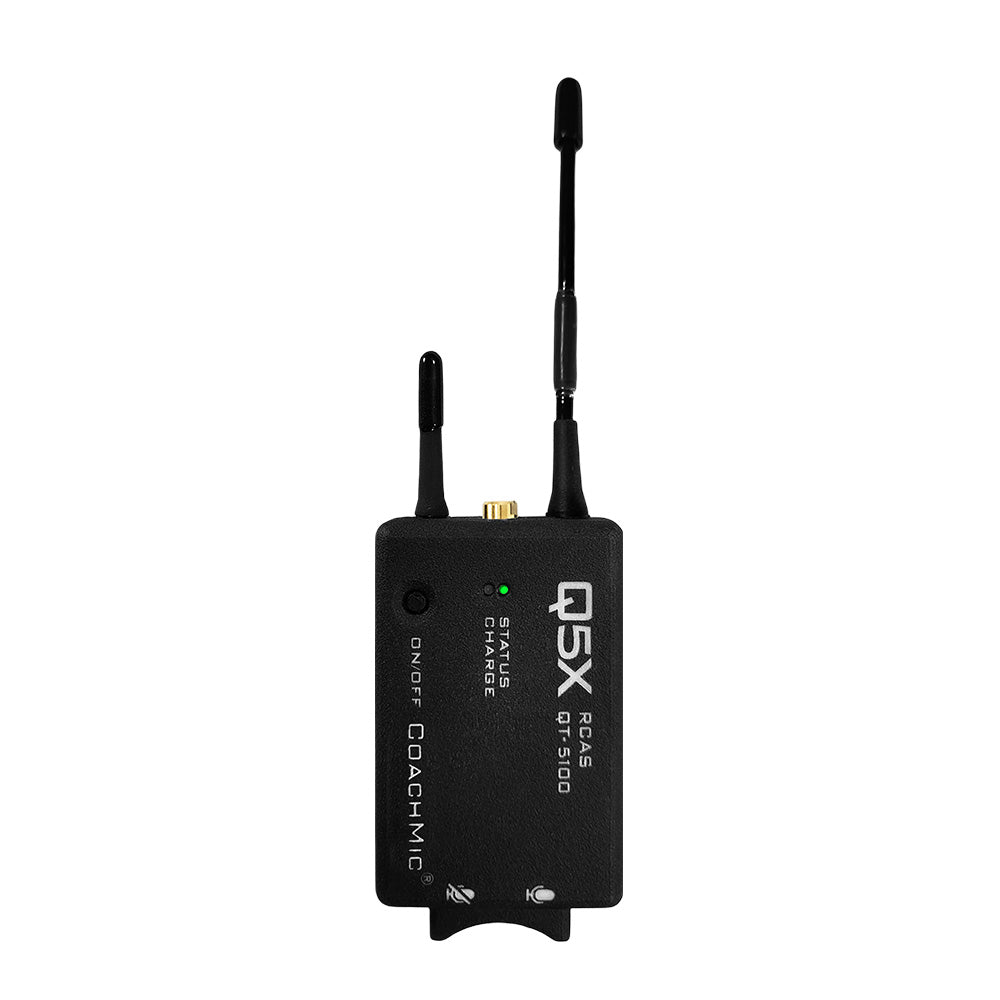

Q5x QT-5100 CoachMic - Compact Bodypack Wireless Transmitter with Mute Switch (600 - 700 MHz)
Contact us
Availability:
Special Order ItemQ5x items are built to order in their factory in Canada - contact us for options and lead times.
Description
The QT-5100 CoachMic incorporates a large, easy-use, rocker-style, audio mute switch. This enables the wearer to mute and unmute the audio without causing any audible popping. This transmitter is ideal for Referees, Umpires and a variety of officials who only need audio for brief announcements. This is also a good solution for corporate presenters who need a top quality audio experience where they can choose to mute the audio for confidential side conversations.
Remote Control Audio System
The QT-5100 CoachMic utilizes RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.
3000 Channels
The QT-5100 CoachMic is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.
Comfortable and Concealable
The QT-5100 CoachMic has a tough nylon case with 2 belt clip options allowing the transmitter to be worn either vertically in a jacket pocket or horizontally on a belt. Weighing 2 ounces and only 3/4 of an inch thick, the QT-5100 CoachMic joins the QT family as the most comfortable and functional wearer mutable audio transmitter in the industry.
Features:
- Micro sized transmitter
- Impact resistant, hard nylon case
- Large, easy-use, integrated rocker-style mute switch with an LED indicator light for mute/live status
- Internal lithium polymer rechargeable battery
- 1-pin Lemo connector for a removable lavalier
| Dimensions | 65.5mm x 42mm x 18.5mm |
| Weight, including battery | 58.1g |
| Housing Material | Nylon Case |
| RF output power | 10mW to 100mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz in 3 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Frequency Block (Channels) | 470 - 540 MHz (2800) 525 - 600 MHz (3000) 600 - 700 MHz (4000) |
| Modulation | FM |
| Nominal deviation | +/- 40 kHz |
| Peak deviation | +/- 54 kHz |
| Pre-emphasis | 50 us |
| Compander | Q5X DCS-QT |
| Signal to Noise | 105dB (A) RMS |
| Frequency stability | +/- 0.001% |
| Spurious emission | <- 60 dBc |
| Total harmonic distortion (THD) | 0.3% at nominal deviation |
| Frequency response | 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element |
| Audio connector | 1 pin Lemo |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Battery | Internal Lithium Polymer |
| Operating time: (Battery) | estimated 8 hrs @ 50mW |
| Operating temperatures | -10_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
| Note | All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility. |
