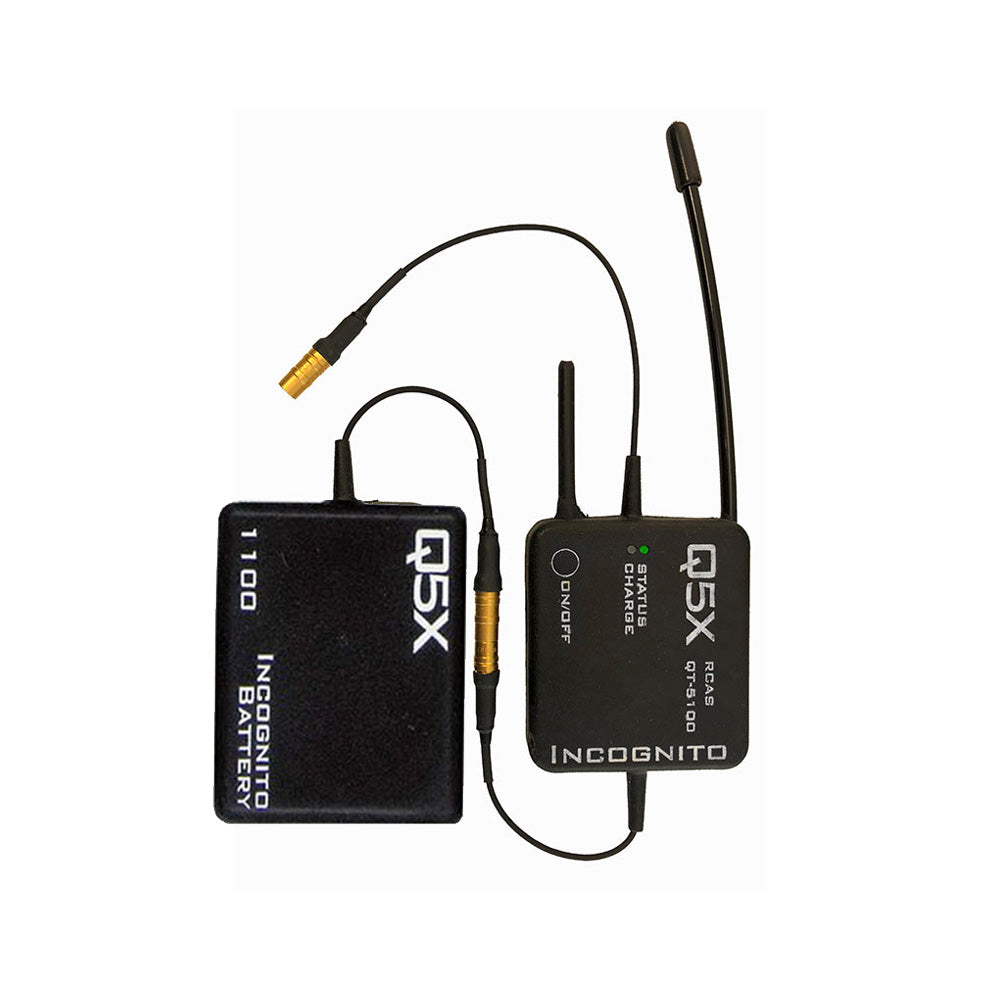

Q5x QT-5100 Incognito - Ultra-Compact Wireless Transmitter with 1000mAh Battery (470 - 540 MHz)
Contact us
Availability:
Special Order ItemQ5x items are built to order in their factory in Canada - contact us for options and lead times.
Description
A revolution in concealment. The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. A member of the QT-5100 series, the Incognito has full wireless remote control.
Remote Control Audio System
The QT-5100 Incognito utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.
3000 Channels
The QT-5100 Incognito is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.
Divide and Hide
The unique two part design of the QT-5100 Incognito is based on the observation that sometimes it can be easier to hide 2 tiny components rather than 1 small one. The Incognito can be used invisibly in a bra or bikini top. For theatrical productions, it can be balanced on both sides of a wig.
Removable Battery Pack
The external plug-in lithium polymer battery pack can be changed quickly, allowing you to keep shooting for up to 16 hours @ 50mW depending on the battery ordered.
Features:
- Micro-sized transmitter
- Flexible polymer, water-resistant case
- Configured as 2 easily concealed components
- Detachable lithium polymer rechargeable battery
- 1-pin Lemo connector for a removable lavalier
| Dimensions of transmitter | 47.5mm x 43mm x 10.5mm |
| Weight of transmitter | 29.8g |
| Battery Size | Small (500 mAh) Medium (1000 mAh) Large (2000 mAh) |
| Runtime | Small: 4 hrs @50mW Medium: 8 hrs @50mW Large: 16 hrs @50mW |
| Weight | Small: 18.5g Medium: 30.4g Large: 48.3g |
| Dimensions (Length Width Height) | Small: 43mm 29mm 10mm Medium: 49mm 38.5mm 10mm Large: 58.5mm 39mm 13.5mm |
| Housing Material | Polymer Case |
| RF output power | 10mW to 100mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz in 3 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Frequency Block (Channels) | 470 - 540 MHz 2800 525 - 600 MHz 3000 600 - 700 MHz 4000 |
| Modulation | FM |
| Nominal deviation | +/- 40 KHz |
| Peak deviation | +/- 54 KHz |
| Pre-emphasis | 50 us |
| Compander | Q5X DCS-QT |
| Signal to Noise | 105dB (A) rms |
| Frequency stability | +/- 0.001% |
| Spurious emission | <- 60 dBc |
| Total harmonic distortion (THD) | 0.3% at nominal deviation |
| Frequency response | 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element |
| Audio connector | 1 pin Lemo |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Battery | Lithium Polymer Battery Pack |
| Operating time: (Battery) | estimated up to 16 hours @50mW dependent on battery used |
| Operating temperatures | -10_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
| Note | All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility. |
A revolution in concealment. The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. A member of the QT-5100 series, the Incognito has full wireless remote control.
Remote Control Audio System
The QT-5100 Incognito utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.
3000 Channels
The QT-5100 Incognito is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.
Divide and Hide
The unique two part design of the QT-5100 Incognito is based on the observation that sometimes it can be easier to hide 2 tiny components rather than 1 small one. The Incognito can be used invisibly in a bra or bikini top. For theatrical productions, it can be balanced on both sides of a wig.
Removable Battery Pack
The external plug-in lithium polymer battery pack can be changed quickly, allowing you to keep shooting for up to 16 hours @ 50mW depending on the battery ordered.
Features:
- Micro-sized transmitter
- Flexible polymer, water-resistant case
- Configured as 2 easily concealed components
- Detachable lithium polymer rechargeable battery
- 1-pin Lemo connector for a removable lavalier
| Dimensions of transmitter | 47.5mm x 43mm x 10.5mm |
| Weight of transmitter | 29.8g |
| Battery Size | Small (500 mAh) Medium (1000 mAh) Large (2000 mAh) |
| Runtime | Small: 4 hrs @50mW Medium: 8 hrs @50mW Large: 16 hrs @50mW |
| Weight | Small: 18.5g Medium: 30.4g Large: 48.3g |
| Dimensions (Length Width Height) | Small: 43mm 29mm 10mm Medium: 49mm 38.5mm 10mm Large: 58.5mm 39mm 13.5mm |
| Housing Material | Polymer Case |
| RF output power | 10mW to 100mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz in 3 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Frequency Block (Channels) | 470 - 540 MHz 2800 525 - 600 MHz 3000 600 - 700 MHz 4000 |
| Modulation | FM |
| Nominal deviation | +/- 40 KHz |
| Peak deviation | +/- 54 KHz |
| Pre-emphasis | 50 us |
| Compander | Q5X DCS-QT |
| Signal to Noise | 105dB (A) rms |
| Frequency stability | +/- 0.001% |
| Spurious emission | <- 60 dBc |
| Total harmonic distortion (THD) | 0.3% at nominal deviation |
| Frequency response | 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element |
| Audio connector | 1 pin Lemo |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Battery | Lithium Polymer Battery Pack |
| Operating time: (Battery) | estimated up to 16 hours @50mW dependent on battery used |
| Operating temperatures | -10_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
| Note | All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility. |
