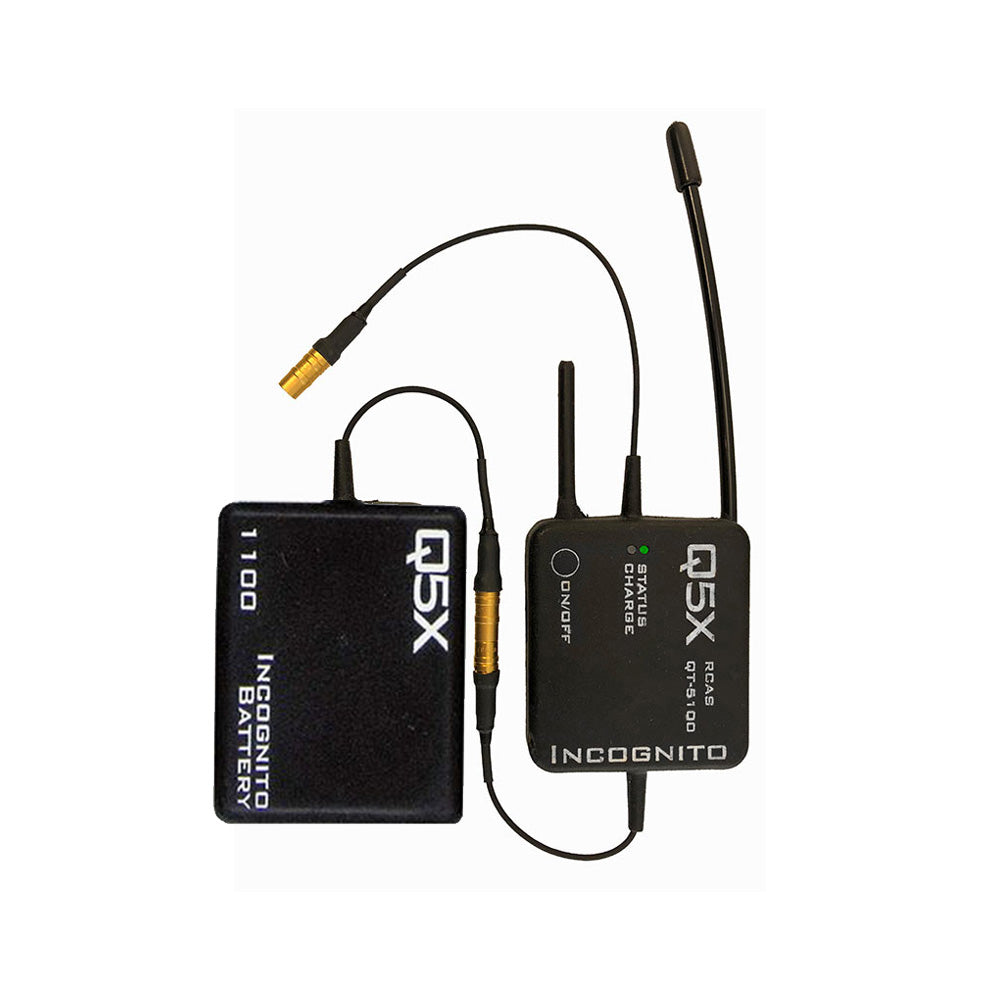

Q5x QT-5100 Incognito - Ultra-Compact Wireless Transmitter with 1000mAh Battery (525 - 600 MHz)


  • Dale #:

    Q5X-INCOGNITOR8A525600
  • Availability:

    Special Order Item
  • Q5x items are built to order in their factory in Canada - contact us for options and lead times.

Description

A revolution in concealment. The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. A member of the QT-5100 series, the Incognito has full wireless remote control. Remote Control Audio System The QT-5100 Incognito utilizes the RC... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A revolution in concealment. The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. A member of the QT-5100 series, the Incognito has full wireless remote control.

Remote Control Audio System
The QT-5100 Incognito utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.

3000 Channels
The QT-5100 Incognito is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.

Divide and Hide
The unique two part design of the QT-5100 Incognito is based on the observation that sometimes it can be easier to hide 2 tiny components rather than 1 small one. The Incognito can be used invisibly in a bra or bikini top. For theatrical productions, it can be balanced on both sides of a wig.

Removable Battery Pack
The external plug-in lithium polymer battery pack can be changed quickly, allowing you to keep shooting for up to 16 hours @ 50mW depending on the battery ordered.

Features:

  • Micro-sized transmitter
  • Flexible polymer, water-resistant case
  • Configured as 2 easily concealed components
  • Detachable lithium polymer rechargeable battery
  • 1-pin Lemo connector for a removable lavalier

More +

Product Specs

Dimensions of transmitter 47.5mm x 43mm x 10.5mm
Weight of transmitter 29.8g
Battery Size Small (500 mAh)
Medium (1000 mAh)
Large (2000 mAh)
Runtime Small: 4 hrs @50mW
Medium: 8 hrs @50mW
Large: 16 hrs @50mW
Weight Small: 18.5g
Medium: 30.4g
Large: 48.3g
Dimensions (Length Width Height) Small: 43mm 29mm 10mm
Medium: 49mm 38.5mm 10mm
Large: 58.5mm 39mm 13.5mm
Housing Material Polymer Case
RF output power 10mW to 100mW (user selectable, country restrictions apply)
UHF frequency range 470 to 700 MHz in 3 frequency blocks
Tunable bandwith Varies by frequency block (25 kHz steps)
Frequency Block (Channels) 470 - 540 MHz 2800
525 - 600 MHz 3000
600 - 700 MHz 4000
Modulation FM
Nominal deviation +/- 40 KHz
Peak deviation +/- 54 KHz
Pre-emphasis 50 us
Compander Q5X DCS-QT
Signal to Noise 105dB (A) rms
Frequency stability +/- 0.001%
Spurious emission <- 60 dBc
Total harmonic distortion (THD) 0.3% at nominal deviation
Frequency response 50 Hz to 17,000 Hz
NOTE: System frequency response is dependent on the microphone element
Audio connector 1 pin Lemo
Antenna 1/4 wave UHF and 2.4 GHz
Battery Lithium Polymer Battery Pack
Operating time: (Battery) estimated up to 16 hours @50mW dependent on battery used
Operating temperatures -10⁰C to 45⁰C
Approvals FCC, CE, Industry Canada
Note All Analog transmitters have 2 Q5X Modes.
Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.

More +
