Description
The QT-5100 RefMicHD incorporates a large, easy-use, rocker-style, audio mute switch. This enables the wearer to mute and unmute the audio without causing any audible popping. The mute switch is surrounded by a protective fence that prevents unintentional tripping of the switch by bumping the t... Read MoreOur Price: $2,995.00
Shipping Charges Apply
Suggested Accessories
Description

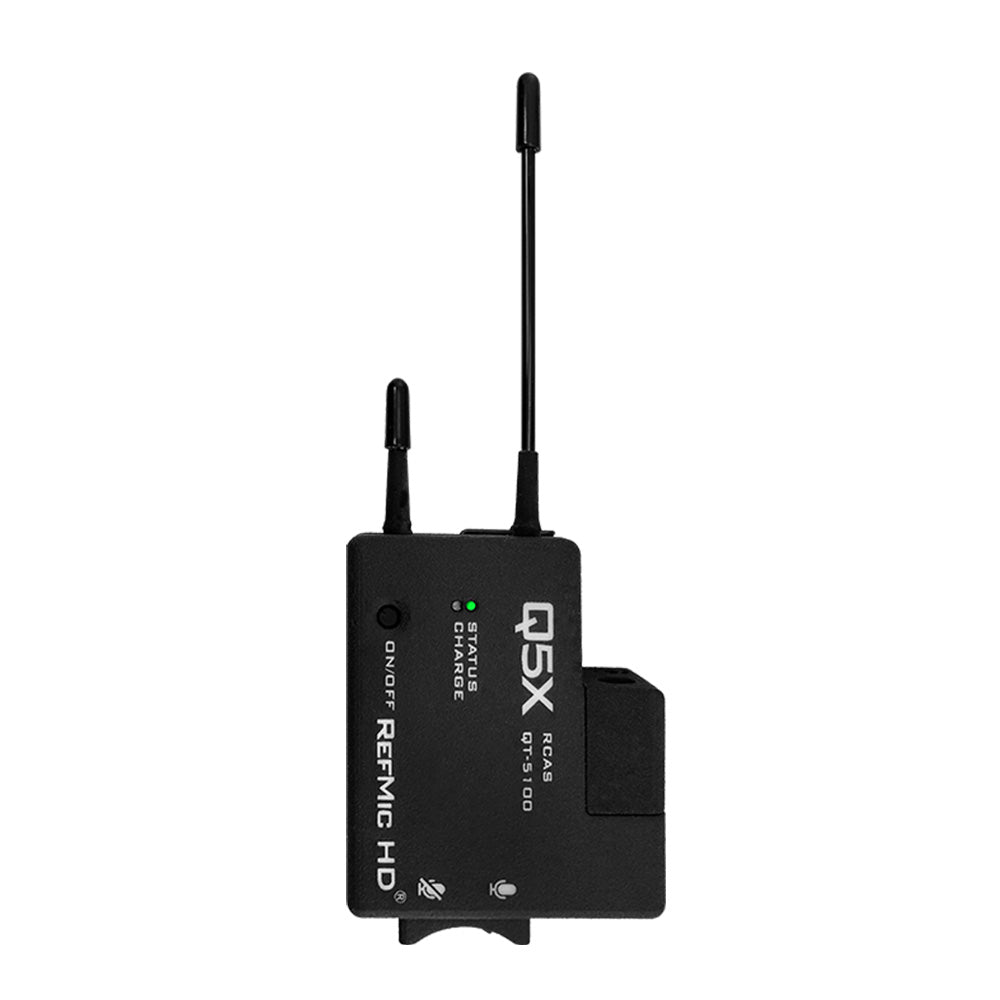

The QT-5100 RefMicHD incorporates a large, easy-use, rocker-style, audio mute switch. This enables the wearer to mute and unmute the audio without causing any audible popping. The mute switch is surrounded by a protective fence that prevents unintentional tripping of the switch by bumping the transmitter. There is a highly visible LED indicator light for mute/live. This transmitter is ideal for Referees, Umpires and a variety of officials who only need audio for brief announcements.
Rugged Protective Mic Connector Shield
The QT-5100 RefMicHD has its Lemo mic connector located on the edge of the transmitter case and protected by a rugged shielding cap that covers the entire connector to prevent damage if the event the transmitter takes a direct hit in use. The protective cap is held in place by a screw, so also prevents the wearer from disconnecting the mic.
Remote Control Audio System
The QT-5100 RefMicHD utilizes RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, companding mode and grouping, all wirelessly.
3000 Channels
The QT-5100 RefMicHD is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.
Comfortable and Concealable
The QT-5100 RefMicHD has a tough nylon case with belt clip. Weighing just over 2 ounces and only 3/4 of an inch thick, the QT-5100 RefMicHD is rugged, unobtrusive and very easy to use.
Features:
More +
Product Specs
Dimensions | 66.5mm x 57.5mm x 20mm |
Weight, including battery | 66.9g |
Housing Material | Nylon Case |
RF output power | 10mW to 100mW (user selectable, country restrictions apply) |
UHF frequency range | 470 to 700 MHz in 3 frequency blocks |
Tunable bandwith | Varies by frequency block (25 kHz steps) |
Frequency Block (Channels) | 470 - 540 MHz (2800) 525 - 600 MHz (3000) 600 - 700 MHz (4000) |
Modulation | FM |
Nominal deviation | +/- 40 kHz |
Peak deviation | +/- 54 kHz |
Pre-emphasis | 50 us |
Compander | Q5X DCS-QT |
Signal to Noise | 105dB (A) RMS |
Frequency stability | +/- 0.001% |
Spurious emission | <- 60 dBc |
Total harmonic distortion (THD) | 0.3% at nominal deviation |
Frequency response | 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element |
Audio connector | 1 pin Lemo |
Antenna | 1/4 wave UHF and 2.4 GHz |
Battery | Internal Lithium Polymer |
Operating time: (Battery) | estimated 8 hrs @ 50mW |
Operating temperatures | -10⁰C to 45⁰C |
Approvals | FCC, CE, Industry Canada |
Note | All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility. |
