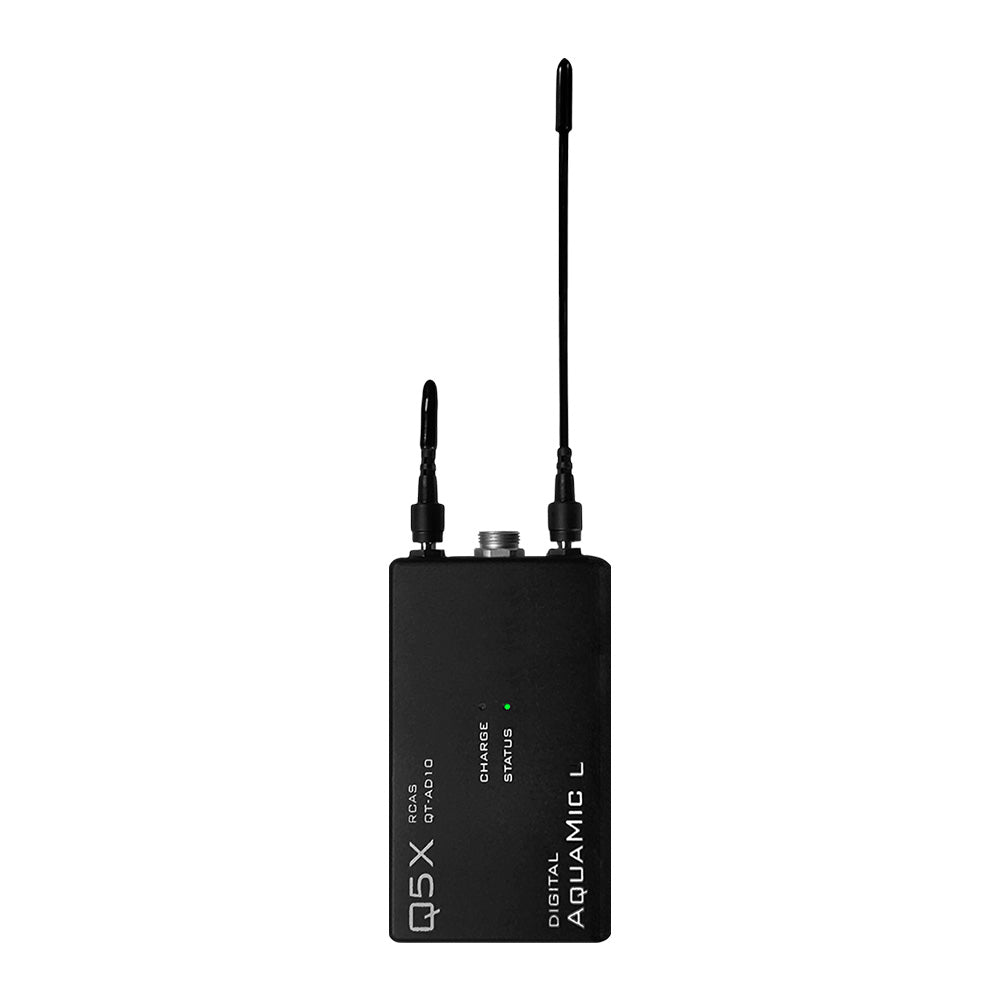

Q5x QT-AD10 AquaMic L - Long-Life Submersible Transmitter for Shure Axient Digital Wireless (X55 Band / 941 - 960 MHz)


  • Dale #:

    Q5X-AQUAMICL16D941960
  • Availability:

    Special Order Item
  • Q5x items are built to order in their factory in Canada - contact us for options and lead times.

Description

Digital transmitter for use with Shure Axient Digital wireless systems. Long-life battery for up to 16 hours run time on a single charge. The QT-AD10 Digital AquaMic™ and Digital AquaMic™ L bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Digital transmitter for use with Shure Axient Digital wireless systems. Long-life battery for up to 16 hours run time on a single charge.

The QT-AD10 Digital AquaMic™ and Digital AquaMic™ L bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.

Completely Submersible
The QT-AD10 Digital AquaMic™ is the waterproof version of the QT-AD10 family of transmitters and is fully submersible, making it ideal for any wet, dusty or dirty application where a totally sealed transmitter is required. After use, the transmitter can be safely cleaned and sanitized before the next project.

Trial by Water
Used in reality TV, surfing competitions, professional kiteboarding and America's Cup Yachting, the Q5X AquaMic™ has proven itself in extreme, wet environments. The AquaMic is also buried in the dirt for Major League Baseball broadcasts. The RCAS (Remote Control Audio System) eliminates the need for any physical control elements on the transmitter so there is no point of entry for moisture to access the electronics.

Long Battery Life
The internal lithium polymer battery lasts 8 to 16 hours on a single charge (depending on version and output power). It comes standard with user selectable RF output power from 2mW to 20mW.

Remote Control Audio System
The QT-AD10 AquaMic utilizes RCAS™ (Remote Control Audio System), a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.

Four UHF Tuning Blocks
The QT-AD10 Digital AquaMic™ is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.

Features:

  • Micro sized transmitter
  • Aluminum waterproof, submersible case
  • Axient Digital audio transmission with encryption and a high density mode for spectrum efficiency
  • Internal lithium polymer rechargeable battery
  • 6-pin Lemo connector for a removable lavalier

More +

Product Specs

Dimensions 65 mm x 46 mm x 23 mm
Weight including battery 116.5 g
Housing Material Machined Aluminum
Encryption AES 256 Encryption
RF output power 2mW, 10mW, 20mW (user selectable, country restrictions apply)
UHF frequency range 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks
Tunable bandwith Varies by frequency block (25 kHz steps)
Block Frequency Range (Channels) G56 470 - 636 MHz (6640)
G57 470 - 608 MHz (5520)
K55 606 - 694 MHz (3520)
X55 941 - 960 MHz (780)
Modulation type Shure Axient Digital Proprietary
Mic offset gain range -12 to 21 dB (in 1 dB steps)
Pre-amplifier Equivalent Input Noise (EIN), System gain setting ≥ +20: -115 dBV, A-weighted, typical
Maximum input level 1 kHz at 1% THD, 3 dBV (5.0V)
Input impedance 8.2K with 5V Mic Bias
Frequency response 20 Hz to 20 KHz
NOTE: system frequency response is dependent on the microphone element
Audio connector 6 pin Lemo
Occupied bandwidth <200 kHz
Channel-to-Channel spacing Standard Mode – 350 KHz
High Density Mode – 125 KHz
Antenna 1/4 wave UHF and 2.4 GHz
Antenna impedance 50 Ohm
Battery Internal Lithium Polymer
Operating time: (Battery) 16 hrs @ 10mW
Operating temperatures -20⁰C to 50⁰C
Storage temperatures -20⁰C to 45⁰C
Approvals FCC, CE, Industry Canada
