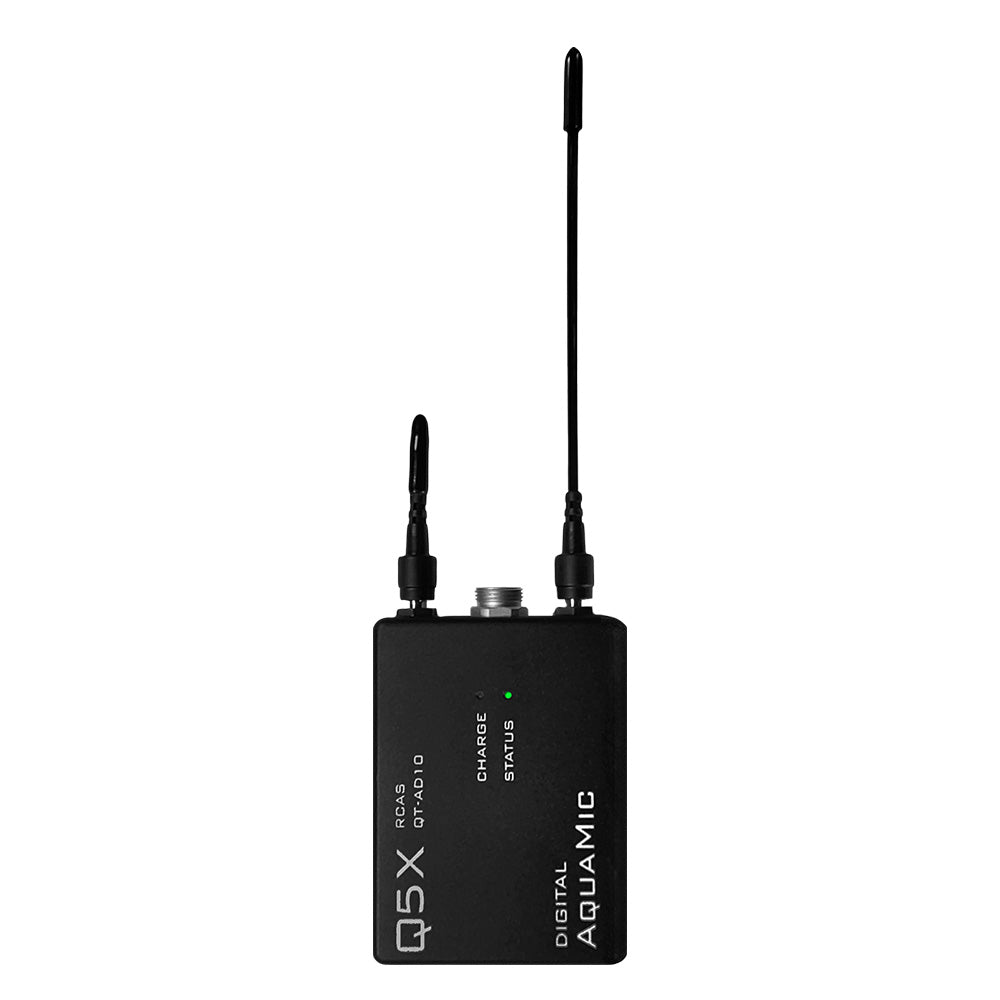

Q5x QT-AD10 AquaMic - Submersible Transmitter for Shure Axient Digital Wireless (G57 Band / 470 - 608 MHz)
Contact us
Availability:
Special Order ItemQ5x items are built to order in their factory in Canada - contact us for options and lead times.
Description
Digital transmitter for use with Shure Axient Digital wireless systems. Standard-life battery for up to 8 hours run time on a single charge.
The QT-AD10 Digital AquaMic™ and Digital AquaMic™ L bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.
Completely Submersible
The QT-AD10 Digital AquaMic™ is the waterproof version of the QT-AD10 family of transmitters and is fully submersible, making it ideal for any wet, dusty or dirty application where a totally sealed transmitter is required. After use, the transmitter can be safely cleaned and sanitized before the next project.
Trial by Water
Used in reality TV, surfing competitions, professional kiteboarding and America's Cup Yachting, the Q5X AquaMic™ has proven itself in extreme, wet environments. The AquaMic is also buried in the dirt for Major League Baseball broadcasts. The RCAS (Remote Control Audio System) eliminates the need for any physical control elements on the transmitter so there is no point of entry for moisture to access the electronics.
Long Battery Life
The internal lithium polymer battery lasts 8 to 16 hours on a single charge (depending on version and output power). It comes standard with user selectable RF output power from 2mW to 20mW.
Remote Control Audio System
The QT-AD10 AquaMic utilizes RCAS™ (Remote Control Audio System), a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.
Four UHF Tuning Blocks
The QT-AD10 Digital AquaMic™ is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.
Features:
- Micro sized transmitter
- Aluminum waterproof, submersible case
- Axient Digital audio transmission with encryption and a high density mode for spectrum efficiency
- Internal lithium polymer rechargeable battery
- 6-pin Lemo connector for a removable lavalier
| Dimensions | 65 mm x 46 mm x 19 mm |
| Weight including battery | 104 g |
| Housing Material | Machined Aluminum |
| Encryption | AES 256 Encryption |
| RF output power | 2mW, 10mW, 20mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Block Frequency Range (Channels) | G56 470 - 636 MHz (6640) G57 470 - 608 MHz (5520) K55 606 - 694 MHz (3520) X55 941 - 960 MHz (780) |
| Modulation type | Shure Axient Digital Proprietary |
| Mic offset gain range | -12 to 21 dB (in 1 dB steps) |
| Pre-amplifier Equivalent Input Noise (EIN), System gain setting | ³ +20: -115 dBV, A-weighted, typical |
| Maximum input level | 1 kHz at 1% THD, 3 dBV (5.0V) |
| Input impedance | 8.2K with 5V Mic Bias |
| Frequency response | 20 Hz to 20 KHz NOTE: system frequency response is dependent on the microphone element |
| Audio connector | 6 pin Lemo |
| Occupied bandwidth | <200 kHz |
| Channel-to-Channel spacing | Standard Mode Ð 350 KHz High Density Mode Ð 125 KHz |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Antenna impedance | 50 Ohm |
| Battery | Internal Lithium Polymer |
| Operating time: (Battery) | estimated 8 hrs @ 10mW |
| Operating temperatures | -20_C to 50_C |
| Storage temperatures | -20_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
Digital transmitter for use with Shure Axient Digital wireless systems. Standard-life battery for up to 8 hours run time on a single charge.
The QT-AD10 Digital AquaMic™ and Digital AquaMic™ L bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.
Completely Submersible
The QT-AD10 Digital AquaMic™ is the waterproof version of the QT-AD10 family of transmitters and is fully submersible, making it ideal for any wet, dusty or dirty application where a totally sealed transmitter is required. After use, the transmitter can be safely cleaned and sanitized before the next project.
Trial by Water
Used in reality TV, surfing competitions, professional kiteboarding and America's Cup Yachting, the Q5X AquaMic™ has proven itself in extreme, wet environments. The AquaMic is also buried in the dirt for Major League Baseball broadcasts. The RCAS (Remote Control Audio System) eliminates the need for any physical control elements on the transmitter so there is no point of entry for moisture to access the electronics.
Long Battery Life
The internal lithium polymer battery lasts 8 to 16 hours on a single charge (depending on version and output power). It comes standard with user selectable RF output power from 2mW to 20mW.
Remote Control Audio System
The QT-AD10 AquaMic utilizes RCAS™ (Remote Control Audio System), a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.
Four UHF Tuning Blocks
The QT-AD10 Digital AquaMic™ is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.
Features:
- Micro sized transmitter
- Aluminum waterproof, submersible case
- Axient Digital audio transmission with encryption and a high density mode for spectrum efficiency
- Internal lithium polymer rechargeable battery
- 6-pin Lemo connector for a removable lavalier
| Dimensions | 65 mm x 46 mm x 19 mm |
| Weight including battery | 104 g |
| Housing Material | Machined Aluminum |
| Encryption | AES 256 Encryption |
| RF output power | 2mW, 10mW, 20mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Block Frequency Range (Channels) | G56 470 - 636 MHz (6640) G57 470 - 608 MHz (5520) K55 606 - 694 MHz (3520) X55 941 - 960 MHz (780) |
| Modulation type | Shure Axient Digital Proprietary |
| Mic offset gain range | -12 to 21 dB (in 1 dB steps) |
| Pre-amplifier Equivalent Input Noise (EIN), System gain setting | ³ +20: -115 dBV, A-weighted, typical |
| Maximum input level | 1 kHz at 1% THD, 3 dBV (5.0V) |
| Input impedance | 8.2K with 5V Mic Bias |
| Frequency response | 20 Hz to 20 KHz NOTE: system frequency response is dependent on the microphone element |
| Audio connector | 6 pin Lemo |
| Occupied bandwidth | <200 kHz |
| Channel-to-Channel spacing | Standard Mode Ð 350 KHz High Density Mode Ð 125 KHz |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Antenna impedance | 50 Ohm |
| Battery | Internal Lithium Polymer |
| Operating time: (Battery) | estimated 8 hrs @ 10mW |
| Operating temperatures | -20_C to 50_C |
| Storage temperatures | -20_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
