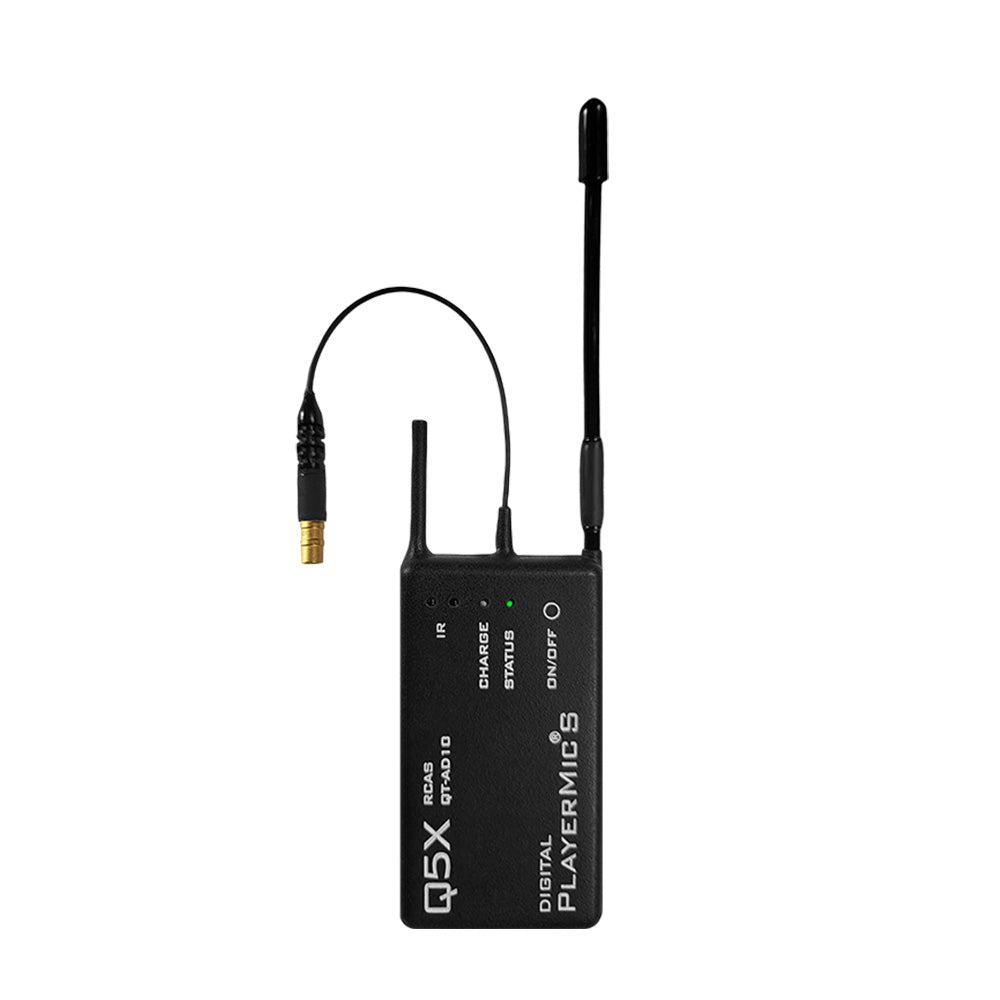

Q5x QT-AD10 PlayerMic S - Micro Bodypack Wireless Transmitter for Axient Digital Systems (K55 Band / 606 - 694 MHz)
Contact us
Availability:
Special Order ItemQ5x items are built to order in their factory in Canada - contact us for options and lead times.
Description
The QT-AD10 Digital PlayerMic and Digital PlayerMic S bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.
Remote Control Audio System
The QT-AD10 Digital PlayerMic utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.
Four UHF Tuning Blocks
The QT-AD10 Digital PlayerMic is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.
Comfortable and Concealable
The QT-AD10 Digital PlayerMic has a flexible polymer case to create the safety and ruggedness required for professional sports. The Digital PlayerMic has a run time of 8 hrs at 10mW, while the shorter Digital PlayerMic S has a run time of 4 hours at 10mW. Weighing only 2 ounces and less than a 1/2 inch thick, the Digital PlayerMic joins the Q5X family as the safest and most comfortable audio transmitter in the industry.
Features:
- Micro sized transmitter
- Flexible polymer, water resistant case
- Axient Digital audio transmission with encryption and a high density mode for spectrum efficiency
- Internal lithium polymer rechargeable battery
- 1-pin Lemo connector for a removable lavalier.
| Dimensions | 74.5mm x 41.5mm x 11.5mm |
| Weight, including battery | 48.6 g |
| Housing Material | Polymer Case |
| Encryption | AES 256 Encryption |
| RF output power | 2mW, 10mW, 20mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Block Frequency Range (Channels) | G56 470 - 636 MHz (6640) G57 470 - 608 MHz (5520) K55 606 - 694 MHz (3520) X55 941 - 960 MHz (780) |
| Modulation type | Shure Axient Digital Proprietary |
| Mic offset gain range | -12 to 21 dB (in 1 dB steps) |
| Pre-amplifier Equivalent Input Noise (EIN), System gain setting | ³ +20: -115 dBV, A-weighted, typical |
| Maximum input level | 1 kHz at 1% THD, 3 dBV (5.0V) |
| Input impedance | 8.2K with 5V Mic Bias |
| Frequency response | 20 Hz to 20 KHz NOTE: system frequency response is dependent on the microphone element |
| Audio connector | 1 pin Lemo |
| Occupied bandwidth | <200 kHz |
| Channel-to-Channel spacing | Standard Mode Ð 350 KHz High Density Mode Ð 125 KHz |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Antenna impedance | 50 Ohm |
| Battery | Internal Lithium Polymer |
| Operating time: (Battery) | estimated 4 hrs @ 10mW |
| Operating temperatures | -20_C to 50_C |
| Storage temperatures | -20_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
The QT-AD10 Digital PlayerMic and Digital PlayerMic S bodypack transmitters have been developed in collaboration with Shure Corporation to work exclusively with Shure Axient Digital receivers, ensuring superior digital transmission with advanced encryption and spectrum efficiency.
Remote Control Audio System
The QT-AD10 Digital PlayerMic utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic offset, mic mute, RF power level, and grouping, all wirelessly.
Four UHF Tuning Blocks
The QT-AD10 Digital PlayerMic is offered in 4 tuning blocks that span 470 to 700 MHz and 941 to 960 MHz in 25 kHz steps.
Comfortable and Concealable
The QT-AD10 Digital PlayerMic has a flexible polymer case to create the safety and ruggedness required for professional sports. The Digital PlayerMic has a run time of 8 hrs at 10mW, while the shorter Digital PlayerMic S has a run time of 4 hours at 10mW. Weighing only 2 ounces and less than a 1/2 inch thick, the Digital PlayerMic joins the Q5X family as the safest and most comfortable audio transmitter in the industry.
Features:
- Micro sized transmitter
- Flexible polymer, water resistant case
- Axient Digital audio transmission with encryption and a high density mode for spectrum efficiency
- Internal lithium polymer rechargeable battery
- 1-pin Lemo connector for a removable lavalier.
| Dimensions | 74.5mm x 41.5mm x 11.5mm |
| Weight, including battery | 48.6 g |
| Housing Material | Polymer Case |
| Encryption | AES 256 Encryption |
| RF output power | 2mW, 10mW, 20mW (user selectable, country restrictions apply) |
| UHF frequency range | 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks |
| Tunable bandwith | Varies by frequency block (25 kHz steps) |
| Block Frequency Range (Channels) | G56 470 - 636 MHz (6640) G57 470 - 608 MHz (5520) K55 606 - 694 MHz (3520) X55 941 - 960 MHz (780) |
| Modulation type | Shure Axient Digital Proprietary |
| Mic offset gain range | -12 to 21 dB (in 1 dB steps) |
| Pre-amplifier Equivalent Input Noise (EIN), System gain setting | ³ +20: -115 dBV, A-weighted, typical |
| Maximum input level | 1 kHz at 1% THD, 3 dBV (5.0V) |
| Input impedance | 8.2K with 5V Mic Bias |
| Frequency response | 20 Hz to 20 KHz NOTE: system frequency response is dependent on the microphone element |
| Audio connector | 1 pin Lemo |
| Occupied bandwidth | <200 kHz |
| Channel-to-Channel spacing | Standard Mode Ð 350 KHz High Density Mode Ð 125 KHz |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Antenna impedance | 50 Ohm |
| Battery | Internal Lithium Polymer |
| Operating time: (Battery) | estimated 4 hrs @ 10mW |
| Operating temperatures | -20_C to 50_C |
| Storage temperatures | -20_C to 45_C |
| Approvals | FCC, CE, Industry Canada |
