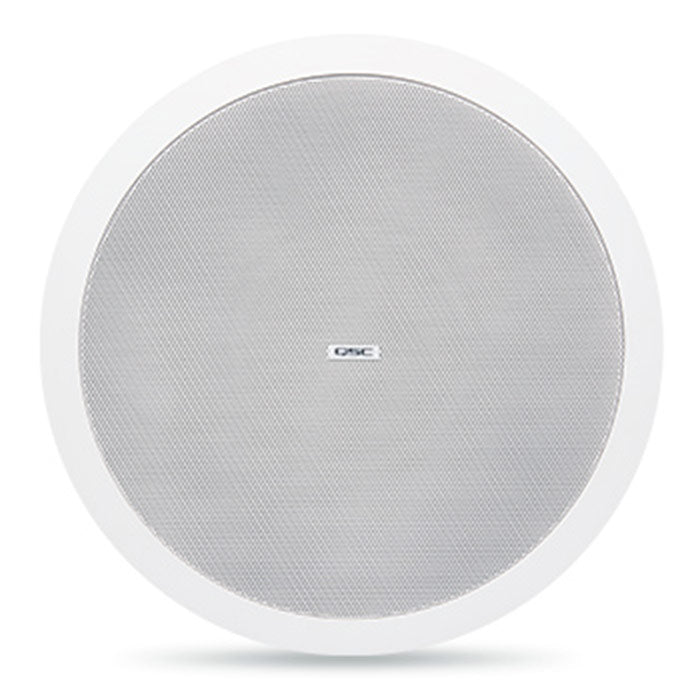

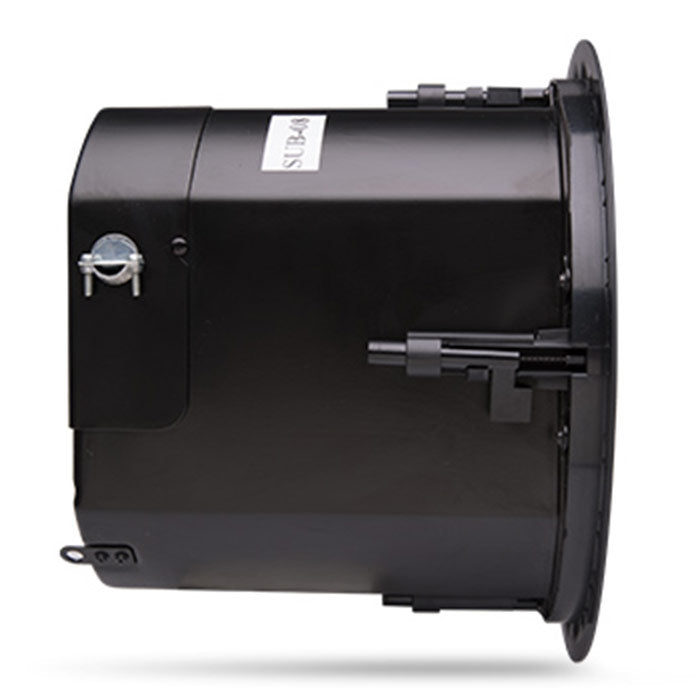

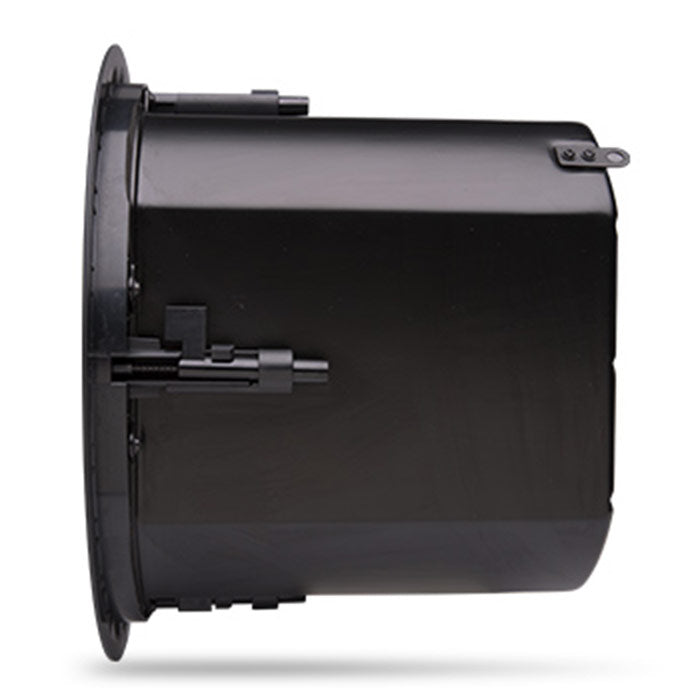

QSC AD-C SUB AcousticDesign Series Installation Subwoofer (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Dual voice-coil for improved thermal dissipation and higher output
- Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
- 4x built-in high-pass filtered outputs
- Snap-fit magnetic grills
- Locking 4-pole Euroblock connectors
- Removable conduit cover plate
- 4x double stepped, long travel dog-ear blind mount system
- Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 and UL2043 certified

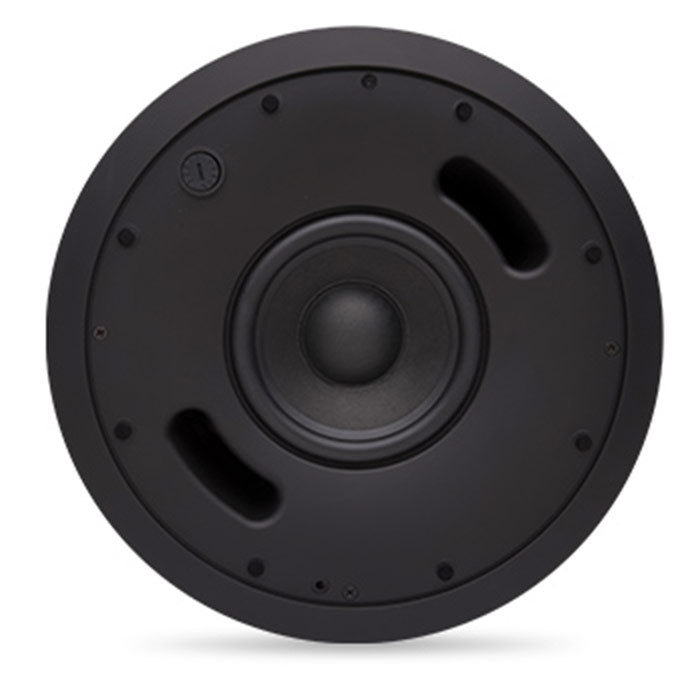

| LF transducer | 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer |
| HF transducer | N/A |
| Effective frequency range | 45 Hz Ð 150 Hz |
| Rated noise power / voltage | 100 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
86 |
| Coverage (_6 dB) | Omni |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (continuous / peak) |
100 / 106 |
| Recommended amplifier | 100 W |
| Transformer taps / impedance | Bypass: 4 ½ 100 W (70 V); NA (100 V) Tap: 50 ½ 50 W (70 V); 100 W (100 V) Tap: 100 ½ 25 W (70 V); 50 W (100 V) Tap: 200 ½ 12.5 W (70 V); 25 W (100 V) Tap: 400 ½ |
| Connectors | Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grill material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122¡ F (-20 to 50¡ C) |
| Net weight | 19.2 lb (8.7 kg) |
| Product dimensions (¯ x H) |
¯ 13.4 x 10-inch (¯ 340 x 254 mm) |
| Shipping weight | TBD |
| Shipping dimensions (H x W x D) |
TBD |
| Included accessories | C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill |
| Safety agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant. |
