Description
Priced individually, but sold in pairs.

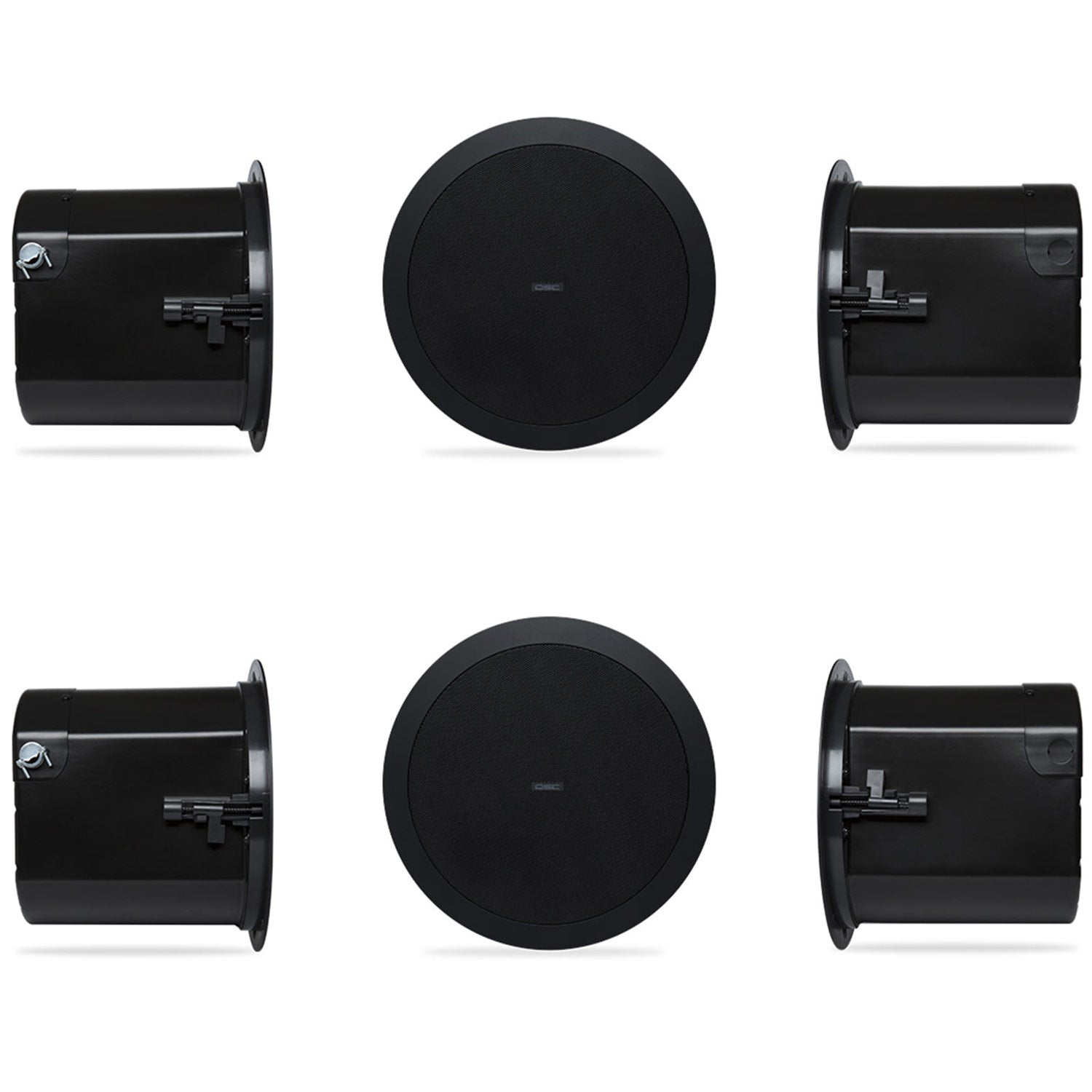

AcousticDesignª ceiling loudspeakers offer a variety ofÊmodels specificallyÊtailored forÊdemands of higher fidelity applications.Ê Designed for clarity and presence, these loudspeaker systemsÊdeliver pristine audio reproduction forÊinstallations requiring a refined audio experience.
Features:
- Consistent tonal characteristics across the entire AcousticDesignªÊfamily in both surface or ceiling applications
- DMT (Directivity Matched Transitionª) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correctionª voicings available via Q-SYSª networked audio processing platforms, including CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16 ohm bypass
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified EN54-24 Type A (pending)
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
Effective frequency range | 63 Hz - 20 kHz |
Rated noise power / voltage | 60 watts / 31 volts (rms) |
Sensitivity [dB] | 88 TBD |
Rated coverage (-6 dB) | 140Á conical DMT 500Hz 1000Hz 2000Hz 4000Hz 160Á 160Á 160Á 170Á |
One-third octave frequency band contribution at full power using 100V maximum tap (Hz / dB) | 500 / 57.4; 630 / 57.4; 800 / 57.4 |
Directivity factor (Q) | 6.5 |
Directivity index (DI) [dB] | 8 |
Maximum continuous SPL [dB] | 106 |
Maximum peak SPL [dB]5 | 112 |
Nominal impedance [ohms] | 16 |
Recommended amplifier | 120 watts |
Transformer taps / impedance | 16_ (in bypass setting) |
LF transducer | 165 mm [6.5 in] weather resistant paper cone woofer |
HF transducer | 25 mm [1 in] aluminum dome tweeter |
Input connector type | Euroblock connector with parallel output |
Enclosure material | ABS baffle on powder coated steel back can |
Grille material | Powder coated steel |
Ingress protection | IP-54 |
Operating environment | Designed for indoor use |
Operating temperature range | -20 to 50Á C [-4 to 122Á F] |
Cutout dimension | ø 245 mm [ø 9.65 in] |
Net weight | 4.3 kg [9.5 lb] |
Product dimensions (Diameter x Height) | ø 280 x 237 mm [ø 11.02 x 9.32 in.] |
Shipping weight | 12.6 kg [27.8 lb] (pair packed) |
Shipping dimensions (H x W x D) | 330 x 737 x 381 mm [13 x 29 x 15 in] (pair packed) |
Included accessories | C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
Optional accessories | AD-MR6 (pre-install mud ring) |
Safety Agency | EN54-24: 2008 type A (No. pending) |
