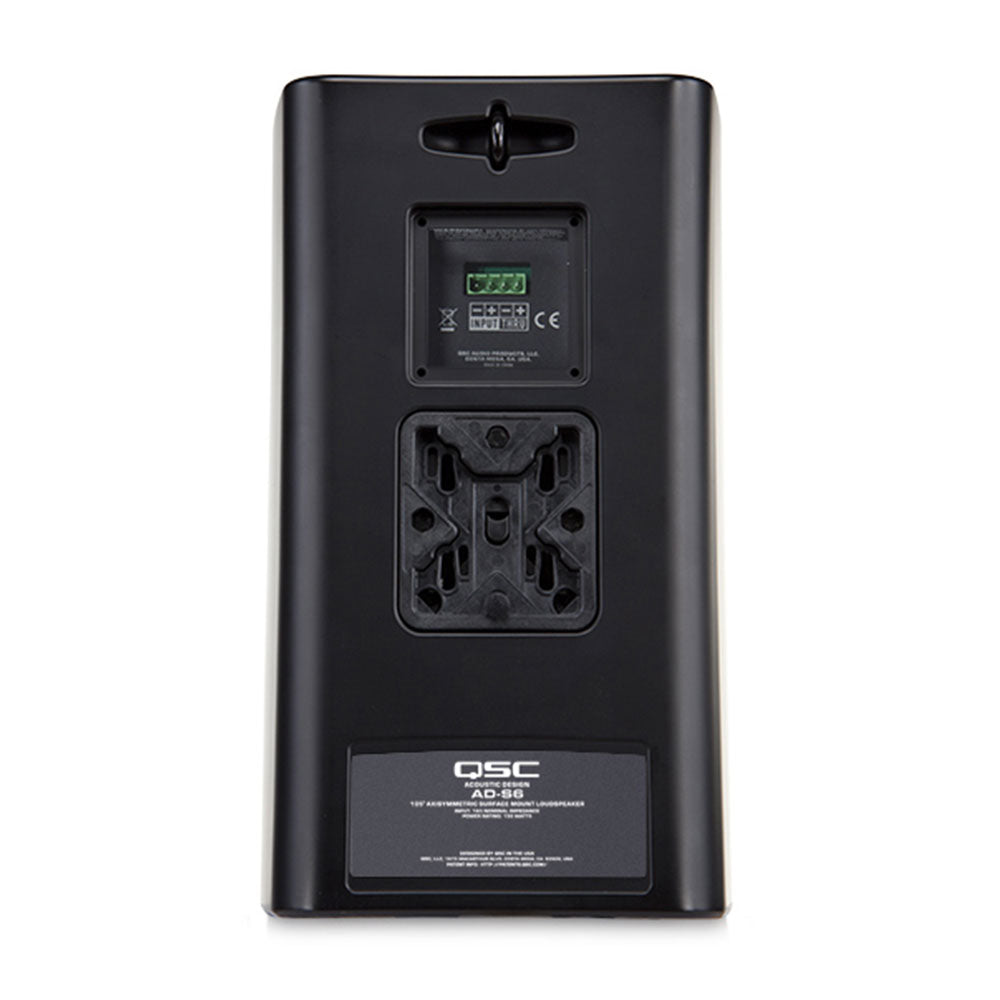

QSC AD-S6 Two-Way 6-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
AcousticDesignª surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mountª system and weather input cover.
Features:
- 6.5-inch weather treated woofer
- 105 deg. conical DMT coverage
- Maximum peak SPL 116 dB (16 ohm)
- DMT (Directivity Matched Transitionª) ensures smooth, uniform frequency response over the coverage area
- X-Mountª system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionª, available through either Q-SYS processing or CXD amplifier platforms
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| HF transducer | 1" silk dome tweeter / 1" voice coil, horn loaded |
| LF transducer | 6.5" weather treated paper cone woofer 1.5" / 38 mm voice coil |
| Effective frequency range1,2,3,8 | 58 Hz - 20k Hz |
| Rated noise power / voltage6 | 150 W / 49 V (rms) |
| Broadband sensitivity2,3,4,8 | 89 dB SPL |
| Coverage angle (-6 dB)2,5,8 | 105 deg. conical DMT |
| Directivity factor (Q)2,5,8 | 5 |
| Directivity Index | 7 dB |
| Maximum continuous SPL7 | 110 dB |
| Maximum peak SPL7 | 116 dB |
| Rated impedance | 16 ohm |
| Recommended amplifier power | 300 W |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD-S6 Series loudspeakers qualified for outdoor use using the following tests:
|
| Operarating temperature range | -20 to 50 deg.C / -4 to 122 deg.F |
| Net weight | 11.6 lb / 5.26 kg |
| Product dimensions (HWD) inches | 14.4 x 8.5 x 8.5 |
| Product dimensions (HWD) mm | 365 x 215 x 215 |
| Shipping weight | 28.7 lb / 13.02 kg (pair packed) |
| Shipping dimensions (HWD) inches | 20 x 12 x 23 (pair packed) |
| Shipping dimensions (HWD) mm | 510 x 305 x 585 (pair packed) |
| Included accessories | Patented X-Mount» mounting system, Euroblock connector, input panel cover |
