QSC ADS282H 8" 2-Way 450 Watt Loudspeaker - Black
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description

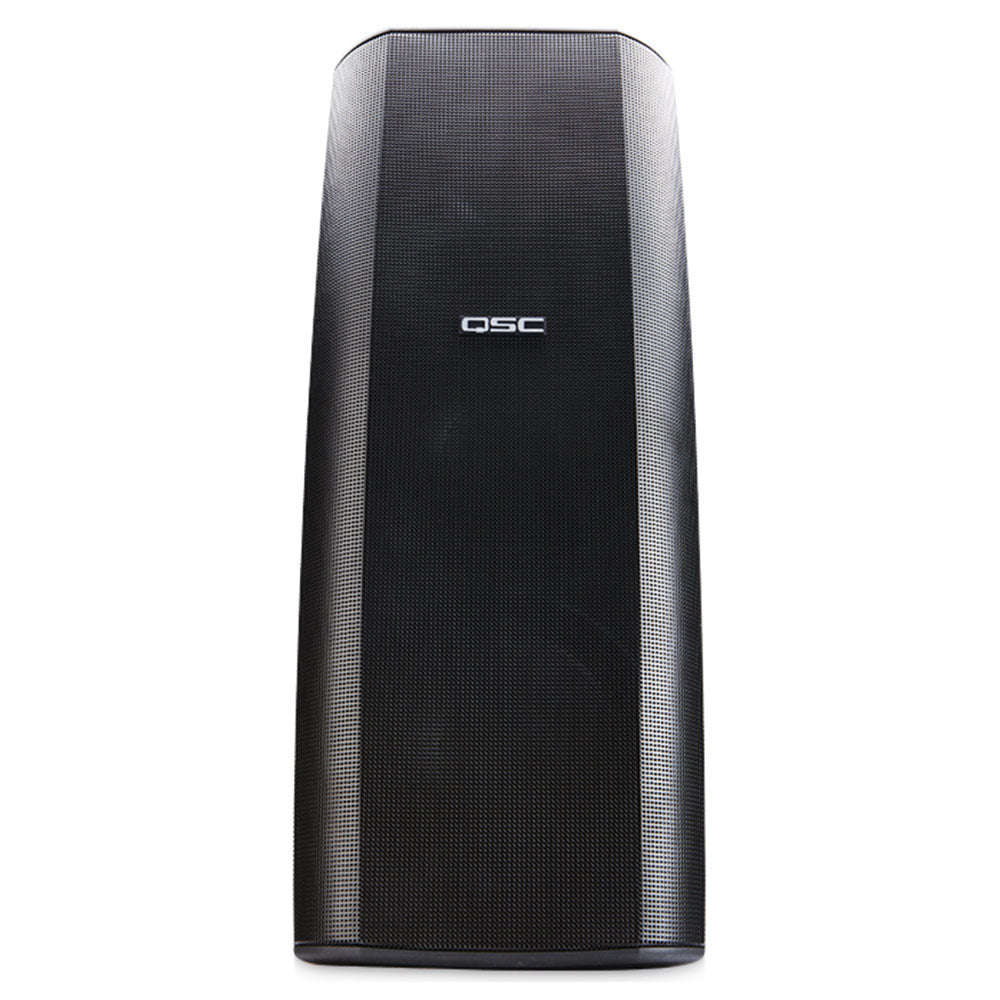

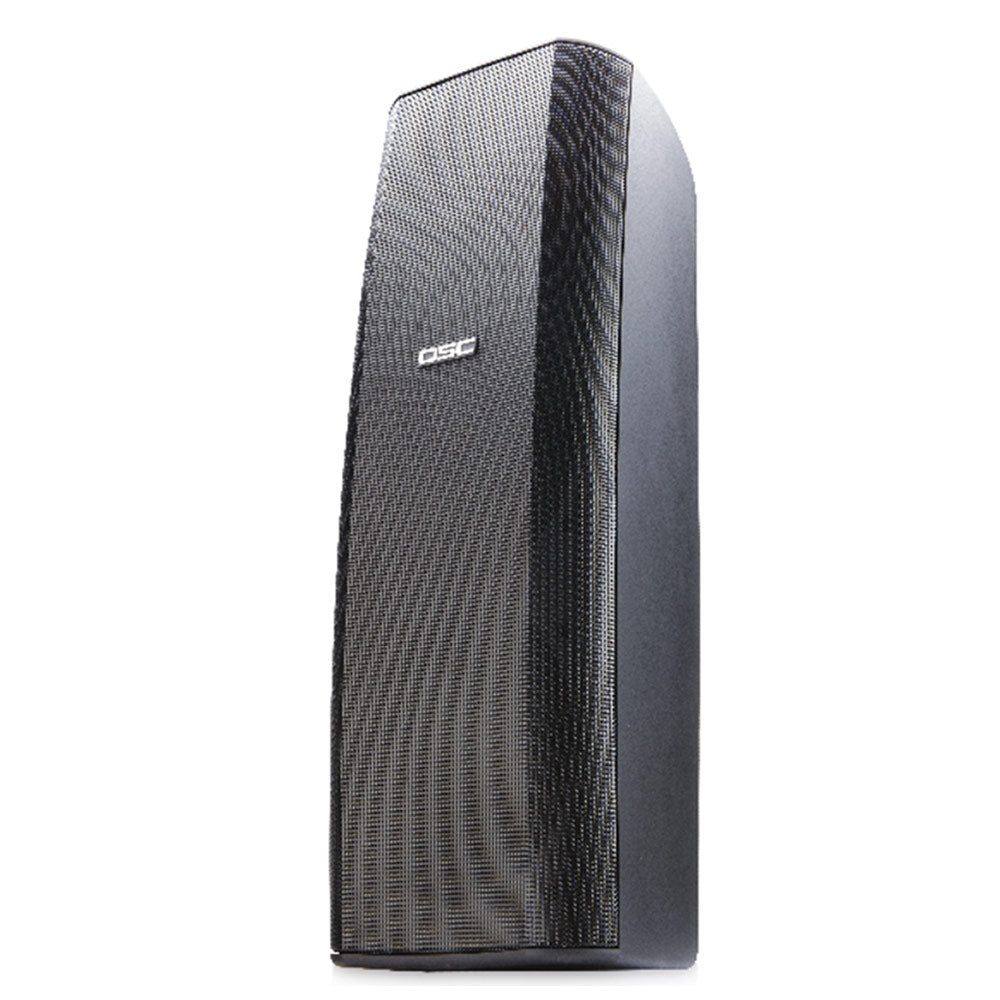

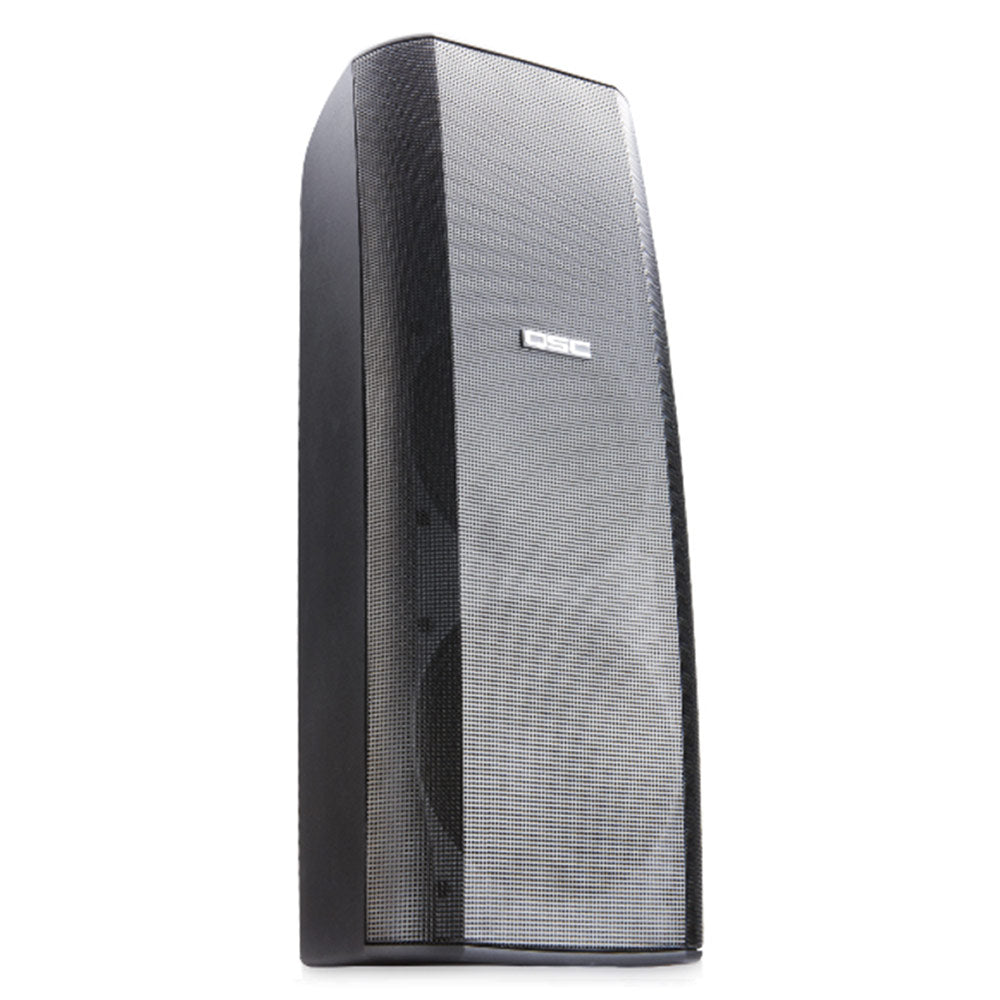

The QSC AcousticDesign AD-S282H is a full range, surface mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments. The speaker incorporates the Advanced Directivity rotatable waveguide. Available in black or white, these weather resistant enclosures can be painted to match any specific d'©cor.
Features- Contemporary Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
- Dual 8-Inch, 2-Way System - in a lightweight, multipurpose enclosure featuring a heavy duty, powder coated aluminum grill.
- Versatile Mounting Options - The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provision for optional Omni-mount bracket is built in.
- Advanced Directivity Rotatable Waveguide - (90Îç x 60Îç) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.
- Low Impedance and Transformer Versions - Standard 8 ohm system is selectable for passive or bi-amp operation while the AD-S282HT transformer version provides taps for both 70V and 100V distributed system use.
The AD-S282H is a 2-way system housed in a ported enclosure made from injection molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.
| Configuration | Compact two way, ported enclosure |
| Low Frequency Transducer | Dual 8 high power, treated paper cone, 2 voice coil, neodymium magnet |
| High Frequency Transducer | 1 high output compression driver |
| Frequency Response (±3 dB) | 80 Hz - 27.7 kHz |
| Useable Frequency Range (-10 dB) | 60 Hz - 29.5 kHz |
| Maximum Output (continuous) | 119 dB SPL |
| Maximum Output (peak) | 125 dB SPL |
| Nominal Impedance | 8 ohms (5.25 ohms minimum, 17.6 kHz, 64.22 ohms maximum, 2.56 kHz) |
| Power Rating | 450 W (IEC, 8 hours) |
| Recommended Max Amp Power | 900 W RMS |
| Sensitivity | 93 dB, 1 m, free field |
| Nominal Coverage | 90¡ H x 60¡ V (-6 dB) (rotatable to 60¡ H x 90¡ V) |
| Bass Loading | Ported, tuned to 60 Hz |
| Transformer Type | Custom low distortion laminated core, wide bandwidth design |
| Taps | 70V 200, 100, 50, 25 W 100V 200, 100, 50 W |
| Bypass | 8 ohm bypass on AD-S282HT |
| Material | Injection molded, weather resistant, high impact polystyrene |
| Finish | Black (paintable) |
| Weather Resistance | Yes |
| Grill | Heavy duty powder coated aluminum |
| Connectors | Barrier Strip, (switchable: passive/active on AD-S282H) |
| Mounting Hardware | Yoke Mount (included) |
| Weight | 27.7 lbs net |
| shipping | 35.6 lbs |
