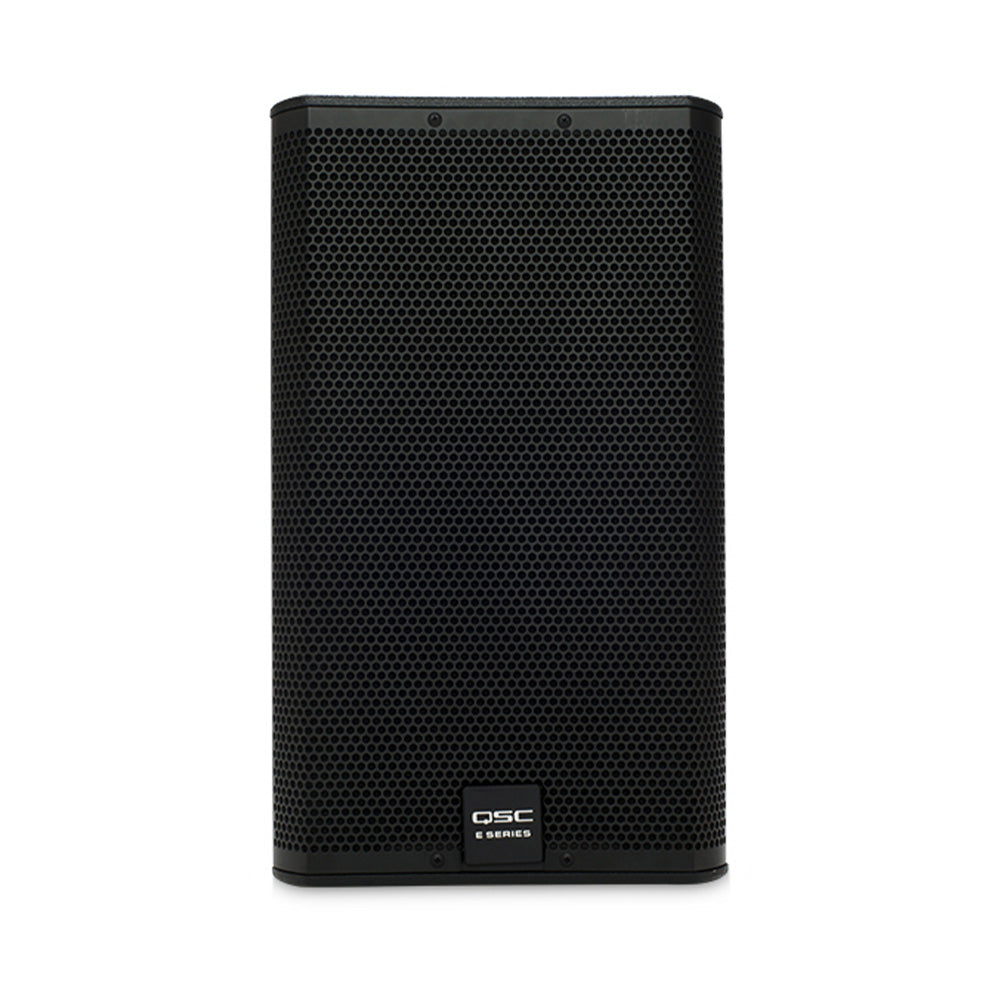

QSC E112 - Passive 12-Inch Two-Way Loudspeaker
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with 400 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M10 rigging kit for permanent installation
- Dual angle pole socket
| Configuration | 1 _ 12-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 64 Hz Ð 20 kHz |
| Frequency RangeÊ(-10 dB) | 46 Hz Ð 20 kHz |
| Power capacity1: continuous/peak | 400 W / 1600 W |
| Sensitivity | 96 dB, 1 W @ 1 m |
| Coverage Angle | 85¡Êconical DMTª |
| Output2Ê(peak SPL @ 1m) | 128 dB |
| Drivers | LF: 305 mm (12 in) driver with 76 mm (3 in) voice coil HF: 25 mm (1 in) exit, 45 mm (1.75 in) voice coil,Êcompression driverÊ |
| Nominal Impedance | 8½ |
| Cross-over | Full range only, 1.8 kHz |
| Input Connections | 2 _ NL4, 1 _ barrier strip |
| Enclosure | Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining. |
| Speaker Dimensions (W_H_D) |
360 _ 616 _ 371 mm 14.2 _ 24.2 _ 14.6 in |
| Carton Dimensions (W_H_D) |
460 _ 460 _ 712 mm 18 _ 18 _ 28 in |
| Net Speaker Weight | 23 kg / 51 lb |
| Shipping Weight | 25.4 kg / 56 lb |
The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with 400 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M10 rigging kit for permanent installation
- Dual angle pole socket
| Configuration | 1 _ 12-inch, 2-way, non-powered |
| Frequency Response (-6 dB) | 64 Hz Ð 20 kHz |
| Frequency RangeÊ(-10 dB) | 46 Hz Ð 20 kHz |
| Power capacity1: continuous/peak | 400 W / 1600 W |
| Sensitivity | 96 dB, 1 W @ 1 m |
| Coverage Angle | 85¡Êconical DMTª |
| Output2Ê(peak SPL @ 1m) | 128 dB |
| Drivers | LF: 305 mm (12 in) driver with 76 mm (3 in) voice coil HF: 25 mm (1 in) exit, 45 mm (1.75 in) voice coil,Êcompression driverÊ |
| Nominal Impedance | 8½ |
| Cross-over | Full range only, 1.8 kHz |
| Input Connections | 2 _ NL4, 1 _ barrier strip |
| Enclosure | Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining. |
| Speaker Dimensions (W_H_D) |
360 _ 616 _ 371 mm 14.2 _ 24.2 _ 14.6 in |
| Carton Dimensions (W_H_D) |
460 _ 460 _ 712 mm 18 _ 18 _ 28 in |
| Net Speaker Weight | 23 kg / 51 lb |
| Shipping Weight | 25.4 kg / 56 lb |
