Description

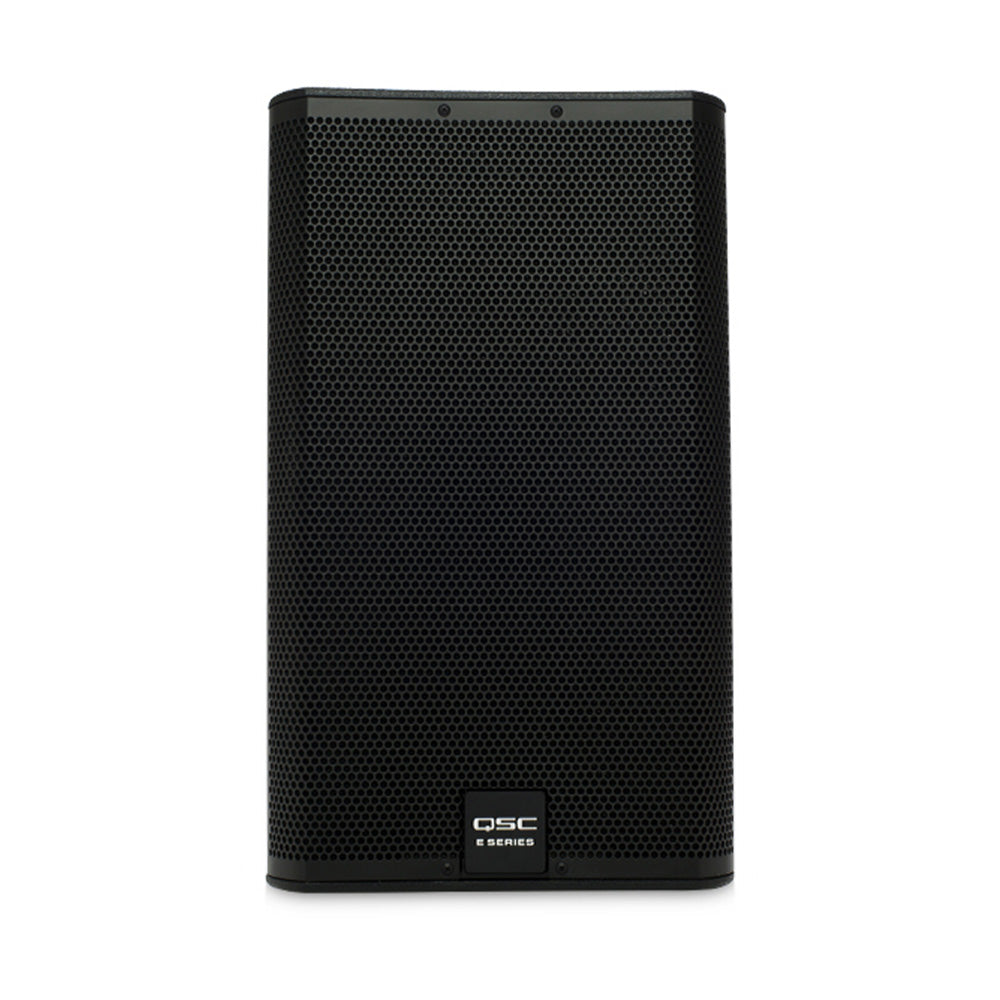

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8" compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.
E Series loudspeakers will perform very well with any quality, professional power amplifier - but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with E115 - 500 W continuous power
- E Series Entertainment System - Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Titanium diaphragm for high fidelity and long life
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M10 rigging kit for permanent installation
- Dual angle pole socket
Configuration | 1 _ 15-inch, 2-way, non-powered |
Frequency Response (-6 dB) | 55 Hz Ð 20 kHz |
Frequency RangeÊ(-10 dB) | 43 Hz Ð 20 kHz |
Power capacity1: continuous/peak | 500 W / 2000 W |
Sensitivity | 97 dB, 1 W @ 1 m |
Coverage Angle | 75¡Êconical DMTª |
Output2Ê(peak SPL @ 1 m) | 130 dB |
Drivers LF HF |
381 mm (15 in) driver with 89 mm (3.5 in) voice coil 38 mm (1.5 in) exit, 71 mm (2.8 in) voice coil, compressionÊdriverÊ |
Nominal Impedance | 8½ |
Cross-over | Full-range only 1.55 kHzÊ |
Input connectors | 2 _ NL4, 1 _ barrier strip |
Enclosure | Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, Perforated, powder-coated steel grille with foam lining. |
Speaker Dimensions (W_H_D) |
420 _ 716 _ 445 mm 16.5 _ 28.2 _ 17.5 in |
Carton Dimensions (W_H_D) |
530 _ 510 _ 813 mm 21Ê_ 20Ê_ 32 in |
Net speaker weight | 31 kg / 68 lb |
Shipping weight | 35.4 kg / 78 lb |
The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8" compression driver attached to the 75° DMTTM waveguide assures that even distant listeners will be well covered.
E Series loudspeakers will perform very well with any quality, professional power amplifier - but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with E115 - 500 W continuous power
- E Series Entertainment System - Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Titanium diaphragm for high fidelity and long life
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Available U-Style Yoke and M10 rigging kit for permanent installation
- Dual angle pole socket
Configuration | 1 _ 15-inch, 2-way, non-powered |
Frequency Response (-6 dB) | 55 Hz Ð 20 kHz |
Frequency RangeÊ(-10 dB) | 43 Hz Ð 20 kHz |
Power capacity1: continuous/peak | 500 W / 2000 W |
Sensitivity | 97 dB, 1 W @ 1 m |
Coverage Angle | 75¡Êconical DMTª |
Output2Ê(peak SPL @ 1 m) | 130 dB |
Drivers LF HF |
381 mm (15 in) driver with 89 mm (3.5 in) voice coil 38 mm (1.5 in) exit, 71 mm (2.8 in) voice coil, compressionÊdriverÊ |
Nominal Impedance | 8½ |
Cross-over | Full-range only 1.55 kHzÊ |
Input connectors | 2 _ NL4, 1 _ barrier strip |
Enclosure | Trapezoidal, plywood, black texture paint finish. Two side-mounted handles, Perforated, powder-coated steel grille with foam lining. |
Speaker Dimensions (W_H_D) |
420 _ 716 _ 445 mm 16.5 _ 28.2 _ 17.5 in |
Carton Dimensions (W_H_D) |
530 _ 510 _ 813 mm 21Ê_ 20Ê_ 32 in |
Net speaker weight | 31 kg / 68 lb |
Shipping weight | 35.4 kg / 78 lb |
