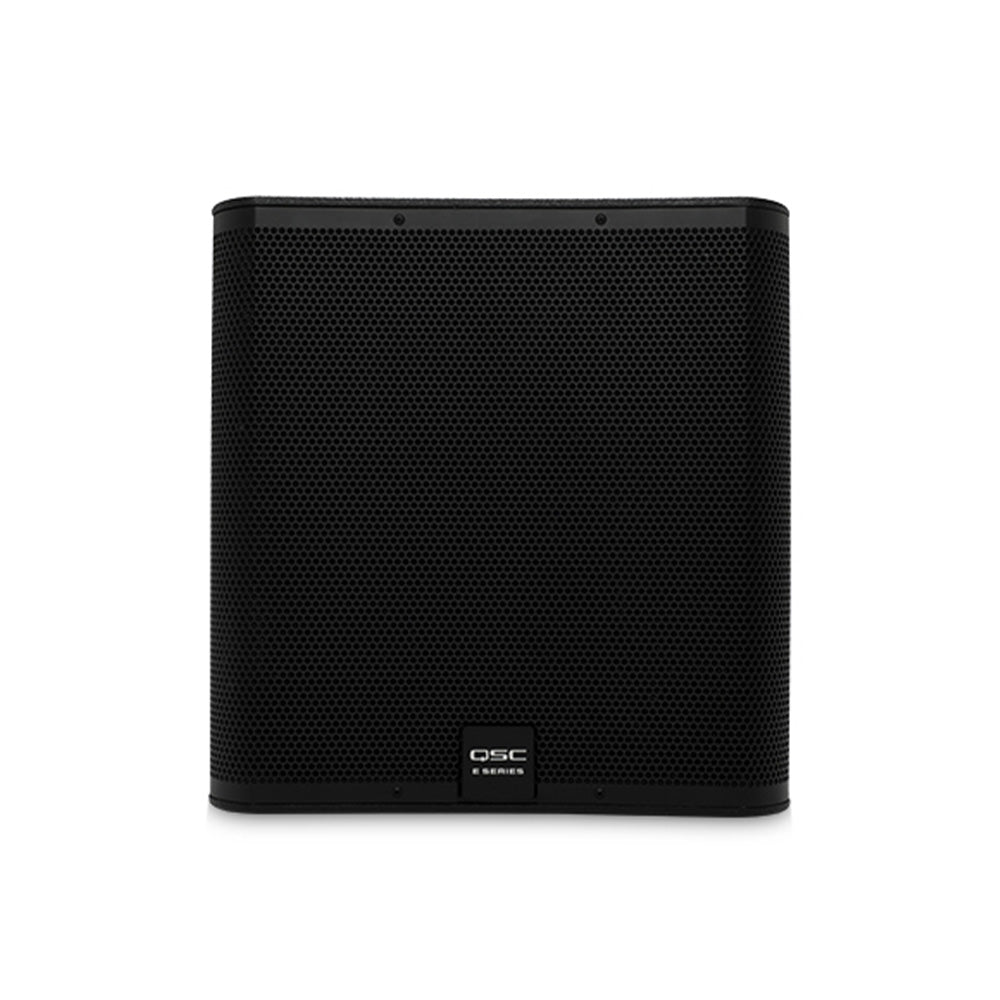

QSC E118sw - Passive 18-Inch PA Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The E118sw is a high-performance direct radiation subwoofer with a single, 800W, 18-inch, aluminum frame woofer. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E Series two-way models. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single woofer can be optimally powered by a less expensive amplifier.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with 800 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- E18SW includes speaker pole
| Configuration | Ê1Ê_ 18-inch, subwoofer, non-powered |
| Frequency Response (-6 dB) | 37 Hz to 230 Hz |
| Frequency Range (-10 dB) | 32 Hz to 230 Hz |
| Power capacity1: continuous/peak | 800 W / 3200 W |
| Sensitivity | 98 dB, 1 W @ 1 mÊ |
| Coverage Angle | N/A |
| Ouput2Ê(peak SPL @ 1 m) | 133 dB |
Drivers LF HF |
457 mm (18 in) driver withÊ102 mm (4 in)Êvoice coil N/A |
| Nominal Impedance | 4½ |
| Cross-over | Recommended 80 Ð 120 Hz LPF |
| Input connectors | 2 _ NL4, 1 _ barrier strip |
| Enclosure | Rectangular, plywood, black texture paint finish. Four side mounted handles. Rear panel provision for optional 4-inch casters. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | M20 threaded pole-mount socket
610 mm (24 in)Êpole included |
| Speaker Dimensions (W_H_D) |
590 _ 616 _ 605 mm 23.2 _ 24.2 _ 23.8 in |
| Carton Dimensions (W_H_D)Ê |
710Ê_ 690 _ 712 mm 28Ê_ 27Ê_ 28 in |
| Net weight | 43 kg / 95 lb |
| Shipping weight | 46.3 kg / 102 lb |
The E118sw is a high-performance direct radiation subwoofer with a single, 800W, 18-inch, aluminum frame woofer. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E Series two-way models. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single woofer can be optimally powered by a less expensive amplifier.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features:
- High output, professional quality sound with 800 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- E18SW includes speaker pole
| Configuration | Ê1Ê_ 18-inch, subwoofer, non-powered |
| Frequency Response (-6 dB) | 37 Hz to 230 Hz |
| Frequency Range (-10 dB) | 32 Hz to 230 Hz |
| Power capacity1: continuous/peak | 800 W / 3200 W |
| Sensitivity | 98 dB, 1 W @ 1 mÊ |
| Coverage Angle | N/A |
| Ouput2Ê(peak SPL @ 1 m) | 133 dB |
Drivers LF HF |
457 mm (18 in) driver withÊ102 mm (4 in)Êvoice coil N/A |
| Nominal Impedance | 4½ |
| Cross-over | Recommended 80 Ð 120 Hz LPF |
| Input connectors | 2 _ NL4, 1 _ barrier strip |
| Enclosure | Rectangular, plywood, black texture paint finish. Four side mounted handles. Rear panel provision for optional 4-inch casters. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | M20 threaded pole-mount socket
610 mm (24 in)Êpole included |
| Speaker Dimensions (W_H_D) |
590 _ 616 _ 605 mm 23.2 _ 24.2 _ 23.8 in |
| Carton Dimensions (W_H_D)Ê |
710Ê_ 690 _ 712 mm 28Ê_ 27Ê_ 28 in |
| Net weight | 43 kg / 95 lb |
| Shipping weight | 46.3 kg / 102 lb |
