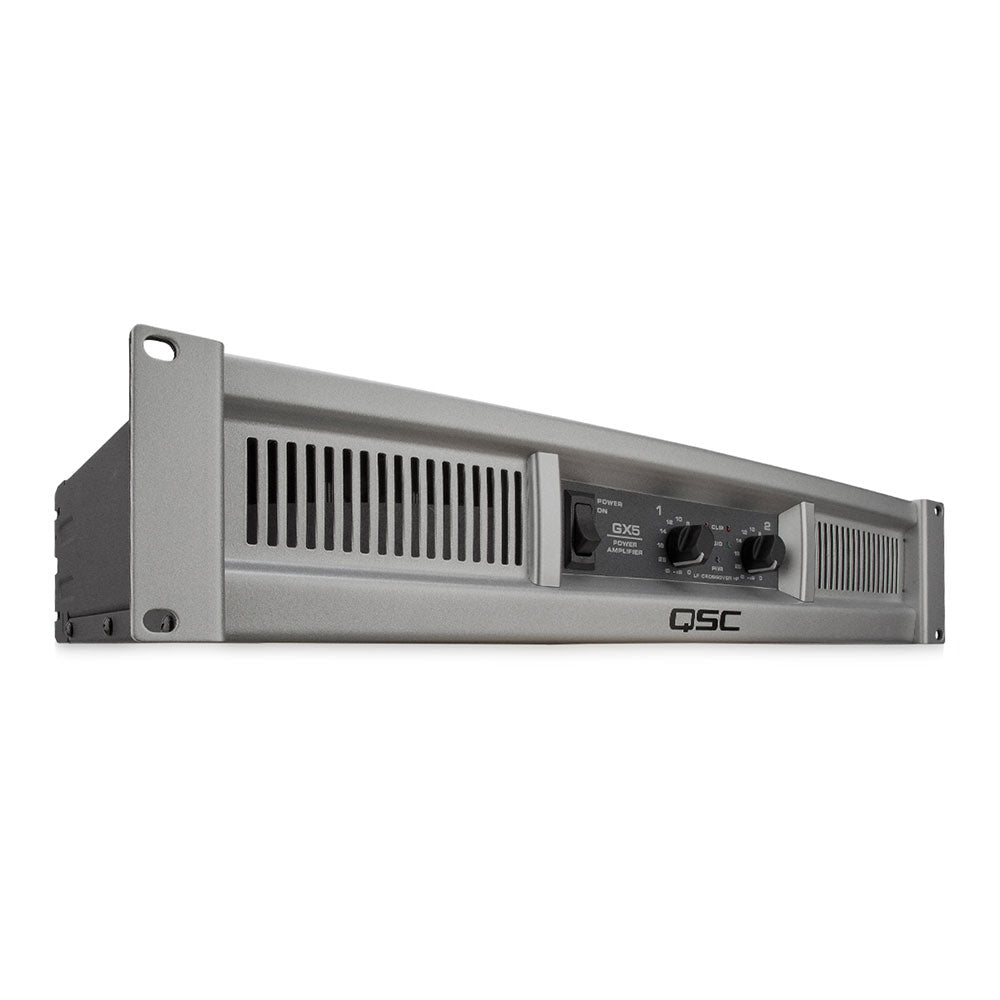

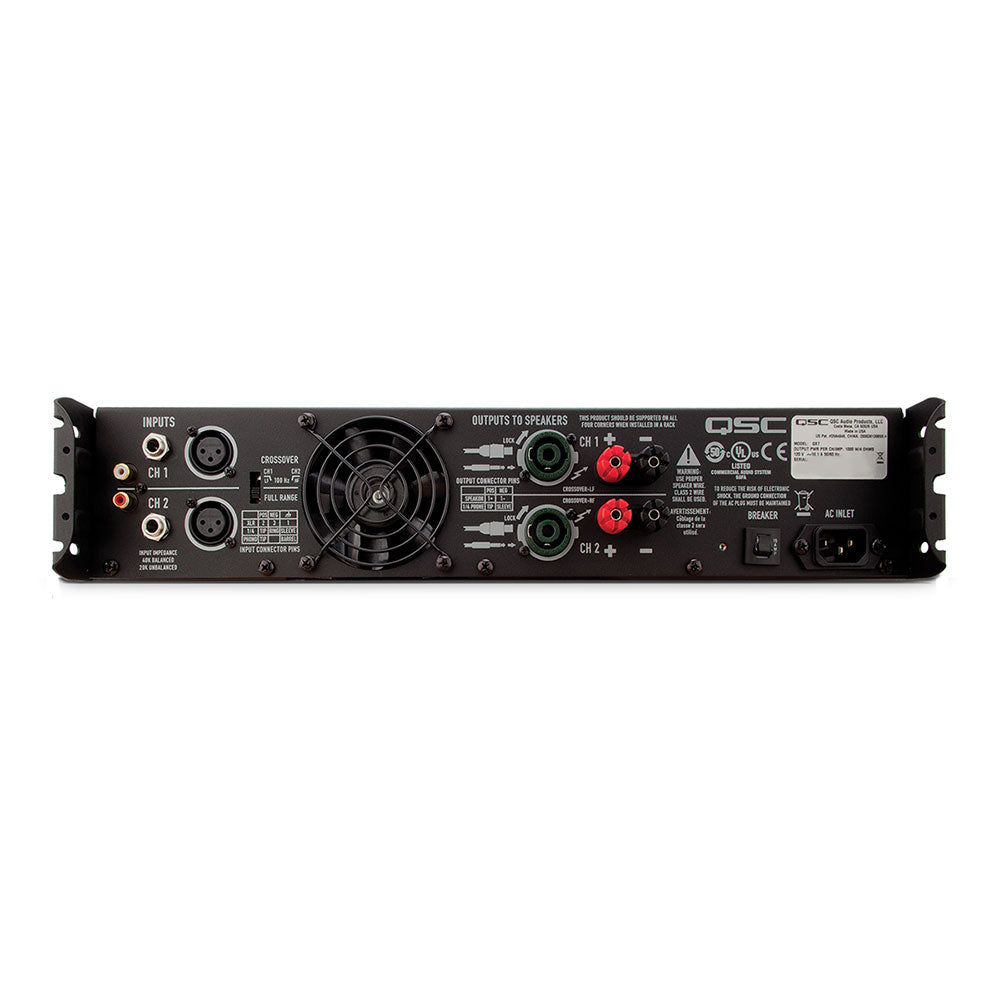

QSC GX5 Professional Power Amp - 500 Watts at 8 Ohm

  • Dale #:

    QSC-GX5
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The QSC GX5 Stereo Power Amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. QSC designers, headed by Pat Quilter, have optimized output and appearance of the rackmountable GX5 while reducing raw material cost and weight. The GX5 p... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The QSC GX5 Stereo Power Amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. QSC designers, headed by Pat Quilter, have optimized output and appearance of the rackmountable GX5 while reducing raw material cost and weight. The GX5 power amplifier provides full performance for 500 watt (Program) speakers and supplies maximum possible power to 4 ohm and 8 ohm loads. Owners of popular 4 ohm, loudspeakers (dual-woofer, two-way models and many subwoofers) will find the 700 watt (4 ohm) power of the GX5 an ideal match,The GX5 power amp uses a Class H system, based on key elements of the PLX Series, almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right where it needs to be without excess loss.

Features:

  • Power levels matched to the most popular speakers used by entertainers
  • Optimized for maximum real-world headroom into 4 and 8 speaker systems
  • Inputs: XLR, 1/4 TRS and phono input connectors for compatibility with any source
  • Outputs: Speakon combo accepts, 1/4 (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems.
  • Minimum depth chassis (10.1/257 mm) fits in compact, inexpensive effects racks
  • Lightweight — less than 26 lbs (12.5 kg)
  • Detented gain controls for precise setting and matching of sensitivity
  • GuardRail automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
  • Front panel LEDs monitor Power, Signal and Clipping
  • Subwoofer/Satellite crossover built-in

More +

Product Specs

Power rating
8both channels driven 1 kHz500 W
8single channel driven 1 kHz600 W
4both channels driven 1 kHz700 W
4single channel driven 1 kHz850 W
2both channels driven 1 kHz350 W
Input Sensitivity1.2 Vrms
Voltage Gain (8 )34.4 dB
Output Circuitry2-tier Class H ,Power Requirements (1/8 power, pink noise at 4 , 120 V):6A
Frequency Response20 Hz - 20 kHz, +0, 1 dB
Dynamic Headroom (4 )2 dB
Damping Factor100
Input Impedance ( )Greater than 20k (balanced)
Maximum Input Level+24 dB (16 Vrms)
Input Connectors (each channel)3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced
Output Connectors (each channel)Speakon®, 1/4", Binding Posts
Dimensions (HWD)3.5" (2RU) x 19" x 10.1" (89 mm x 483 mm x 257 mm)

More +
