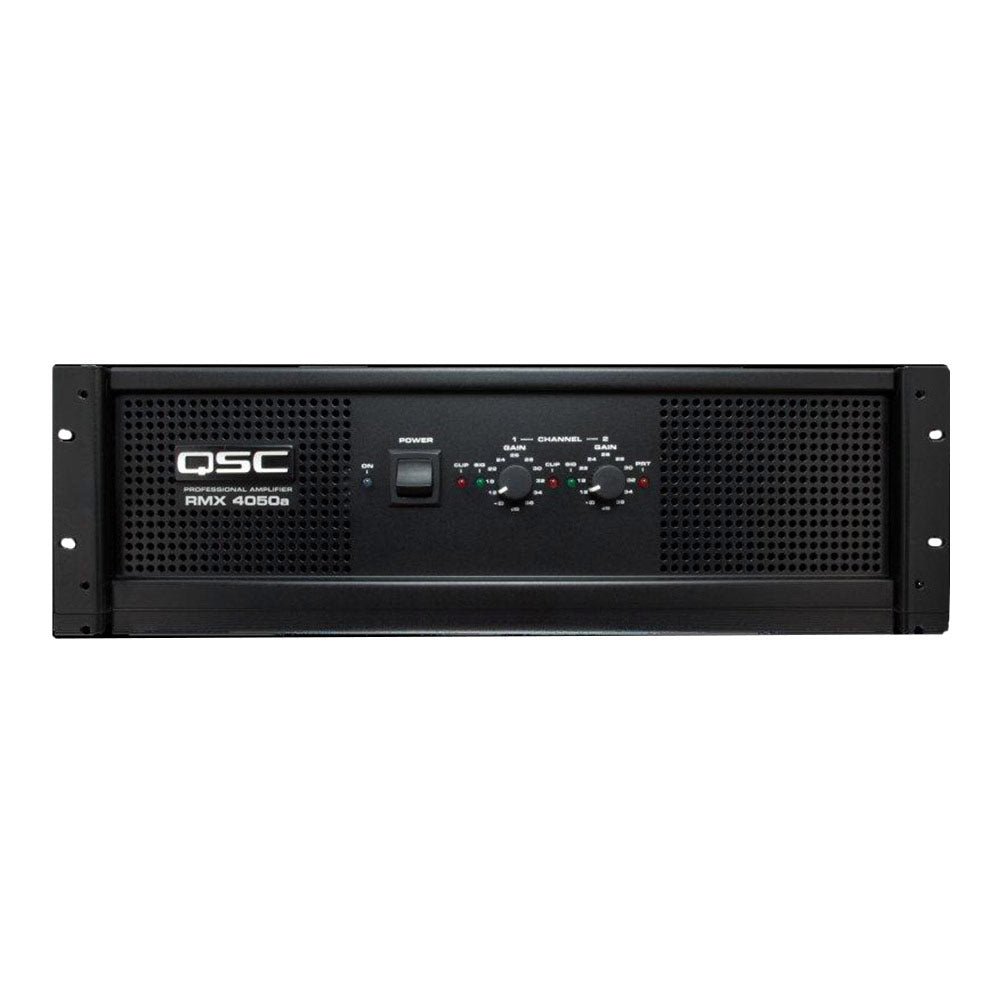

QSC RMX4050a Heavy Duty 2 Channel Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
QSC RMX4050a Heavy Duty 2 Channel Power Amplifier
Sale price$1,899.99
Regular price$2,279.99
Description
The RMXa Series amplifiers offer true professional-quality performance at an affordable price. With 1400 W/CH into 4 ohms and 2000 W/CH into 2 ohms all in a chassis that is less than 16 deep the RMX4050a is perfectly suited for performing musicians and mobile entertainers.
Features:
- Professional quality performance-incorporates road-proven QSC designs
- The 4000 watt RMX 4050a operates on a standard 15 amp plug (120V)
- Both the RMX 4050a and RMX 5050a feature a dual mono, high-current power supply for increased reliability and performance
- The RMX 4050a provides improved thermal performance yielding higher continuous power in 2 ohm stereo or 4 ohm bridged applications.
- Compact size - up to 2500 watts in 2 rack spaces or 5000 watts in 3 rack spaces
- High-current toroidal transformers for greater 2 ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
- Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs
- Touch-proof binding post and Neutrik Speakon® outputs
- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
- Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
- 3-year warranty plus optional 3-year extended service contract
| Stereo Mode (both channels driven) | |
| 8 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 800 (650**) W |
| 8 / EIA 1 kHz / 0.1% THD | 850 W |
| 4 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 1300 W |
| 4 / EIA 1 kHz / 0.1% THD | 1400 W |
| 2 / FTC 20 Hz Ð 20 kHz / 1% THD | 1600 W |
| 2 / EIA 1 kHz / 1% THD | 2000 W |
| Bridge-Mono Mode | |
| 8 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 2600 W |
| 8 / EIA 1 kHz / 0.1% THD | 2800 W |
| 4 / EIA 1 kHz / 1% THD | 4000 W |
| Signal to Noise (20 Hz Ð 20 kHz) 8 | > -100 dB |
| Distortion (SMPTE-IM) | < 0.02% |
| Input Sensitivity at 8 | 1.42V (+5.3ÊdBu) |
| Voltage Gain | 64x (36 dB) |
| Output Circuitry | 3-tier Class H |
| Power Requirements | |
| Typical, 1/8 power pink noise at 4 | 10.0 A |
| Severe, 1/3 power pink noise at 4 | 20.1 A |
| Supplied Plug Type, 100/120V | NEMA 5-15 |
| Supplied Plug Type, 230V | CEE7/7 |
| Weight | |
| Net | 68ÊlbÊ(30.8 kg) |
| Shipping | 77ÊlbÊ(34.9 kg) |
| Distortion (typical) | |
| 20 Hz Ð 20 kHz: 10 dB below rated power | < 0.02% THD / 4 and 8 |
| 1.0 kHz and below: full rated power | < 0.02% THD / 4 and 8 |
| Frequency Response | 20 Hz Ð 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filterÊbybassedÊ/ 8 ) |
| Damping Factor (1 kHz and below) | > 250 at 8 |
| Input Impedance | 10k ohms unbalanced / 20k ohms balanced |
| Input Clipping | 6.4ÊVrmsÊ(+18ÊdBu) |
| Cooling | Continuously variable speed fan, back-to-front air flow |
| Connectors (each channel) | Input: Active balanced / 3-pin Euro-style detachable terminal block and XLR (pin 2+) Output: Touch-proof binding posts /ÊNeutrikÊSpeakon¨ |
| Controls | Front: AC switch / Ch. 1 / 2 gain knobs Rear: 10-position DIP switch |
| Indicators | Power-on: Green LED / Signal: Yellow LED (1 per channel) / Clip: Red LED (1 per channel) | Protect: Red LED |
| Amplifier Protection | Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads |
| Load Protection | Turn-on/off muting / AC coupling (850, 1450) /ÊTriacÊcrowbar (1850HD, 2450, 4050HD, 5050) on each channel |
| Dimensions | 5.25” (13.3 cm) tall / 3 rack spaces |
| Power Requirements | 100, 120, 230 VAC, 50 Ð 60 Hz (factory configured) |
The RMXa Series amplifiers offer true professional-quality performance at an affordable price. With 1400 W/CH into 4 ohms and 2000 W/CH into 2 ohms all in a chassis that is less than 16 deep the RMX4050a is perfectly suited for performing musicians and mobile entertainers.
Features:
- Professional quality performance-incorporates road-proven QSC designs
- The 4000 watt RMX 4050a operates on a standard 15 amp plug (120V)
- Both the RMX 4050a and RMX 5050a feature a dual mono, high-current power supply for increased reliability and performance
- The RMX 4050a provides improved thermal performance yielding higher continuous power in 2 ohm stereo or 4 ohm bridged applications.
- Compact size - up to 2500 watts in 2 rack spaces or 5000 watts in 3 rack spaces
- High-current toroidal transformers for greater 2 ohm power and low noise
- Independent user-defeatable clip limiters reduce distortion
- Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
- Balanced 1/4" (6.3 mm) TRS, XLR, and barrier strip inputs
- Touch-proof binding post and Neutrik Speakon® outputs
- Front mounted gain controls for easy access
- Signal and Clip LED indicators to monitor performance
- Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
- 3-year warranty plus optional 3-year extended service contract
| Stereo Mode (both channels driven) | |
| 8 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 800 (650**) W |
| 8 / EIA 1 kHz / 0.1% THD | 850 W |
| 4 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 1300 W |
| 4 / EIA 1 kHz / 0.1% THD | 1400 W |
| 2 / FTC 20 Hz Ð 20 kHz / 1% THD | 1600 W |
| 2 / EIA 1 kHz / 1% THD | 2000 W |
| Bridge-Mono Mode | |
| 8 / FTC 20 Hz Ð 20 kHz / 0.1% THD | 2600 W |
| 8 / EIA 1 kHz / 0.1% THD | 2800 W |
| 4 / EIA 1 kHz / 1% THD | 4000 W |
| Signal to Noise (20 Hz Ð 20 kHz) 8 | > -100 dB |
| Distortion (SMPTE-IM) | < 0.02% |
| Input Sensitivity at 8 | 1.42V (+5.3ÊdBu) |
| Voltage Gain | 64x (36 dB) |
| Output Circuitry | 3-tier Class H |
| Power Requirements | |
| Typical, 1/8 power pink noise at 4 | 10.0 A |
| Severe, 1/3 power pink noise at 4 | 20.1 A |
| Supplied Plug Type, 100/120V | NEMA 5-15 |
| Supplied Plug Type, 230V | CEE7/7 |
| Weight | |
| Net | 68ÊlbÊ(30.8 kg) |
| Shipping | 77ÊlbÊ(34.9 kg) |
| Distortion (typical) | |
| 20 Hz Ð 20 kHz: 10 dB below rated power | < 0.02% THD / 4 and 8 |
| 1.0 kHz and below: full rated power | < 0.02% THD / 4 and 8 |
| Frequency Response | 20 Hz Ð 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filterÊbybassedÊ/ 8 ) |
| Damping Factor (1 kHz and below) | > 250 at 8 |
| Input Impedance | 10k ohms unbalanced / 20k ohms balanced |
| Input Clipping | 6.4ÊVrmsÊ(+18ÊdBu) |
| Cooling | Continuously variable speed fan, back-to-front air flow |
| Connectors (each channel) | Input: Active balanced / 3-pin Euro-style detachable terminal block and XLR (pin 2+) Output: Touch-proof binding posts /ÊNeutrikÊSpeakon¨ |
| Controls | Front: AC switch / Ch. 1 / 2 gain knobs Rear: 10-position DIP switch |
| Indicators | Power-on: Green LED / Signal: Yellow LED (1 per channel) / Clip: Red LED (1 per channel) | Protect: Red LED |
| Amplifier Protection | Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads |
| Load Protection | Turn-on/off muting / AC coupling (850, 1450) /ÊTriacÊcrowbar (1850HD, 2450, 4050HD, 5050) on each channel |
| Dimensions | 5.25” (13.3 cm) tall / 3 rack spaces |
| Power Requirements | 100, 120, 230 VAC, 50 Ð 60 Hz (factory configured) |
