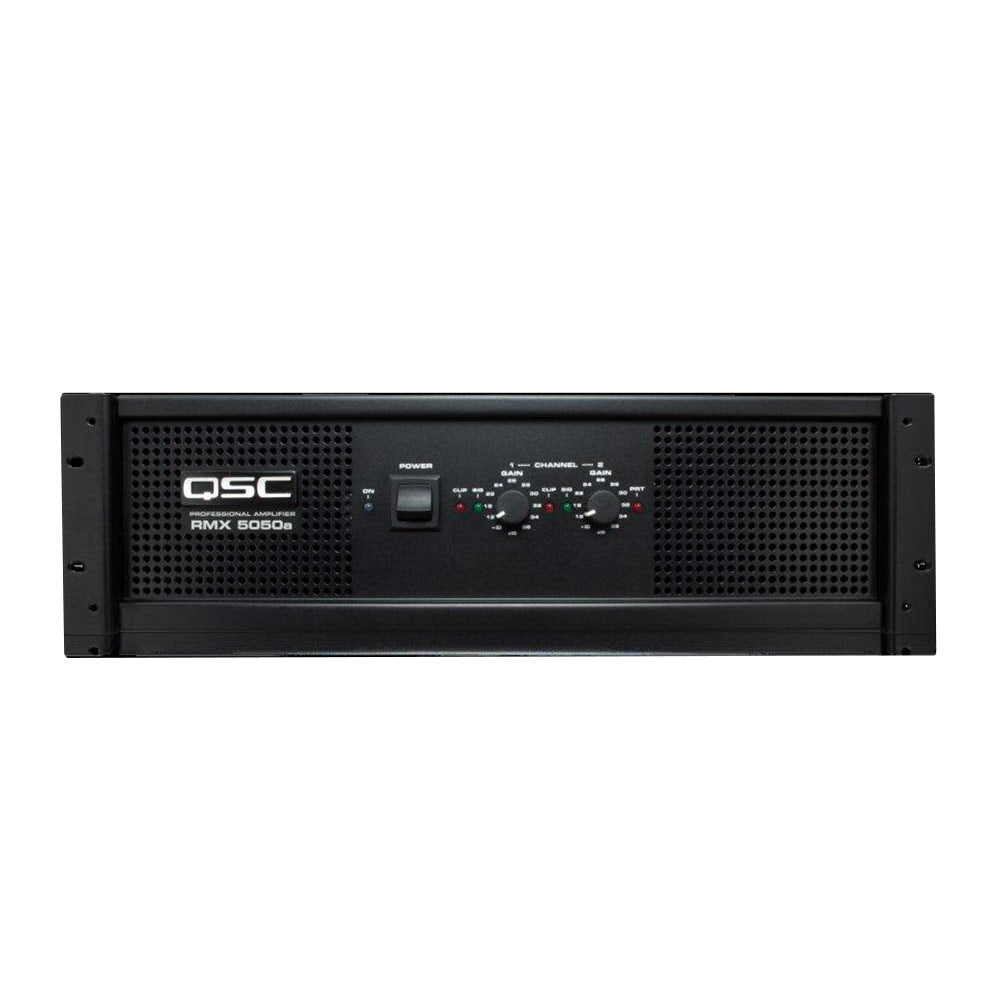

QSC RMX5050a Heavy Duty 2 Channel Power Amplifier


  • Dale #:

    QSC-RMX5050A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The RMXa Series amplifiers offer true professional-quality performance at an affordable price. With 2000 W/CH into 4 ohms and 2500 W/CH into 2 ohms all in a chassis that is less than 16 deep the RMX5050a is perfectly suited for performing musicians and mobile entertainers. Features: 2000 W/CH, 5... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RMXa Series amplifiers offer true professional-quality performance at an affordable price. With 2000 W/CH into 4 ohms and 2500 W/CH into 2 ohms all in a chassis that is less than 16 deep the RMX5050a is perfectly suited for performing musicians and mobile entertainers.

Features:

  • 2000 W/CH, 5000 W Bridged
  • Professional quality performance—incorporates road-proven QSC designs
  • Both the RMX 4050a and RMX 5050a feature a dual mono, high-current power supply for increased reliability and performance
  • Compact size — up to 2500 watts in 2 rack spaces or 5000 watts in 3 rack spaces
  • High-current toroidal transformers for greater 2 ohm power and low noise
  • Independent user-defeatable clip limiters reduce distortion
  • Selectable low-frequency filters (30 Hz or 50 Hz) protect speakers and increase headroom
  • Balanced 1/4” (6.3 mm) TRS, XLR, and barrier strip inputs
  • Touch-proof binding post and Neutrik Speakon® outputs
  • Front mounted gain controls for easy access
  • Signal and Clip LED indicators to monitor performance
  • Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
  • 3-year warranty plus optional 3-year extended service contract

More +

Product Specs

Stereo Mode (both channels driven)
8 / FTC 20 Hz – 20 kHz / 0.1% THD 1050 W
8 / EIA 1 kHz / 0.1% THD 1100 W
4 / FTC 20 Hz – 20 kHz / 0.1% THD 1600 W
4 / EIA 1 kHz / 0.1% THD 1800 W
2 / FTC 20 Hz – 20 kHz / 1% THD 2000 W
2 / EIA 1 kHz / 1% THD 2500 W
Bridge-Mono Mode
8 / FTC 20 Hz – 20 kHz / 0.1% THD 3200 W
8 / EIA 1 kHz / 0.1% THD 3600 W
4 / EIA 1 kHz / 1% THD 5000 W
Signal to Noise (20 Hz – 20 kHz) 8 > -100 dB
Distortion (SMPTE-IM) < 0.02%
Input Sensitivity at 8 1.42V (+5.3 dBu)
Voltage Gain 64x (36 dB)
Output Circuitry 3-tier Class H
Power Requirements
Typical, 1/8 power pink noise at 4 13.9 A
Severe, 1/3 power pink noise at 4 26.9 A
Supplied Plug Type, 100/120V NEMA 5-20
Supplied Plug Type, 230V CEE7/7
Weight
Net 75 lb (33.1 kg)
Shipping 87 lb (37.2 kg)
Distortion (typical)
20 Hz – 20 kHz: 10 dB below rated power < 0.02% THD / 4 and 8
1.0 kHz and below: full rated power < 0.02% THD / 4 and 8
Frequency Response 20 Hz – 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed / 8 )
Damping Factor (1 kHz and below) > 250 at 8
Input Impedance 10k ohms unbalanced / 20k ohms balanced
Input Clipping 6.4 Vrms (+18 dBu)
Cooling Continuously variable speed fan, back-to-front air flow
Connectors (each channel) Input: Active balanced / 3-pin Euro-style detachable terminal block and XLR (pin 2+)
Output: Touch-proof binding posts / Neutrik Speakon®
Controls Front: AC switch / Ch. 1 & 2 gain knobs
Rear: 10-position DIP switch
Indicators Power-on: Green LED / Signal: Yellow LED (1 per channel) / Clip: Red LED (1 per channel) | Protect: Red LED
Amplifier Protection Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads
Load Protection Turn-on/off muting / AC coupling (850, 1450) / Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
Dimensions 5.25” (13.3 cm) tall / 3 rack spaces
Power Requirements 100, 120, 230 VAC, 50 – 60 Hz (factory configured)
