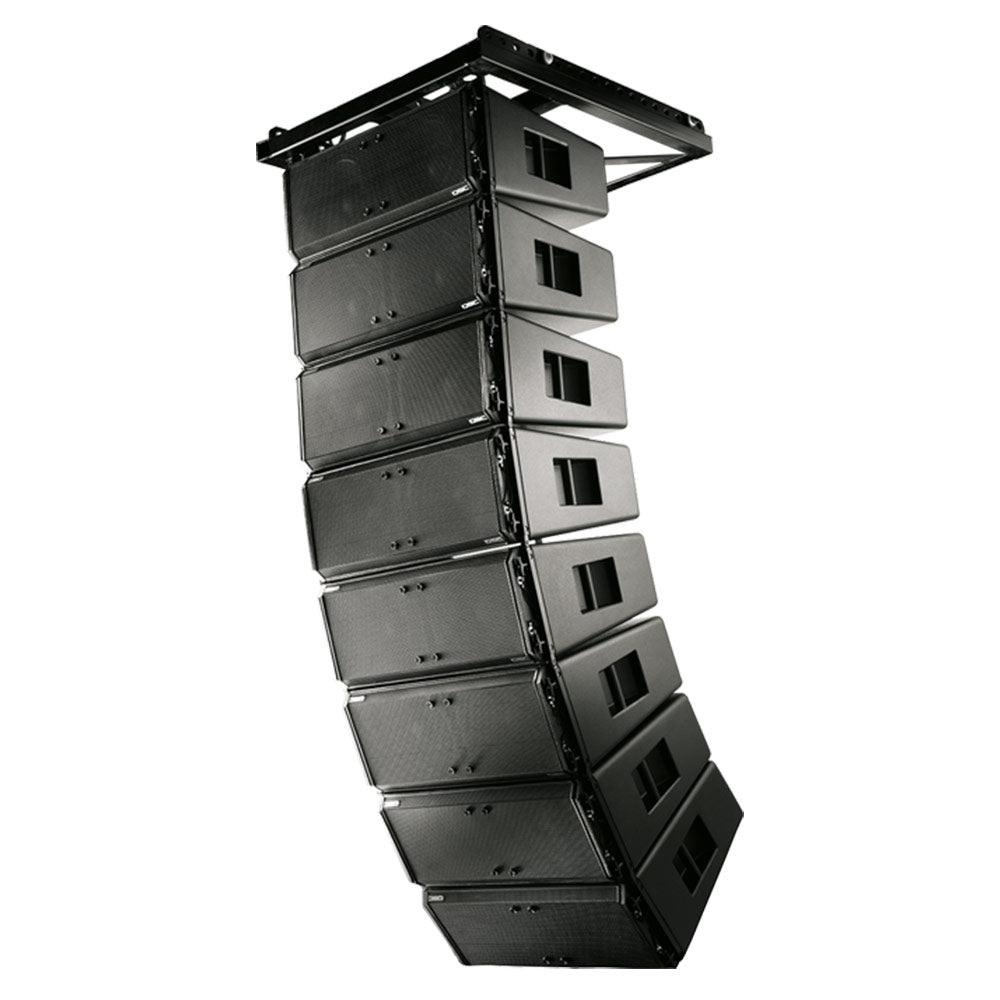

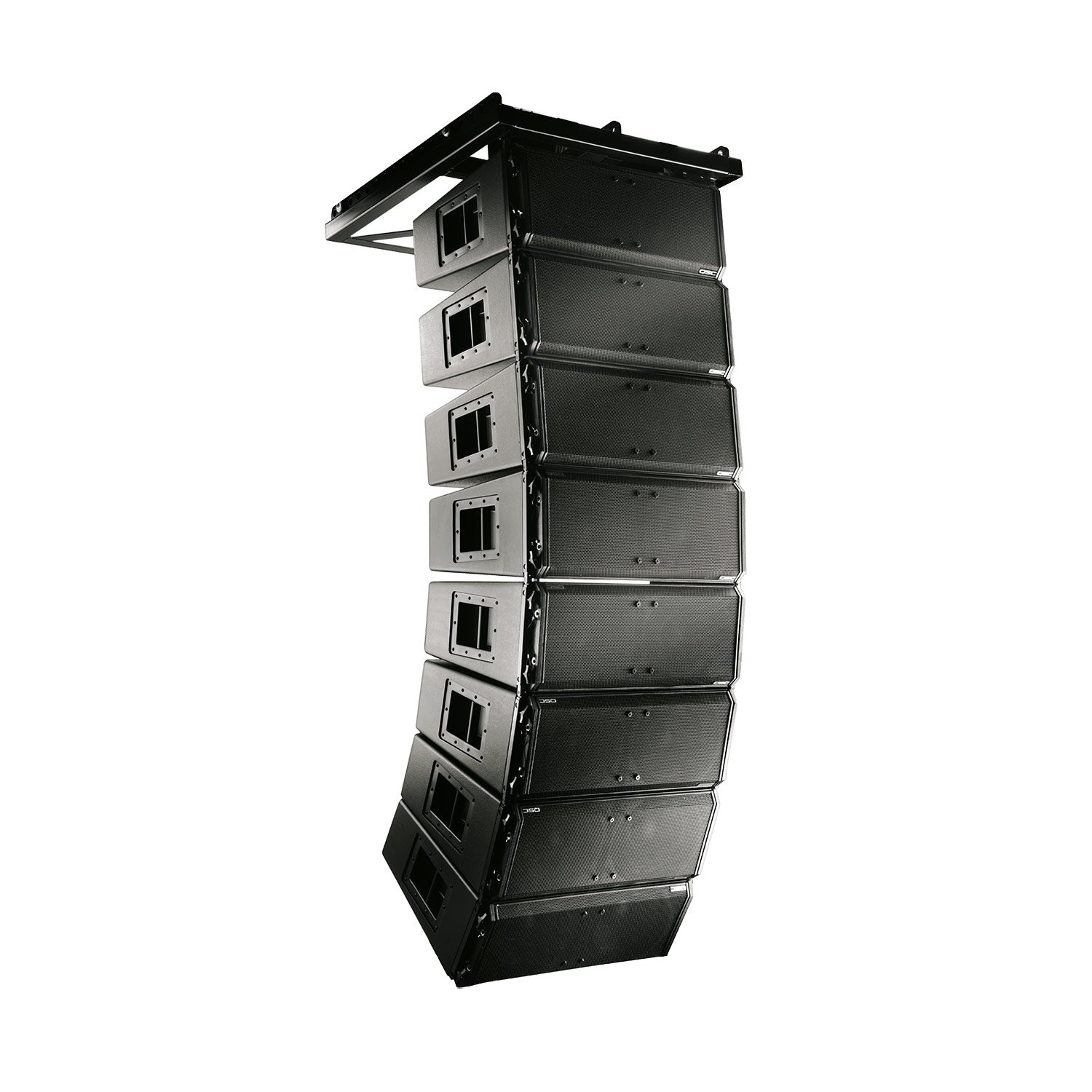

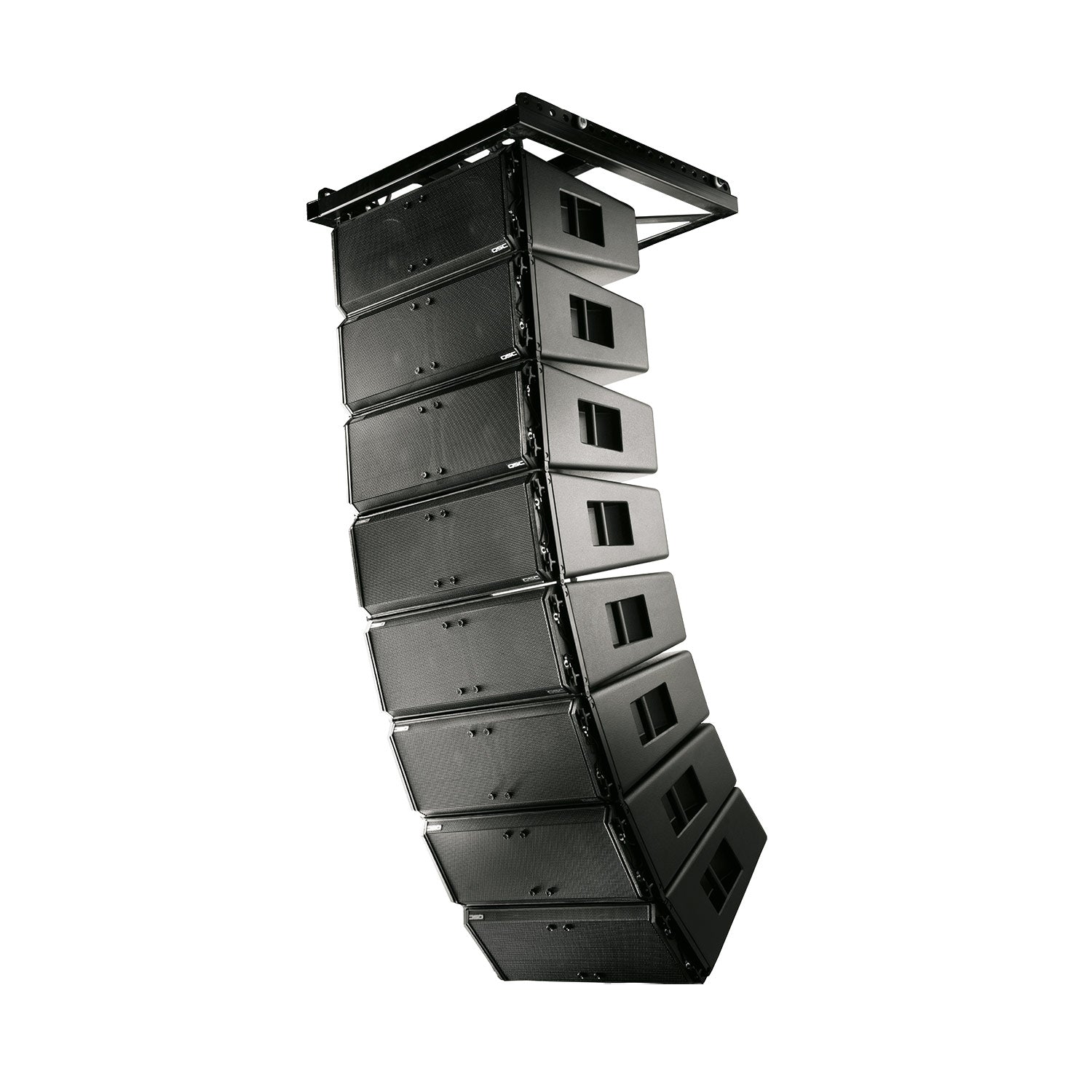

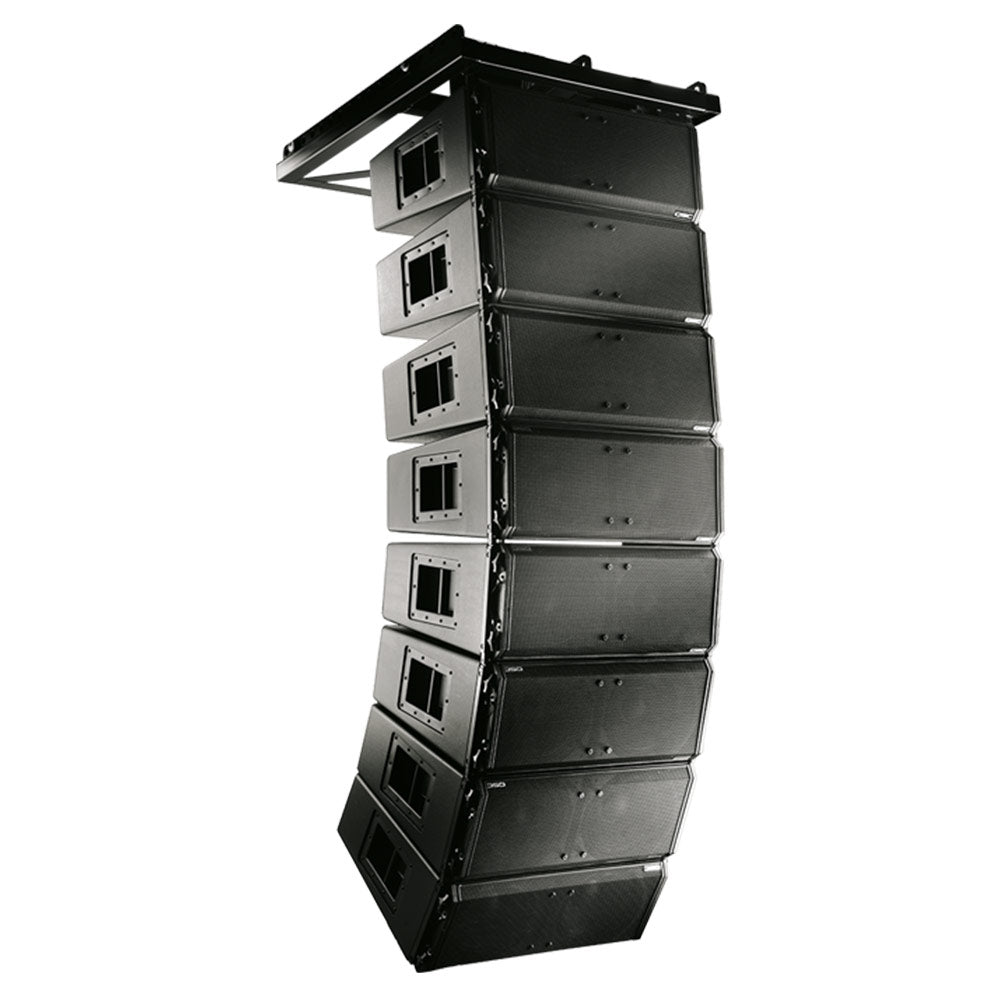

QSC WL2102-w WideLine 10 Series Wide Angle Line Array Loudspeaker
Contact us
Availability:
Sold OutThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The QSC WideLine is a full range line array loudspeaker system designed for use in a wide variety of venues, ranging from ballrooms, theaters and nightclubs to concert halls, houses of worship and arenas. The WideLine features an open, natural sound quality and exceptionally wide 140° horizontal coverage pattern - the widest of any line array system currently available.
The WideLine 10 Series features the WL2102w (two 10-inch woofers) along with two models of dual 18" subs; the "flying" WL218-sw and the ground-stacked GP218-sw.
Features:
- Patented multiple aperture diffraction slot waveguide provides exceptionally wide horizontal coverage (140°) and a near ideal vertical line source.
- Exceptionally high output capability in a very compact form factor.
- May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-SYS, SC-28, PLD amplifiers and CXD amplifiers.
- Dual 10-inch long-excursion, high-power, low-frequency transducers.
- Single 3-inch diaphragm neodymium compression driver.
- Birch ply enclosures. Available with standard finish in black.
- Fully captive hardware design incorporates all components necessary for box to box rigging.
| Configuration | Biamp or Triamp mode | |||||||||||||||
| Transducers High Frequency Low Frequency |
1.4-inch exit, 3-inch titanium diaphragm, neodymium magnet assembly 2 _ 400 W, 16 ohm 10-inch woofer, 3-inch voice coil, ceramic magnet assembly |
|||||||||||||||
| Frequency Response (±3 dB) Frequency Response (-10 dB)Ê |
55 Hz to 18 kHz (with recommended DSP processing) 48 Hz to 20 kHz (with recommended DSP processing) |
|||||||||||||||
| Nominal Impedance | HF: 16 ohmsÊ LF biamp mode: 8 ohmsÊ LF triamp mode: 16 ohms (_ 2) |
|||||||||||||||
| Continuous Power Capacity | HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz) LF biamp mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz) LF triamp mode: 400 W (_2) (2 hours, AES1984-2 method, 80 to 800 Hz) |
|||||||||||||||
| Max Recommended Power | HF: 300 W @ 16½ LF bi-amp mode: 1400 W @ 8½ LF tri-amp mode: 700 W @ 16½ (x 2) |
|||||||||||||||
| Sensitivity (1 W at 1 m) |
HF: 107.5 dB (single cabinet measured in free space.) LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel) |
|||||||||||||||
| Maximum Output (SPL at 1 m) Continuous: Peak: |
HF: 127 dB / LF: 127 dB HF: 133 dB / LF: 133 dB |
|||||||||||||||
| Maximum Output (dB SPL at 1 m)Ê Continuous / Peak |
HF: 126 dB / 132 dBÊ LF: 122 dB / 128 dB |
|||||||||||||||
| Nominal Coverage | Horizontal: 140¡ Vertical: Dependent on number of elements used |
|||||||||||||||
| Enclosure | ||||||||||||||||
| Cabinet Type | Ported, trapezoidal | |||||||||||||||
| Material | Baltic birch plywood | |||||||||||||||
| Finish | Available in standard black finish | |||||||||||||||
| Grille | Perforated, formed powder coated steel | |||||||||||||||
| Connectors | 2 x Neutrik Speakon¨ NL8 in parallel | |||||||||||||||
| Pinout |
|
|||||||||||||||
| Attachment Points | Integral, adjustable rigging system, vertical splay adjustable in 1¡ increments from 2 ¡ to 10¡ and 0¡ | |||||||||||||||
| Weight | 83 lb (37.7 kg) net 91 lb (41.4 kg) shipping |
|||||||||||||||
| Dimensions (HxWxD) | 10.75-inch _ 27.5-inch _ 20.25-inchÊ (27.3 cm _ 69.85 cm _ 51.43 cm)Ê |
|||||||||||||||
| Accessories Available | AF2102-LA | |||||||||||||||
