DALE SKU # RADI-CATAPULTTX4M

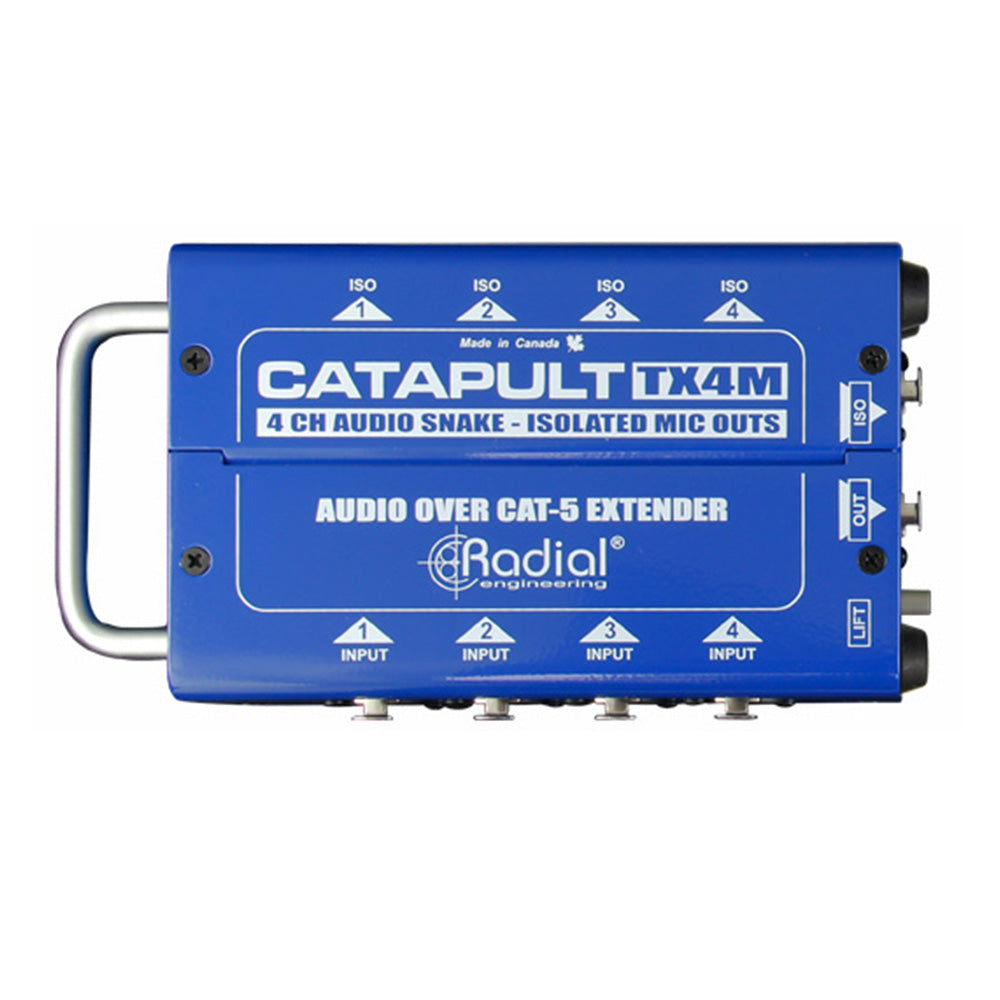

Radial Engineering Catapult TX4M Cat5 Audio Receiver (4x4 Mic In/Out)

Sale price$369.99 Regular price$444.00
Save $74.01
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    TX4M: Transmit 4 ins & 4 mic-level isolated outs.

    The Radial Catapult is a 4-channel audio snake that lets you send analog or AES digital audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable. This allows stage techs to take advantage of the relatively low cost of this abundantly available cable for return snakes or for transporting balanced audio across a large stage. For the system contractor, the Catapult lets you take advantage of pre-wired networks to connect audio from one room to another.

    Features:

    • Send analog audio or digital AES signals over Cat 5/6 cable
    • Works within a building's existing cable infrastructure
    • Choice of direct-wired or isolated splits
    • Transmits four AES signals (eight audio channels)

    Six configurations are offered with a choice of three input modules and three output modules. Each input module features four XLR inputs, four XLR thru-puts along with two Neutrik Ethercon outputs to connect the Cat 5 cable to the desired output module. These are equipped with RJ45 type Ethercon input and thru-put plus two sets of XLR outputs. These may be ordered without transformers for sub-snakes or to transmit AES audio signals; with mic isolation transformers for signal splitting between FOH, monitors or the recording system, or with line level isolation transformers to eliminate system noise. A ground lift switch is provided at each end for the Ethernet cable connection to help eliminate hum and buzz caused by ground loops.

    As with all Radial products, the Catapult is constructed with solid 14-gauge steel to handle the rigors of live touring and is finished in a powder-coat finish to keep your Catapult looking good for years! Inside, a two-sided PCB is used to mount the connectors and transformers doubling up the solder joints for maximum durability.

    Audio circuit type: Passive mic splitter, transformer based
    Frequency response: 7Hz ~ 20KHz
    Total harmonic distortion: 0.001%
    Dynamic range: 140dB
    Maximum Input: +35dBu
    Minimum load impedance: 100 ohms
    Intermodulation distortion: 0.003%
    Common mode rejection: >113dB
    Features
    Handle: Makes it easy to move your catapult
    Ground lift: Disconnects ground on RJ45 connector
    General
    Construction: 14 gauge steel chassis / outer shell
    Size: L: 8 1/8 x W: 4 1/8 x H: 2
    Weight: 2.6 LBS
    Shipping size: L: 11 x W: 5 x H: 2.75
    Shipping weight: 2.9 LBS
    Warranty: Radial 3-year, transferable
