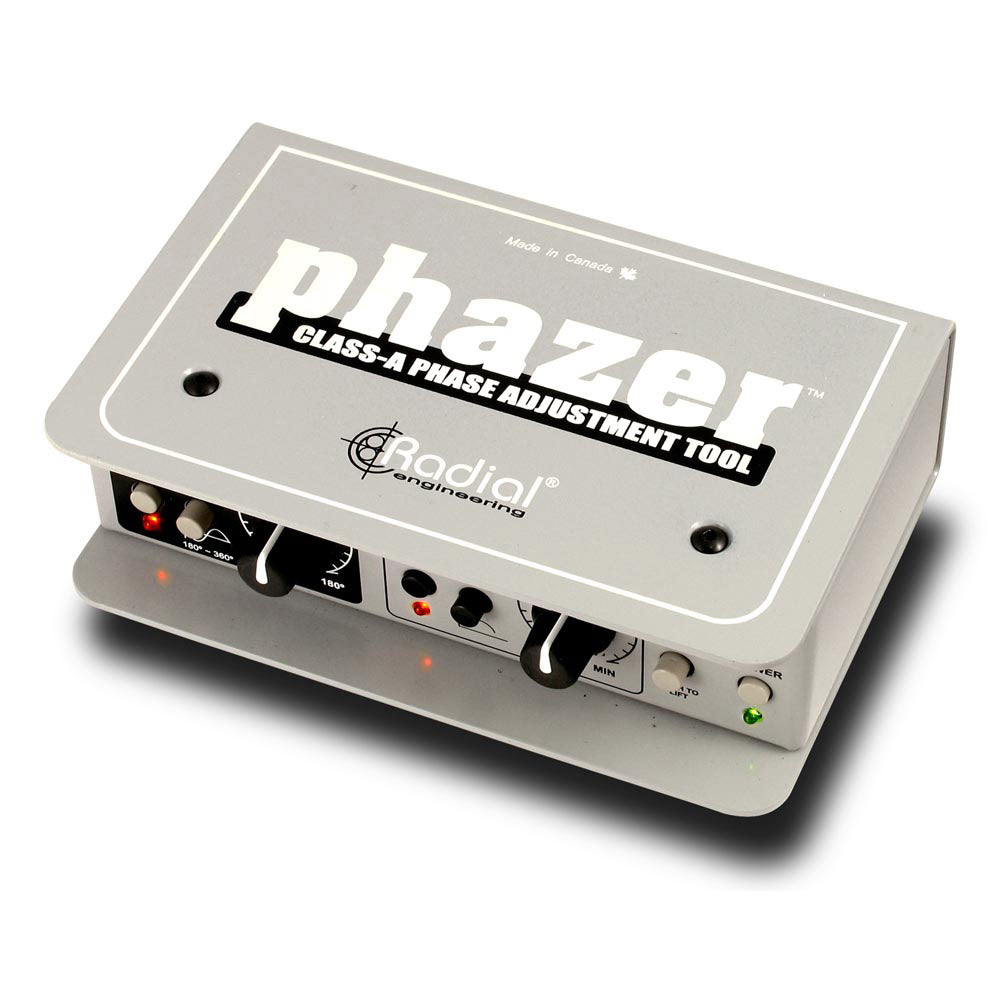

Radial Engineering Phazer Active Class-A Phase Adjuster
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Radial Phazer is a line level phase alignment tool that lets you bring two sound sources together so that the fundamentals play in sync. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones. On a kick drum, combine the 'attack' sound from a batter head mic with the 'boom' captured by a resonant head mic. On a snare drum, combine the top and bottom mics and on acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before. Features:
- Time align two signals for fat rich tones Single dial control gets you there fast
- Can be used with any instrument
- Low-pass filter lets you focus the effect
- 4-channel rackmount 'PhazerBank' available

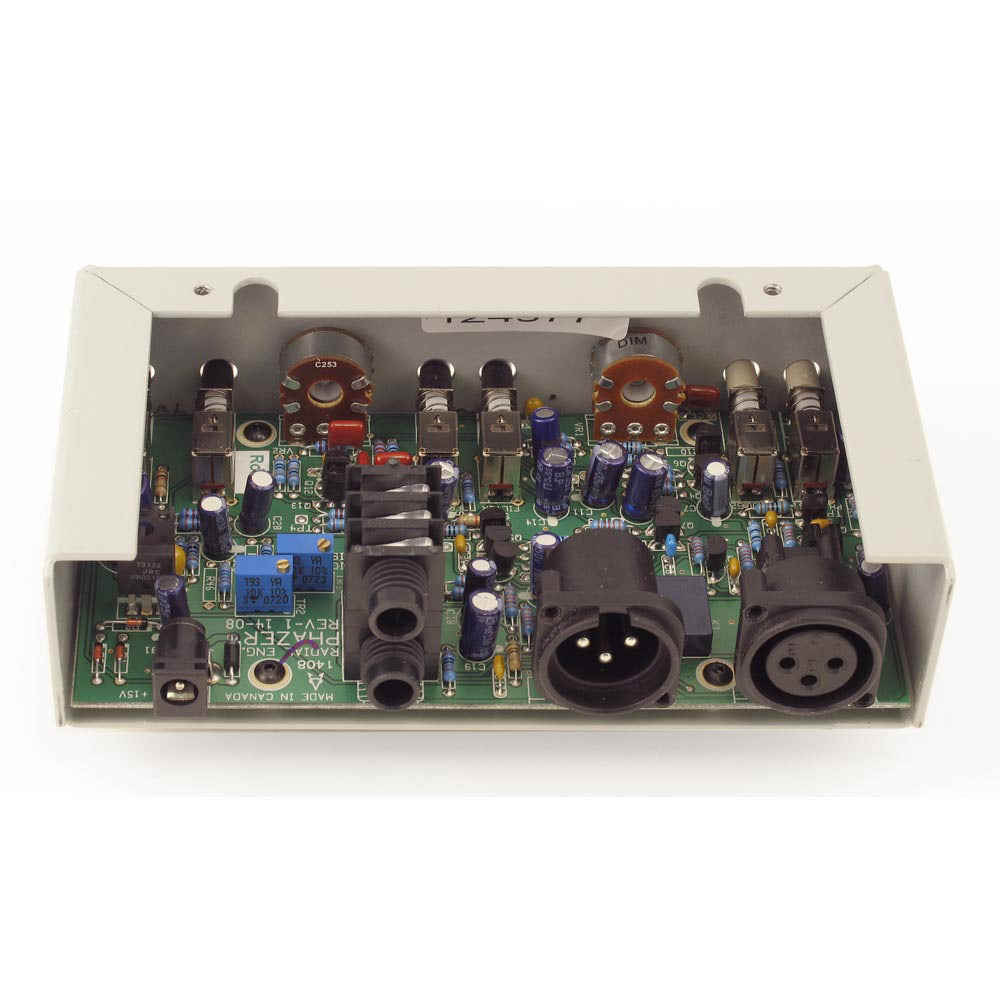

The Phazer is designed from the ground up for optimum sound quality and features 100% discreet class-A circuitry. This results in smooth and natural sounding phase curves which are particularly important in the lower frequency spectrum. 0Î_ to 180Î_ phase adjustment is performed with a single knob making it easy to zone in on the sweet spot. For the more adventurous, a 180Î_ polarity reverse switch accesses the 181Î_ to 360Î_ range and lets you create weird to absurd "...Phazed' tonal textures. This is augmented with a variable low-pass filter that lets you focus the effect in the lower frequency spectrum; where phasing is most audible.

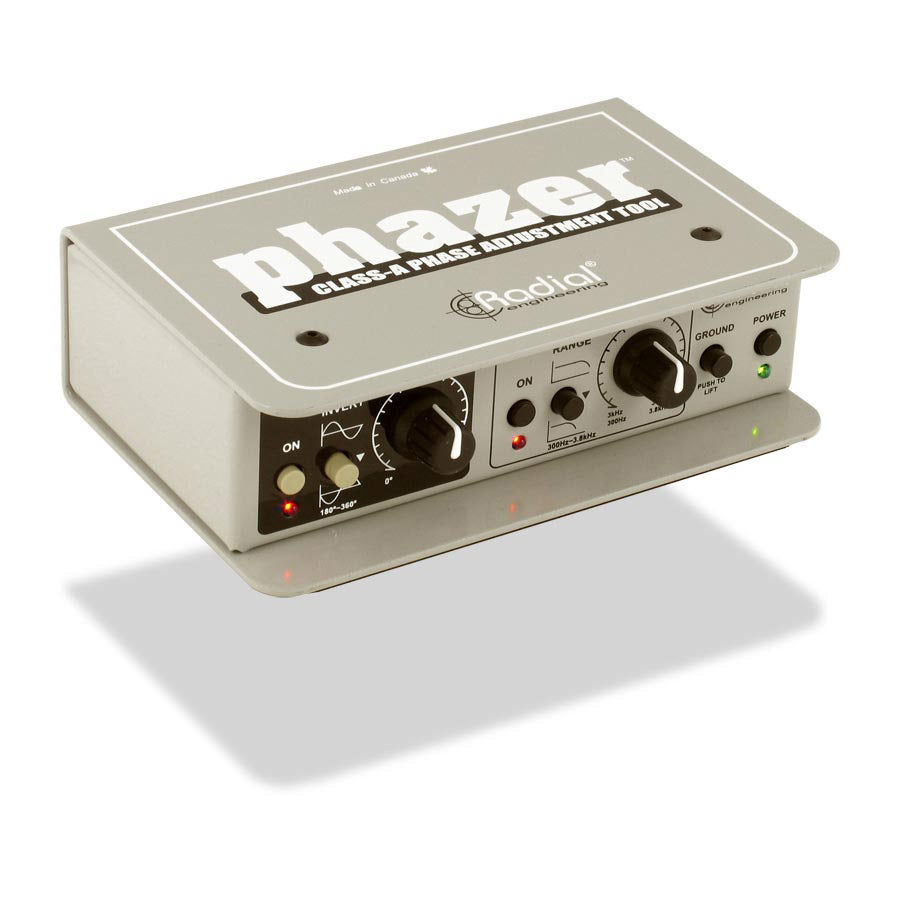

Built Radial tough for the road, the Phazer is equipped with an innovative book-end design that creates a protective zone around the knobs and switches. Construction is 14-gauge steel with welded internal I-Beam frame that protects the sensitive electronics in even the harshest touring environments. A full bottom no-slip pad provides electrical insulation to eliminate electrical bonding and mechanical isolation to reduce mishap.
The Radial Phazer is a creative tool for the studio designed to expand your tonal palette. Live, it delivers great sound fast and may well turn into your best audio soul mate!
| Circuit | Class-A, 100% discrete components |
| Inputs | 1/4 / XLR 10K ohm both balanced |
| Outputs | XLR 600 ohm balanced / 1/4 1K ohm unbalanced |
| Connectors | XLR female input, XLR male output AES standard pin-1 ground, pin-2 hot, _Ó (TRS - balanced), (TS - unbalanced) |
| Ground Lift | Lifts pin 1 on the XLR output |
| Phase Shift | 0¼ to 180¼ degree control - w/Phase Reverse switch on - 180¼ to 360¼ |
| Low Pass Filter | Variable from 300Hz to 3KHz and from 3KHz to 30KHz |
| Polarity (electrical) | Reverses pins 2 and 3, extends phase shift from 181¼ to 360¼ |
| Bypass | True-Bypass with relay |
| Power supply | 15VDC 400mA power supply included |
| Construction | 14 gauge steel chassis and outer shell, baked enamel finish |
| Size | 5.8w x 3.8d x 1.8h (147mm x 96.5mm x 46mm) |
| Weight | 1.75 lb (0.82kg) |
| Warranty | Radial 3-year, transferable |
