Description

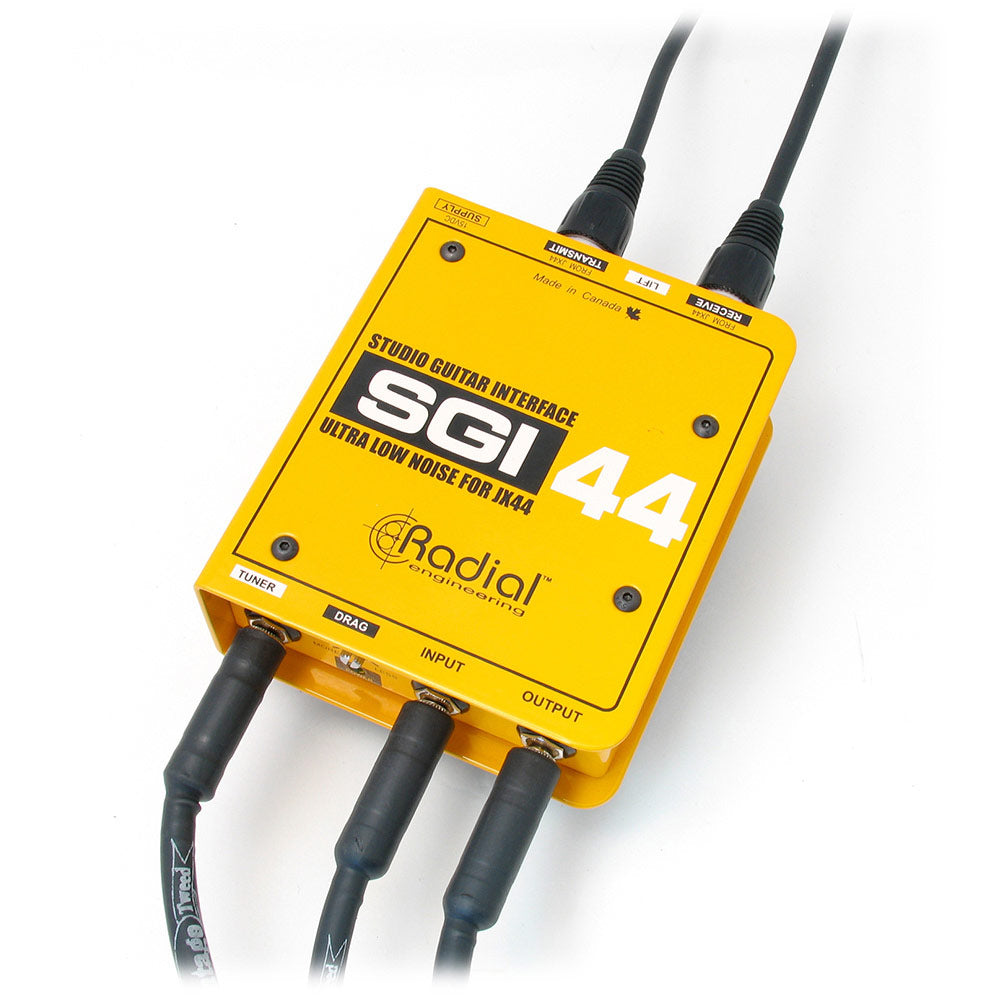

The Radial SGI 44 is a studio quality bidirectional effects router that designed to take the output from a wireless receiver and run the guitar signal to the pedalboard and back. Two SGI-44s are used with one positioned at the wireless end, the other at the pedalboard. Connection is made using standard XLR cables. The Radial SGI-44 makes it easy to route guitar signals around a stage, in the studio or in a large venue while delivering the very best signal quality.
Features:
- Bidirectional long-distance 'send & receive' effects router
- Drive guitar & bass signals beyond 100 meters
- 100% discrete class-A circuitry
- Works with the Radial JX44 guitar & amp selector
The first SGI-44 converts the unbalanced high-impedance guitar signal to a balanced low-impedance signal and the second reverses the process - thus allowing distances of more than 100 meters (300') without noise. To ensure optimal signal quality, the SGI-44 employs 100% hand-inserted discrete parts with Jensen isolation transformers to make up the class-A circuit. Although less efficient than the chip based AB circuits that are common with today's 'cost driven' designs, single ended class-A circuits are preferred by audiophiles due to the lack of zero-cross distortion. These deliver greater transparency and realism. To further improve the feel, the SGI-44 is equipped with Drag Control load correction. This allows you to 'dial in' the perfect load as if connected to a tube guitar amp using a standard guitar cable. To add versatility, the SGI-44 is equipped with a buffered tuner out for quick between song adjustments or can be used to split the guitar signal to a second signal chain if need be.
Built 'Radial tough' the SGI-44 is made in Canada using 14 gauge steel. An innovative I-beam internal frame protects the sensitive circuit board from outside stress which could torque the solder points and cause premature failure. Radial's innovative book-end construction creates recessed zones at each end that protect connectors, switches and controls from harm's way.
Audio circuit type | Active 100% discrete class-A with transformer isolation |
Frequency response | 20Hz ~ 20kHz (-2dB) |
Signal to noise ratio | 100dB (0dBu input) |
Dynamic range | 105dB |
Noise floor | -100dBu |
Maximum input | +2dBu |
Total harmonic distortion | 0.005% @ 1k |
Inter-modulation distortion | 0.02% @ 1k |
Input impedance | Variable from 10k Ohms ~ 1 megaOhm |
Output impedance | 218 Ohms (_" unbal. output); 280 Ohms (TX bal. output) |
Instrument input | _" unbalanced input |
Tuner output | _" unbalanced output |
TX output | Bal. XLR output (Studio Guitar Interface) |
RX input | Bal. XLR input (Studio Guitar Interface) with gnd. lift Dragª Variable input impedance control |
XLR configuration | AES standard (pin-2 hot) |
Power | +15VDC/400mA adapter included |
Construction | 14 gauge steel chassis / outer shell, baked enamel finish |
Size | 4.25" x 2" x 5" (102 x 76 x 165mm) |
Weight | 3lbs. (1.36kg) |
Shipping size | 5.25" x 2.5" x 11" ( 127 x 64 x 279mm) |
Shipping weight | 3.1lbs (1.41kg) |
Warranty | Radial 3-year, transferable |
