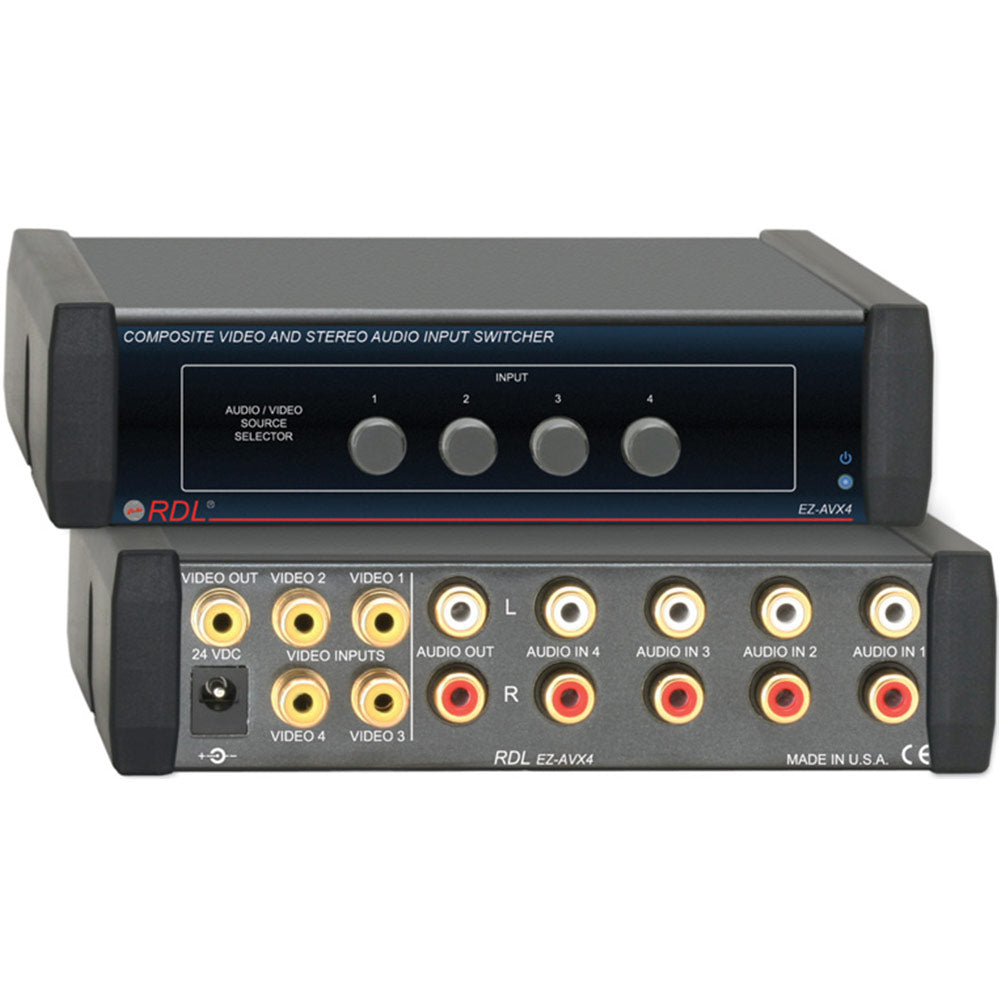

RDL EZ-AVX4 Composite Video and Stereo Audio Input Switcher - 4X1
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

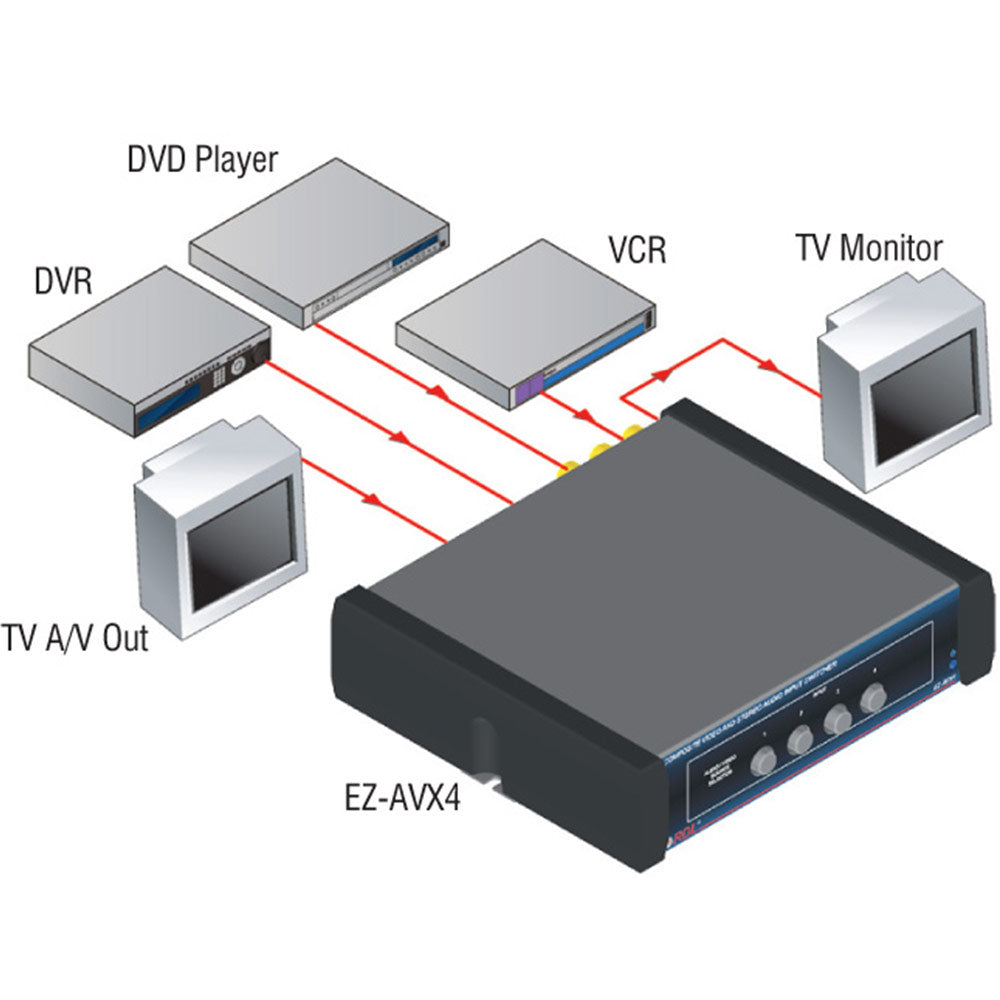

The EZ-AVX4 is a stereo audio and composite video source selector. Line-level audio and video outputs are provided on RCA jacks. This unit is ideal as a four input source selector feeding an associated video monitor or recorder. The EZ-AVX4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.
-
Features:
- Four Input Source Selection
- Video Inputs Accept NTSC or PAL Signals
- Unbalanced Stereo Audio Inputs and Output
- Simultaneous Audio and Video Switching
- Audio and Video on Color-Coded RCA Jacks
- Inputs and Outputs on Rear Panel
- Full-Size Interlocking Pushbuttons on Front Panel
- Gold-Plated Connectors
- Easy-to-Push Large Buttons
- Solid-State Audio and Video Switching
- Switch Noise Cannot Affect Signal Quality
| AUDIO SECTION | |
| Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
| Gain: | Unity, nominal |
| Output: | Stereo on dual RCA jacks, -10 dBV nominal, +10 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
| THD+N: | < 0.02% |
| Off Attenuation: | > 95 dB |
| VIDEO SECTION | |
| Inputs (4): | RCA Jacks, 1Vp-p, 75 |
| Gain: | Unity, nominal |
| Output: | RCA Jack, 1Vp-p, 75 |
| Bandwidth: | > 350 MHz |
| Differential gain: | < 0.1% |
| Differential phase: | < 0.1% |
| Off Attenuation: | > 40 dB @ 10 MHz |
| Noise: | < -90 dB ( 1 Vp-p video, 75 ) |
| 24 Vdc power supply current: | 85 mA (idle), 100 mA (max.) |

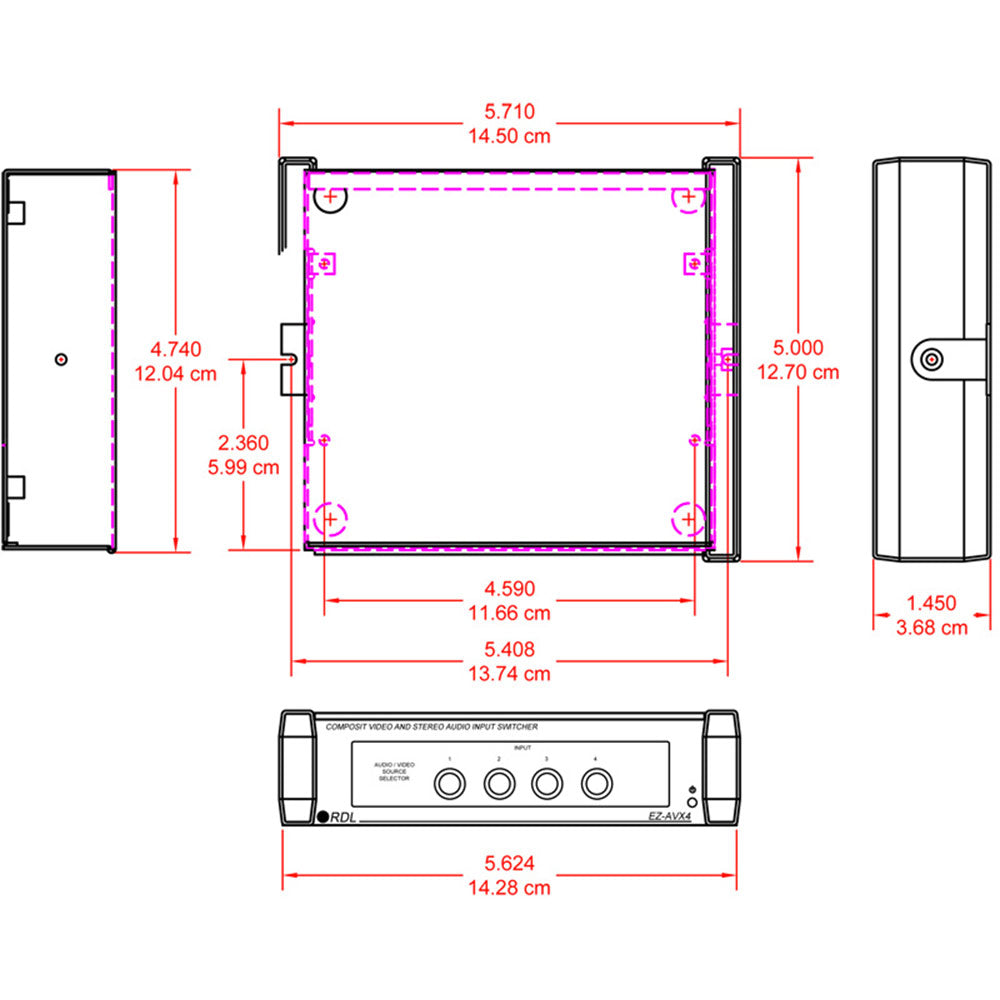

| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
The EZ-AVX4 is a stereo audio and composite video source selector. Line-level audio and video outputs are provided on RCA jacks. This unit is ideal as a four input source selector feeding an associated video monitor or recorder. The EZ-AVX4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.
-
Features:
- Four Input Source Selection
- Video Inputs Accept NTSC or PAL Signals
- Unbalanced Stereo Audio Inputs and Output
- Simultaneous Audio and Video Switching
- Audio and Video on Color-Coded RCA Jacks
- Inputs and Outputs on Rear Panel
- Full-Size Interlocking Pushbuttons on Front Panel
- Gold-Plated Connectors
- Easy-to-Push Large Buttons
- Solid-State Audio and Video Switching
- Switch Noise Cannot Affect Signal Quality
| AUDIO SECTION | |
| Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
| Gain: | Unity, nominal |
| Output: | Stereo on dual RCA jacks, -10 dBV nominal, +10 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
| THD+N: | < 0.02% |
| Off Attenuation: | > 95 dB |
| VIDEO SECTION | |
| Inputs (4): | RCA Jacks, 1Vp-p, 75 |
| Gain: | Unity, nominal |
| Output: | RCA Jack, 1Vp-p, 75 |
| Bandwidth: | > 350 MHz |
| Differential gain: | < 0.1% |
| Differential phase: | < 0.1% |
| Off Attenuation: | > 40 dB @ 10 MHz |
| Noise: | < -90 dB ( 1 Vp-p video, 75 ) |
| 24 Vdc power supply current: | 85 mA (idle), 100 mA (max.) |
| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
