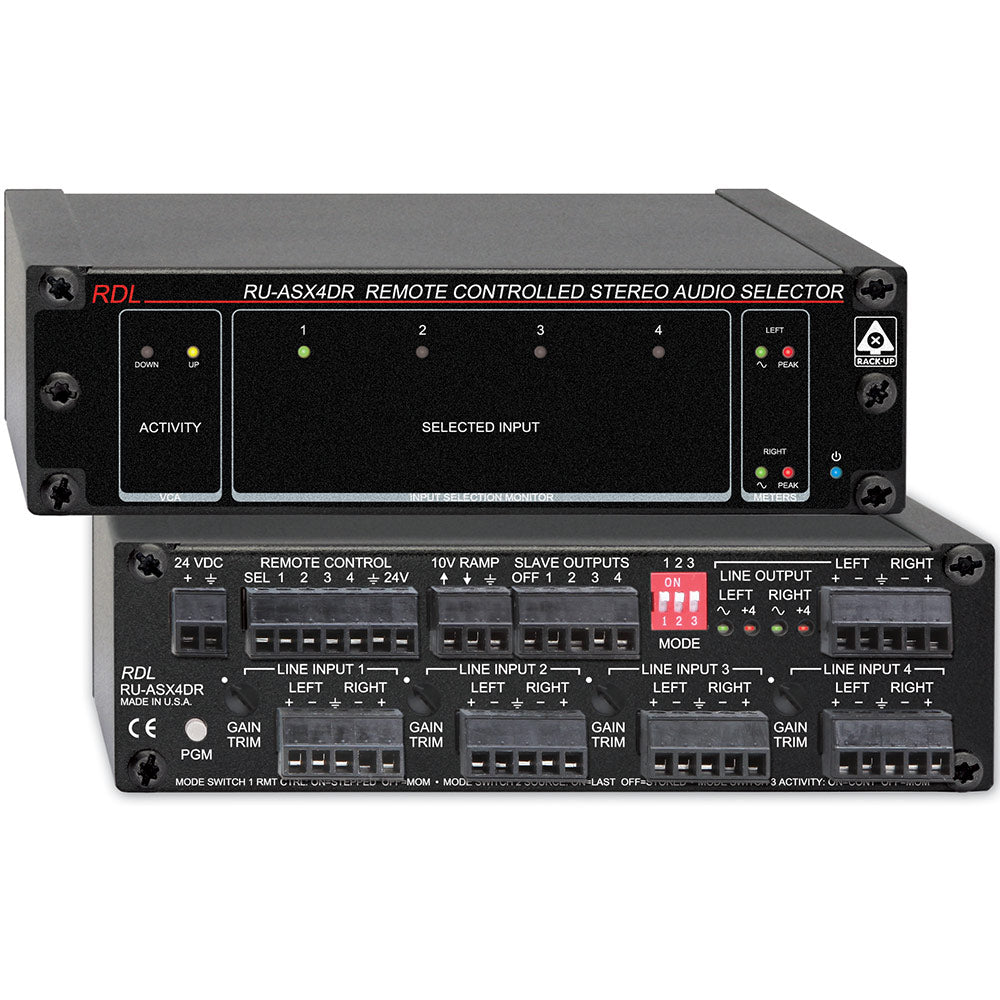

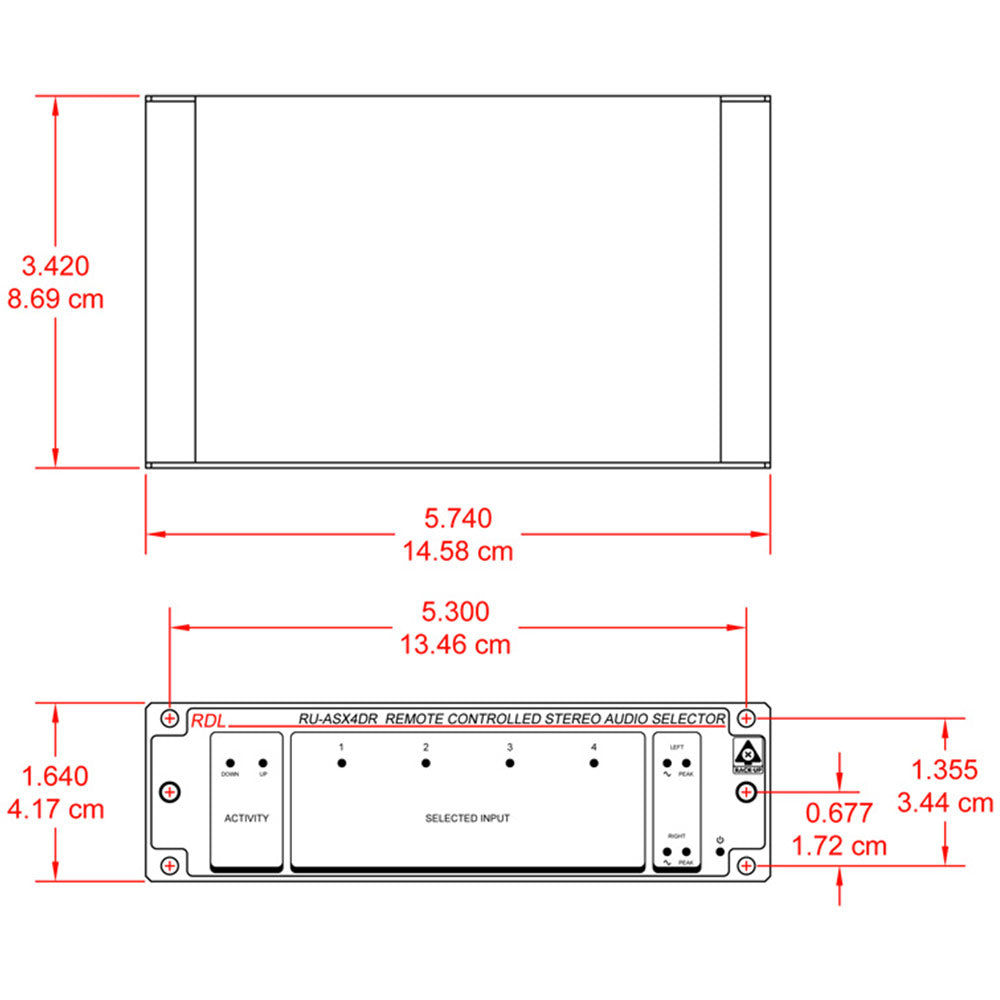

RDL RU-ASX4DR 4x1 VCA Remote Controlled Stereo Audio Selector


  • Dale #:

    RDL-RUASX4DR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The -TPS7A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. The front panel features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP C... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The -TPS7A is a single-pair audio sending module compatible with RDL Format-A twisted pair products. The front panel features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.

The -TPS7A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic level or line level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS7A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.The -TPS7A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.
    Features:
  • Stereo Audio Input Combined to Mono Output
  • Input on Mini-jack
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

Each of the four stereo line level inputs accepts either a balanced or an unbalanced signal. Each input is equipped with a rear panel screwdriver-adjustable input gain trimmer. Input signal levels between -15 dBV and +8 dBu may be set to the proper operating level as indicated by a stereo dual-LED VU meter. This assures ample headroom at all normal operating levels. The module is equipped with two identical dual-led VU meters, one on the front panel, the other on the rear panel. The maximum input level is +25 dBu.

The RU-ASX4DR was designed for absolute silent switching of audio signals using only solid-state switching circuitry. Each of the VU-meters, left and right, is calibrated to read +4 dBu feeding the corresponding balanced output.

The audio output level is controlled by a remote 10k ohm linear taper pot or by 0 to 10 Vdc. A single remote control location is possible using a remote 10k ohm potentiometer. The RU-ASX4DR is compatible with RDL D SERIES-RLC10 rotary remote controls that provide user adjustment at single or multiple locations. Audio levels are controlled in 0.5 dB steps using noiseless zero-crossing digital attenuators for optimum reliability, precise tracking and long-term click-free service. The output is stereo line level. Each output channel may be connected balanced or unbalanced.

Inputs are selected by a sequential remote control such as an RDL D-RCS4, by a momentary remote control such as an RDL D-RC4M or by an external open-collector momentary closure to ground. The RU-ASX4DR may be remote controlled from a single or from multiple locations. When a source is selected, the RU-ASX4DR provides a 25 mA open-collector output to control other equipment or modules. A front-panel LED indicates the selected source. Only one source may be selected at a time. If the momentary input terminal for a selected source is triggered again, all inputs are turned off.

Rear-panel DIP switches are provided to set the VCA activity LEDs for momentary or continuous display, to select the remote control mode (sequential or individual source selection), and upon power-up a return to either a pre-programmed source or to the last source used. The pre-programmed source is stored when the module is installed.

The RU-ASX4DR offers exceptional headroom, very low distortion, excellent crosstalk isolation, wide flat frequency response and extremely low noise with very high common-mode signal rejection. It provides exceptional audio performance for the most critical applications in a professional audio environment.

The RU-ASX4DR operates from 24 Vdc connected through a rear-panel detachable terminal block.

More +

Product Specs

Audio Inputs (4)Stereo, Line level on Detachable Terminal Block
Input Impedance> 20 k balanced, > 10 k unbalanced
Input Level (for +4 dBu output)-15 dBV to +8 dBu, adjustable on rear-panel trimmers
Maximum Input Level+25 dBu
Common Mode Rejection> 60 dB (50 Hz to 120 Hz)
Headroom (above +4 dBu)> 18 dB (unity gain)
Frequency Response10 Hz to 20 kHz (±0.2 dB)
Distortion (THD + N)< 0.01% (20 Hz to 20 kHz)
Noise (below +4 dBu)< -85 dB (with any input selected); < -95 dB (with no input selected)
Off Attenuation> 85 dB (1 kHz), > 70 dB (20 kHz)
Crosstalk< -80 dB (1 kHz); < -60 dB (20 kHz)
Front-Panel Indicators (11)Power, Selected channel (4), VCA activity up/down (2), L and R Dual-LED VU meters (4)
Audio OutputStereo, Line level on Detachable Terminal Block
Output Impedance150 balanced, 75 unbalanced
Output Level+4 dBu balanced, unbalanced output 6 dB below balanced output level
Control inputs (6)1 mA, pulled to ground (4, source selection); 1 mA, pulled to +15 Vdc (SEL); 0 to 10 Vdc (VCA)
Control outputs (5)25 mA, open-collector to ground
VCA Control Input0 to 10 Vdc; or 0 to 10 k linear potentiometer
Rear-Panel Indicators (4)L and R Dual-LED VU meters
RDL Remote Control CompatibilityD-RC4M, D-RCS4 (source selection); D-RLC10, D-RLC10M, D-RLC10K, D-RLC10KM, D-RLC3 (VCA)
Power ConnectionDetachable Terminal Block
Power Requirement24 Vdc @ 175 mA, Ground-referenced
Ambient Operating Environment0° C to 55° C
