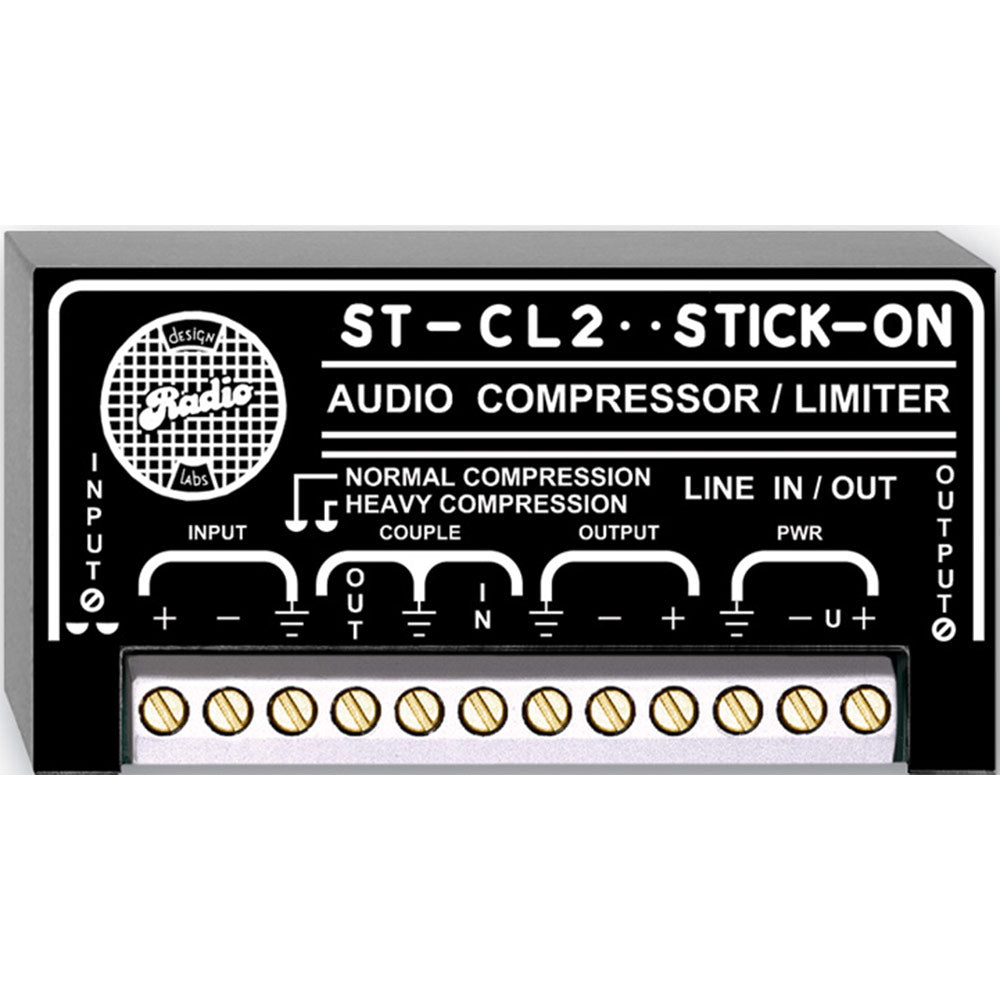

RDL ST-CL2 Compressor/Limiter - Line Level

  • Dale #:

    RDL-STCL2
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The ST-CL2 is a high performance compressor/limiter designed to maintain a constant average output level and effective peak control over a wide range of input levels. The input and output are line level and each may be wired balanced or unbalanced. Trimmers provide adjustment for all usual profes... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

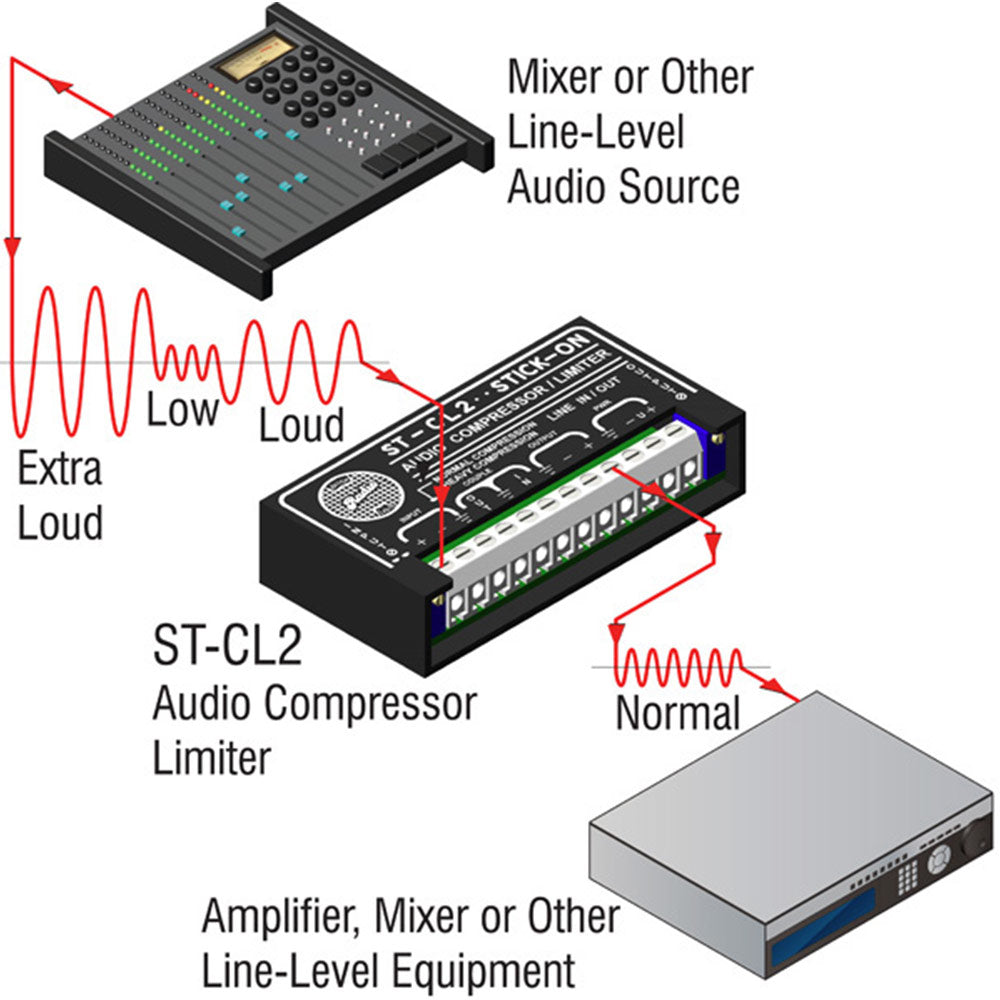

The ST-CL2 is a high performance compressor/limiter designed to maintain a constant average output level and effective peak control over a wide range of input levels. The input and output are line level and each may be wired balanced or unbalanced. Trimmers provide adjustment for all usual professional and consumer audio input and output levels. Internal detectors feed three timing circuits. The threshold level and slope of each timing circuit are incremented to respond sequentially to signals of varying amplitude and energy levels. The ST-CL2 features a soft-knee compression threshold and compression ratio which automatically adjust to the program material. Two LED indicators cover the incremental ranges of compression, making setting of the input level quick and easy. Two ST-CL2s may be strapped together for stereo operation by connecting the coupling terminals between the two modules.

    Features:
  • Positive Audio Level Protection
  • Smooth Inaudible Gain Reduction
  • Tight Audio Peak Control
  • Very Low Noise Compressor
  • Multi Stage Incremental Gain Reduction
  • Fully Automatic Operation
  • Superb Performance with Minimal Setup
  • RDL SupplyFlex Power Input Configuration

More +

Product Specs

Input:10 k Balanced (may be connected unbalanced)
Input Signal Range:-10 to +4 dBu, adjustable (for 6 dB gain reduction) +22 dBu maximum
Output:150 Balanced (may be connected unbalanced)
Output Signal Range:OFF to +8 dBu, adjustable
Frequency Response:10 Hz to 20 kHz (+/- 0.2 dB) over full compression range
Noise below +4 dBu output:< -78 dB (unweighted +4 dBu input/output)
Total Harmonic Distortion:< 0.05% @ 1 kHz below compression threshold
< 0.1% @ 1 kHz with 3 dB gain reduction
< 0.15% @ 1 kHz with 6 dB gain reduction
CMRR:> 60dB (50 to 100 Hz)
Attack Time:Averaging Compressor: 500 ms (+4 dBu input)
Fast Compression: <10 ms (+20 dBu input)
Peak Limiting: Instantaneous
Release Time:Automatically adjusting up to 500 ms

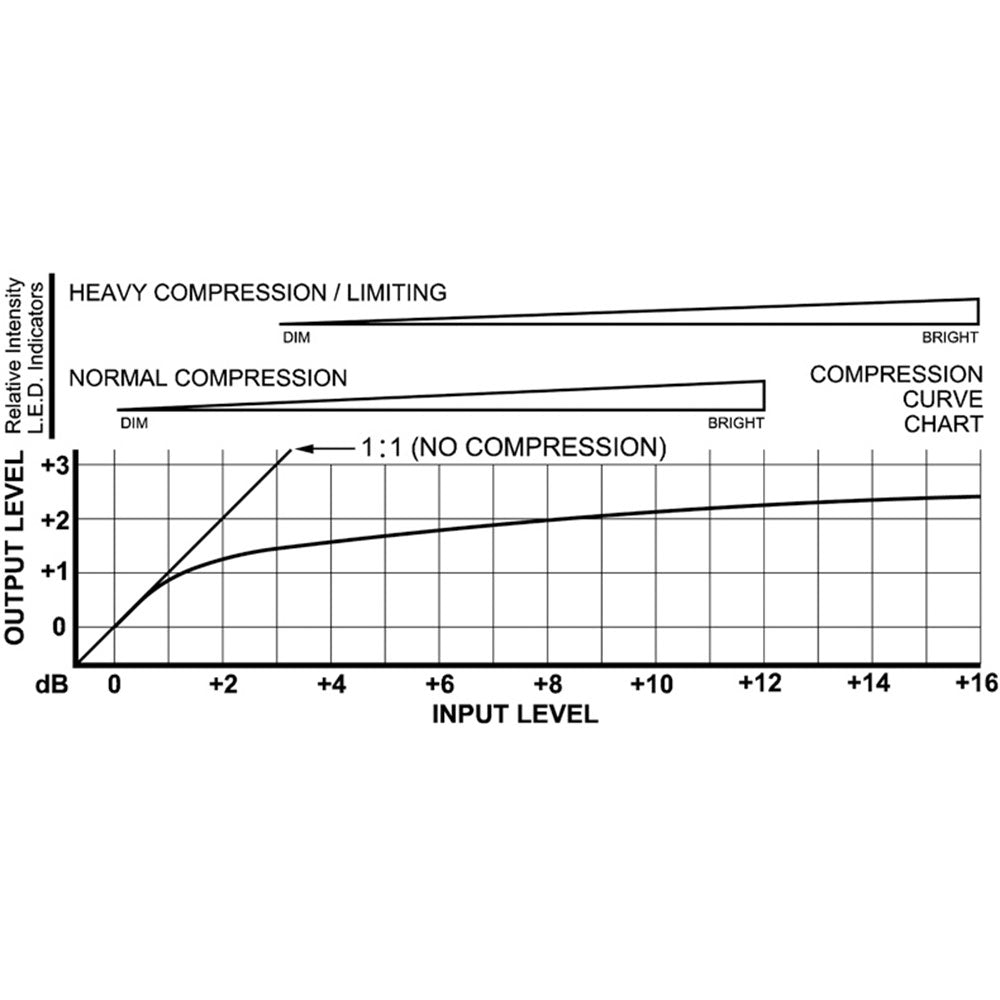

Compression Ratio:Automatically adjusting 1.5:1 to 10: 1
Peak Limiter:INF:1
Interconnection:Stereo COUPLE interconnection provided
Indicators (2):Yellow LED for NORMAL Compression,
Red LED for HEAVY Compression
Power Requirement:24 to 33 Vdc @ 50 mA, SupplyFlex
Ambient Operating Environment:0 degrees C to 55 degrees C
