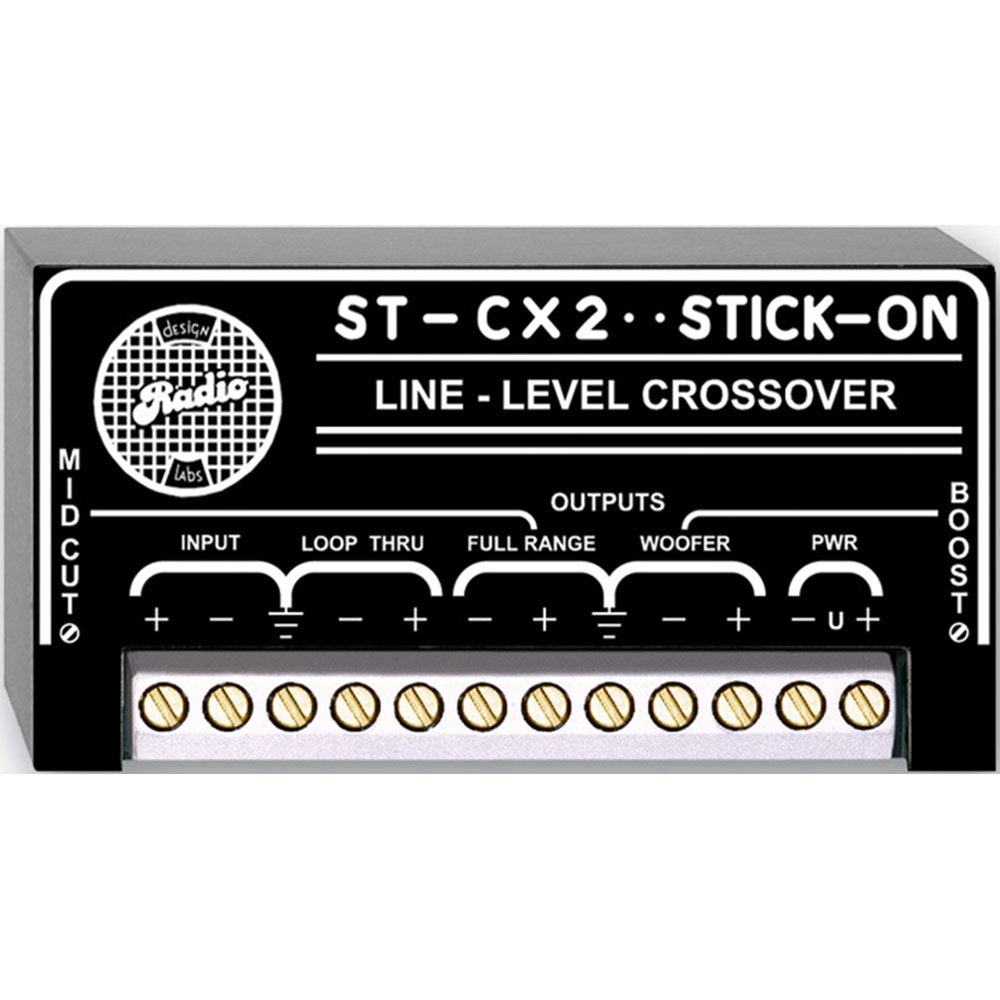

RDL ST-CX2 Two Band Active Line-level Crossover
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ST-CX2 is a line-level two band crossover to drive audio power amplifiers. The input and outputs are balanced and may be connected unbalanced if necessary. The input accepts a +4 dBu line-level signal. The module operates at nominal unity gain.
The FULL RANGE output is designed for use with full-range speaker systems which do not contain a woofer (below 100 Hz). The passband is 100 Hz to 30 kHz, with an equalization adjustment centered at 2 kHz. Through the application of a smile-curve providing up to 8 dB attenuation through midband audio frequencies, the performance of the whole system may be significantly enhanced.The WOOFER output is designed for use with woofers amplified independently of any full-range speakers. The passband is 40 Hz to 165 Hz when set flat, with an equalization BOOST adjustment centered at 50 Hz.-
Features:
- Active Low-Frequency Woofer Equalization
- Active Full-Range Equalization
- Adjustable Equalization
- Crossover with Loop-through Output
- Low-Noise and Low-Distortion Crossover
- RDL SupplyFlex&trade Power Input Configuration
For systems also incorporating subwoofers, the LOOP THRU output connects to an input of the RDL ST-CX2S Subwoofer Crossover. The ST-CX2 features RDL's SupplyFlex power input configuration for operation directly from ground-referenced, floating or bipolar 24 Vdc power.
| Input: | 50 k balanced line-level (+4 dBu) |
| Outputs (2): | 150 balanced line-level (+4 dBu) |
| Headroom: | > 18 dB |
| Gain: | Unity (nominal, equalization set flat) |
| Out-of-Band Rolloff: | 18 dB/octave |
| FULL RANGE Output: | |
| Frequency Response: | 100 Hz to 30 kHz (+/- 0.5 dB) |
| THD+N: | < 0.075% (100 Hz to 30 kHz |
| Residual Noise: | < -80 dB (referred to +4 dBu) |
| WOOFER Output: | |
| Frequency Response: | 40 Hz to 165 Hz (+/- 0.5 dB) |
| THD+N: | < 0.025% (40 Hz to 165 Hz) |
| Residual Noise: | < -95 dB (referred to +4 dBu) |
| Power Requirement: | GROUND-REFERENCED or FLOATING 24 to 33 Vdc @ 40 Ma |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The ST-CX2 is a line-level two band crossover to drive audio power amplifiers. The input and outputs are balanced and may be connected unbalanced if necessary. The input accepts a +4 dBu line-level signal. The module operates at nominal unity gain.
The FULL RANGE output is designed for use with full-range speaker systems which do not contain a woofer (below 100 Hz). The passband is 100 Hz to 30 kHz, with an equalization adjustment centered at 2 kHz. Through the application of a smile-curve providing up to 8 dB attenuation through midband audio frequencies, the performance of the whole system may be significantly enhanced.The WOOFER output is designed for use with woofers amplified independently of any full-range speakers. The passband is 40 Hz to 165 Hz when set flat, with an equalization BOOST adjustment centered at 50 Hz.-
Features:
- Active Low-Frequency Woofer Equalization
- Active Full-Range Equalization
- Adjustable Equalization
- Crossover with Loop-through Output
- Low-Noise and Low-Distortion Crossover
- RDL SupplyFlex&trade Power Input Configuration
For systems also incorporating subwoofers, the LOOP THRU output connects to an input of the RDL ST-CX2S Subwoofer Crossover. The ST-CX2 features RDL's SupplyFlex power input configuration for operation directly from ground-referenced, floating or bipolar 24 Vdc power.
| Input: | 50 k balanced line-level (+4 dBu) |
| Outputs (2): | 150 balanced line-level (+4 dBu) |
| Headroom: | > 18 dB |
| Gain: | Unity (nominal, equalization set flat) |
| Out-of-Band Rolloff: | 18 dB/octave |
| FULL RANGE Output: | |
| Frequency Response: | 100 Hz to 30 kHz (+/- 0.5 dB) |
| THD+N: | < 0.075% (100 Hz to 30 kHz |
| Residual Noise: | < -80 dB (referred to +4 dBu) |
| WOOFER Output: | |
| Frequency Response: | 40 Hz to 165 Hz (+/- 0.5 dB) |
| THD+N: | < 0.025% (40 Hz to 165 Hz) |
| Residual Noise: | < -95 dB (referred to +4 dBu) |
| Power Requirement: | GROUND-REFERENCED or FLOATING 24 to 33 Vdc @ 40 Ma |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
