RF Venue DFINWD9 - DISTRO9 HDR Antenna Distribution System with White Install Antenna and Cable Kit


  • Dale #:

    RFVE-DFINWD9
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Turnkey DISTRO9 HDR bundle, including the Diversity Fin Antenna, (2) 25' RF Venue RG8X cables and premium interconnect cable package. The RF Venue DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. A new and proprietary design eliminates old ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

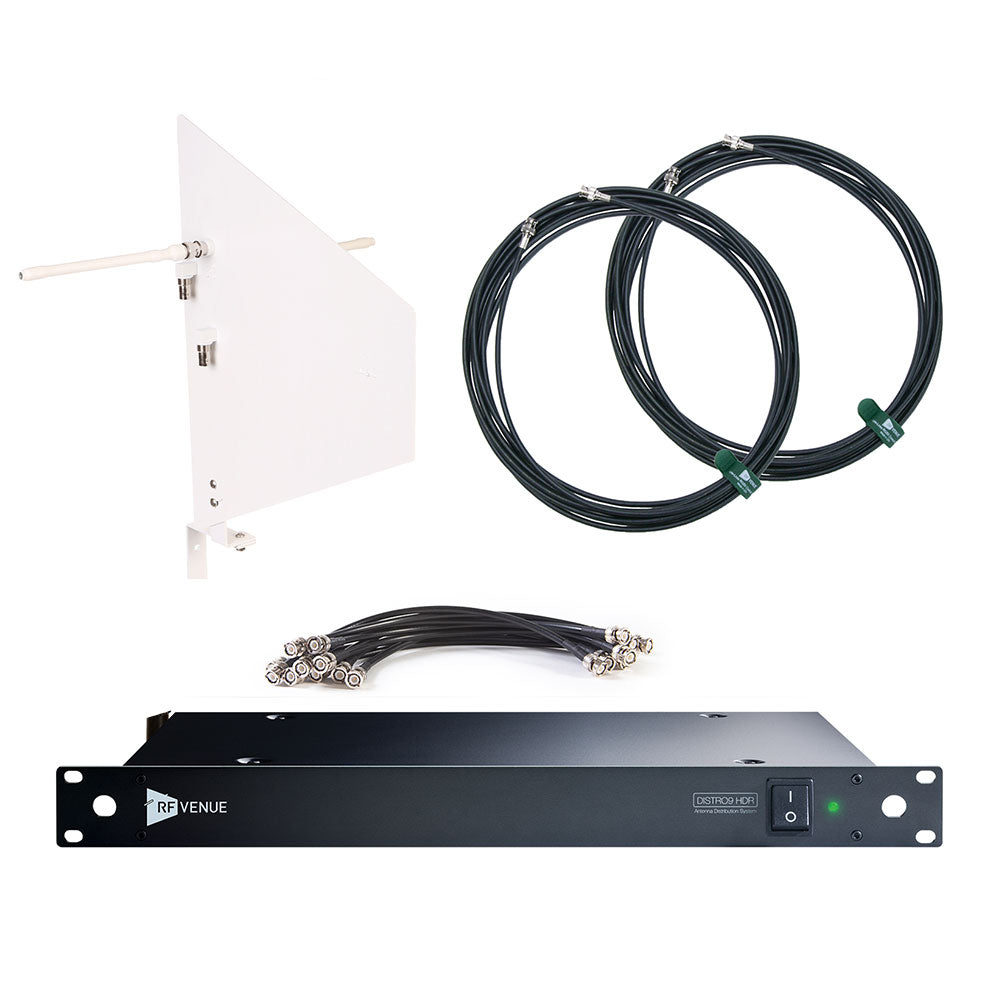

Turnkey DISTRO9 HDR bundle, including the Diversity Fin Antenna, (2) 25' RF Venue RG8X cables and premium interconnect cable package.

The RF Venue DISTRO9 HDR represents a unique approach to high quality RF signal distribution for wireless microphones. A new and proprietary design eliminates old internal splitters most antenna distribution systems still use and replaces them with state of the art "divide by three" circuitry, providing up to 9 low-noise channels of diversity wireless. And each output is clean: DISTRO9 HDR employs low noise figure amplifiers and superior gain structure providing over 60 dB of dynamic range over the spectrum.

Features:

  • Connect up to 9 receivers in 1RU
  • High dynamic range for lowest IMD for more usable spectrum
  • Two zones of antenna coverage built-in
  • Superior gain flatness and stability across VHF, T-Band, and UHF
  • Dedicated DC power port for receivers and accessories
  • Excellent RF performance at a reasonable price


Any DISTRO9 HDR RF output can be cascaded to a second DISTRO9 HDR, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in just two units of rack space.

Multizone installations are easy with the DISTRO9 HDR two zone antenna inputs, providing coverage for large areas or multiple rooms, each with DC power available for in-line amplifiers or active antennas.

Featuring a robust internal power supply, the DISTRO9 HDR can provide clean DC power to wireless microphone receivers with an optional DC cable kit, and can also be powered directly from a DC battery source for location sound cart applications. The DISTRO9 HDR is also ETL listed to meet bid specification requirements on municipal, government, and other high profile projects.

An internal I/O section provides a range of future module add-on capabilities ranging from remote web-based spectrum monitoring to bandpass filtering, and more. As RF spectrum congestion grows and operating bands evolve worldwide, the DISTRO9 HDR is highly configurable to meet the current and future needs of any professional wireless microphone system.

More +

Product Specs

Frequency range 50-1000 MHz (VHF, UHF, +900 bands)
RF output level (gain) ± 3dB
Output connection isolation 60dB @ 510MHz, 80dB @ 200 MHz
Third order intercept point 15dBm @ VHF, 20+ @ UHF
Impedance 50Ω
Power Requirements 50/60 HZ, 2A
Fuse T3.15A/250V
Input AC voltage 100-240 VAC
DC over coax (to external antennas) 12 VDC 50mA
Output DC voltage (to receiver jacks) 12V 3A
Output DC connectors Anderson Power Pole
Dimensions 480(W) X 45(H) X 250(D) mm
Unit Weight 2.7 Kg, Shipping weight 4 Kg
