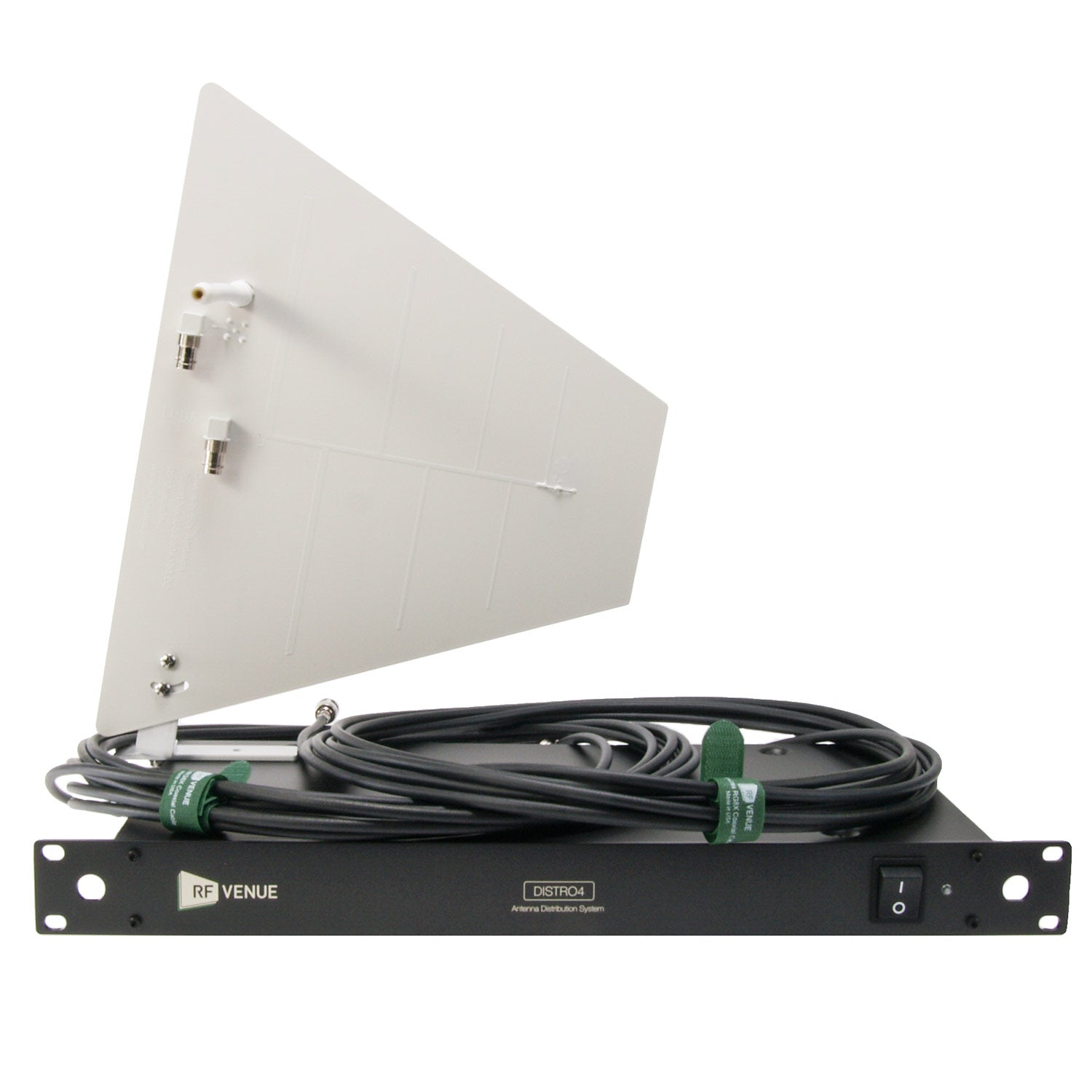

DISTRO4 + Diversity Fin white install antenna + (2) 25’ RG8X coaxial cables

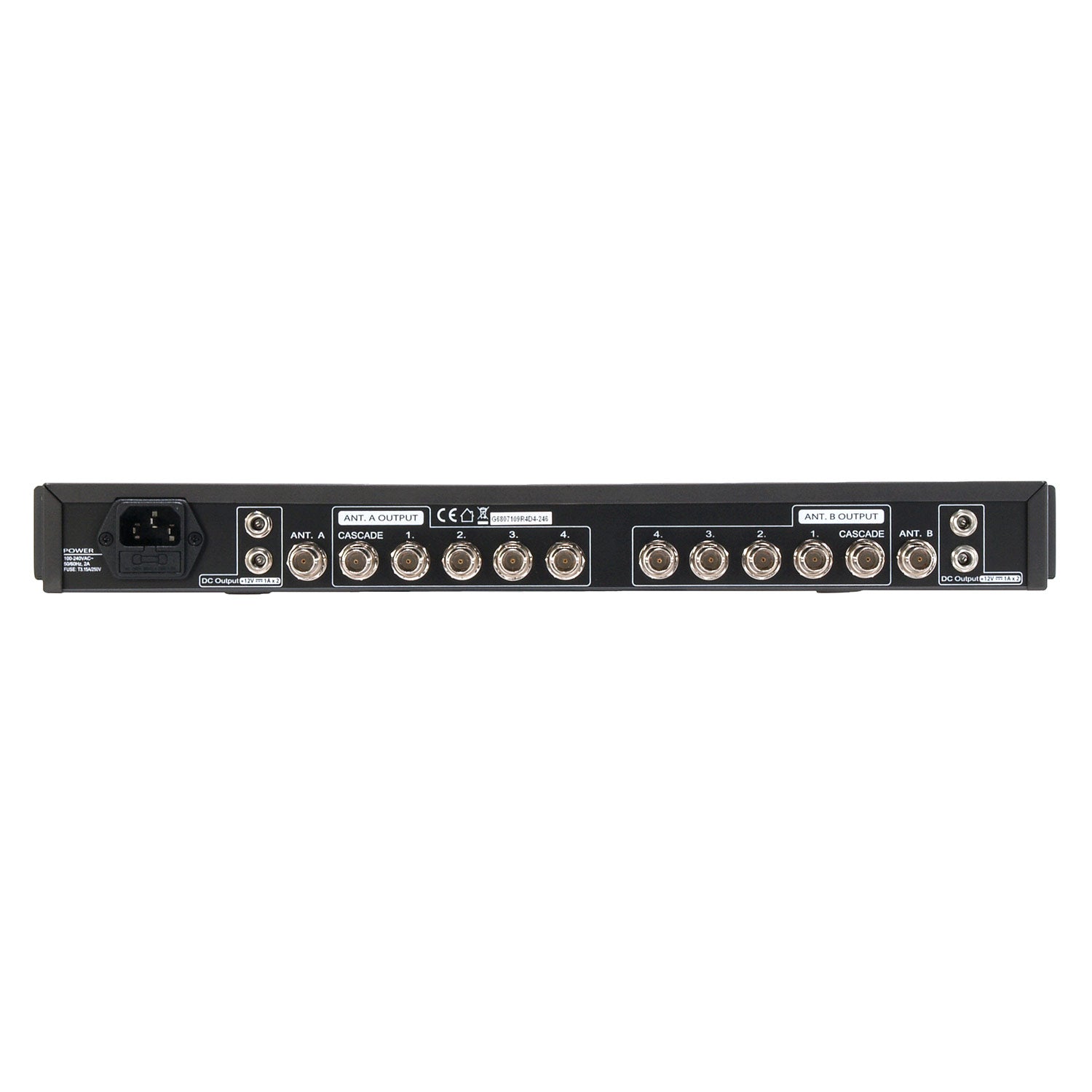

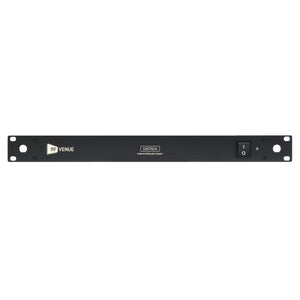

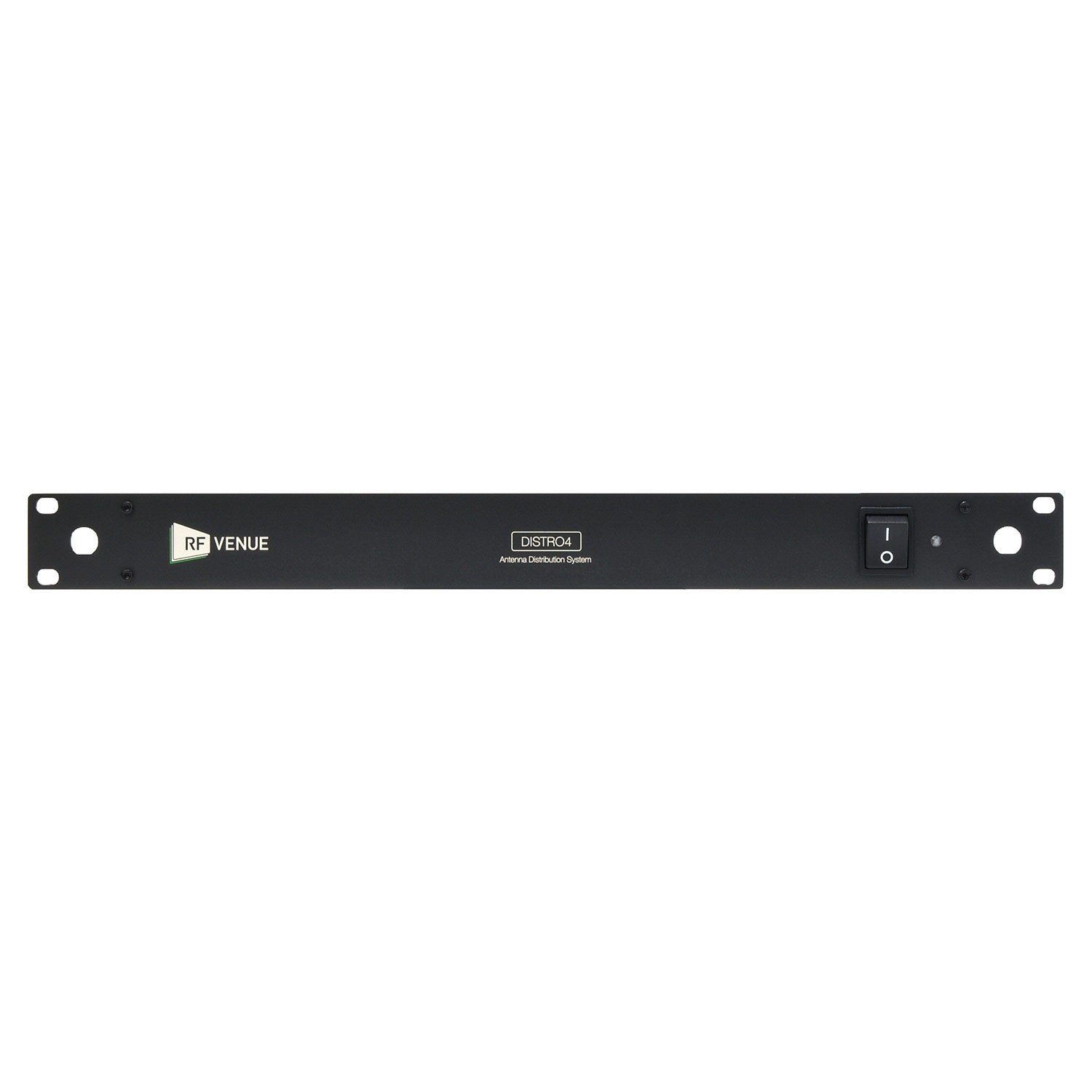

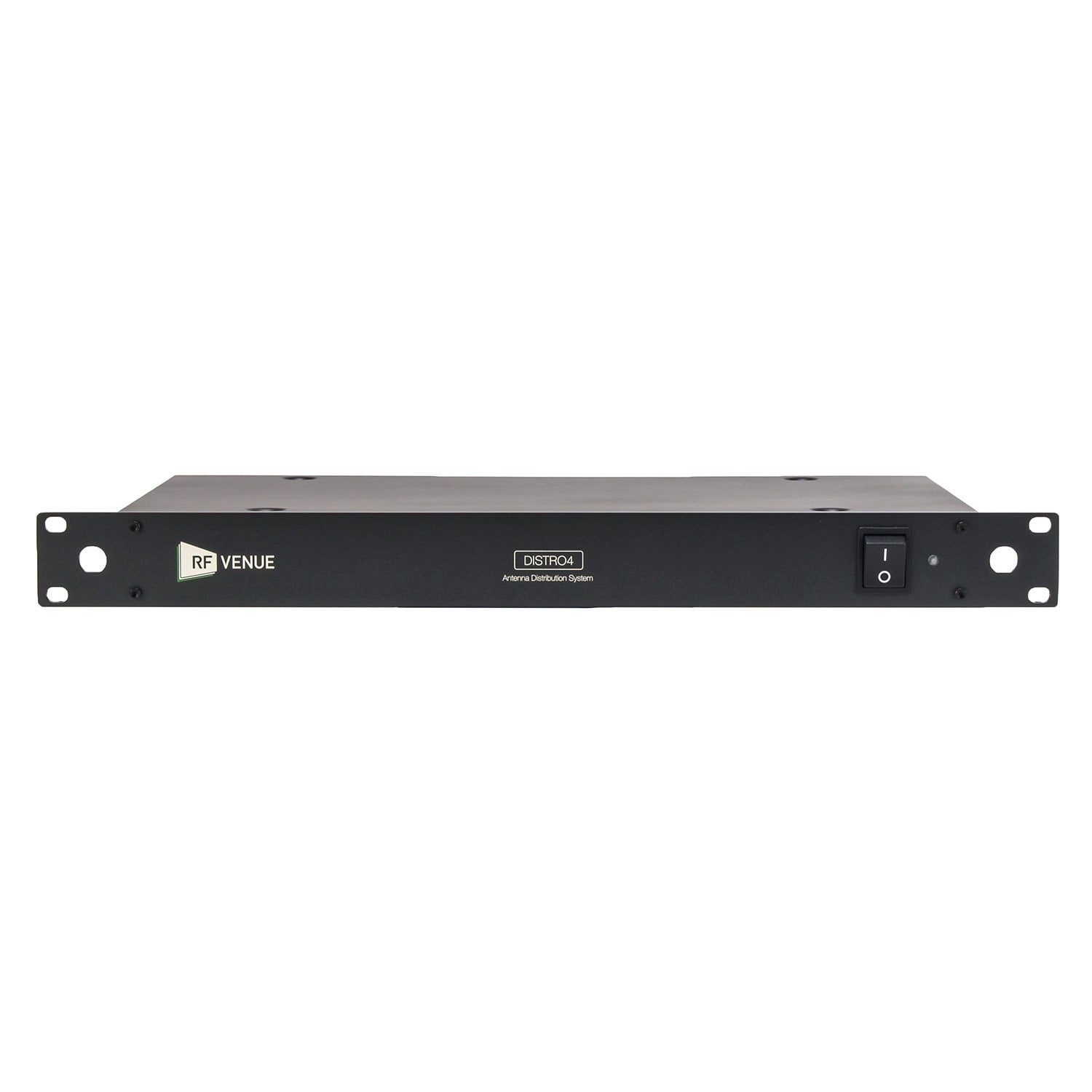

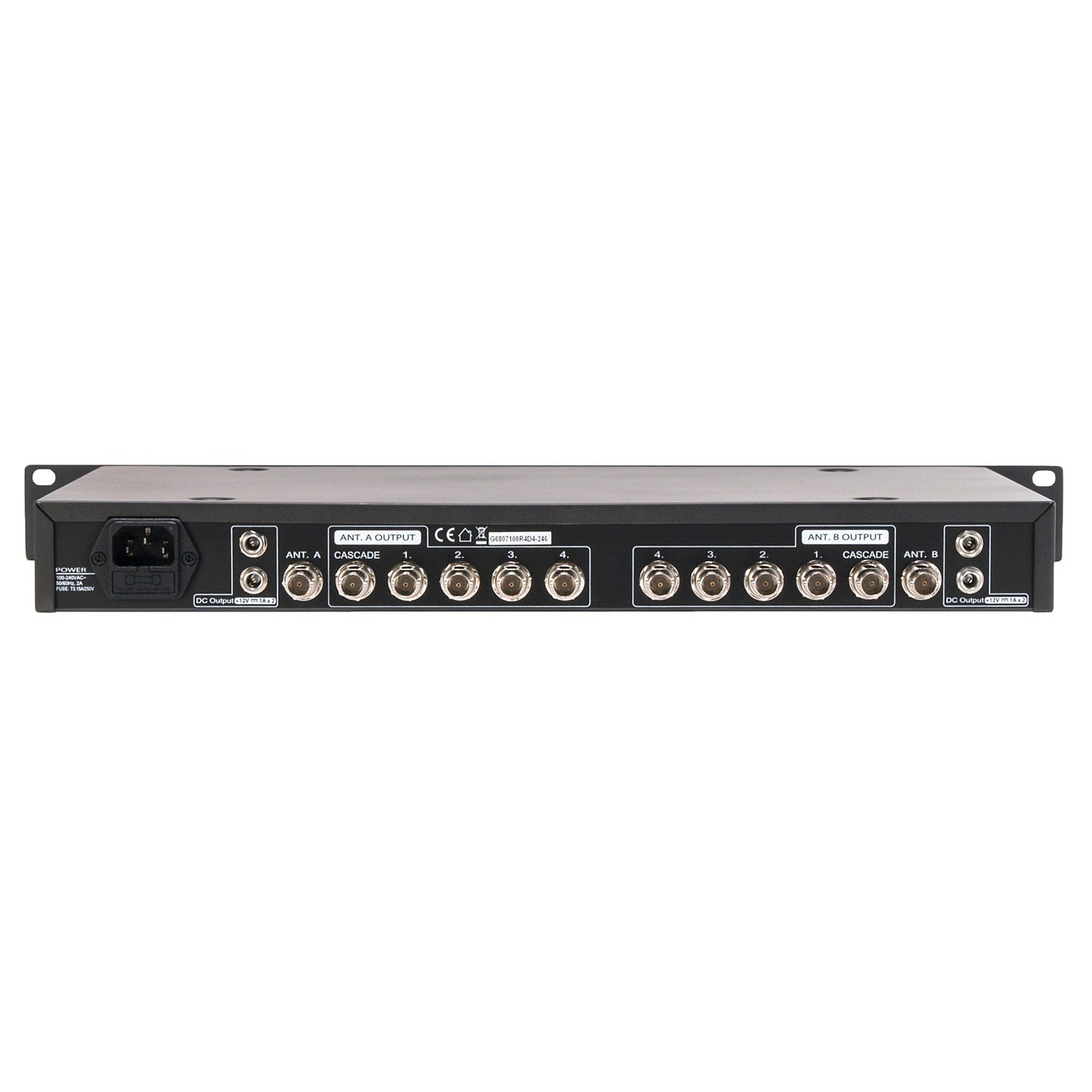

DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true “distribution amplifier,” DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
The patented Diversity Fin antenna is the flagship RF Venue product. It’s portable, simple to operate, compatible with any brand, and pushes diversity microphone systems to perform their best in the toughest RF environments.
To use, just connect both the A and B ports on any antenna distributor or wireless microphone receiver and point toward the stage. The result is an antenna that dramatically improves system performance in the space of only one antenna. And since only one unit is needed for diversity reception—not two—you’ll get optimum diversity coverage for much less.
