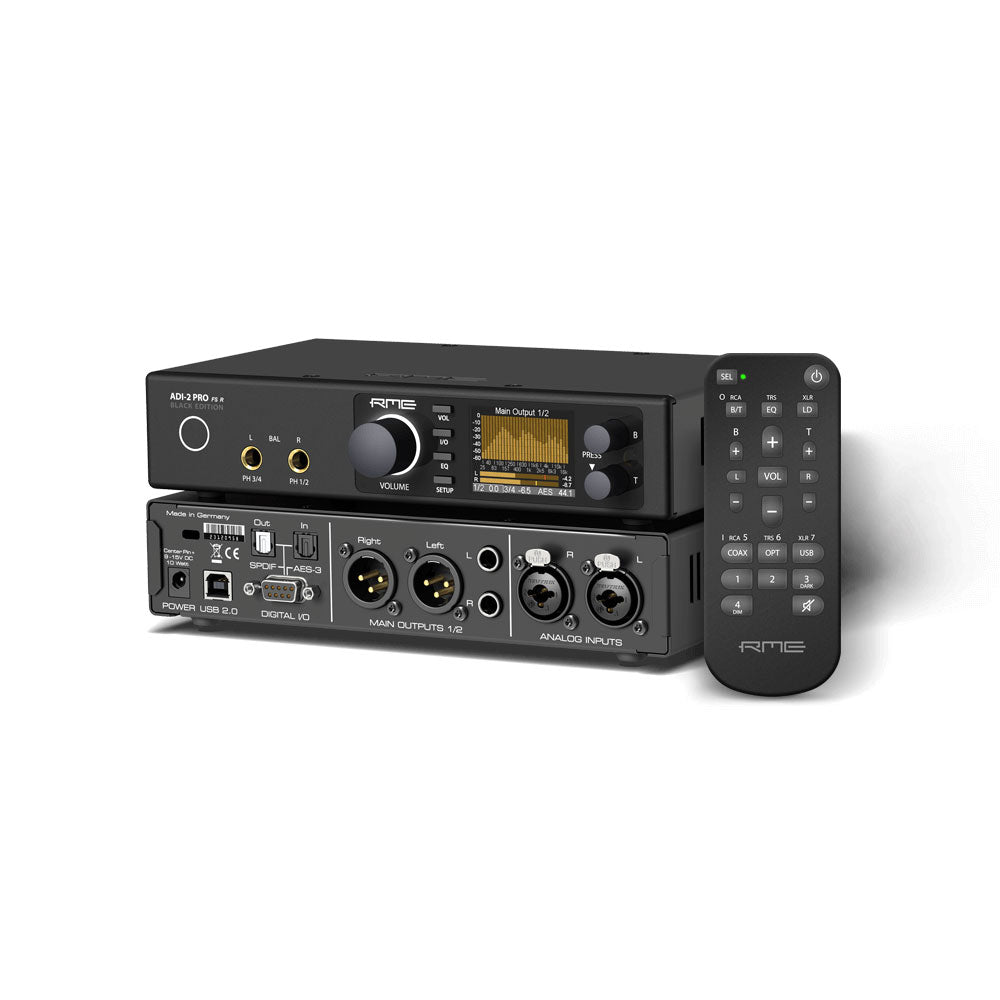

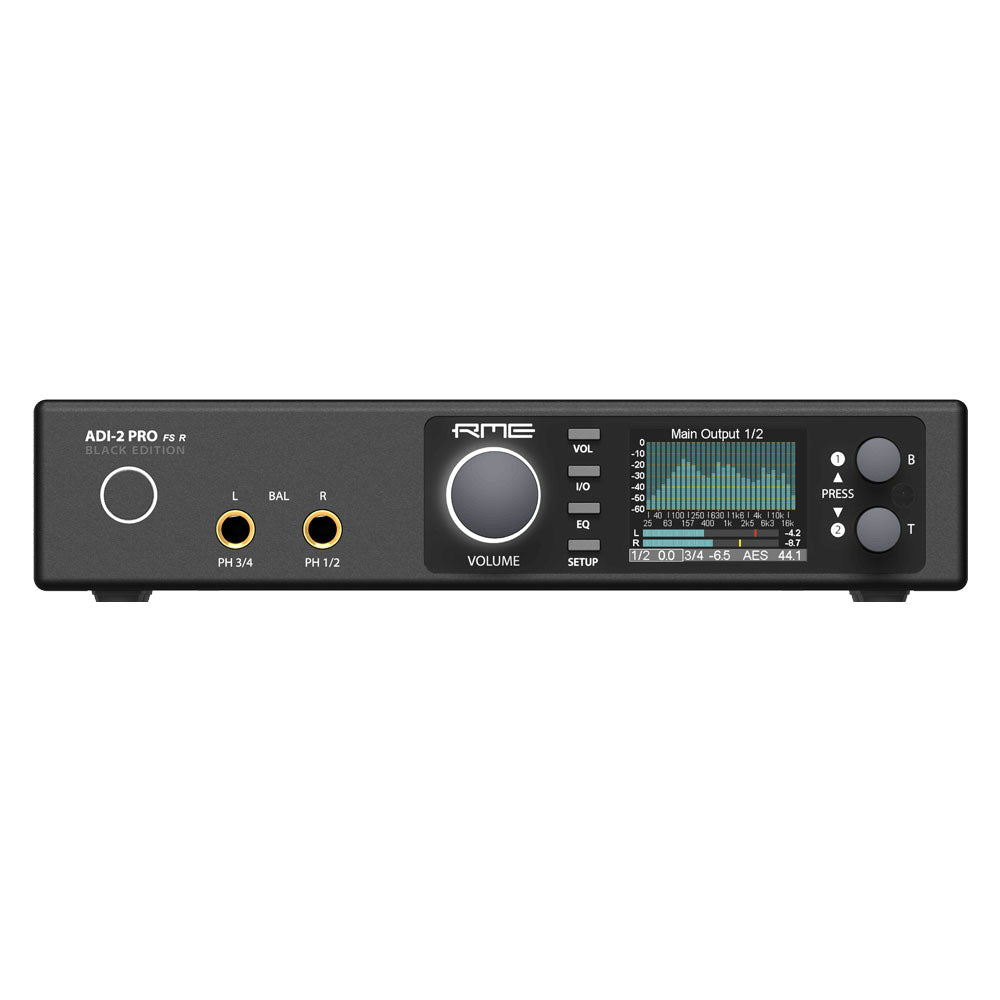

RME ADI-2 Pro FS R Black Edition 2-Channel High-End AD/DA Converter

  • Dale #:

    RME-ADI2PROFSRBE
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

New Experience in Sound and QualityRME's reference AD/DA converter is a host of devices all put together into one unit, with a simple and mostly automated way of using it right out of the box. A unit with the industry's biggest footprint per feature ratio, excellent tech specs, crystal clear and ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

New Experience in Sound and Quality
RME's reference AD/DA converter is a host of devices all put together into one unit, with a simple and mostly automated way of using it right out of the box. A unit with the industry's biggest footprint per feature ratio, excellent tech specs, crystal clear and transparent sound signature, and two extremely powerful headphone outputs.

Features:

  • A high-end AD/DA converter in professional studio quality
  • A double headphone amplifier in true high-end quality
  • A USB DAC like no other - the most versatile and capable one
  • A high-end AD/DA frontend and headphone amp for iPad / iPhone
  • A multi-format converter (AES, SPDIF, ADAT) with monitoring function
  • A DSD record and playback solution
  • An AD/DA frontend for audio measurement at up to 768 kHz sample rate
  • 1 x Stereo Analog I/O
  • 1 x ADAT I/O
  • RME USB 2.0
  • 2 x Phones Output
  • Class Compliant Mode
  • Remote
  • SteadyClock FS

Ultra-fidelity PCM/DSD 768 kHz AD/DA Converter
As the most flexible converter available, the ADI-2 Pro offers balanced/unbalanced analog I/Os, double Extreme Power headphone outputs, SteadyClock III, 4-stage hardware input and output level control, DSP-based signal processing, external power supply operation, Class Compliant USB compatibility, sample rates up to 768 kHz as well as DSD record and Direct DSD playback (256 / 11.2 MHz).

Analog or Digital - Options Galore
The ADI-2 Pro includes two servo-balanced analog inputs on combo XLR / TRS jacks, two separate balanced and unbalanced outputs on XLR and TS, two stereo Extreme Power headphone outputs on the front, an optical SPDIF I/O that also understands ADAT, and coaxial SPDIF (RCA) and AES I/O (XLR) via an included breakout cable. This universal set of I/O options offers superior quality and flexible connectivity to those who take a no-compromise approach to audio.

The USB 2.0 port is fully Class Compliant (UAC 2) for connection with compatible iOS devices, and is also used for firmware updates. Including an external switched power supply with lockable connector, the ADI-2 Pro can be easily powered from battery, opening up mobile applications as well as galvanically isolated use cases.

As a computer interface the ADI-2 Pro offers a stereo (2 in / 2 out) and a multichannel mode (6 in / 8 out). Compatibility with Mac OS X comes right out of the box. Under Windows the ADI-2 Pro uses RME's MADIface series driver, for full WDM and ASIO compatibility and highest performance.

Perfect Sound Capture and Reproduction
Aiming for the absolute reference sound, any detail in the ADI-2 Pro is special and has its own story. The main PCB is an extraordinary 10 layer design with custom copper thickness, guaranteeing finest undisturbed sound as well as ample but separated power for the phones outputs. Internal power supply stages and precise regulators use a super-low-noise design to not degrade performance through the power rails. Selected SoundPlus operational amplifiers maintain highest SNR, lowest THD and high slew rate under all conditions. The whole analog circuit design is fully symmetrical and balanced throughout - and DC-coupled. The only capacitors in the signal path perform DC protection at the analog input sockets, and have been carefully selected to avoid any sonic impact.

The 4-channel AD-converter, supporting 786 kHz sample rate and DSD recording, is used in a dual mono design, with 3 dB improved signal to noise ratio. Two premium DACs are used for two separate stereo outputs. Internal audio processing like EQs, Crossfeed and spectral analysis, is done by a high performance DSP with 2.17 Giga FLOPS (2882 MIPS), delivering enough computing power to work even at 768 kHz sample rate.

For easy operation a high quality Sample Rate Converter has been added, switchable to the AES or SPDIF input, solving any clocking problem between those. And RME's latest SteadyClock III technology ensures perfect jitter reduction and stable clocking, no matter if internal or external clocks are used.

High Resolution Display Operation
RME have incorporated many unique features, not found on any comparable devices, like 5-band parametric EQs for fully individual phones compensation, adjustable Bass/Treble controls with quick access, a binaural crossfeed function, adjustable loudness filter, selectable AD/DA filters, four discrete I/O reference levels, auto reference level setting, auto balanced phones mode, and many more. The display is not only used to control the unit, but also shows warning and guidance messages.

Professional features such as M/S Processing, stereo width and phase reversal up to full control and storage of all settings are included, as well as RME's famous Spectral Analyzer, a 30-band biquad filtered analysis tool offering unprecedented musical visualization, perfectly complementing the high-resolution IPS display.

Extreme Power Headphone Outputs
There is no use in boasting about -110 dB THD, when such values are not available in real world operation - for example when a 32 ohm headphone is connected. RME's engineers therefore designed a new headphone output stage that brings the full performance of the premium DAC to the phone jack - even when using low impedance headphones. The Extreme Power design excels with 0.1 Ohm output impedance, a maximum output level of +22 dBu, and a maximum output power of 1.5 Watts - per channel! The two, fully separated stereo headphone outputs deliver the same 120 dBA SNR performance as the line outputs, for a full hum and noise free listening experience. THD is far below -100 dB (0.001%) even at full power, for the most clear and detailed soundstage possible. The Extreme Power design also incorporates current limiting, power surveillance, overload detection and DC protection. A low power mode and a high power mode are provided, for a perfect match from IEM up to planar.

Having two stereo outputs, balanced headphone operation is possible. As RME's engineers were not satisfied with the existing techniques they developed a new Advanced Balanced mode for the ADI-2 Pro, that removes most limitations of standard balanced operation, and turns this mode into a a fully new experience. The exclusive Advanced Balanced mode delivers a balanced signal path from the DAC straight to the phone, with 3 dB gain in Signal to Noise Ratio, smoothed out deviations in components, optimized frequency response, super low output impedance (0.2 Ohms), and a maximum output level of +28 (twenty eight) dBu.

The Anniversary Converter
The ADI-2 Pro is RME's reference AD/DA converter, USB DAC, USB interface and headphone amp. It's numerous use cases make it an ideal choice in many fields, from the home user appreciating innovative solutions offering highest sound quality, the studio owner asking for reference AD/DA conversion, the Hi-Fi enthusiast demanding a flexible yet high-end headphone amplifier, up to the industry using the portable device as front-end for measurement systems. 20 years of RME - cumulated into a precious unit, that once heard and used one will never give away. Promised.

Special features
New extended Multi-Remote Support (MRC)
The ADI-2 Pro remote control provides buttons for standby on/off, volume, balance, bass and treble, input selection (optical, coaxial, USB), mute, on/off loudness, bass/treble and EQ. In addition, there are four programmable buttons that provide access to 52 different functions and commands for maximum flexibility. There is no other converter or comparable device with such a sophisticated, easy to use and at the same time versatile remote control!

Optional Accessories:

  • NT-RME-2 (lockable)
  • Power supply for ADI-2 Pro. Robust and light-weight switching power supply, 100 V-240 V AC, 12 V 2 A DC. Lockable DC connector.
  • BO968 Digital breakout cable (9-pin D-sub to 2 x XLR and 2 x RCA)
  • Unirack Universal rackmount adapter (tub for two 9.5" devices)

More +

Product Specs

Analog Inputs
XLR
InputXLR, servo-balanced
Input sensitivity switchable+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Digital Trim Gain range0 dB up to +6 dB
Signal to Noise ratio (SNR) @ +13/19/24 dBu120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu119 dB RMS unweighted, 123 dBA
Frequency response @ 44.1 kHz, -0.1 dB5 Hz - 20.5 kHz
Frequency response @ 96 kHz, -0.5 dB3 Hz - 45.5 kHz
Frequency response @ 192 kHz, -1 dB2 Hz - 92.7 kHz
Frequency response @ 384 kHz, -1 dB< 1 Hz - 124 kHz
Frequency response @ 768 kHz, -3 dB< 1 Hz - 180 kHz
THD @ -1 dBFS-116 dB, 0.00016 %
THD @ -10 dBFS-125 dB, 0.000056 %
Channel separation> 110 dB
TRS
As input XLR, but
Input6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA
Analog Outputs
1/2 XLR
Output level switchable+24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
Signal to Noise ratio (SNR) @ +13/19/24 dBu120 dB RMS unweighted, 124 dBA
Signal to Noise ratio (SNR) @ +4 dBu117 dB RMS unweighted, 120 dBA
Frequency response @ 44.1 kHz, -0.1 dB0 Hz - 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB0 Hz - 44.9 kHz
Frequency response @ 192 kHz, -1 dB0 Hz - 88 kHz
Frequency response @ 384 kHz, -1 dB0 Hz - 115 kHz
Frequency response @ 768 kHz, -3 dB0 Hz - 109 kHz
THD @ 0 dBFS< -120 dB, 0.0001 %
THD+N @ 0 dBFS-115 dB, 0.00018 %
Channel separation> 110 dB
Output impedance200 Ohm balanced, 100 Ohm unbalanced
1/2 TS (rear)
As output XLR, but
Output6.3 mm TS jack, unbalanced
Maximum output level+19 dBu
Signal to Noise ratio (SNR) @ +19 dBu120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +13 dBu118 dB RMS unweighted, 121 dBA
Signal to Noise ratio (SNR) @ +4 dBu115 dB RMS unweighted, 118 dBA
Output impedance100 Ohm
Phones 1/2
As Output 1/2 TS, but
Output6.3 mm TRS jack, unbalanced, stereo
Output impedance0.1 Ohm
Signal to Noise ratio (SNR) @ +22 dBu120 dB RMS unweighted, 123 dBA
Signal to Noise ratio (SNR) @ +7 dBu118 dB RMS unweighted, 121 dBA
Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up+22 dBu (10 V)
Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up+7 dBu (1.73 V)
THD @ +18 dBu, 32 Ohm load, 1.2 Watt-110 dB, 0.0003 %
THD+N @ + 18 dBu, 32 Ohm load-107 dB, 0.00045 %
THD @ +14 dBu, 16 Ohm load, 0.94 Watt-110 dB, 0.0003 %
Max power @ 0.001% THD1.5 W per channel
Output Phones 3/4
As Output Phones 1/2, but
Output levels at 0 dBFSHi-Power off +7 dBu, Hi-Power On +22 dBu
Balanced Phones mode
As before, but
Output levels at 0 dBFSHi-Power off +13 dBu (3.46 V), Hi-Power On +28 dBu (19.5 V)
Output impedance0.2 Ohm
Signal to Noise ratio (SNR) @ +28 dBu123 dB RMS unweighted, 126 dBA
Signal to Noise ratio (SNR) @ +13 dBu121 dB RMS unweighted, 125 dBA
Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up+28 dBu (19.5 V)
Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up+13 dBu (3.46 V)
Max power @ 0.001% THD2.9 W per channel
Digital Inputs
General
Lock Range28 kHz - 200 kHz
Jitter suppression> 50 dB (2.4 kHz)
AcceptsConsumer and Professional format
AES/EBU1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Input sensitivity1.0 Vpp
SPDIF coaxial1 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
SPDIF optical1 x optical, according to IEC 60958 - ADAT compatible
Digital Outputs
AES/EBU1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level2.7 Vpp
FormatProfessional according to AES3-1992 Amendment 4
Single Wire modesample rate 28 kHz up to 200 kHz
SPDIF coaxial
1 x RCAaccording to IEC 60958
Output level0.75 Vpp
FormatConsumer SPDIF according to IEC 60958
Single Wire modesample rate 28 kHz up to 200 kHz
SPDIF optical
1 x opticalaccording to IEC 60958
FormatConsumer (SPDIF) according to IEC 60958
Sample rate28 kHz up to 200 kHz
Digital
ClocksInternal, AES In, SPDIF In, ADAT In
Jitter suppression of external clocks> 50 dB (2.4 kHz)
Effective clock jitter influence on AD and DA conversionnear zero
PLL ensures zero dropout, even at more than 100 ns jitter
Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates for external clocks32 kHz up to 200
Internally supported sample rates44.1 kHz up to 768 kHz
General
Included power supplyexternal switching PSU, 100 - 240 V AC, 2 A, 24 Watts
Standby power consumption50 mW
Idle power consumption10 Watts
Max. power consumption: 22 Watts
Idle current at 12 V850 mA (10 Watts)
Dimensions (WxHxD)215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
Weight1.0 kg ( 2.2 lbs)
Temperature range+5° up to +50° Celsius (41° F up to 122°F)
Relative humidity< 75%, non condensing
