RME ADI6432 24 Bit 192KHz 2x64 Channel MADI to AES Converter

  • Dale #:

    RME-ADI6432
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

RMEs ADI-6432 offers 64 channels of format conversion from MADI to AES and vice versa. Typical applications include two ADI-6432 used as digital multicore, or one unit used as AES/EBU frontend for the Hammerfall DSP MADI PCI card. Up to 192 kHz at 24-Bit are supported. Built with 2 units height t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

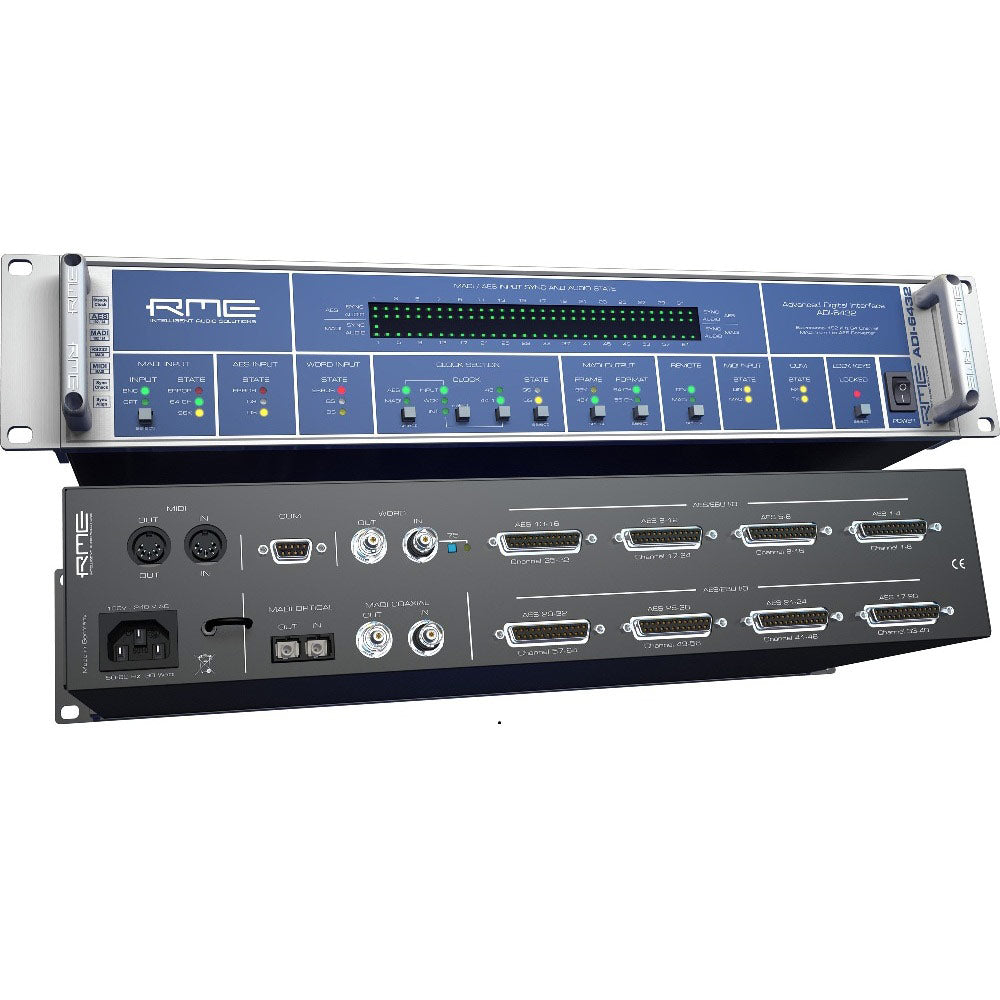

RMEs ADI-6432 offers 64 channels of format conversion from MADI to AES and vice versa. Typical applications include two ADI-6432 used as digital multicore, or one unit used as AES/EBU frontend for the Hammerfall DSP MADI PCI card. Up to 192 kHz at 24-Bit are supported. Built with 2 units height there is enough space for all connectors and control elements.The compact unit with 19" width and 2 unit height serves as format converter MADI to/from AES (schematic view). MADI handles 64 channels of 24-Bit audio at sampling frequencies up to 48 kHz, 32 channels up to 96 kHz, and 16 channels up to 192 kHz. All channels are transferred across a single cable, either coaxial (BNC) or optical network cable. In both cases, cable lengths of more than 100 meters can be achieved. The AES/EBU channels are provided as 32 AES/EBU inputs and outputs via D-sub connectors. The ADI-6432 accepts 56 channels and 64 channels as well as 96k frame at its input, and can be set to generate those formats at its output.

Features

  • Support for up to 192 kHz with MADI and AES
  • Unique status displays for MADI and AES
  • SteadyClock for maximum jitter reduction and clock regeneration
  • Completely remote controlable via MIDI
  • Transfer of MIDI data via MADI
  • Transfer of RS232 data via MADI
  • 1 x MADI I/O (optical and coaxial)

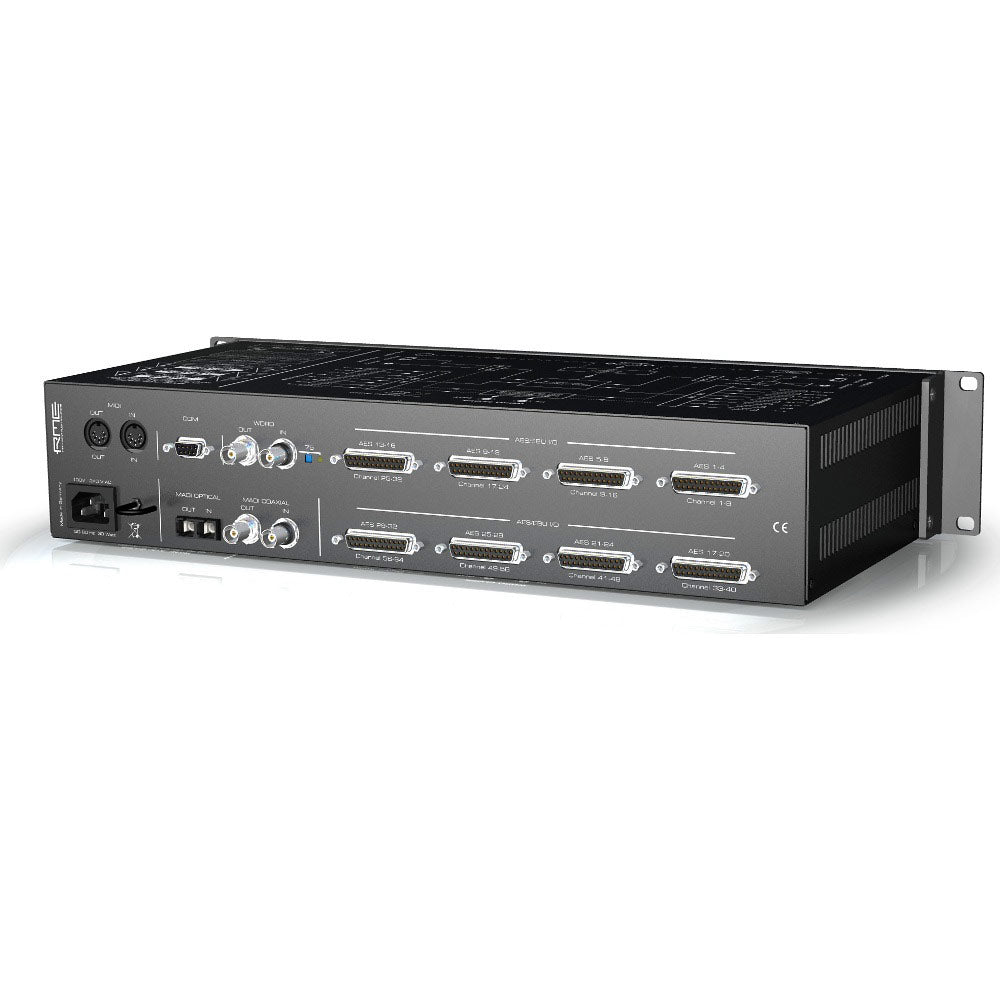

  • 32 x AES/EBU I/O (2 x 4 SUB-D)
  • 1 x MIDI I/O
  • Com-Port I/O (RS-232)
  • Word Clock I/O

RMEs SteadyClock(TM) lets the ADI-6432 use MADI without an additional word clock connection, and guarantees excellent clock quality in every situation. Due to the highly efficient jitter reduction, any clock signal - even AES and word clock - can be improved and refreshed, and subsequently be used as reference clock at the word clock output. Intelligent Clock Control (ICC) will retain the last valid sample frequency in case of a loss of the input signal.The ADI-6432 supplies word clock in Single, Double und Quad Speed, distributes Double Wire 96 kHz signals into the MADI data stream, and even supports the double MADI sample rate (96K frame). The SyncAlign ® and SyncCheck ® technologies known from other RME products ensure perfect synchronization and clear detection of errors. Also multiple units can be stacked and operated sample-aligned, using word clock. All settings are stored when the unit is switched off.

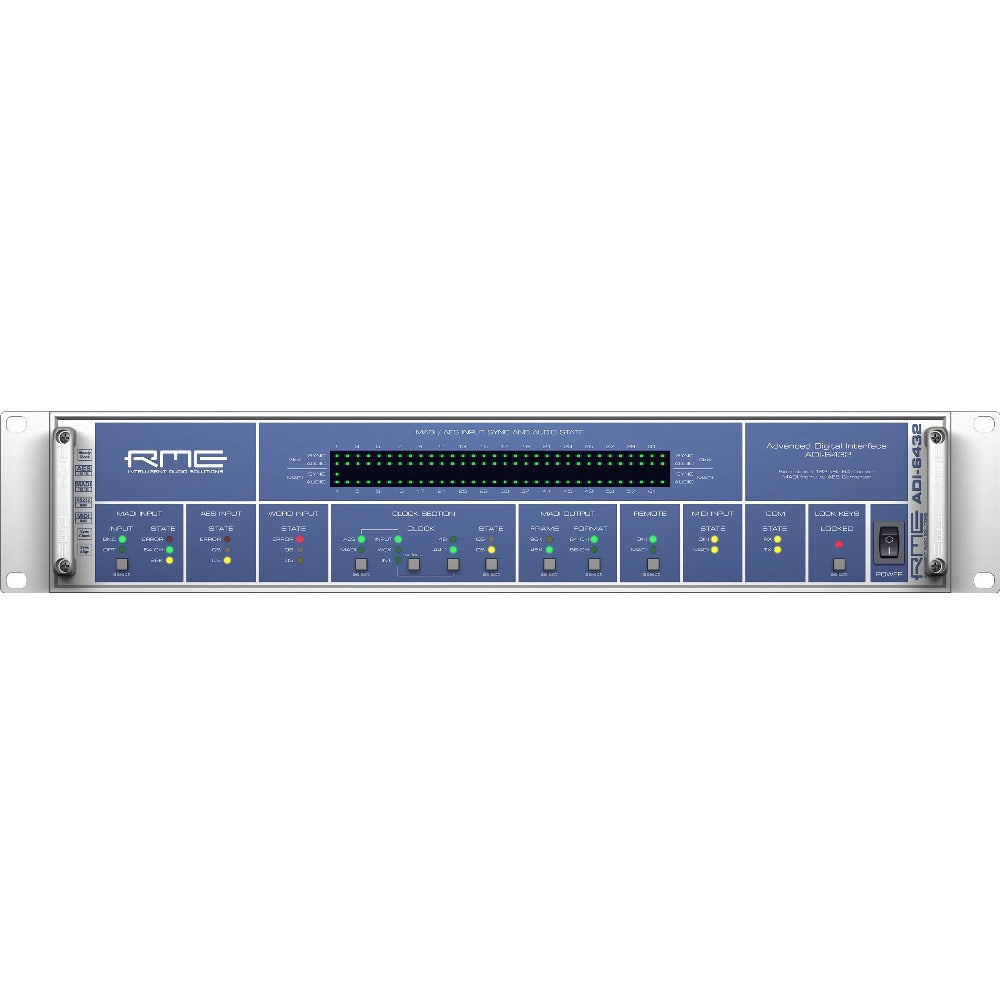

A fully automatic input selection between optical and coaxial input offers a useful redundancy mode for critical applications. Extensive status displays give information about lock and sync states, audio content and the physical quality of the incoming signal.The front panel features an exciting and detailed sync and audio state display with 97 LEDs. Furthermore every function has its own keys accompanied by clear function LEDs. Especially in a professional application, exact, quick and direct control and display of all incoming and outgoing signals, including MIDI and RS232, becomes indispensable. Errors can be detected at a glance. The control keys can be locked to prevent accidental changing of settings.

More +

Product Specs

Input MADI1 x BNC, 1 x optical
Input AES/EBU32 x, 4 x per D-sub connector, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible
Output AES/EBU32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
Input word clockBNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
Output word clockBNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
MIDI input and outputvia two 5-pin DIN jacks
COM portRS232 via 9-pin D-sub, 9600/19200/115200 Baud
Sync sourcesMADI, AES, word clock, internal
Varipitchby input signal or word clock
Sample frequencies44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
Sample rate rangeMADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
JitterInternal Clock < 1 ns, Word Clock In < 2 ns, AES/EBU In < 2 ns
Jitter suppression>30 dB (2.4 kHz)
Jitter sensitivityall PLLs operate error-free even at 100 ns
Power supplyInternal switching mode PS, 100V - 240V AC, 20 Watt
Dimensions(WxHxD) 483 x 88 x 200 mm
Warranty2 years

More +
