Description

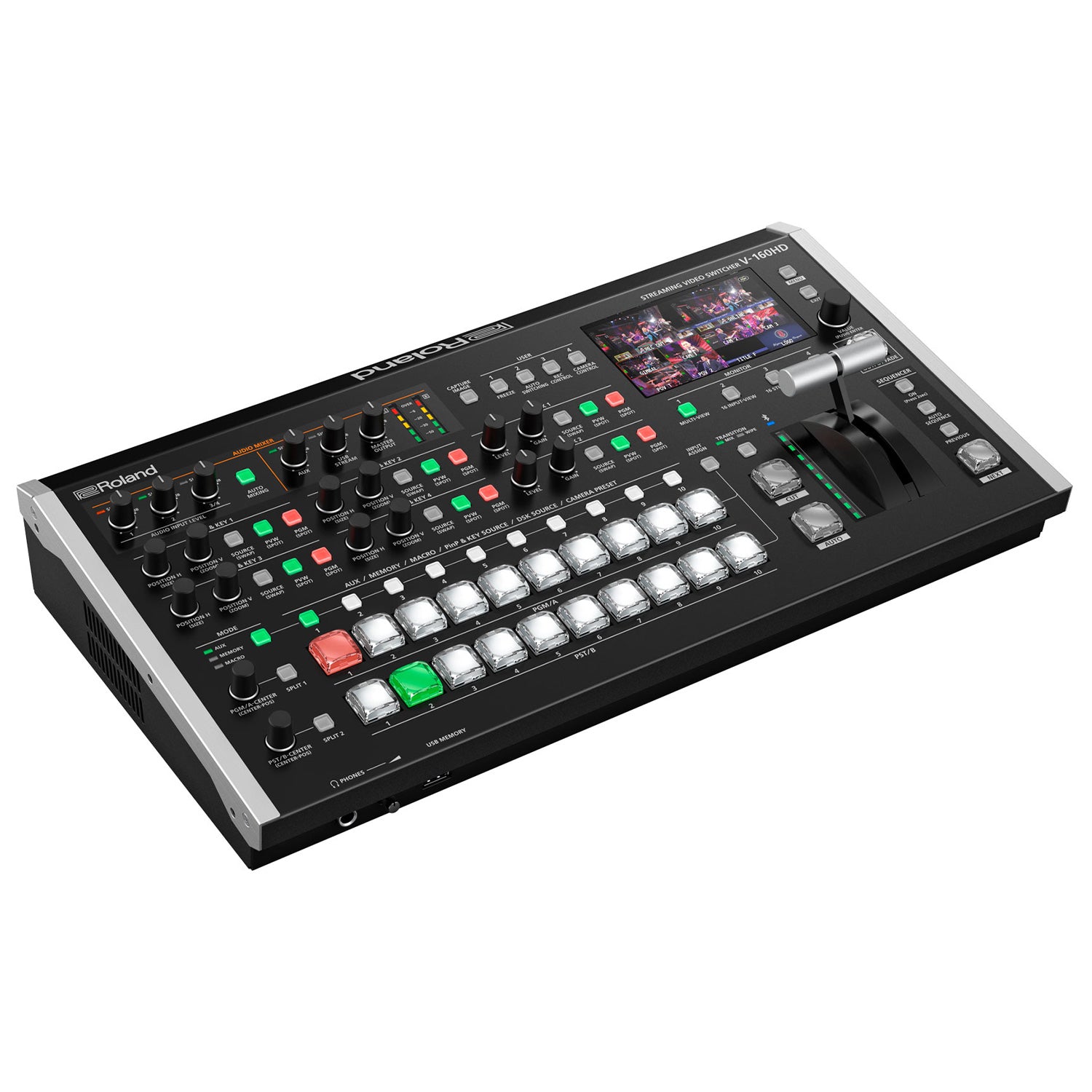

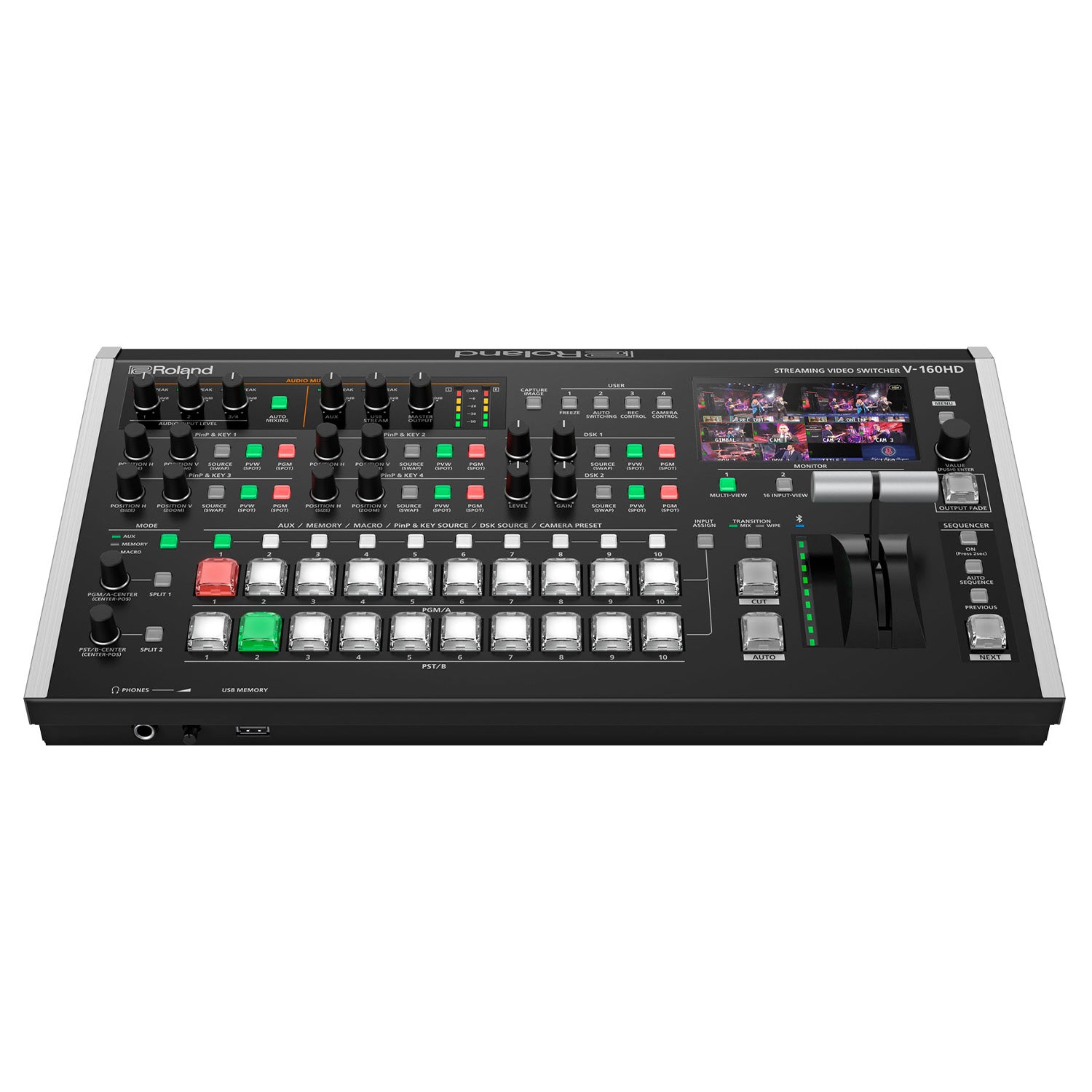

Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There's also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. And everything's all wrapped up in a portable design with a broadcast-style interface that's easily handled by a single operator.
Features:
Version 2.0 New Features
With the Version 2.0 update, the V-160HD continues to evolve with more video output formats, composition layers assignable to the Aux bus, macro recording enhancements, dissolve and PGM/PST (20) switching modes, and more.
Hybrid to the Max
The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
On-demand signal processing means you never have to worry about issues like computer CPU overhead, latency, and output delay on live audience screens.
Integrated connectivity standards like SDI, HDMI, XLR, and USB-C eliminate the need to build out costly infrastructure and conversion processes.

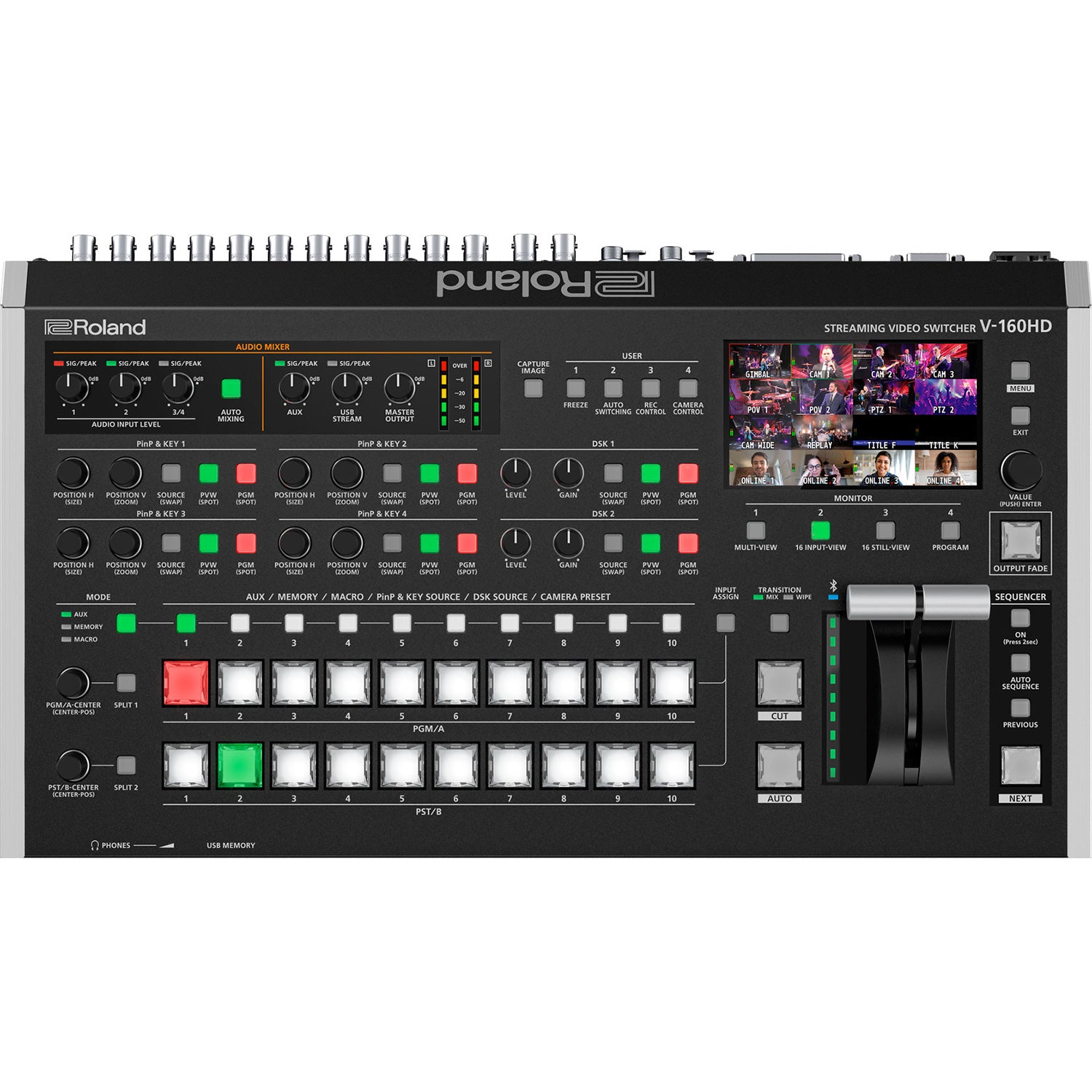

The comprehensive interface provides hands-on controls that can be learned quickly by a single operator.
Presets, macros, and advanced sequencing features let you set up and automate complex switching tasks with one touch.
HDMI and SDI Connectivity
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Send to Multiple Destinations
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a "clean" output left over for a recording feed.
Instant Recall
Storing and recalling custom looks can be accomplished with just a few button presses on the V-160HD.
One-Touch Automation
The V-160HD's newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD's sequencer, you can tackle the most complex events without ever breaking a sweat.
Powerful Video Effects Engine
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD's effects engine features eight composition layers that can be assigned to the Program, Sub-Program, and Aux outs, so you'll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client. For example:
Powerful Video Effects Engine
Layers 1-2: Start with a mixable live background video layer.
Layers 3-6: Place four picture-in-picture layers or chroma/luminance key effects.
Layers 7-8: Add two downstream keyers with support for fill and key inputs.
Stream Live
The V-160HD uses the same connection technology as webcams,* allowing you to stream events at 23.98 to 60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
*USB video class (UVC) and USB audio class (UAC) compliant.
**YUY2 (uncompressed) and Motion JPEG (compressed) formats supported.
Sonic Perfection
The V-160HD features a 40-channel digital audio mixer with studio-grade sound quality. Mix any embedded audio signal pair (1/2, 3/4, 5/6, 7/8) from each of the 16 video inputs, microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs, and USB-C audio. And with the convenience of onboard Bluetooth, it's possible to wirelessly stream music and other sound sources from a phone or tablet as well. There's also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Extensive PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple camera operators, provide great production coverage with studio-grade broadcast quality, and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to 16 PTZ cameras simultaneously.
Complete Control
The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB including 10-key numeric keypad, RS-232, tally/GPIO, support for foot-controlled operation, and more.
V-160HD iPad Remote Control Utility
The dedicated V-160HD remote control app turns an iPad into an efficient touch interface for the V-160HD. Run essential switching functions, mix audio with virtual faders, change settings and parameters quickly and create up to 30 custom scenes for fast, efficient setup changes.
V-160HD RCS for macOS and Windows
With the V-160HD RCS application for macOS and Windows, you can control nearly all V-160HD functions remotely from your computer via USB, RS-232, wired LAN, or wireless LAN (Wi-Fi) connections. The V-160HD RCS can run at the same time as your streaming software over USB, allowing you to direct the entire production from your computer screen.
More +
Product Specs
VIDEO | |
Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
Number of Video Channels | 16 channels |
Video Input Formats | HDMI IN 1--4, SDI IN 1--8 HDMI IN 5--8 |
Video Output Formats | HDMI OUT 1--2, SDI OUT 1--3: HDMI OUT 3: USB STREAM: |
Still Image | Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color * It can be stored up to 16 files in the internal memory. * It can be exported in the USB flash drive. * PNG alpha channel supported. |
Video Effects | Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types) Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key) Others: Multi-View(3 types), Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output |
AUDIO | |
Audio Processing | Sample rate: 24 bits, 48 kHz |
Number of Audio Channels | 40 channels |
Audio Formats | USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M) SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M) |
Audio Effects | Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 3-Band equalizer, Voice changer, Delay, Auto mixing Master Effects: Reverb, 3-Band equalizer, Delay, Multi-band compressor, Limiter Others: Output fade, Test tone output |
COMMON SECTION | |
Other Functions | Preset Memory (30 types) Macro Control (100 types) Sequencer Control (1,000 steps) Panel lock function EDID Emulator Auto Switching Auto Input Detect Smart Tally Remote Camera Control (Up to 16 units) External Rec Control |

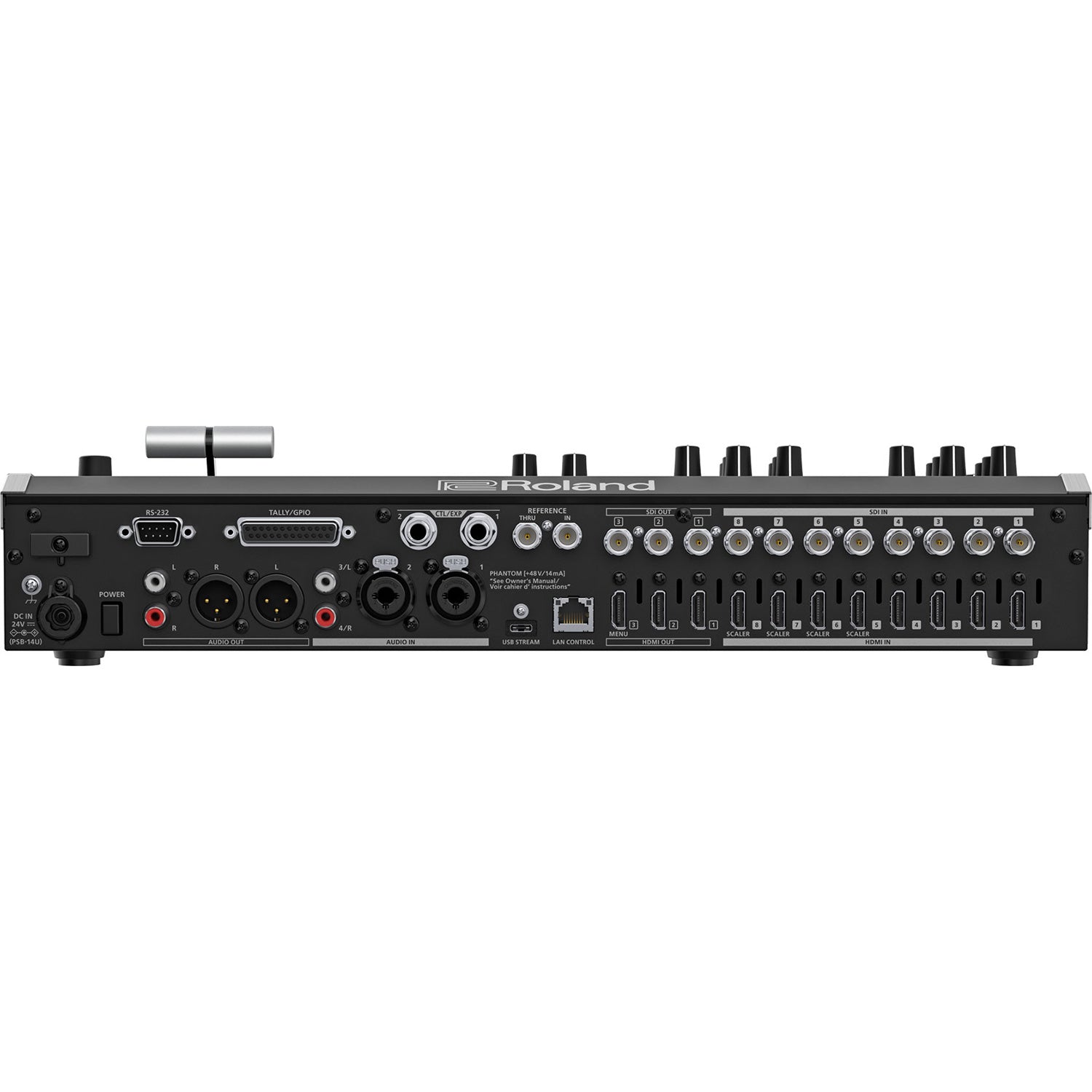

CONNECTORS | |
Video Input Connectors | HDMI IN 1--4: HDMI type A x 4 HDMI IN 5--8: HDMI type A x 4 SDI IN 1--8: BNC type x 8 |
Video Output Connectors | HDMI OUT 1--3: HDMI type A x 3 SDI OUT 1--3: BNC type x 3 USB STREAM: USB Type-C (TM) |
Audio Input Connectors | Analog: Digital: |
Audio Output Connectors | Analog: Digital: |
Other Connectors | USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad) USB STREAM: USB Type-C (TM) (for remote control from PC and iPad) Bluetooth: for remote control from iPad CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal) TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8) RS-232: DB-9 type (Male) (for Remote Control) LAN CONTROL: RJ45 100BASE-TX (for Remote Control) Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level |
AUDIO INPUT/OUTPUT CHARACTERISTICS | |
Input Level | AUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu) AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu) |
Input Impedance | AUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧ 24dBu) AUDIO IN 3/L, 4/R: 47 k ohms |
Output Level | AUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu) AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu) PHONES: 92 mW + 92 mW (32 ohms) |
Output Impedance | AUDIO OUT (XLR): 600 ohms AUDIO OUT (RCA): 1 k ohm PHONES: 10 ohms |
OTHERS | |
Bluetooth | Ver 4.2 Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy) Codec: SBC (Support to the content protection of the SCMS-T method) |
Display | 4.3 inches TFT Color LCD: 480 x 272 dots |
Power Supply | AC Adaptor |
Current Draw | 2.5 A |
Power Consumption | 55 W |
Operation Temperature | +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit |
Dimensions | 437 (W) x 253 (D) x 103 (H) mm 480 (W) x 253 (D) x 103 (H) mm |
Weight (excluding AC adaptor) | 3.9 kg 8 lbs 10 oz |
Accessories | Startup Guide Leaflet "USING THE UNIT SAFELY" AC adaptor Power cord Rack-mount angle x 2 Rack-mount angle mounting screw x 6 |
Options (sold separately) | Footswitch: BOSS FS-5U, FS-6, FS-7 Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H |
