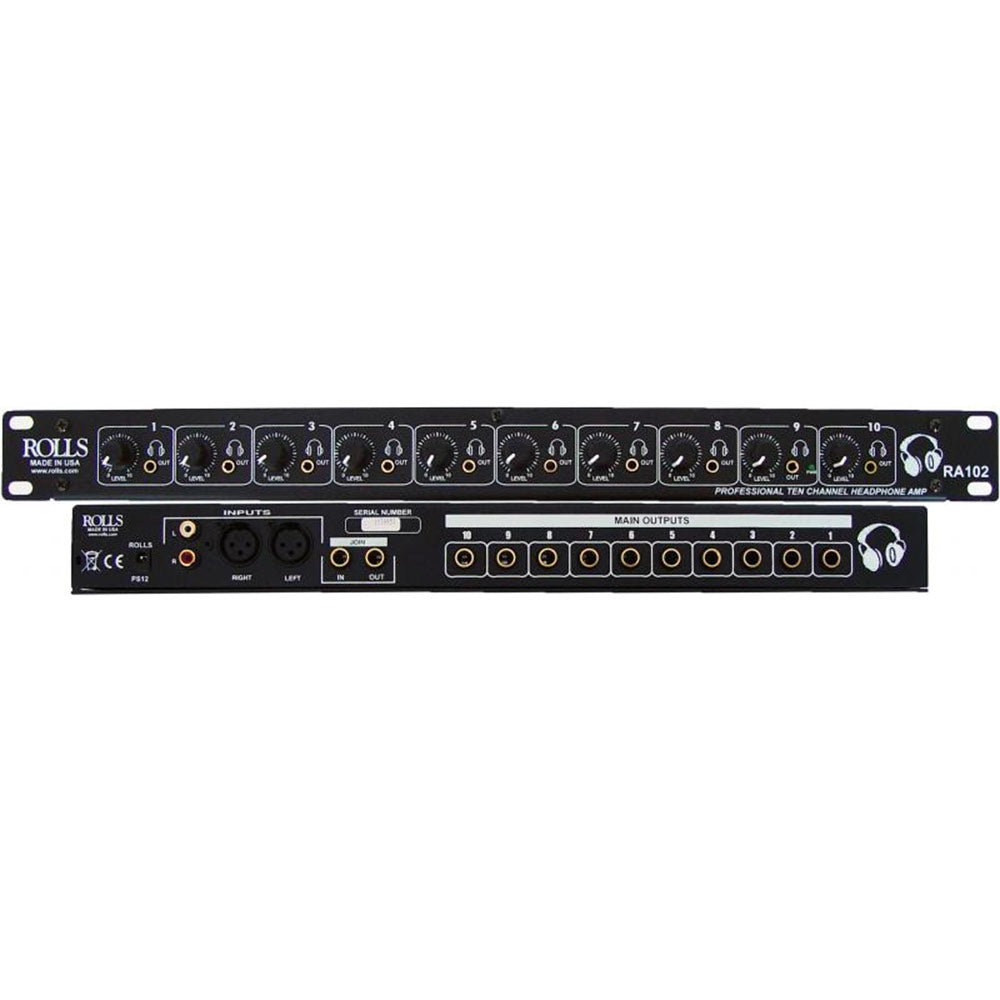

Rolls RA102 10-Channel Expandable Headphone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Rolls RA102 10-Channel Expandable Headphone Amplifier
Sale price$219.00
Regular price$309.00
Description
The RA102 is 10ch headphone amplifier that can be ganged together for as as many channels as desired. It has 1/8" stereo outputs on the front and 1/4" outs on the rear for installations all in a 1U space
Features:
- 1U Chassis to maximize your rack space
- Strain releif for AC adapter
- Both bal XLR and unbal RCA inputs
- Suitable for very wide range of headphones
- Join in and join out jacks for expanding to all the channels you want
| Input Impedance | 10K Ohms unbalanced |
| Max Input Level | +18 dBV |
| Input Connectors | RCA, R / L balanced XLR |
| Outputs | 10: 1/4" TRS Stereo jacks10: 1/8" (3.5 mm) TRS Stereo jacks |
| Max Gain | 20 dB/Channel |
| Frequency Response | 20 Hz - 30 kHz |
| S/N Ratio | 90 dB |
| THD | <.008% |
| IMD | <.008% |
| Phase Shift (In to Out) | 0 deg. |
| Slew Rate | 2 V per microsecond |
| Crosstalk | - 65 dB |
| Weight | 7 lbs (3KG) |
| Size | 19Ó x 1.75Ó x 3.125Ó (48cm x 4.5cm x 17cm) |
| Headphone impedance | 8 Ohms to 1000 Ohms |
The RA102 is 10ch headphone amplifier that can be ganged together for as as many channels as desired. It has 1/8" stereo outputs on the front and 1/4" outs on the rear for installations all in a 1U space
Features:
- 1U Chassis to maximize your rack space
- Strain releif for AC adapter
- Both bal XLR and unbal RCA inputs
- Suitable for very wide range of headphones
- Join in and join out jacks for expanding to all the channels you want
| Input Impedance | 10K Ohms unbalanced |
| Max Input Level | +18 dBV |
| Input Connectors | RCA, R / L balanced XLR |
| Outputs | 10: 1/4" TRS Stereo jacks10: 1/8" (3.5 mm) TRS Stereo jacks |
| Max Gain | 20 dB/Channel |
| Frequency Response | 20 Hz - 30 kHz |
| S/N Ratio | 90 dB |
| THD | <.008% |
| IMD | <.008% |
| Phase Shift (In to Out) | 0 deg. |
| Slew Rate | 2 V per microsecond |
| Crosstalk | - 65 dB |
| Weight | 7 lbs (3KG) |
| Size | 19Ó x 1.75Ó x 3.125Ó (48cm x 4.5cm x 17cm) |
| Headphone impedance | 8 Ohms to 1000 Ohms |
