RTW TM3-3GS TouchMonitor Smart - Desktop Loudness Monitor
Dale #:
RTW-TM33GSAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Our Price: $2,817.50
Shipping Charges Apply
Suggested Accessories
Description

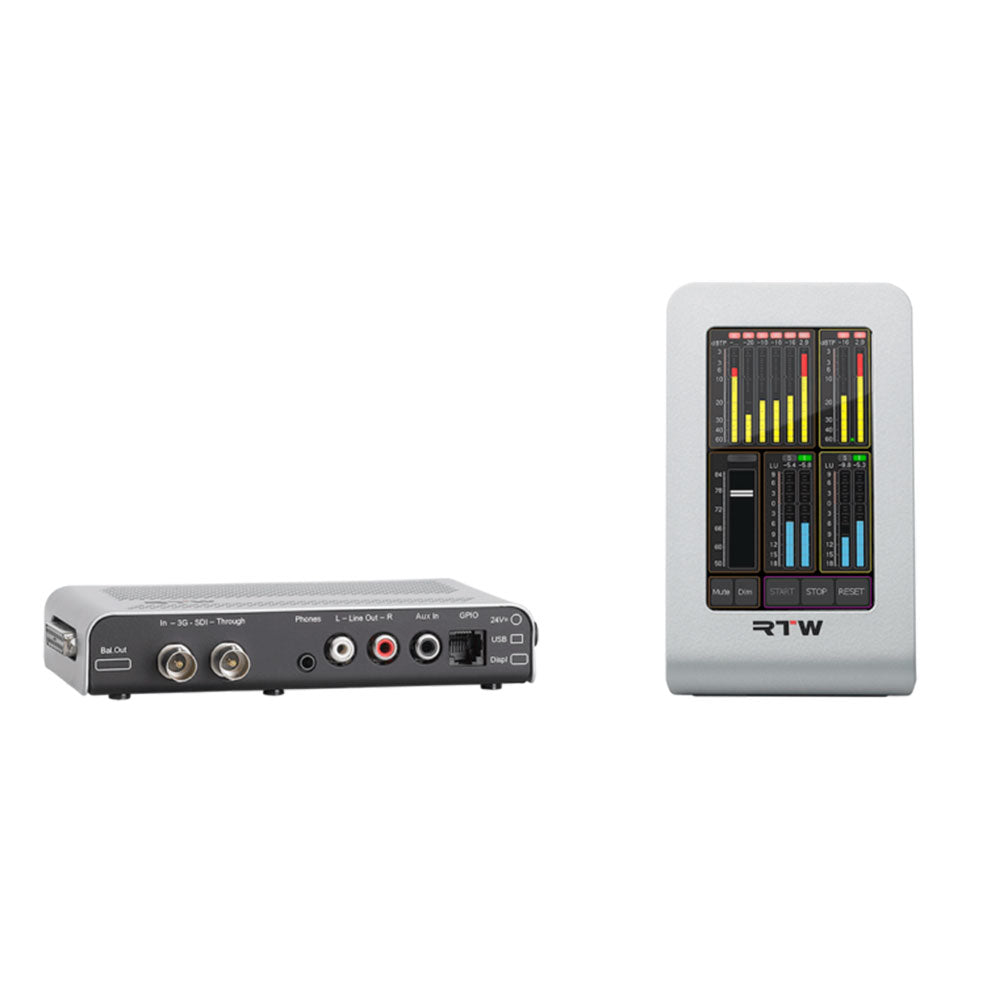

The TouchMonitor TM3-3G Smart (TM3-3GS) unit consists of a display with fixed cable for data exchange and supply voltage, a remote 3G-SDI interface box with processor and connectors, expanded software, and a mains adapter.
The TM3-3G Smart with full feature set is a compact and versatile out-of-the-box solution for metering, deembedding and monitoring of 3G-SDI audio signals using a 4.3" touch screen for vertical or horizontal use. The TM3-3G Smart's flexible user interface allows for quick and simple preset selection as well as setting the monitoring level.
The Unit
The compact TM3-3G Smart consists of a display unit for vertical or horizontal use and a remote interface box. With its integrated 3G-SDI deembedder interface, the TM3-3G displays level and loudness of any eight 3G-SDI audio channels. Independently from this, up to 16 SDI audio signals can be sent to eight AES3 outputs. TM3-3G Smart's flexible user interface allows the selection of presets quickly and simply with just a finger swipe. The contained comprehensive set of factory presets present a cross-section of the applications, audio connections and standards and allow you to start working right out of the box.
The Devicer Software
Presets can be configured in detail using the Devicer DC1 for Mac OS X® or Windows®. The Devicer's GUI lets you select, configure and position the instruments you need in a convenient way. The screen layout can be previewed any time so that you always see how your preset will look like on the TM3-3G Smart. Furthermore, Devicer DC1 allows to create several configuration sets with different presets, which may be uploaded to TM3-3G Smart as required.
The Instruments
Besides PPM and True Peak instruments, the TM3-3G Smart features comprehensive loudness measuring features conforming to all relevant international standards (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act). Loudness instruments include single-channel and summing bargraphs, loudness range, loudness chart (TP, M, S, or I value over time), and numerical displays. Moving Coil instruments display stereo signals with different scales and modes (PPM, VU, Loudness, BBC). With the Monitoring instrument an onscreen level fader is available. And with the Timecode reader instrument an external or SDI timecode can be decoded and dipslayed.
Features:
- 4.3" Touch screen for vertical or horizontal use
- Flexible display layout with scalable instruments
- Separate 3G-SDI interface box with audio I/O, USB, GPIO
- 8-channel level and loudness display
- Loudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific
- Loudness Test Time Control
- Monitoring controller with onscreen level fader
- Stereo Line Out and stereo headphone out
- 16-channel 3G-SDI deembedder with 8 x AES3 out
- Moving Coil instruments
- Single channel and summing loudness bargraphs
- Loudness Test Time Control
- Loudness range (LRA) with MagicLRA
- Loudness chart
- Timecode Reader
- PPM and True Peak
- SPL and Dialnorm
- Correlation
- Numerical display
- Comprehensive set of presets
- Personalization with Devicer DC1
More +
Product Specs
| Display Unit (Screen) | 4,3" capacitive touch screen Flexible screen layout with scalable instruments Vertical or horizontal operation Fixed cable (approx. 2 m) |
| 3G-SDI Interface Box (Connection Options) | Digital 3G-SDI input via BNC (3G-SDI In, unbalanced) Digital 3G-SDI output via BNC (3G-SDI Through, unbalanced, input signal active looped through without processing) Analog 2-channel Stereo headphone output via 3.5 mm jack (unbalanced), controllable with optional Monitoring licence Analog 2-channel Stereo output via 2 x RCA (Line Out, unbalanced), controllable with optional Monitoring licence Analog Aux input via RCA (Aux In, unbalanced), controllable with optional Timecode reader licence 8 digital AES3 outputs via 25-pin Sub-D (balanced), controllable with optional Deembedded out licence Full speed USB 2.0 connection vis USB Mini-B socket for data exchange between TM3-3GS and Devicer DC1 GPIO connection via RJ-12 (6P6C) socket Locking 4-pin low voltage connector (type Binder 710) for power supply |
| Dimensions of 3G-SDI interface box | 146 x 27 x 85 mm (W x H x D) |
| Software (Display Options) | Expanded software equals the software range of a fully equipped TM3-3G (basic software, all available licences, Chart instrument) 2-channel Stereo up to 8-channel, 3G-SDI audio signals alternatively selectable Mmaximum of 8 input channels can be displayed at a time Loudness metering acc. to EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, or customer specific Bargraphs for single channel and summed Loudness display Loudness Range (LRA) with MagicLRA Numerical Loudness display SPL meter Peak, True-Peak, and correlation measurement Comprehensive set of presets (personalizing with Devicer DC1) |
More +
