RTW TM3S + TM3-2U TouchMonitor Smart - Loudness Monitor with Mounting Panel
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

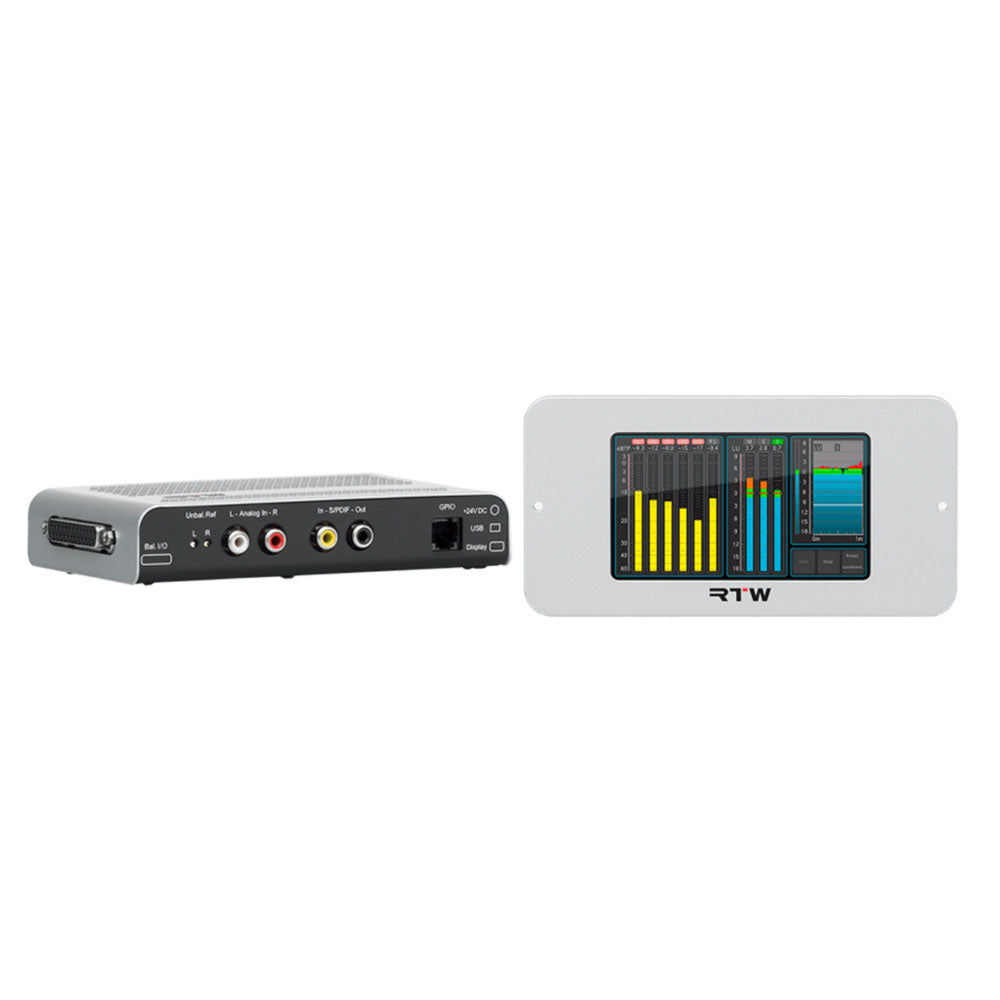

TM3S package includes display unit with mounting frame, USB extension cable, and mounting material.
The TouchMonitor TM3 Smart (TM3S) unit consists of a display with fixed cable for data exchange and supply voltage, a remote interface box with processor and connectors, expanded software, and a mains adapter.
The compact TM3 Smart with full feature set comes with a capacitive 4.3" touch screen and intuitive preset control at an affordable price. With its feature list, it is the ideal out-of-the box solution for editorial offices, edit suites, small control rooms, and all applications with the need of easy readable loudness-compliant level control.
The Unit
TM3 Smart consists of a display unit for vertical or horizontal use and a remote interface box. It handles analog or digital stereo signals and digital 6-channel signals. TM3 Smart's flexible user interface allows the selection of presets quickly and simply with just a finger swipe. The contained factory presets present a cross-section of the applications, audio connections and standards and allow you to start working right out of the box.
The Devicer Software
When it comes to configuring local presets using the Devicer DC1 software application (Windows® and Mac OS X® compatible), the TM3 Smart's power and flexibility really shines. Existing presets easily can be personalized and adapted to individual needs. Furthermore, Devicer DC1 allows to create several configuration sets with different presets, which may be uploaded to TM3 Smart as required.
The Instruments
Besides PPM and True Peak instruments, the TM3 Smart features comprehensive loudness measuring features conforming to all relevant international standards (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act). Loudness instruments include single-channel and summing bargraphs, loudness range, loudness chart (TP, M, S, or I value over time), and numerical displays. Moving Coil instruments display stereo signals with different scales and modes (PPM, VU, Loudness, BBC). And with the Timecode reader instrument a timecode from an external analog or digital source can be decoded and dipslayed.
Features:
- 4.3-inch Touch screen for vertical or horizontal use
- Flexible display layout with scalable instruments
- Separate interface box with audio I/O, USB, GPIO
- Audio: analog balanced or unbalanced, S/PDIF, 3 x AES3
- Stereo/6-channel operation
- Moving Coil instruments
- Loudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific
- Single channel and summing loudness bargraphs
- Loudness Test Time Control
- Loudness range (LRA) with MagicLRA
- Loudness chart
- Timecode Reader
- PPM and True Peak
- SPL and Dialnorm
- Correlation
- Numerical display
- Comprehensive set of presets
- Personalization with Devicer DC1
| Display Unit (Screen) | 4,3" capacitive touch screen Flexible screen layout with scalable instruments Vertical or horizontal operation Fixed cable (approx. 2 m) |
| Interface Box (Connection Options) | Analog Stereo input (channels L and R) via 2 x RCA (unbalanced), with potentiometers adjustable from 150 mV to 30 V or analog Stereo input (channels L and R) via 25-pin Sub-D (balanced), +4/+6 dBu, with software adjustable from 0 to +10 dBu Cannot be used in parallel! S/PDIF input via RCA and output via RCA (unbalanced, 75 ohm) 3 digital AES3 inputs and 3 digital outputs via 25-pin Sub-D (balanced, 110 ohm) Full speed USB 2.0 connection vis USB Mini-B socket for data exchange between TM3S and Devicer DC1 GPIO connection via RJ-12 (6P6C) socket Locking 4-pin low voltage connector (type Binder 710) for power supply Dimensions of interface box: 146 x 27 x 85 mm (W x H x D) |
| Software (Display Options) | Expanded software equals the software range of a fully equipped TM3 (basic software, all available licences, Chart instrument) 6-channel (2-Kanal-Stereo, Mehrkanal, 5.1), input sources alternatively selectable Maximum of 6 input channels can be displayed at a time Loudness metering acc. to EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, or customer specific Bargraphs for single channel and summed Loudness display Loudness Range (LRA) with "MagicLRA" Loudness Chart Numerical Loudness display SPL meter Peak, True-Peak, and correlation measurement Moving Coil Dialnorm measurement Timecode Reader Comprehensive set of presets (personalizing with Devicer DC1) |
TM3S package includes display unit with mounting frame, USB extension cable, and mounting material.
The TouchMonitor TM3 Smart (TM3S) unit consists of a display with fixed cable for data exchange and supply voltage, a remote interface box with processor and connectors, expanded software, and a mains adapter.
The compact TM3 Smart with full feature set comes with a capacitive 4.3" touch screen and intuitive preset control at an affordable price. With its feature list, it is the ideal out-of-the box solution for editorial offices, edit suites, small control rooms, and all applications with the need of easy readable loudness-compliant level control.
The Unit
TM3 Smart consists of a display unit for vertical or horizontal use and a remote interface box. It handles analog or digital stereo signals and digital 6-channel signals. TM3 Smart's flexible user interface allows the selection of presets quickly and simply with just a finger swipe. The contained factory presets present a cross-section of the applications, audio connections and standards and allow you to start working right out of the box.
The Devicer Software
When it comes to configuring local presets using the Devicer DC1 software application (Windows® and Mac OS X® compatible), the TM3 Smart's power and flexibility really shines. Existing presets easily can be personalized and adapted to individual needs. Furthermore, Devicer DC1 allows to create several configuration sets with different presets, which may be uploaded to TM3 Smart as required.
The Instruments
Besides PPM and True Peak instruments, the TM3 Smart features comprehensive loudness measuring features conforming to all relevant international standards (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act). Loudness instruments include single-channel and summing bargraphs, loudness range, loudness chart (TP, M, S, or I value over time), and numerical displays. Moving Coil instruments display stereo signals with different scales and modes (PPM, VU, Loudness, BBC). And with the Timecode reader instrument a timecode from an external analog or digital source can be decoded and dipslayed.
Features:
- 4.3-inch Touch screen for vertical or horizontal use
- Flexible display layout with scalable instruments
- Separate interface box with audio I/O, USB, GPIO
- Audio: analog balanced or unbalanced, S/PDIF, 3 x AES3
- Stereo/6-channel operation
- Moving Coil instruments
- Loudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specific
- Single channel and summing loudness bargraphs
- Loudness Test Time Control
- Loudness range (LRA) with MagicLRA
- Loudness chart
- Timecode Reader
- PPM and True Peak
- SPL and Dialnorm
- Correlation
- Numerical display
- Comprehensive set of presets
- Personalization with Devicer DC1
| Display Unit (Screen) | 4,3" capacitive touch screen Flexible screen layout with scalable instruments Vertical or horizontal operation Fixed cable (approx. 2 m) |
| Interface Box (Connection Options) | Analog Stereo input (channels L and R) via 2 x RCA (unbalanced), with potentiometers adjustable from 150 mV to 30 V or analog Stereo input (channels L and R) via 25-pin Sub-D (balanced), +4/+6 dBu, with software adjustable from 0 to +10 dBu Cannot be used in parallel! S/PDIF input via RCA and output via RCA (unbalanced, 75 ohm) 3 digital AES3 inputs and 3 digital outputs via 25-pin Sub-D (balanced, 110 ohm) Full speed USB 2.0 connection vis USB Mini-B socket for data exchange between TM3S and Devicer DC1 GPIO connection via RJ-12 (6P6C) socket Locking 4-pin low voltage connector (type Binder 710) for power supply Dimensions of interface box: 146 x 27 x 85 mm (W x H x D) |
| Software (Display Options) | Expanded software equals the software range of a fully equipped TM3 (basic software, all available licences, Chart instrument) 6-channel (2-Kanal-Stereo, Mehrkanal, 5.1), input sources alternatively selectable Maximum of 6 input channels can be displayed at a time Loudness metering acc. to EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, or customer specific Bargraphs for single channel and summed Loudness display Loudness Range (LRA) with "MagicLRA" Loudness Chart Numerical Loudness display SPL meter Peak, True-Peak, and correlation measurement Moving Coil Dialnorm measurement Timecode Reader Comprehensive set of presets (personalizing with Devicer DC1) |
